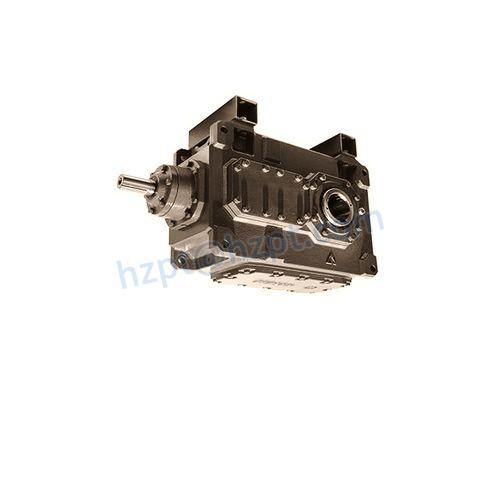

Power transmission EPHB series low speed reducer Presses helical bevel gearbox

Advantage:

1. High modular design
2. High load support, stable transmission, and low noise.
3. Good sealing performance and wide range of industrial applications.
4. High efficiency and power saving.
5. Cost saving and low maintenance.

main application:

1. Chemical stirrer
2. Lifting and transportation
3. Iron and steel metallurgy
4. Electricity
5. Coal mining
6. Cement and construction
7. Paper and Light Industry

Product Data

Housing material
Cast iron HT250
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears
HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 40CrMnTi alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementing, quenching, etc.
Efficiency
94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Tem
p. rise (MAX)
40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin























Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.
