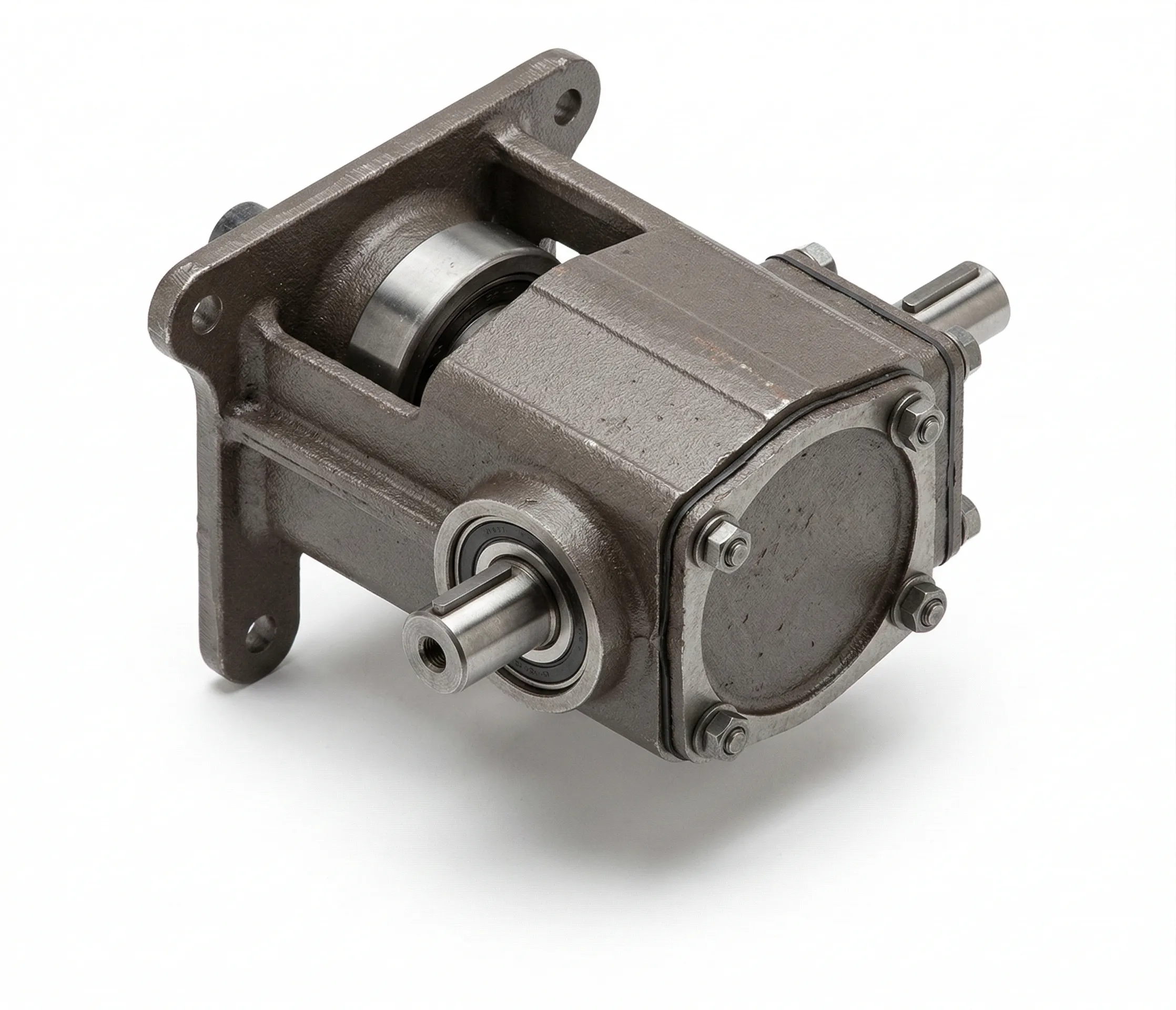

Premium Grain Unloading Transmission Box Assembly
EVER-POWER grain unloading transmission box assembly provides high-efficiency torque transfer for harvesters and auger systems. Built with 20CrMnTi alloy steel and HT250 cast iron, these premium rotavator parts ensure heat resistance and operational longevity. Optimize your harvesting throughput with our precision-engineered, dual-compatible agricultural gearbox solutions.
Engineered for high-efficiency power transfer and extreme durability in demanding agricultural environments.
Technical Product Parameters
The performance of any heavy-duty harvester or soil cultivation system relies on the precision of its internal driveline. Our grain unloading transmission box assembly is meticulously designed to bridge the gap between engine output and efficient crop handling. By utilizing a compact yet robust form factor, this assembly provides the necessary torque transformation required for seamless unloading operations. The internal architecture focuses on reducing frictional losses and heat buildup, which are the primary enemies of agricultural machinery. When integrated with high-quality rotavator parts, this transmission unit allows for a significant increase in operational throughput without compromising the safety of the mechanical system. Each parameter listed below is calibrated to meet international agricultural standards, ensuring that your machinery performs at its peak under varying soil and crop moisture conditions.
| Parameter Specification | Detailed Measurement / Standard |
|---|---|
| Housing Material | High-Strength HT250 Grey Cast Iron |
| Gear & Shaft Material | 20CrMnTi Alloy Steel (Heat Treated) |
| Transmission Ratio | 1:1 / 1:1.35 (Optional Customization Available) |
| Rated Input Power | 25HP - 60HP (Dependant on Drive Configuration) |
| Input Speed (Max) | 540 / 750 / 1000 RPM (Standard PTO Spline) |
| Weight (Approx.) | 11.5 kg - 14.8 kg (Unit Only) |
| Lubrication Type | GL-5 80W-90 High-Pressure Gear Oil |
Innovative Design Features & Material Superiority
Advanced Thermodynamics and Housing Integrity
The core innovation of the EVER-POWER transmission system lies in its thermodynamic management. Agricultural gearboxes often fail due to excessive heat softening the lubricant and accelerating gear wear. Our assembly uses a uniquely ribbed HT250 cast iron housing that increases surface area for convection cooling. This allows the internal components to maintain a steady temperature even during continuous 12-hour harvesting cycles in high-ambient environments. By ensuring the structural integrity of the housing, we maintain perfect gear alignment, which prevents the uneven tooth loading that leads to catastrophic failures in lower-tier agricultural gearbox solutions. The precision-machined mating surfaces also incorporate O-ring channels that offer superior sealing compared to standard paper gaskets, effectively keeping dust and moisture out of the transmission fluid.
Superior Metallurgy: 20CrMnTi Alloy Optimization
Gears are the heart of the unloading process, and our selection of 20CrMnTi alloy steel represents the gold standard in mechanical durability. This material undergoes a specialized carbonitriding process to achieve a surface hardness of HRC 58-62, while retaining a tough, ductile core. This combination is essential for handling the sudden shock loads encountered when an auger becomes blocked by dense grain or foreign debris. Unlike through-hardened gears that can be brittle, our gears flex slightly under extreme load, absorbing energy rather than fracturing. Furthermore, every gear is finished using high-speed CNC grinding techniques, which significantly reduces operational noise and maximizes mechanical efficiency. This precision leads to a 94% power transfer efficiency, ensuring more of your tractor's horsepower goes directly into moving grain rather than generating wasted heat.
Universal Compatibility and Mechanical Integration
Compatibility is a critical concern for farm managers dealing with a fleet of mixed machinery. The EVER-POWER grain unloading transmission box assembly is engineered to be cross-compatible with most major European and North American harvester brands. We achieve this by using standardized ISO splines and mounting patterns that allow for direct "plug-and-play" replacement of OEM parts. Beyond harvesters, these units are often retrofitted into specialized grain carts and stationary seed processing equipment. The versatility of our input and output shaft options means that we can adapt to various driveline lengths and angles, providing a flexible solution for custom agricultural projects. Whether you are upgrading an older model or building a new tillage system, our gearbox integrates seamlessly into your existing mechanical architecture.
Integration with rotavator parts and high-performance PTO shafts is essential for a unified transmission system. For the most efficient power transfer, we recommend pairing our unloading box with our high-torque PTO drivelines, which feature integrated slip clutches to protect the gearbox from torque spikes. This holistic approach to machine design ensures that there are no "weak links" in the transmission chain. By offering standardized output flanges, we simplify the connection to augers, vertical elevators, and side-discharge belts. This level of compatibility reduces the need for expensive custom machining in the field, allowing farmers to get back to work faster during the time-sensitive harvest window. Our engineering team also provides technical documentation to assist with mounting in non-standard configurations, ensuring safe and reliable operation.
Replacement and Manufacturing Workflow
Phase 1: Diagnostics
Begin by draining the existing gear oil and inspecting for metal fragments or thermal discoloration. Verify shaft alignment to ensure that vibrations didn't compromise the previous unit's integrity.
Phase 2: Customization
If your machine requires specific shaft splines or ratios, our CAD team adapts the base 20CrMnTi components. We select the specific housing and gear set that matches your torque requirements exactly.
Phase 3: Assembly
Gears are vacuum-carburized and precision-pressed onto the shafts. Double-lip Viton seals are installed with high-grade bearings (NTN or SKF options) to ensure a lifetime of leak-free operation.
Phase 4: Load Testing
Every unit undergoes a 30-minute test at rated RPM to check for thermal stability and noise. Only units that pass 100% of our QC checks are prepared for global expedited shipping.
Industry Applications and Machinery Scenarios
- ✓
Commercial Grain Harvesting: Integrated into combine harvesters (horizontal and vertical unloading augers) to facilitate the rapid transfer of wheat, corn, and soybeans to transport vehicles.
- ✓
Soil Cultivation & Tillage: Acts as a primary component in multi-purpose rotavator parts kits, where balanced power transmission is needed for both soil turning and crop residue management.
- ✓
Agricultural Logistics: Utilized in bulk grain carts and "chaser" bins to ensure reliable unloading in the field, allowing the harvester to keep moving without stopping to dump its tank.
- ✓
Animal Feed Processing: Driving horizontal mixers and conveyor systems in large-scale livestock feeding operations, where constant, low-speed torque is required for processing bulk fodder.
Maintenance Protocols and Operational Longevity
Predictive maintenance is the secret to extending the life of your grain unloading transmission box assembly beyond the standard 5-year cycle. We strongly advocate for an initial lubricant change after the first 50 hours of "run-in" operation. This critical step removes any microscopic steel particulates that naturally shear from the gear teeth as they establish their final contact patterns. Following this, a biannual inspection of the gear oil levels is sufficient for most operations. If the oil appears milky or cloudy, it is an immediate sign that the seals have been compromised by moisture, and they must be replaced to prevent internal corrosion of the 20CrMnTi surfaces. Keeping the exterior of the gearbox clean from caked mud and crop residue also aids in heat dissipation, preventing premature seal hardening.
Mechanical checks should also include a periodic assessment of shaft "play" or axial movement. Any movement exceeding 0.2mm suggests that the bearing pre-load has decreased, which can lead to vibration and uneven gear wear. Our internal shim system allows for easy field adjustments to restore this pre-load without requiring a full overhaul. Additionally, the breather plug should be inspected monthly; if it becomes clogged with dust, internal pressure will build as the gearbox heats up, eventually forcing oil past the seals. By following these simple, proactive steps, you ensure that your EVER-POWER equipment remains as reliable on day 1,000 as it was on day one. Our agricultural gearbox solutions are built for longevity, but a well-maintained machine is always the most profitable machine.
Market Pricing and ROI Analysis
When evaluating the cost of a transmission assembly, it is vital to look beyond the initial purchase price and consider the Total Cost of Ownership (TCO). A cheaper, low-grade unit may save $100 upfront but can cost thousands in lost productivity and emergency repairs during the peak of the harvest season. EVER-POWER offers a value-driven pricing model that provides premium engineering at a mid-market price point. Below is a comparative look at how our units stack up against economy and OEM alternatives in the global marketplace.
| Model Category | Estimated Unit Price | Expected Service Life | Reliability Rating |
|---|---|---|---|
| Economy Generic (Cast Iron) | $280 - $390 | 1 - 2 Seasons | Low (High failure rate) |
| EVER-POWER Premium Series | $450 - $680 | 5 - 8 Seasons | Very High |
| OEM Dealer Replacement | $1,100 - $1,600 | 6 - 9 Seasons | High |
Sustainable Compliance and Global Standards
As the agricultural industry pivots towards "Green Farming," EVER-POWER is leading the charge by ensuring all our transmission components exceed regional sustainability standards. In key markets like Brazil, the United States, and the European Union, there is increasing pressure to reduce the environmental impact of farm machinery. Our grain unloading transmission box assembly is manufactured using 100% recyclable grey iron and steel alloys. We have also eliminated hazardous lead-based paints, opting instead for eco-friendly powder coatings that provide superior corrosion resistance without off-gassing or contaminating the soil. Furthermore, our design focus on efficiency directly reduces fuel consumption in tractors, contributing to lower carbon emissions per hectare cultivated.
Compliance with global safety regulations is equally prioritized. Our units carry CE certification and meet the rigorous ISO 9001:2015 quality management benchmarks. For the North American market, we ensure adherence to ASABE standards for PTO guarding and mechanical safety. We are also working closely with partners in Brazil to meet the NR-12 safety regulations for agricultural machinery. By maintaining these high standards, we ensure that our customers can operate across borders without regulatory friction. When you choose an EVER-POWER component, you are investing in a product that respects the land it serves and the safety of the people who operate it. Our commitment to sustainability is not just a marketing claim; it is baked into our engineering and manufacturing DNA.
Brand Comparison: Why Choose EVER-POWER
The global market for agricultural transmission components is crowded, but EVER-POWER distinguishes itself through a unique blend of high-end metallurgy and localized service. While many manufacturers outsource their casting and heat treatment, we control the entire lifecycle of our grain unloading transmission box assembly within our own facilities. This vertical integration allows for a level of quality control that "trading company" brands simply cannot match. We don't just sell parts; we provide engineered solutions. Our ability to offer customization—from specialized gear ratios to custom input splines—ensures that our customers never have to compromise on machine performance. Our localized support network across five global branches means that technical expertise and spare parts are never far away, reducing downtime during the critical harvesting window.
Compared to high-priced OEM parts, EVER-POWER provides identical—and in some cases, superior—material specifications at a fraction of the cost. We utilize 20CrMnTi where others use standard carbon steel, and our grade of HT250 cast iron features a higher nickel content for improved crack resistance. This dedication to material superiority ensures a longer fatigue life and better resistance to the abrasive environments common in grain handling. Furthermore, our focus on user-centric design means our gearboxes are easier to service in the field, with common tools and standardized seals. When you weigh the factors of price, performance, and durability, EVER-POWER emerges as the clear choice for professional farmers and machinery manufacturers worldwide. We are the top-tier replacement for Comer, Omni, and Bush Hog gearboxes, providing the same reliability with a better ROI.
Essential Related Components & Accessories
To ensure the highest performance of your transmission system, we recommend the following professional accessories:
- High-Torque PTO Shafts: Standardized drive shafts with friction clutches or shear bolts to protect the internal gears from sudden overload shocks.
- Precision Universal Joints: High-angle cross joints that allow for power transmission through sharp angles without inducing vibration.
- Double-Lip Viton Oil Seals: Enhanced sealing kits for machines operating in high-moisture or sandy soil conditions.
- Heavy-Duty Mounting Brackets: Reinforced steel plates designed to absorb the reaction torque of the gearbox under full load.
- Spline Adapters & Bushings: Various converters to match different tractor output shafts to our standard input splines.
FAQ
Trusted by Global Professionals
See how our grain unloading transmission box assembly performs in the field.
"Survived a brutal wet harvest"
"We installed the EVER-POWER assembly just before the corn harvest in Illinois. We hit a stretch of very wet weather, and the auger was constantly under heavy load with damp grain. In the past, cheaper generic boxes would start whining or leaking. This unit stayed cool and quiet through 400 acres."
"Superior metallurgy & precision"
"As a repair shop owner, I’ve seen many 20CrMnTi gears, but the finish on these is noticeably better. The CNC grinding is precise—no need to spend hours shimming the backlash to get a perfect mesh. My customer has been running this on a high-speed grain cart for months with zero oil contamination."
"Contractor-grade reliability"
"I run a tilling contract business, and downtime is my biggest enemy. I switched to this for my rotavator setup. The double-lip seals are doing a great job keeping out the fine dust we deal with here. It’s been a reliable workhorse for over 600 hours of operation without a single issue."
"Smooth power transfer"
"What impressed me most was how much quieter the unloading process became after swapping to EVER-POWER. You can feel the efficiency—less vibration through the auger housing. The custom 1:1.35 ratio we ordered has significantly sped up our cycle times during the wheat harvest."
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
