PTO Shaft for John Deere Square Balers

The square baler PTO Shaft is a specific type of Power Take-Off (PTO) shaft that is used in conjunction with square balers, which help in making bales of hay or straw. This type of PTO shaft is distinguished by its square shape, which is designed to transfer power from the tractor to the implement, which produces the square shaped bales. Square baler PTO shafts typically consist of two separate parts: the tractor side and the implement side. On the tractor side, the shaft connects to the tractor’s PTO output, and on the implement side, it connects to the baler. The implement side of the square baler PTO shafts usually have an adjustable length, which allows them to connect to a wide range of implements with ease, while the tractor side PTO shafts are standard length.

Get a Quote

PTO Shaft for John Deere Square Balers

The square baler PTO Shaft is a specific type of Power Take-Off (PTO) shaft that is used in conjunction with square balers, which help in making bales of hay or straw. This type of PTO shaft is distinguished by its square shape, which is designed to transfer power from the tractor to the implement, which produces the square shaped bales.

Square baler PTO shafts typically consist of two separate parts: the tractor side and the implement side. On the tractor side, the shaft connects to the tractor's PTO output, and on the implement side, it connects to the baler. The implement side of the square baler PTO shafts usually have an adjustable length, which allows them to connect to a wide range of implements with ease, while the tractor side PTO shafts are standard length.

PTO shafts, including the square baler PTO shaft, spinning at high speed can be dangerous and potentially cause accidents, and regular inspection and maintenance are essential to keep them in good working condition. It is important to follow the manufacturer's instructions for the assembly and disassembly of the PTO shafts and use appropriate safety equipment during the process.

Square Baler PTO Shaft

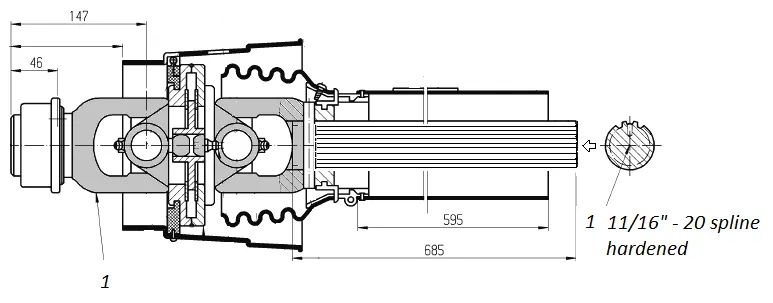

Square Baler PTO Shaft Size Chart

Original Equipment PTO Shaft is Weasler 35N CV. Input shafts are 1.750"-6. Please contact us with your specifications.

Connected to the transmission, this square baler PTO shaft transfers energy by operating in a rotational motion. It has a PTO horsepower of 35 at 540 RPMs. With dual 5 series yokes, they each have a female end measuring 1-3/8 inches, with 6 splines. The slip clutch measures 1-3/8 inches, with 6 splines. The clutch is made to slip when the torque is too great for the implement. It also slips to protect the gearbox on the implement if a foreign object were to cause damage. As an important safety precaution, be sure to shield any rotating parts, and do not wear loose accessories that could become entangled.

PTO Shaft for John Deere Square Balers

Tractor Output Shaft

Complete CV Assembly

Part Number

(no implement yoke or UJ) Square Baler PTO Shaft Sizes

CV 1/2 shaft

Part Number

with shield

Square Baler PTO Shaft Size



Walterscheid Replacement

1/2 Shaft Part Number

Square Baler PTO Shaft Size

Tractor Output Shaft
 CAT5  14503548
 CAT6  14505548
 CAT5  19503506
 CAT6  19505506
 CAT5   4GZM139
 CAT6   4GYM140
Tractor Output Shaft
 CAT5  14603548
 CAT6  14605548
 CAT5  19603521
 CAT6  19605521
 CAT5  4GZM239
 CAT6  4GYM240
Tractor Output Shaft
 CAT5  14703548
 CAT6  14705548
 CAT5  19703520
 CAT6  19705520
 CAT5  4GZM339
 CAT6  4GYM340

Square Baler PTO Shaft Features

Square baler PTO shafts are an essential component of many agricultural operations, and they offer several convenient features that make them easy to use and maintain. Understanding the features of the square baler PTO shafts is essential to select the right shaft for your baler and implement combination and operating them safely. Here are some features of the square baler PTO shaft:

Square shape: As the name suggests, the square baler PTO shaft is square-shaped, which helps to distribute power evenly and reduces the chances of the shaft slipping.

Two-piece design: The square baler PTO shaft is typically composed of two separate pieces, making it more versatile and easier to connect to a wide range of implements.

Adjustable length: A movable connector on the implement side PTO shaft allows for adjustable length to accommodate different baler models with different connection points.

High-speed rating: Square baler PTO shafts have a high-speed rating, which means they can be used with high-performance balers without breaking easily.

Durability: PTO shafts for square balers are designed to be durable, and made out of heavy-duty materials to withstand the stress and demands of heavy agricultural use.

Safety features: The square baler PTO shafts have safety features like mechanical overload protection and shields that help prevent accidents when the shaft is spinning.

▍Where Are Square Baler PTO Shafts Used?

Square baler PTO shafts are used in the agricultural industry, specifically in the production of hay or straw bales, which is a crucial component of animal feed and bedding. They are used in conjunction with square balers, which compress hay or straw into square-shaped bales that are easy to handle and transport.

Square baler PTO shafts are used on tractors, which are the machines that power the balers. The PTO shaft on the tractor transfers power to the baler, which compresses the hay or straw and then produces the square-shaped bales.

Square baler PTO shafts are commonly used in fields, farms, and other agricultural settings where hay or straw is grown, harvested, and baled for use in feeding or bedding livestock. They are popular among farmers who need to handle significant volumes of hay or straw and require efficient and convenient baling and transport options.

It is essential to inspect the square baler PTO shafts regularly and maintain them properly to ensure they are always in good working condition. This helps prevent accidents that can occur when using PTO shafts, which can be dangerous if not used and maintained correctly.

Where Are Square Baler PTO Shafts Used Where Are Square Baler PTO Shafts Used

▍How to Connect PTO Shaft to Square Baler?

Connecting a PTO shaft to a square baler can be a straightforward process if you follow the correct steps. Here's a general guide to connecting a PTO shaft to a square baler:

Park the tractor next to the baler and engage the parking brake.

Ensure the transmission is neutral and that the PTO shaft is turned off.

Attach the PTO shaft to the back of the tractor's PTO output shaft.

Rotate the square baler's input shaft to align it with the PTO shaft.

Line up the splines on the two shafts and gently push the PTO shaft onto the baler's input shaft.

Secure the locking mechanism on the baler's input shaft using a pin, clip or locking collar.

Switch on the PTO and check that the PTO shaft and baler input shaft is rotating correctly.

Check the PTO shaft regularly for wear, deformation, or any other signs of damage.

It is also essential to follow the manufacturer's guidelines and maintenance procedures for the PTO shaft and baler. Ensure to inspect the shaft and lubricate it before and after use to prevent damage. Always wear appropriate safety gear, such as goggles or work gloves, when working with PTO equipment.

▍How to Disconnect PTO Shaft From Tractor?

Disconnecting a PTO shaft from a tractor requires care to prevent any damage to the equipment and ensure safety. Here are some steps to follow:

Firstly, switch off the engine and disengage the PTO.

Make sure that the tractor is stable and not moving by setting the hand brake and wheel chocks.

Inspect the PTO shaft and look for signs of wear, damage, or broken parts, and replace any defective parts before proceeding.

Locate the locking mechanism on the tractor's PTO shaft. It could be a pin, clip or a locking collar, depending on the model of the tractor.

Use the appropriate tool such as pliers, a pin remover or wrench to remove the locking mechanism.

Then, slide the PTO shaft gently out of the splines on the tractor's PTO output shaft.

Inspect the PTO shaft for any damage or wear, clean it properly and store it in a secure place.

Finally, replace the locking mechanism back in place to prevent any accidents from happening.

It is essential to remember that if the PTO shaft is bent, twisted, or damaged in any way, do not use it again. Always ensure that you follow the manufacturer's guidelines and maintenance procedures to prevent any accidents or damage to the equipment. And always wear appropriate safety gear, such as gloves, while working on PTO equipment to protect yourself from injury.

How to Disconnect PTO Shaft From Tractor

▍How to Replace PTO Shaft Tubing?

Replacing PTO shaft tubing can be a challenging task, but with the right tools and expertise, it can be done successfully. Here are some general steps to replace PTO shaft tubing:

Remove the old tubing: The first step is to remove the old PTO shaft tubing. This is done by cutting the old tubing in half and removing it from the driveline.

Prepare the new tubing: Cut the new PTO shaft tubing to the required length, and then deburr the edges to prevent damage to the seal.

Install the new tubing: Slide the new PTO shaft tubing onto the driveline, making sure it is correctly aligned and seated. Tighten the set screws on both sides to secure the tubing in place.

Check for proper fit: Verify that the new PTO shaft tubing is the proper length and that it does not interfere with other components. Also, check that it rotates smoothly with the driveline.

Lubricate and reassemble: Add lubrication to the new PTO shaft tubing and reassemble the driveline. Make sure to test the driveline after reassembly to ensure that it is operating correctly.

It is important to note that replacing PTO shaft tubing requires specialized knowledge and tools. If you are unsure about how to replace the PTO shaft tubing or do not have the necessary tools, it is recommended to contact a professional mechanic or dealer for assistance. Also, always follow the recommended safety procedures and wear the appropriate personal protective equipment, such as gloves and safety glasses, when working on agricultural equipment.

We Also Supply Agricultural Gearboxes for PTO Shaft

The Power Take Off (PTO) shaft and agricultural gearboxes are both essential components in agricultural machinery, particularly in tractors and other farming equipment. In general, an agricultural gearbox is designed to withstand the high torque and mechanical stresses produced by PTO-driven implements, such as mowers, cultivators or seeders. The gearbox is usually located between the PTO shaft and the implement, providing a gear reduction that optimizes the amount of power transferred from the tractor to the implement.

The agricultural gearbox also often includes additional features, such as safety shields, to protect the operator from any moving parts and lubrication and cooling systems to keep the gearbox running smoothly and efficiently. It is important to select the right type of agricultural gearbox for the PTO shaft and implement it to ensure efficient transmission of power and reduce the risk of damage to the equipment.

The PTO shaft transfers power from the tractor engine to the implement, while the agricultural gearbox optimizes the amount of power transferred to the implement by providing a gear reduction system. The PTO shaft is typically mounted to the tractor via a spline or keyway connection and transmits power through a rotating shaft to the implement. It is designed to be easily connected and disconnected, enabling the operator to quickly change implements as required. The PTO shaft must be correctly sized and rated for the intended application to ensure proper power transmission and prevent damage to the equipment.

In summary, the PTO shaft and agricultural gearbox are both critical components of agricultural machinery. Proper sizing, installation, and maintenance of both components are essential to the efficient and safe operation of the equipment.
