R Series Foot Mounted Helical Gearbox

R series helical gearbox adopts an integral casting box, which has good structural rigidity and is easy to improve the strength of the shaft and the life of the bearings. The installation methods of the R series helical gear reducer include foot installation and flange installation, foot installation type is more widely used. As its structure is compact, it saves a lot of space. Its average efficiency is 96% for the double-stage type, 94% for the three-stage type, and 85% for the R/R combination type.

Get a Quote

R Series Foot Mounted Helical Gearbox

R series helical gearbox adopts an integral casting box, which has good structural rigidity and is easy to improve the strength of the shaft and the life of the bearings. The installation methods of the R series helical gear reducer include foot installation and flange installation, foot installation type is more widely used. As its structure is compact, it saves a lot of space. Its average efficiency is 96% for the double-stage type, 94% for the three-stage type, and 85% for the R/R combination type.

R series gearboxes are widely used in the light industry, food, beer and beverage, chemical industry, escalator, automatic storage equipment, building materials machinery, iron and steel metallurgy, environmental protection, power plants, coal, mining, papermaking, wood-based panels, automobiles, ports ( Airports, terminals), tobacco machinery and other fields.

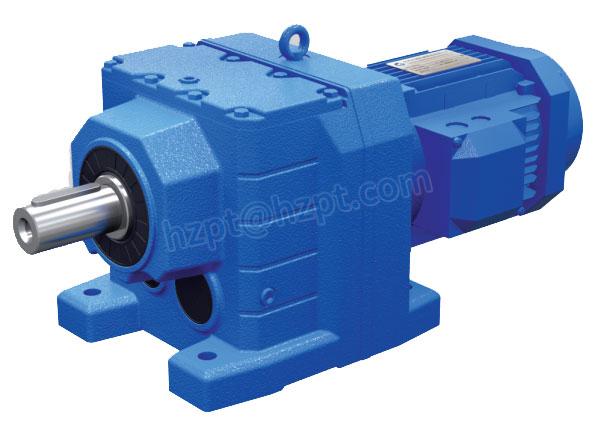

R Series Helical Gearbox

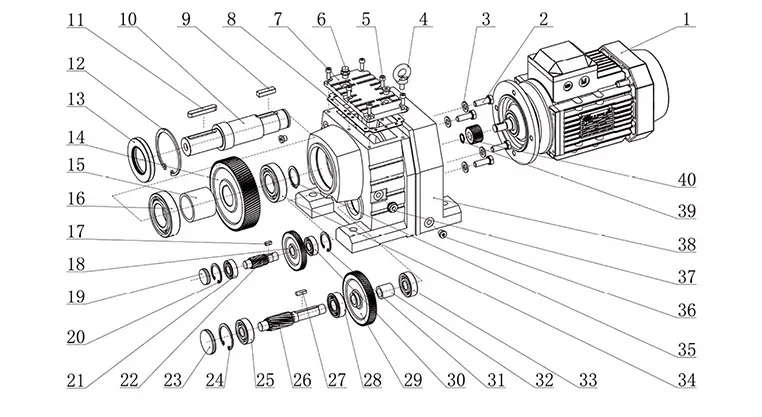

R Series Helical Gearbox Parts

R Series Helical Gearbox Parts

1、Motor
2、Bolt
3、Washer
4、Lifting ring
5、Cap Screw
6、Vent Cap
7、Cover
8、Sealing shim
9、Parallel Key
10、Output shaft
11、Parallel Key
12、Circlip for hole
13、Skeleton oil seal
14、Gear
15、Bearing sleeve
16、Bear
17、Parallel Key
18、Gear
19、Plane Oil Seal
20、Circlip for hole
21、Gear
22、Skeleton oil seal Gear Shaft
23、Plane Oil Seal
24、Circlip for hole
25、Bearing
26、Gear Shaft
27、Parallel Key
28、Bearing
29、Gear
30、Bearing
31、Circlip for hole
32、Bearing sleeve
33、Bearing
34、Bearing
35、Circlip for shaft
36、Plug cock
37、Oil mirror
38、Case
39、Circlip for shaft
40、Gear

R Series Helical Gearbox Specifications:

Product name: R series helical gear reducer
Model: R17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting ways: Foot-mounted and flange mounted
Input ways: Motor input, AM (IEC) flange input, and shaft input
Output way: Solid shaft output
Efficiency: 94%-98%(depends on the transmission stage)
Housing material: HT250 high-strength cast iron
Gear material: 20CrMnTi
Surface hardness of gears: HRC58-62
Input/Output shaft: 40Cr steel
Heat treatment: Carburizing and quenching
Bearing: C&U or other brands
Oil seal: NAK or other brands
Lubricating oil: Gear oil
Packing: plywood case

R Series Helical Gearbox Parameters

Size 17 27 37 47 57 67 77 87 97 107 137 147 167
Structure R
Input power
rating (kW)
0.18-0.75 0.18-3 0.18-3 0.18-5.5 0.18-7.5 0.18-7.5 0.18-11 0.55-22 0.55-30 22-45 5.5-55 11-90 11-160
Ratio 3.83-74.84 3.37-135.09 3.33-134.82 3.83-176.88 4.39-186.88 4.29-199.81 5.21-195.24 5.36-246.54 4.49-289.74 5.06-249.16 5.15-222.60 5.00-163.31 10.24-229.71
Permissible torque(N.M) 85 130 200 300 450 600 820 1550 3000 4300 8000 13000 18000

R Series Helical Gearbox Types Models:

R series helical gear reducer models and marks:

R..: foot mounted

RF..: flange mounted

R..F: foot and flange mounted

RM..: Flange mounted with extended bearing box

RX..: Single-stage foot mounted

RXF..: Single-stage flange mounted

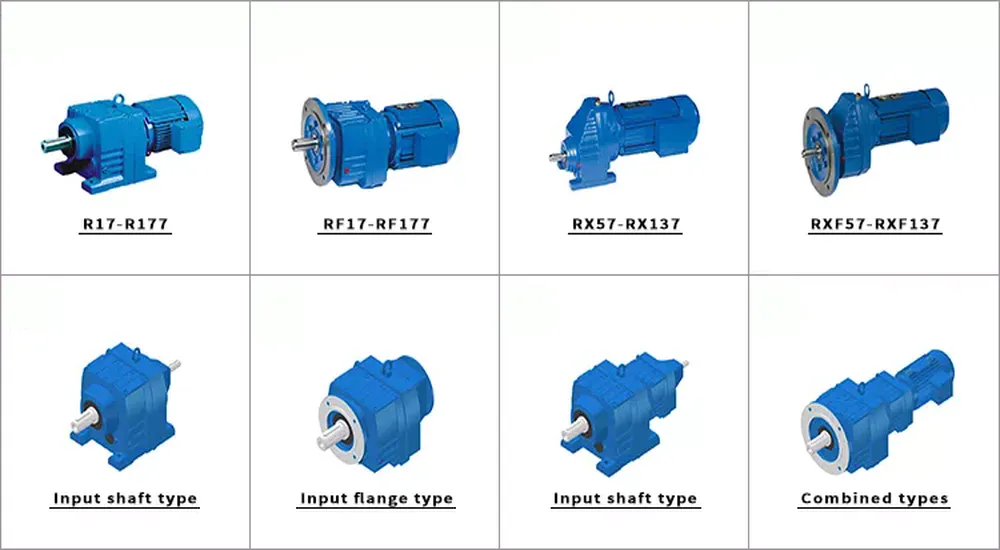

R Series Helical Gearbox More Models

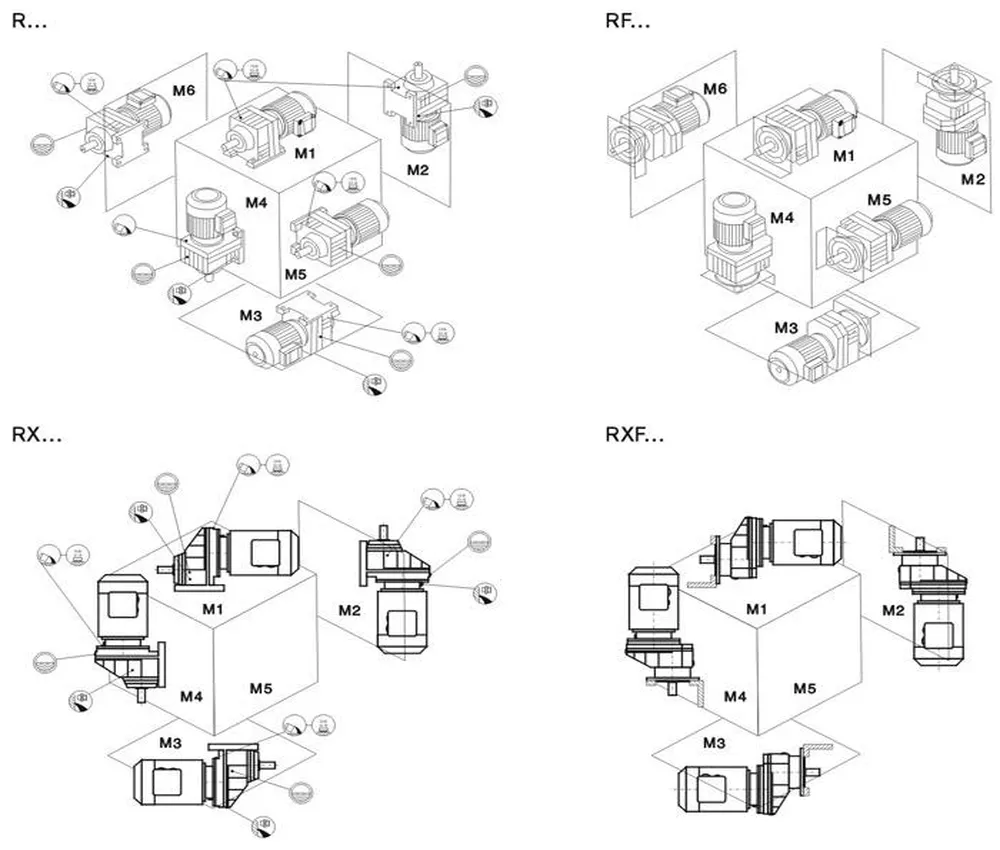

R Series Helical Gearbox Mounting Position

R Series Helical Gearbox Mounting Position

R Series Helical Gearbox Design Features

1. This series of reducers is manufactured in combination with international technical requirements and has a high technological content.

2. R series helical gearbox is space-saving, reliable, and durable, with high overload capacity and power up to 160KW.

3. low energy consumption, superior performance, and reducer efficiency of up to 95% or more.

4. Low vibration, low noise, and high energy saving.

5. R series helical gearbox is made of high-quality forged steel material steel cast iron case, and the gear surface is heat treated with high frequency.

6. After precision machining to ensure shaft parallelism and positioning bearing requirements, the formation of a helical gear reducer configured with various motors, combined into electromechanical integration, fully guarantees the quality characteristics of the use of reducer motor products.

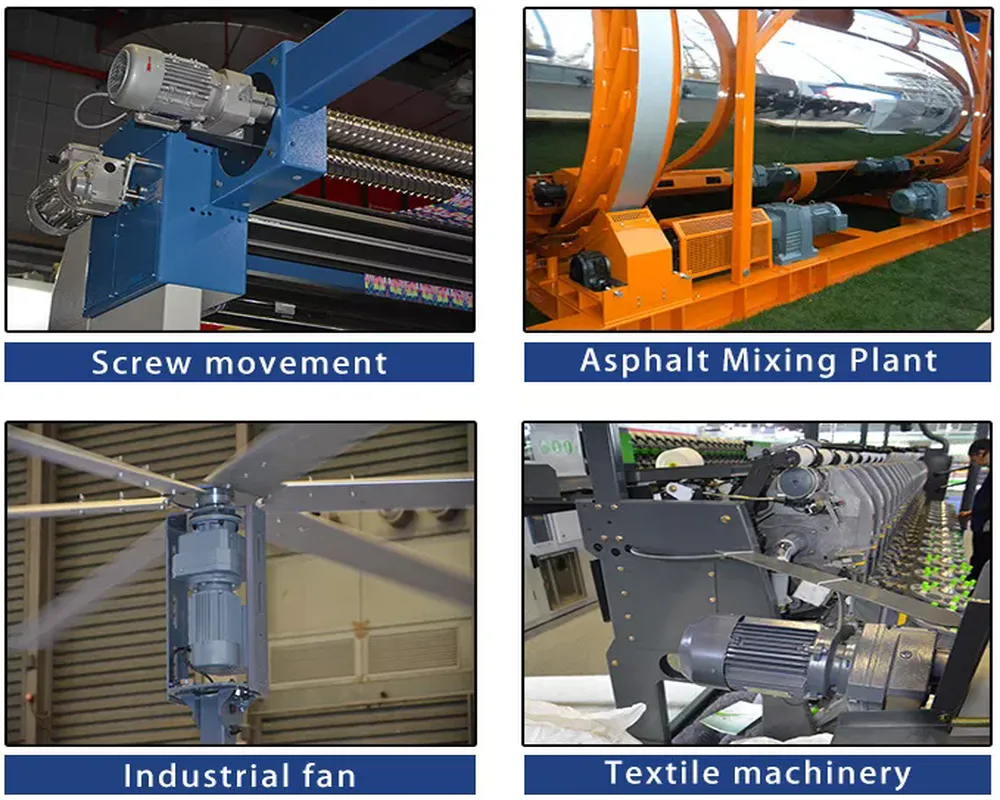

R Series Helical Gearbox Applications

R series helical gearbox is widely used in metallurgy, mining, building materials, building, petrochemical industry, aerospace, food industry, medical industry, overweight transportation, textile industry, general machinery, and other fields.

R Series Helical Gearbox Applications

Helical Gearbox VS Worm Gearbox

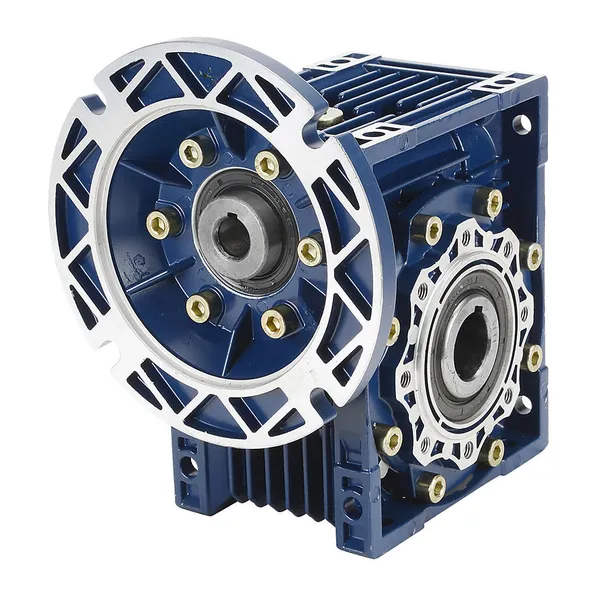

Worm gearboxes usually consist of a screw called a worm and a much larger interlocking gear. When torque is applied to the worm, the gear will rotate. This allows the operator to determine the speed of the gear rotation. Because the worm gearbox usually only works in one direction-the worm can rotate the gear, but the gear cannot rotate backward and drive the worm when the operation stops; this option provides an automatic locking mechanism. Worm gearboxes can usually be found in the following scenarios: conveyor system, elevator, package, small generator, lifting/towing (crane, winch, hoist), blender, and metal processing.

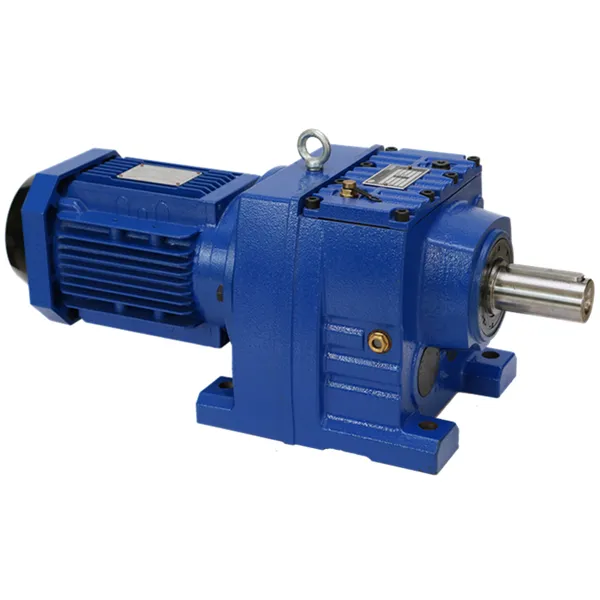

Helical gearbox unlike worm gearbox, helical gears can move in two directions. The typical cut is from 15 degrees to 30 degrees. The helical gear gets this name because the intersection of the two gears creates a spiral. Helical gearboxes are known for their smooth and quiet operation. A helical gearbox uses its own unique design to generate a considerable thrust (the total thrust is based on the angle of the gear teeth). Helical gear reducers are ideal for high-load applications. Because they typically contain more teeth to make contact and distribute the load stably.

Compared to worm gearboxes, helical gear reducers have a narrower application range, and they are mainly used in the field of automation due to their quiet nature and high thrust capability. Applications of helical gearboxes include conveyor systems, packages, Lifting/pushing (crane, elevator), and stirrers.

Helical Gearbox Worm Gearbox
Helical Gearbox Worm Gearbox

Helical Gearbox Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Helical Gearbox Manufacturer in China

Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, RC series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.

Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

Helical Gearbox Manufacturer in China

FAQ

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.

Q2: How do we select models and specifications?
A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.

Q4: How long should I wait for the feedback after I send the inquiry?
A4: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001, CE, and SGS.

Q6: What industries are your helical gearboxes being used in?
A: Our helical gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
