R/F/K/S Series Helical Gearbox

A helical gearbox is a novel reduction transmission device. Adopting the design concept of optimizing the modular combination system, the helical gearbox can be equipped with various types of motors, combined into mechatronics, and are available to be connected arbitrarily in various installation positions according to user requirements, so it has broad adaptability.

Compared with other types of reducers, helical gear reducer has higher performance, and its transmission efficiency is greatly improved, reducing users’ maintenance and repair costs. It saves space, operates reliably, and has a high loading capacity, a wide power range, and finely graded transmission ratios. It is widely used in metallurgy, mining, lifting, transportation, cement, construction, chemical industry, textile, printing and dyeing, pharmaceutical, and other fields.

HZPT supplies four series of helical gearboxes, including the R series coaxial helical gearbox, F series parallel shaft helical gearbox, S series helical worm gearbox, and K series helical bevel gearbox. Get more information in the product list or contact us for any inquiries.

R Series Coaxial Helical Gearbox

R series coaxial helical gearbox has four basic series: R Series (Foot-mounted) helical gearbox, RF Series (Flange-mounted) helical gearbox, RX Series (1 Stage, Foot-mounted) helical gearbox, RXF Series (1 Stage, Flange-mounted) helical gearbox. Please choose the series you need to view the full specifications.

R Series Helical Gearbox Basic Versions:

RX… Single-stage foot-mounted helical geared unit	RXF… Single-stage Flange-mounted helical geared unit	R… Foot-mounted helical geared unit
RF… Flange-mounted helical geared unit	R…F Foot and Flange-mounted helical geared unit	RZ… B14 Flange-mounted helical geared unit

Helical Gearbox Input Versions:

R.. Y.. Input with geared motors

R.. AM.. Input with AM adapters for mounting IEC motors

R.. AD.. Input with AD shaft assembly

R… and RF… Combination Helical Gearbox

If special low speed is needed, RF… gearbox can be the input of the R…gearbox

F Series Parallel Shaft Helical Gearbox

F series parallel shaft helical gearbox feature hardened helical gears, and parallel shafts. It’s the perfect solution when the installation space is limited as unique structural design. F series parallel shaft helical gear reducers are widely used in many conveying and material processing applications.

F series parallel shaft helical gearbox has four basic series: F Series (foot-mounted, solid shaft output) helical gearbox, FA Series (keyed hollow shaft output) helical gearbox, FF Series (B5 flange-mounted, solid shaft output) helical gearbox, FAF Series (B5 flange-mounted, hollow shaft output) helical gearbox. Contact us now to get this high precision and cost-effective solution to your applications.

F Series Helical Gearbox Basic Versions:

F… Foot-mounted parallel shaft helical geared unit	FA…B Foot-mounted parallel shaft helical geared unit FV…B Foot-mounted parallel shaft helical geared unit with splined hollow shaft to DIN5480	FA… Parallel shaft helical geared units with hollow shaft FV… Parallel shaft helical geared unit with splined hollow shaft to DIN5480	FAF… Parallel shaft helical geared unit in B5 flange mounted version with hollow shaft FVF… Parallel shaft helical geared unit in B5 flange-mounted version with spline hollow shaft to DIN5480	FAZ… Parallel shaft helical geared unit in B14 flange mounted version with hollow shaft FVZ… Parallel shaft helical geared unit in B14 flange mounted version with splined hollow shaft to DIN5480
FF… Parallel shaft helical geared unit in B5 flange-mounted version	FH…B Foot-mounted parallel shaft helical geared unit with hollow shaft and shrink disk	FH… Parallel shaft helical geared units with hollow shaft and shrink disk	FHF.. Parallel shaft helical geared units in B5 flange-mounted version with hollow shaft and shrink disk	FHZ.. Parallel shaft helical geared units in B14 flange-mounted version with hollow shaft and shrink disk

Helical Gearbox Input Versions:

F.. Y.. Input with geared motors

F.. AM.. Input with AM adapters for mounting IEC motors

F.. AD.. Input with AD shaft assembly

F… and RF… Combination Helical Gearbox

If special low speed is needed, RF… gearbox can be the input of F…gearbox

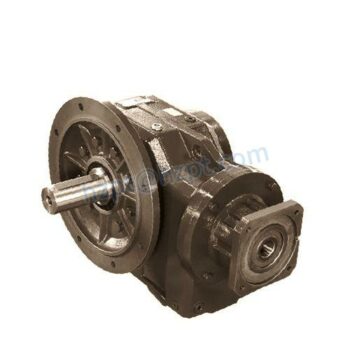

K Series Helical Bevel Gearbox

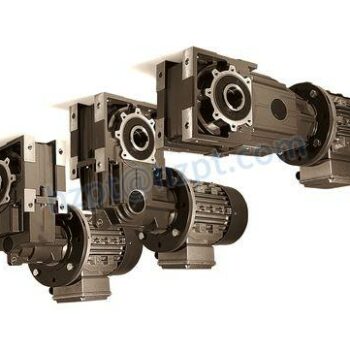

K series helical bevel gearbox’s transmission parts are composed of helical gear and bevel gear. It is a right-angle output speed reducer, with the most compact structure design and high bearing capacity. With the modular concept, the K series helical gearbox connected with the AC motor forms K series helical bevel gear motor, to realize mechatronics. K series helical bevel gear reducers are widely used in equipment of petrochemical, pharmaceutical, printing and packaging, ceramic , mining construction, stage, etc.

K series helical bevel gearbox has a variety of series K, KA, KF, KAF, KAZ, KAT, KAB based on different structure forms for your option.

K Series Helical Bevel Gearbox Basic Versions:

K… Foot-mounted helical-Bevel geared unit	KA…B Foot-mounted helical-bevel geared unit with hollow pin KV…B Foot-mounted helical-bevel geared unit with splined hollow shaft & hollow shaft to DIN5480	KH…B Foot-mounted helical-bevel geared unit with  hollow shaft and shrink disc	KF… Helical-bevel geared unit in B5 flange-mounted version	KAF… Helical-bevel gear unit in B5 flange  with hollow shaft KVF… Helical-bevel geared unit in B5 flange mounted version with hollow shaft & splined hollow shaft to DIN5480
KHF… Helical-bevel geared unit in B5 flange mounted version with hollow shaft & shrink disc	KA Helical-bevel geared unit with hollow shaft KV Helical-bevel geared unit with hollow shaft to DIN5480	KH… Parallel shaft helical geared units with hollow shaft and shrink disk KT Helical-bevel geared unit with hollow shaft and torque arm	KAZ.. Helical-bevel geared unit in B14 flange mounted version with hollow shaft KVZ… Helical-bevel geared unit in B14 flange mounted version with hollow shaft & splined hollow shaft to DIN5480	KHZ.. Helical-bevel geared unit in B14 flange mounted version with hollow shaft & shrink disc

Helical Bevel Gearbox Input Versions:

K.. Y.. Input with geared motors

K.. AM.. Input with AM adapters for mounting IEC motors

K.. AD.. Input with AD shaft assembly

K… and RK… Combination Helical Bevel Gearbox

If special low speed is needed, K… gearbox can be the input of RF…gearbox

S Series Helical Worm Gearbox

S series helical worm gearboxes are available in 4 main structure types: S Series (Foot-mounted, solid shaft output) helical worm gearbox, SA Series (Keyed hollow shaft output) helical worm gearbox, SF Series (B5 Flange-mounted, solid shaft output) helical worm gearbox, SAF Series (B5 Flange-mounted, hollow shaft output) helical worm gearbox.

S Series Helical Worm Gearbox Basic Versions:

S… Foot-mounted helical-worm geared units	SA… Helical-worm geared unit with hollow shaft	SAF… Helical-worm geared units in B5 flange-mounted version with hollow shaft	SAZ… Helical-worm geared unit in B14 flange-mounted version in hollow shaft
SF… Helical-worm geared units in B5 flange mounted version	SH Helical-worm geared units with hollow shaft and shrink disk	SHF… Helical-worm geared units in B5 flange mounted version and shrink disk	SHZ Helical-worm geared units in B14 flange mounted version with hollow shaft and shrink disk

Helical Worm Gearbox Input Versions:

S.. Y.. Input with geared motors

S.. AM.. Input with AM adapters for mounting IEC motors

S.. AD.. Input with AD shaft assembly

S… and RS… Combination Helical Worm Gearbox

If special low speed is needed, S… gearbox can be the input of RS…gearbox

Helical Gearbox Input Power and Allowable Torque:

R Series Coaxial Helical Gearbox

S Series Helical Worm Gearbox

K Series Helical Bevel Gearbox

F Series Parallel Shaft Helical Gearbox

Helical Gearbox Design Characteristics:

1.  Serialized and modular design is adopted, with wide transmission ratio coverage and fine grading;
2. High transmission efficiency, low energy consumption and superior performance;
3. The gear is grinded by high-precision gear grinding machine, with stable transmission, low noise, large bearing capacity and long service life;
4. Exquisite design: small size, simple installation and wide use
5. Various installation methods, suitable for omnidirectional universal installation configuration;

Main Materials of Helical Gearbox

Box: HT250 high-strength cast iron. Injection cavity, effectively reduce the wear of parts;
Gear: 20CrMo high-quality alloy steel, carbonitriding treatment (keep the tooth surface hardness HRC60 after fine grinding)
Flat key: 45 steel, surface hardness HRC50

R/S/K/F Series Helical Gearbox Application Area:

Helical Gearbox Packing and Transportation:

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Why Choose Our Helical Gearbox?

HZPT has over 20 years of helical gearbox manufacturing experience to provide our customers with superior helical gear reducers and service. Our technical team even has over 30 years of reducer product and industry experience as support. We have the confidence to assist you to find the ideal solution for your application or expand your helical gearbox business. Order the helical gearbox you need or contact us for any inquiries.
