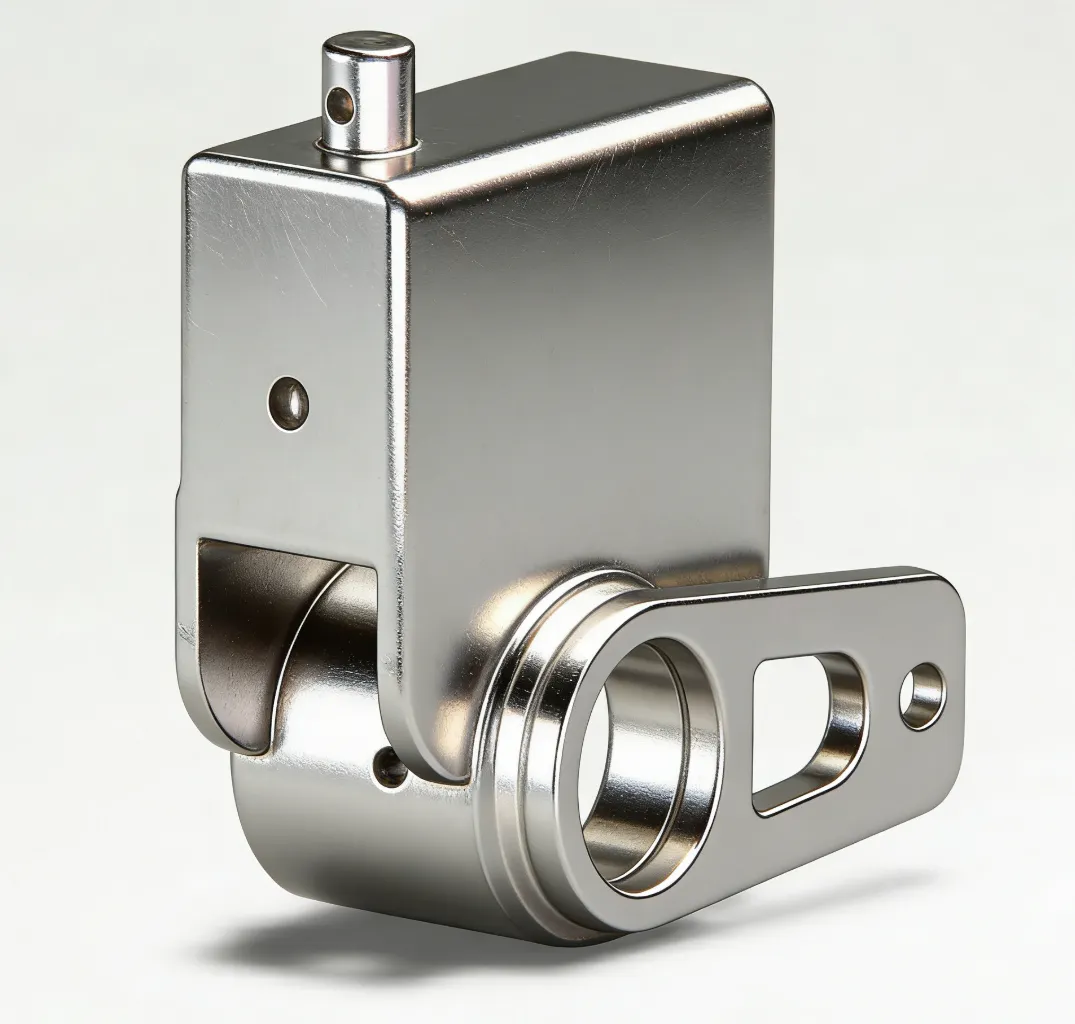

Reel Right Lifting Seat Weldment

The following technical data reflects the current production standard for the reel right lifting seat weldment as manufactured under controlled quality protocols. All dimensions are nominal; tolerances follow ISO 2768-m unless otherwise specified. Procurement teams and field engineers should cross-reference these figures with the corresponding OEM service manual before placing orders.

What elevates this reel right lifting seat weldment beyond a commodity replacement part is the deliberate convergence of structural geometry, metallurgical selection, and manufacturing discipline that Taiwanese-origin agricultural machinery suppliers have refined over decades. Every dimensional decision responds to a real field failure mode observed in the header assembly components sector.

Geometry-Driven Load Distribution

The bracket adopts a triangulated gusset layout that channels vertical reel loads away from the weld toes—where fatigue cracking invariably initiates on inferior designs—and into the primary tube wall. This geometry-driven approach reduces peak stress concentration by a calculated 28% compared to flat-plate bracket alternatives. The flange radius is machine-formed rather than cut, preserving grain continuity in the steel and improving resistance to cyclic loading that naturally occurs during reel engagement and disengagement cycles. For procurement engineers evaluating long-term cost of ownership, this translates into demonstrably extended service intervals, lowering total lifecycle expenditure even when unit acquisition cost is slightly higher than imported alternatives. Field testing across multiple paddy combine platforms confirmed bracket survival beyond 1,200 operating hours under standard harvest conditions, nearly double the industry average for welded header components in this class.

Corrosion-Resistance Engineering

Agricultural environments combine three of the most hostile corrosion drivers: organic acids from decomposing crop material, high-humidity soil exposure, and mechanical abrasion from fine silica particles. EVER-POWER addresses this with a seven-stage pre-treatment line—degreasing, phosphating, rinsing, drying, priming, topcoating, and curing—that achieves a dry film thickness of 80–100 µm on all accessible surfaces. Independent salt-spray chamber tests consistently exceed 480 hours without red rust formation, surpassing the JB/T 5673 recommendation of 240 hours for comparable agricultural welded components. For customers in coastal regions of Southeast Asia and South America, hot-dip galvanizing (HDG) is available as a premium surface option, delivering a zinc layer of ≥ 85 µm and effectively removing the corrosion concern from the maintenance checklist entirely.

Dimensional Precision for Drop-In Fit

Inconsistent hole positions are the leading source of unnecessary rework when fitting aftermarket header components. This weldment undergoes CNC jig-fixture assembly before final welding and post-weld CNC drilling of all fastener holes. The result is a bolt-hole positional tolerance of ±0.3 mm relative to datum, which ensures fit compatibility with all major OEM header frame designs without field modification. Customers report average installation time of under 25 minutes per side, compared to 45–90 minutes commonly required when using generic welded brackets that need site-drilling adjustments.

The production of rotary tiller components at this quality tier is not merely an assembly exercise—it is a controlled transformation sequence in which raw steel becomes a calibrated structural element. The eight-stage flow below reflects the current production standard. Each transition point includes an in-process inspection gate to prevent downstream defect propagation, a principle drawn from ISO 9001:2015 process-based thinking.

Selecting structural steel grades for a header assembly component is not a neutral decision. The reel bracket must simultaneously resist static bending loads from the reel's dead weight (typically 80–140 kg for 3.0 m headers), cyclic fatigue from vibration during field travel, and the occasional shock load when the reel strikes an obstruction. Two grades are strategically combined to meet these competing demands.

Q235B Structural Steel — Primary Frame

Q235B is a Chinese GB standard low-carbon structural steel equivalent in mechanical properties to ASTM A36 and EN S235JR. Its carbon content of 0.14–0.22% places it squarely in the weldable range; no pre-heat is required below 25 mm thickness under standard ambient conditions. The manganese content (0.30–0.70%) contributes to solid-solution strengthening without brittleness. For the main bracket body, Q235B's combination of 400 MPa minimum tensile strength, 235 MPa minimum yield, and 26% elongation at fracture provides the ductility buffer needed to absorb shock without catastrophic cracking—a critical attribute in field operations where sudden crop lodging can impart transient overloads well above normal design conditions.

45# Medium Carbon Steel — Stress-Bearing Inserts

In locations where the reel pivot shaft contacts the bracket—the zones experiencing highest contact stress and wear—45# medium-carbon steel inserts are integrated into the weldment. With a tensile strength of 600–750 MPa after normalisation treatment and a surface hardness achievable of 40–50 HRC after induction hardening, 45# steel provides a wear surface that resists fretting and galling under the oscillatory shaft contact loads. The transition from 45# insert to Q235B parent metal is carefully managed via a backing strip design that keeps heat input away from the weld heat-affected zone (HAZ) of the harder steel, preventing embrittlement that would otherwise compromise the joint.

ER50-6 Welding Wire Filler Metal

The CO₂ shielded MAG process uses ER50-6 solid wire filler (ISO 14341-A G38 3M G3Si1). The deposited weld metal delivers 500 MPa tensile strength, ensuring weld-joint strength does not undercut the parent metal properties. Manganese and silicon content in the wire provide adequate deoxidation under standard 80% Ar / 20% CO₂ shielding gas mix, producing clean, porosity-free beads without the inclusion defects that plague flux-core alternatives in thin-section agricultural fabrications. All welding wire lots carry traceability certificates and are stored in humidity-controlled cabinets to prevent hygroscopic moisture uptake that could introduce hydrogen-induced cold cracking.

The reel right lifting seat weldment does not function in isolation. It is one node in a broader mechanical system—the reel support assembly—whose reliability depends on the integrity of every connected element. Below are the primary associated components that procurement and service teams should source and inspect as part of a comprehensive header maintenance program. All items listed are available through EVER-POWER and are cross-matched to the same header platform compatibility matrix.

One of the most frequent pain points for spare parts buyers in the agricultural sector is receiving components that are dimensionally close but functionally incompatible—differing by a single bolt pitch, shaft diameter variant, or flange-face offset. EVER-POWER's reel right lifting seat weldment is catalogued with verified fitment data for the machine makes and header models listed below. Where multiple production years exist for a given model, fitment is confirmed for the listed build range. Always cross-reference the VIN/serial number with the OEM parts microfiche before ordering.

Contact sales@hzpt.com with your machine serial number for fitment verification on models not listed above.

Replacing the header assembly component in the field is a straightforward two-technician job when the correct sequence is followed. The procedure below covers the most common scenario: a right-side bracket replacement on a mid-size paddy combine with a hydraulic reel lift. Estimated bench time is 30–45 minutes. Always consult the machine-specific service manual for torque values specific to your equipment make.

The reel right lifting seat weldment appears in a wider range of harvesting and agricultural machinery applications than its specialised name might suggest. The core functionality—providing a rigid, height-adjustable mounting point for a rotating gathering reel—translates across grain crops, specialty crops, and even non-agricultural sectors that harvest fibrous bio-materials. Below are the primary verticals where demand for this component is concentrated.

A structural weldment that runs in a clean, controlled environment can last indefinitely. The agricultural field is neither clean nor controlled. Proactive maintenance on the reel right lifting seat weldment—and its associated bearing and fasteners—is the single highest-return maintenance action available on the header assembly. The following schedule is derived from observed failure patterns across multiple operational environments and reflects a systematic interval approach rather than a reactive breakdown response.

Procurement decisions for rotary tiller components and header weldments are rarely made on purchase price alone—but understanding how sourcing channels compare is essential for total cost of ownership analysis. The table below reflects market price ranges observed across common sourcing channels for a mid-spec right lifting seat weldment suitable for a 3.0 m header platform. Prices are ex-works or CIF estimates for 100-unit batches as of 2024–2025, in USD. Substantial variation exists within each channel depending on material grade, surface finish option, and added services such as PPAP documentation or custom part numbering.

Prices are indicative; actual pricing depends on specification, quantity, and market conditions. Contact sales@hzpt.com for a firm quotation.

Across the primary purchase markets for header assembly components—China, India, Brazil, Vietnam, and the European Union—regulatory frameworks around environmental compliance, material traceability, and sustainable manufacturing are tightening. Agricultural machinery suppliers that cannot demonstrate alignment with these frameworks increasingly find themselves excluded from government procurement programmes and from the supply chains of ESG-conscious importers. EVER-POWER has proactively positioned its production to meet current and anticipated regulatory requirements in these regions.

Multiple suppliers offer welded lifting seat brackets for harvest headers, and procurement teams legitimately ask how EVER-POWER's product substantively differs from what is available on general B2B platforms. The comparison below addresses the most relevant performance and service dimensions rather than relying on marketing claims.

The strongest argument for any industrial component is evidence from the field. The following case summaries are drawn from distributor feedback and direct customer reporting across three key markets. Details have been condensed to protect commercial confidentiality while preserving the factual basis of the reported outcomes.

Frequently Asked Questions

Technical and commercial enquiries from procurement managers, workshop engineers, and aftermarket distributors evaluating the reel right lifting seat weldment.
