Single-Row Four-Point Contact Ball Slewing Bearing (01 Series) for Truck Crane and Tower Crane

Single-Row Four-Point Contact Ball Slewing Bearing for Truck Crane and Tower Crane

The single-row four-point contact ball slewing ring is composed of two seats, which is compact, and the steel ball is in contact with the circular roller. It is mainly used for truck cranes, tower cranes, excavators, car drivers, and engineering work, such as radar equipment under negative moments, the tendency of vertical axial force, and horizontal force on the mechanical.

A single-row four-point contact ball slewing bearing is a specialized type of bearing commonly used in heavy machinery such as truck cranes and tower cranes. This bearing is designed to handle axial, radial, and moment loads simultaneously, which is essential for the complex movements and heavy lifting tasks these cranes perform.

The bearing consists of an inner ring and an outer ring, with a single row of balls positioned between them. The four-point contact refers to the unique design where each ball makes contact at four distinct points on the raceway. This design allows for the distribution of loads evenly and enhances the bearing's ability to support high loads and rotational speeds.

The slewing bearing's compact design is beneficial for applications with limited space, and it enables smooth and precise rotational movement, crucial for the accurate positioning of the crane's boom. Additionally, the bearing's construction provides high rigidity and stability, essential for maintaining safety and reliability during crane operations. Its robust build ensures durability and long service life, even under harsh working conditions.

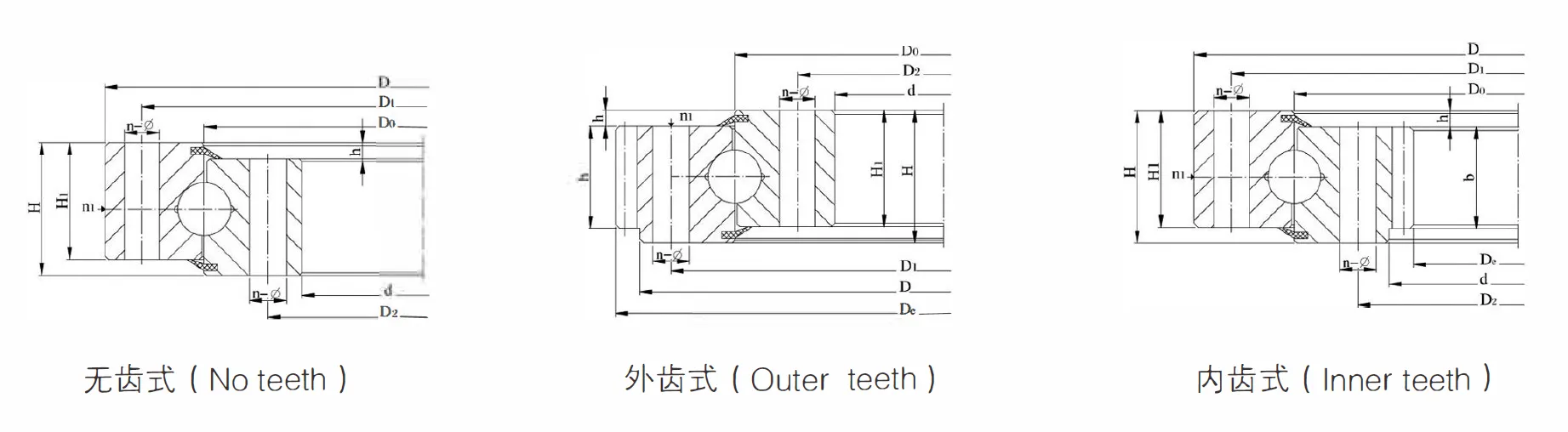

Single-Row Four-Point Contact Ball Slewing Bearing (01 Series) Parameters

Single-row Four Point Contact Ball Slewing Bearing Parts

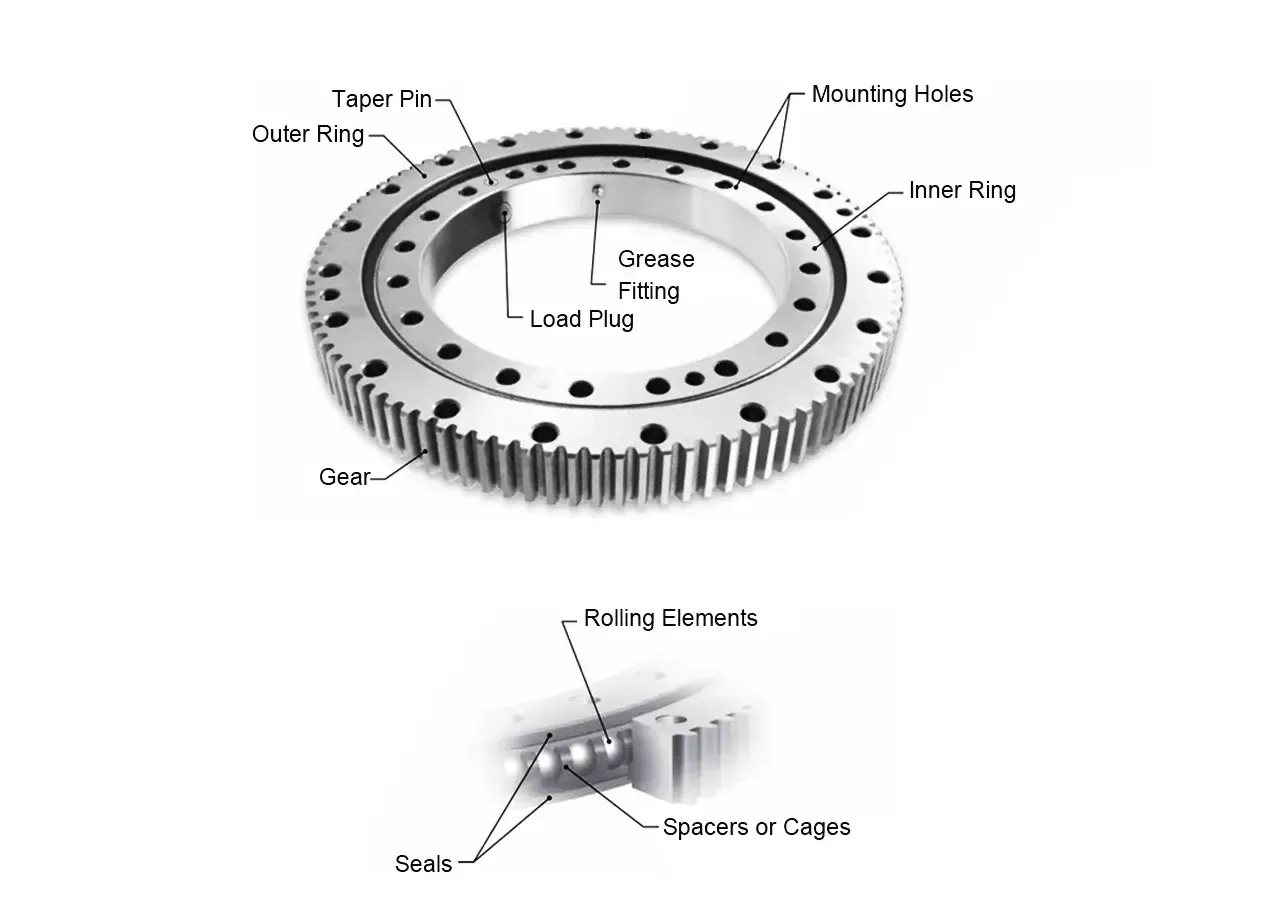

A single-row four-point contact ball slewing bearing for truck cranes and tower cranes typically consists of several key parts that work together to enable smooth and efficient rotation. Here are the main components of such a slewing bearing:

1. Inner Ring: The inner ring is a crucial component that typically attaches to the rotating part of the machinery. It provides the inner raceway for the balls and is designed to withstand axial and radial forces. Made from high-strength steel, it is engineered for durability and precision, ensuring smooth operation under heavy loads.
2. Outer Ring: The outer ring forms the outer raceway for the balls and is attached to the stationary part of the crane or machinery. Like the inner ring, it is constructed from robust materials to handle significant stresses. Its design facilitates the even distribution of loads, enhancing the overall stability and performance of the bearing.
3. Balls: The balls are the rolling elements that facilitate rotation and bear the load. Made from hardened steel, they are precision-crafted to ensure minimal friction and wear during operation. The four-point contact design allows each ball to handle both axial and radial loads, providing efficient load distribution across the bearing.
4. Seals: Seals are vital for protecting the bearing from contaminants such as dirt, dust, and moisture. They help maintain lubrication within the bearing, reducing friction and wear. High-quality seals extend the lifespan of the bearing by preventing external elements from compromising its performance and reliability.
5. Cage (or Separator): The cage, or separator, maintains the spacing between the balls, ensuring they are evenly distributed around the raceway. This component is typically made from durable materials like brass or polymer. It prevents the balls from colliding, reducing friction and wear, and contributes to the bearing's smooth, efficient operation.
6. Mounting Holes: These holes are strategically placed on both the inner and outer rings to facilitate secure attachment to the machinery. Proper alignment and installation using these holes are essential for optimal bearing performance. They ensure that the bearing is firmly fixed, preventing unnecessary movement and ensuring precise, reliable rotation.

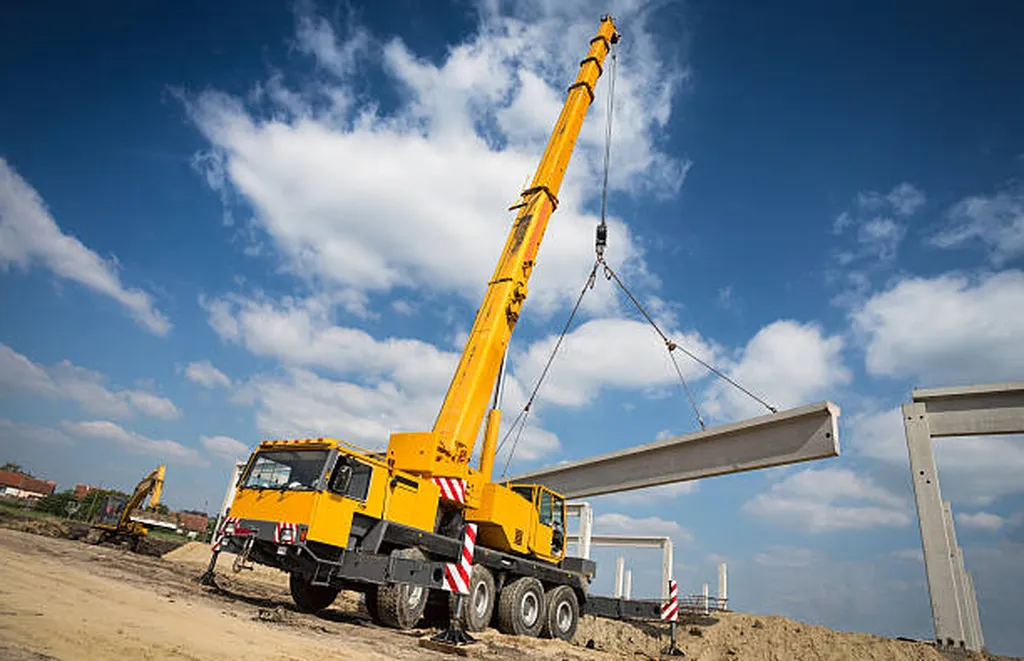

Single-row Four Point Contact Ball Slewing Bearing Applications

Single-row four-point contact ball slewing bearings find a wide range of applications across various industries due to their versatility, load-bearing capacity, and compact design. Here are some common applications where these bearings are utilized:

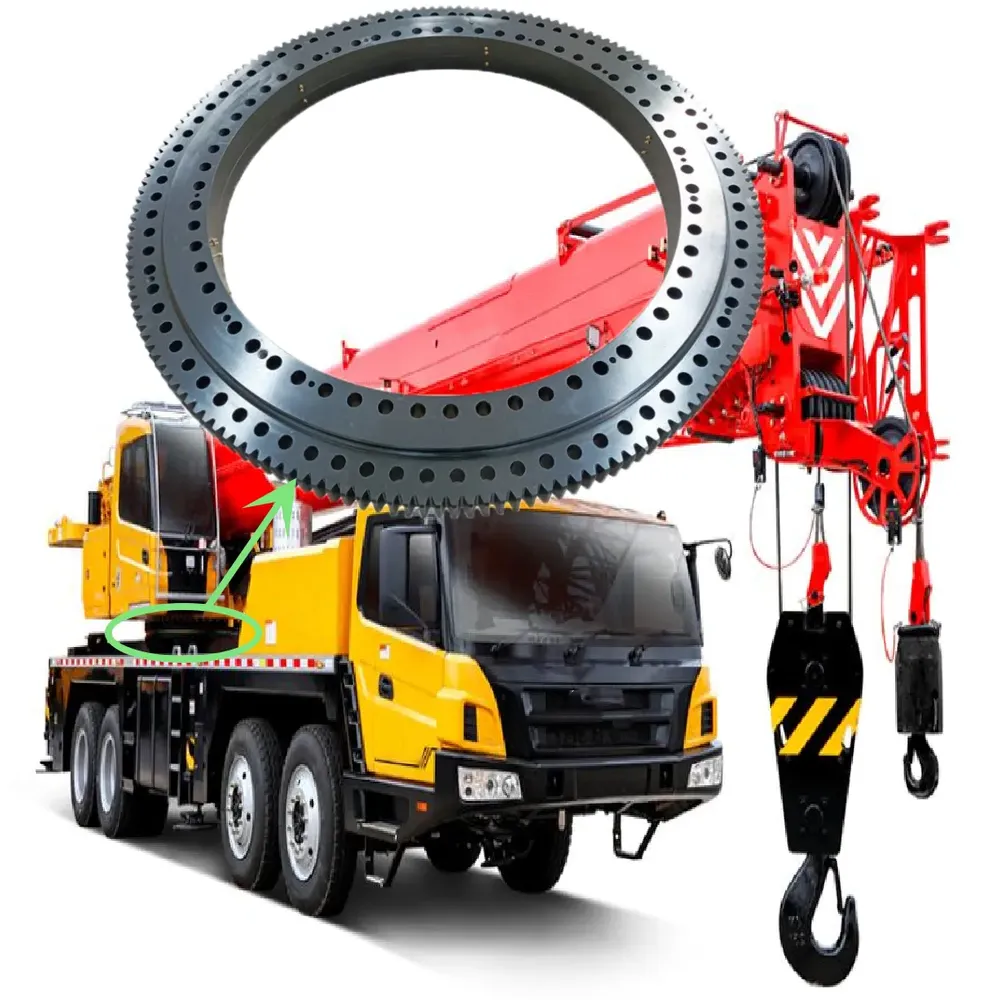

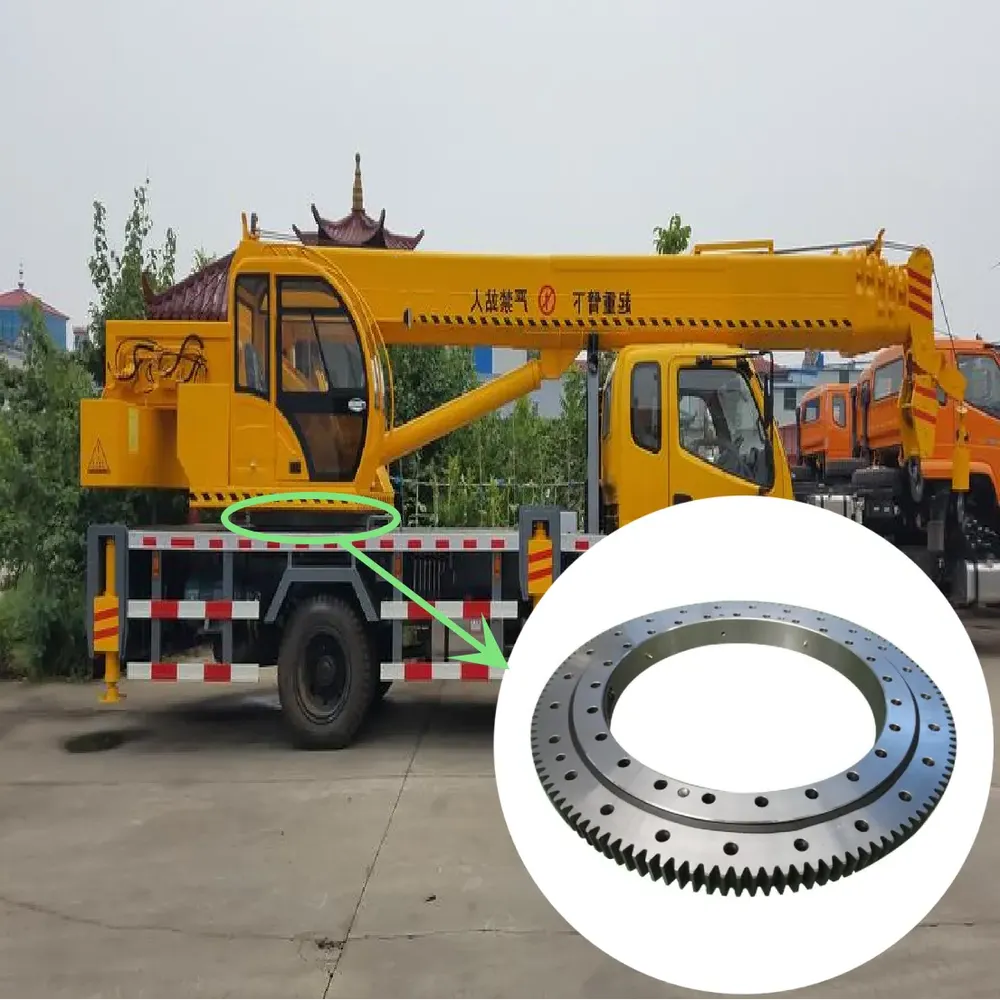

• Truck Cranes: In truck cranes, these bearings are crucial for supporting the rotating structure, enabling the boom to move smoothly and lift heavy loads with precision. The bearing's ability to handle axial, radial, and moment loads ensures stability and safety during operation, especially in construction and industrial environments where reliability is essential.

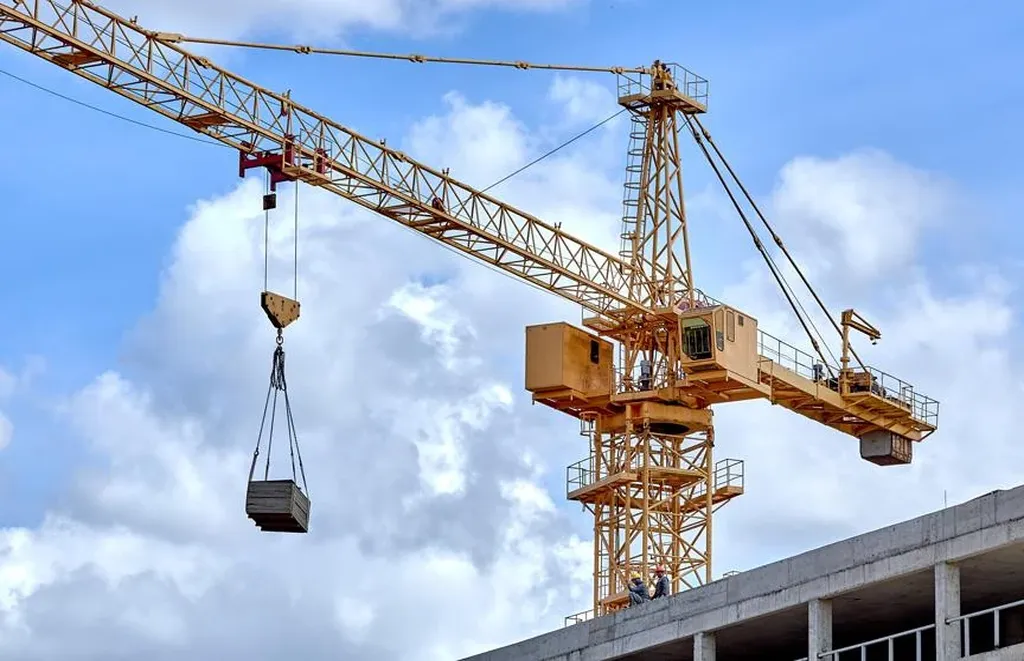

• Tower Cranes: Tower cranes rely on these bearings for their slewing mechanism, allowing the jib to rotate and position loads accurately at great heights. The bearing's design accommodates the significant axial and radial loads encountered in these applications, ensuring smooth operation and precise control, which is vital for safety and efficiency on construction sites.

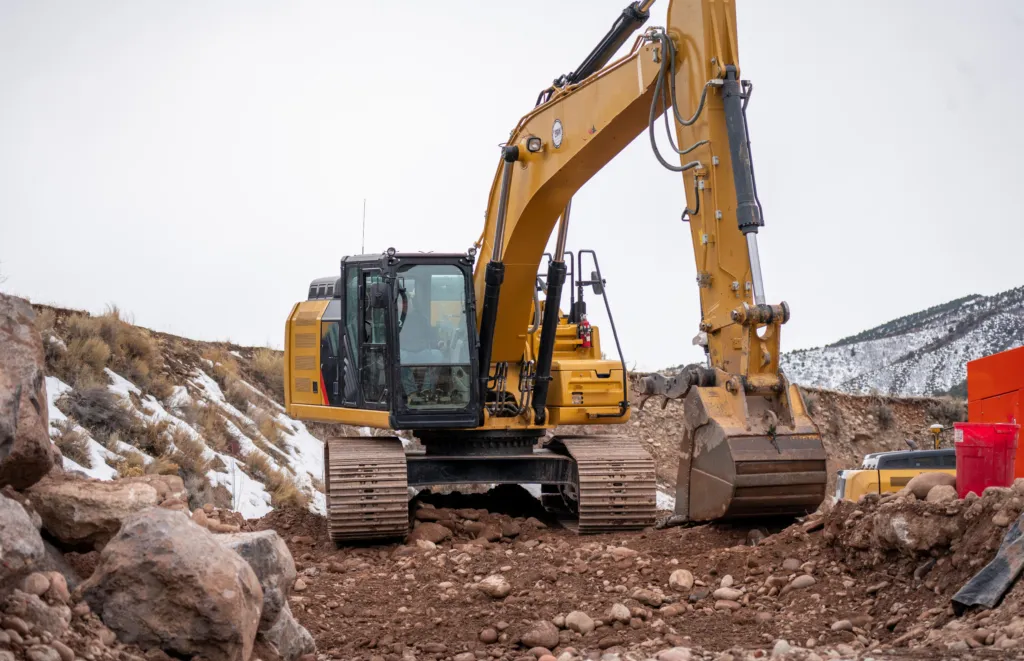

• Excavators: In excavators, the slewing bearing is integral to the machine's ability to rotate the cabin and arm. This component allows for smooth and efficient movement, enabling precise digging and positioning. The bearing's robust design supports the heavy loads and dynamic forces experienced during excavation tasks, contributing to the machine's overall reliability and performance.
• Wind Turbines: These bearings are used in wind turbines to allow the rotor to pivot and align with the wind direction, optimizing energy capture. The bearing's ability to handle complex loads, including wind-induced forces, is crucial for maintaining efficiency and stability. Its durability ensures long service life, even under harsh environmental conditions, reducing maintenance needs.
• Rotary Conveyor: In rotary conveyors, the slewing bearing enables the smooth rotation of conveyor sections, facilitating the efficient movement of materials. The bearing's capacity to support combined loads ensures stability and reliability in continuous operation, making it ideal for use in industries where material handling efficiency and precision are critical.

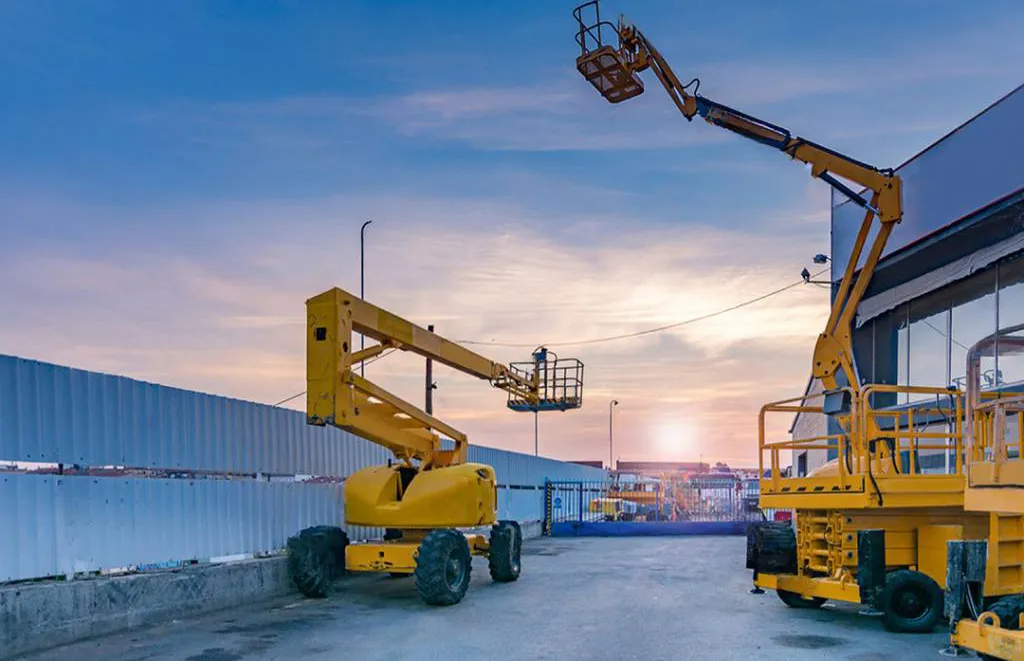

• Aerial Platform Truck: For aerial platform trucks, these bearings are essential for the rotation of the platform, allowing operators to position the lift with precision. The bearing's robust design ensures safe and stable operation, even at heights. Its ability to handle diverse loads enhances the vehicle's versatility and safety during various tasks, such as maintenance and construction.

Benefits of Single-Row Four-Point Contact Ball Slewing Bearing for Truck Crane

Utilizing single-row four-point contact ball slewing bearings in truck cranes offers several notable benefits due to their specialized design and capabilities:

1. Load Handling Capability: This bearing can manage axial, radial, and moment loads simultaneously, making it ideal for the diverse demands of truck cranes. Its design ensures that the crane can lift and move heavy loads with precision, enhancing operational efficiency and safety by distributing stresses evenly across the bearing.
2. Compact Design: The compact nature of the single-row design allows for integration into limited spaces within the crane structure. This space efficiency is crucial for maintaining a lower overall weight of the crane while maximizing its lifting capacity. It also contributes to a more streamlined and efficient crane design.
3. Smooth Rotation: The four-point contact design ensures smooth and consistent rotational movement, which is critical for precise control of the crane's boom. This smooth operation facilitates accurate positioning of loads, reducing the likelihood of accidents and improving the overall performance of the crane during complex maneuvers.
4. Durability and Longevity: Constructed from high-quality materials, these bearings are designed to withstand harsh operating conditions and heavy usage. Their durability extends the lifespan of the crane, reducing the frequency and cost of maintenance and replacements, thus providing a reliable solution for long-term use in demanding environments.
5. Enhanced Stability: The bearing's ability to handle moment loads contributes significantly to the stability of the crane during operation. This stability is crucial when lifting loads at extended reaches, ensuring that the crane remains balanced and secure, which is vital for both safety and operational efficiency.
6. Versatility: This type of bearing is adaptable to various crane models and configurations, providing flexibility in design and application. Its versatility allows manufacturers to use it across different crane types, simplifying inventory and maintenance processes while ensuring consistent performance across their equipment range.

Why Choose HZPT's Slewing Bearings?

By choosing HZPT slewing bearings, you will have a business partner who is willing to understand your application conditions to ensure that you have the rotating parts you need to complete your project on time and within budget. The use of HZPT slewing bearing will have the following advantages:

1. Faster Quotations: Our pre-sales team takes timeliness very seriously, so we will respond to quotation requests within 12 hours.
2. Greater Flexibility: it would be great if one of our standard products could meet your selection needs. If not, please don’t be disappointed, we can meet your custom requirements. We will not destroy your original design, but will customize the slewing bearings to meet your requirements.
3. More Efficient: All HZPT slewing bearings, slewing drives and gears are manufactured and designed in China with ISO, SGS and BV certifications. Three modern workshops and five specialized production lines enable us to deliver products faster and at lower prices than existing slewing support suppliers without compromising quality.
4. Rest assured: Your entire product may not work properly until the slewing supports arrive. As a result, delays in the delivery of slewing support orders are frustrating and unacceptable. HZPT logistics team to understand your demand for delivery on time, commitment to customer delivery, we will go all out not to lose faith in customers, because integrity is more important than orders.
5. Cost-Efficient: Many mainframe manufacturers have large stock reserves to ensure the complete machine production schedule. This is where a lot of your costs are tied up. With HZPT Slewing Bearings, you can save inventory and order what you need when you need it. If you wish, HZPT will follow the predetermined inventory plan to ensure that you receive the planned shipment during the year. This proven business model enables you to reduce or eliminate excess internal inventory and save money on your budget.

FAQs:

Q: What is a Single-Row Four-Point Contact Ball Slewing Bearing?
A: This type of bearing is designed to handle axial, radial, and moment loads with a single row of balls. It's used in applications like cranes for smooth rotational movement and precise load handling.

Q: How does the four-point contact design work?
A: The design allows each ball to contact the raceway at four points, enabling it to handle complex load combinations efficiently. This ensures stability and precision, making it ideal for heavy-duty applications.

Q: What materials are used in these bearings?
A: Typically, high-strength steels are used for the rings and balls, ensuring durability and resistance to wear. The materials are chosen to withstand harsh conditions and maintain performance over time.

Q: What are the maintenance requirements?
A: Regular lubrication and inspection are essential to ensure longevity and performance. Proper sealing helps keep contaminants out, reducing wear and extending the bearing's service life, while minimizing maintenance costs.

Q: Can these bearings be customized?
A: Yes, manufacturers can customize them to meet specific application requirements, such as different sizes, load capacities, and materials. Customization ensures that the bearing fits perfectly into the intended machinery.

Q: What are the common applications?
A: They are commonly used in truck cranes, tower cranes, excavators, wind turbines, and other heavy machinery. Their ability to handle multiple load types makes them versatile and widely applicable in various industries.

Q: How do seals affect bearing performance?
A: Seals protect the bearing from contaminants like dust and moisture, which can cause wear and reduce efficiency. High-quality seals maintain lubrication and keep the bearing functioning smoothly, extending its operational life.

Q: What factors influence bearing selection?
A: Key considerations include load capacity, rotational speed, environmental conditions, and space constraints. Selecting the right bearing ensures optimal performance and longevity in its specific application.

Q: How do these bearings improve crane performance?
A: By providing smooth rotational movement and handling complex loads, they enhance crane precision and stability. This results in safer and more efficient operations, crucial for lifting and positioning heavy loads.

Q: What is the impact of improper installation?
A: Incorrect installation can lead to premature wear and failure. It is essential to follow manufacturer guidelines to ensure proper alignment and secure attachment, which are critical for the bearing's performance and lifespan.
