Stainless Steel Take Up Bearings

Stainless Steel Take Up Bearings

Stainless steel take-up bearings and frames are designed to align the belt tracks and can be adjusted to maintain tension on the belt. Our stainless steel take-up bearings are made of high-quality food-grade stainless steel. We offer a variety of shaft locking configurations such as set screws, eccentric locking, concentric locking, and wide inner rings. We have imperial and metric stainless steel take-up bearings and stainless steel take-up frames.

Category:
Get a Quote

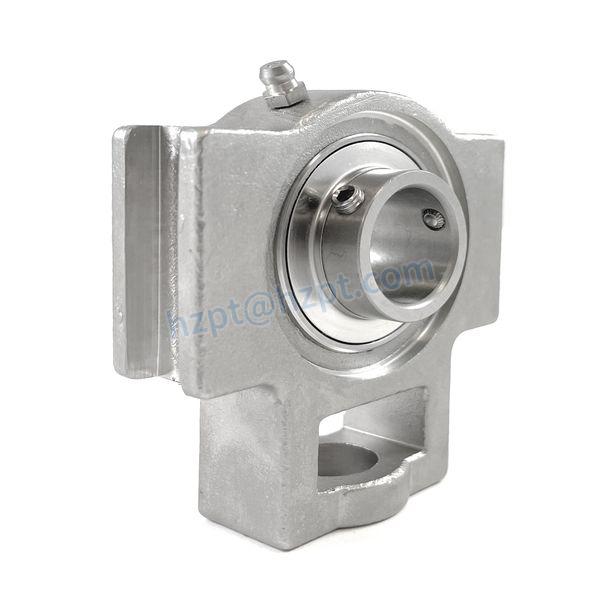

Stainless Steel Take Up Bearings
Stainless steel take-up bearings and frames are designed to align the belt tracks and can be adjusted to maintain tension on the belt. Our stainless steel take-up bearings are made of high-quality food-grade stainless steel. We offer a variety of shaft locking configurations such as set screws, eccentric locking, concentric locking, and wide inner rings. We have imperial and metric stainless steel take-up bearings and stainless steel take-up frames. Due to the sheer nature of the intended application, high-quality take-up bearings are recommended.

Stainless Steel Take Up Bearing Sizes

(1) SUCSTM 200 Normal Duty Stainless Steel take Up Bearing With Set Screws
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUCSTM201 12 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC201 204 2.0
SUCSTM201-8 1/2 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC201-8 204 2.0
SUCSTM202 15 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC202 204 2.0
SUCSTM202-10 5/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC202-10 204 2.0
SUCSTM203 17 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC203 204 2.0
SUCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC204-12 204 2.0
SUCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2205 0.5000 0.7205 2,331 1,142 SUC204 204 2.0
SUCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-14 205 2.2
SUCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-15 205 2.2
SUCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205 205 2.2
SUCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3425 0.5630 0.7795 2,542 1,349 SUC205-16 205 2.2
SUCSTM206-17 1 11/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-17 206 3.2
SUCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-18 206 3.2
SUCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206 206 3.2
SUCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-19 206 3.2
SUCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5000 0.6260 0.8740 3,554 1,942 SUC206-20 206 3.2
SUCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.0000 4,683 2,626 SUC207-20 207 4.0
SUCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-21 207 4.0
SUCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-22 207 4.0
SUCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207 207 4.0
SUCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.6890 0.6890 1.000 4,683 2,626 SUC207-23 207 4.0
SUCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.1890 5,294 3,057 SUC208-24 208 5.9
SUCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.1890 5,294 3,057 SUC208-25 208 5.9
SUCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9370 0.7480 1.890 5,294 3,057 SUC208 208 5.9
SUCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-26 209 6.6
SUCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-27 209 6.6
SUCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209-28 209 6.6
SUCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9370 0.7480 1.890 5,923 3,507 SUC209 209 6.6
SUCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 6,402 4,046 SUC210-30 210 6.6
SUCSTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210-31 210 6.6
SUCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210 210 6.6
SUCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0315 0.7480 1.2835 5,402 4,046 SUC210-32 210 6.6
SUCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-32 211 9.9
SUCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-34 211 9.9
SUCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211 211 9.9
SUCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.1890 0.8740 1.3150 7,931 5,036 SUC211-35 211 9.9
SUCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-36 212 12.3
SUCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212 212 12.3
SUCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-38 212 12.3
SUCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.5630 1.0000 1.5630 9,554 5,921 SUC212-39 212 12.3

(2) SNCSTM 200 Normal Duty Stainless Steel take Up Bearing With Eccentric Locking Collar
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SNCSTM201-8 1/2 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC201-8 STM 204 2.0
SNCSTM202-10 5/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC202-10 STM 204 2.0
SNCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC204-12 STM 204 2.0
SNCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.5472 0.5000 0.6732 2,331 1,142 SNC204 STM 204 2.0
SNCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205-14 STM 205 2.2
SNCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205-15 STM 205 2.2
SNCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220 0.5630 0.6890 2,542 1,349 SNC205 STM 205 2.2
SNCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 3.82 0.94 2.44 1.6220. 0.5630 0.6890 2,542 1,349 SNC205-16 STM 205 2.2
SNCSTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3,554 1,942 SNC206-17 STM 206 3.3
SNCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-18 STM 206 3.3
SNCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206 STM 206 3.3
SNCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-19 STM 206 3.3
SNCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.8110 0.6260 0.7165 3554 1942 SNC206-20 STM 206 3.3
SNCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-20 STM 207 4.2
SNCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-21 STM 207 4.2
SNCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-22 STM 207 4.2
SNCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207 STM 207 4.2
SNCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.9606 0.6890 0.7402 4683 2626 SNC207-23 STM 207 4.2
SNCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208-24 STM 208 6.2
SNCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208-25 STM 208 6.2
SNCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 2.1220 0.7480 0.8425 5294 3057 SNC208 STM 205 6.2
SNCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-26 STM 209 6.9
SNCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-27 STM 209 6.9
SNCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209-23 STM 209 6.9
SNCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.1220 0.7480 0.8425 5923 3507 SNC209 STM 209 6.9
SNCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-30 STM 210 7.1
SNCSTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-31 STM 210 7.1
SNCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210 STM 210 7.1
SNCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.2480 0.7480 0.9685 6402 4046 SNC210-30 STM 210 7.1
SNCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-32 STM 211 10.7
SNCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-34 STM 211 10.7
SNCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211 STM 211 10.7
SNCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.5906 0.8740 1.0906 7931 5036 SNC211-35 STM 211 10.7
SNCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-36 STM 212 13.1
SNCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212 STM 212 13.1
SNCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-38 STM 212 13.1
SNCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 2.8425 1.0000 1.2165 9554 5921 SNC212-39 STM 212 13.1

(3) SHCSTM 200 Normal Duty Stainless Steel take Up Bearing With Eccentric Locking Collar and Wide Inner Ring
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
 Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SHCSTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.7205 0.6732 0.6732 2331 1142 SHC 204-12 STM204 2.0
SHCSTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.7205 0.6732 0.6732 2331 1142 SHC 204 STM204 2.0
SHCSTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-14 STM205 2.2
SHCSTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-15 STM205 2.2
SHCSTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205 STM205 2.2
SHCSTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.7480 0.6890 0.6890 2542 1349 SHC 205-16 STM205 2.2
SHCSTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-17 STM206 3.3
SHCSTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-18 STM206 3.3
SHCSTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206 STM206 3.3
SHCSTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-19 STM206 3.3
SHCSTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.9055 0.7205 0.7165 3554 1942 SHC 206-20 STM206 3.3
SHCSTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-20 STM207 4.2
SHCSTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-21 STM207 4.2
SHCSTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-22 STM207 4.2
SHCSTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207 STM207 4.2
SHCSTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 2.0118 0.7402 0.7402 4683 2626 SHC 207-23 STM207 4.2
SHCSTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208-24 STM208 6.2
SHCSTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208-25 STM208 6.2
SHCSTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.476 2.2165 0.8425 0.8425 5293 3057 SHC 208 STM208 6.2
SHCSTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3507 SHC 209-26 STM209 6.9
SHCSTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209-27 STM209 6.9
SHCSTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209-28 STM209 6.9
SHCSTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 209 STM209 6.9
SHCSTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210-30 STM210 6.9
SHCSTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210 STM210 6.9
SHCSTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.71 1.93 1.38 3.43 2.2165 0.8425 0.8425 5924 3057 SHC 210-32 STM210 6.9
SHCSTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-32 STM211 10.7
SHCSTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-34 STM211 10.7
SHCSTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211 STM211 10.7
SHCSTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.8110 1.0945 1.0906 7931 5036 SHC 211-35 STM211 10.7
SHCSTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-36 STM212 13.1
SHCSTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212 STM212 13.1
SHCSTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-38 STM212 13.1
SHCSTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.65 4.69 3.0630 1.2205 1.2165 9554 5921 SHC 212-39 STM212 13.1

(4) SUESTM 200 Normal Duty Stainless Steel take Up Bearing With Tru-Loc Concentric Locking Collar
Bearing #
Shaft Diameter (d)
(O)
(G)
(P)
(Q)
(S)
(B)
(K)
(E)
(A)
(W)
(J)
(L)
(H)
(Bi)
(N)
(M)
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUESTM204-12 3/4 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2992 0.5000 0.7205 2331 1142 SUE 204-12 STM 204 2.0
SUESTM204 20 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.70 1.25 0.83 2.40 1.2992 0.5000 0.7205 2331 1142 SUE 204 STM 204 2.0
SUESTM205-14 7/8 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-14 STM 205 2.2
SUESTM205-15 15/16 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-15 STM 205 2.2
SUESTM205 25 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205 STM 205 2.2
SUESTM205-16 1 0.63 0.38 2.00 1.25 0.75 2.00 0.53 3.00 3.50 3.82 1.25 0.94 2.44 1.3937 0.5630 0.7795 2542 1349 SUE 205-16 STM 205 2.2
SUESTM206-17 1 1/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206-17 STM 206 3.3
SUESTM206-18 1 1/8 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE0206-18 STM 206 3.3
SUESTM206 30 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206 STM 206 3.3
SUESTM206-19 1 3/16 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206-19 STM 206 3.3
SUESTM206-20 1 1/4 0.63 0.44 2.20 1.46 0.87 2.25 0.53 3.50 4.02 4.45 1.46 1.10 2.75 1.5669 0.6260 0.8740 3554 1942 SUE 206-20 STM 206 3.3
SUESTM207-20 1 1/4 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-20 STM 207 4.0
SUESTM207-21 1 5/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-21 STM 207 4.0
SUESTM207-22 1 3/8 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-22 STM 207 4.0
SUESTM207 35 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207 STM 207 4.0
SUESTM207-23 1 7/16 0.63 0.56 2.52 1.46 0.87 2.52 0.53 3.50 4.02 5.12 1.46 1.18 3.07 1.7283 0.6890 1.0000 4683 2626 SUE 207-23 STM 207 4.0
SUESTM208-24 1 1/2 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208-24 STM 208 6.0
SUESTM208-25 1 9/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208-25 STM 208 6.0
SUESTM208 40 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.50 5.67 1.93 1.30 3.46 1.9764 0.7480 1.1890 5294 3057 SUE 208 STM 208 6.0
SUESTM209-26 1 5/8 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-26 STM 209 6.7
SUESTM209-27 1 11/16 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-27 STM 209 6.7
SUESTM209-28 1 3/4 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209-28 STM 209 6.7
SUESTM209 45 0.75 0.67 3.27 1.94 1.13 3.27 0.63 4.02 4.61 5.71 1.93 1.38 3.43 1.9764 0.7480 1.1890 5923 3507 SUE 209 STM 209 6.7
SUESTM210-30 1 7/8 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-30 STM 210 6.7
SUESTM210-31 1 15/16 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-31 STM 210 6.7
SUESTM210 50 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210 STM 210 6.7
SUESTM210-32 2 0.75 0.67 3.27 1.94 1.13 3.39 0.63 4.02 4.61 5.91 1.93 1.46 3.54 2.0709 0.7480 1.2835 6402 4046 SUE 210-32 STM 210 6.7
SUESTM211-32 2 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-32 STM 211 10.1
SUESTM211-34 2 1/8 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-34 STM 211 10.1
SUESTM211 55 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211 STM 211 10.1
SUESTM211-35 2 3/16 0.98 0.75 4.02 2.52 1.38 3.75 0.87 5.12 5.71 6.73 2.52 1.50 4.17 2.2383 0.8740 1.3150 7931 5036 SUE 211-35 STM 211 10.1
SUESTM212-36 2 1/4 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-36 STM 212 12.5
SUESTM212 60 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212 STM 212 12.5
SUESTM212-38 2 3/8 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-38 STM 212 12.5
SUESTM212-39 2 7/16 1.26 0.75 4.02 2.52 1.38 4.02 0.87 5.12 5.71 7.64 2.52 1.64 4.69 2.6220 1.0000 1.5630 9554 5921 SUE 212-39 STM 212 12.5

Features of stainless steel take-up bearing

Stainless steel take-up bearings are used where shaft adjustment and belt tensioning are required, such as on food conveyors. A tensioner extends or retracts the conveyor pulley to adjust the tension on the conveyor belt. The Stainless steel take-up bearings are made for heavy-duty applications and are ideal for harsh and corrosive environments.

Stainless steel grade 316 (UNS S31600)

The housing is made of stainless steel (grade 316), which is rustproof and resistant to corrosion from seawater. It is also resistant to all cleaning products and chemicals. The rounded corners and smooth surfaces make these units very easy to clean.

Large load capacity

The stainless steel take-up bearings are delivered with a spherical roller bearing insert that enables the bearing block to carry up to five times more load than conventional bearings. Spherical roller bearings have the advantage that they provide a much larger load capacity than ball bearings and can accommodate axial force.

Many options

Many sealing options are possible. Each possesses different properties depending on the application. We would be pleased to advise you on the best choice of the seal.

Applications

  • Conveyors
  • Fans and blowers
  • Food processing equipment
  • Fishing equipment

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.

Q. Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: How long is your stainless steel bearings delivery time?

A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for stainless steel bearings? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

Q: Could you accept OEM and customize stainless steel bearings?

A: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q: Will you check these products before shipment?

A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

A: If you have any abnormal, Please contact us for the first time, and we will immediately process them.

If you need stainless steel bearings or any models of bearings, please contact me!

Category:

Related products

hzpt oem odm banner

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

Industries We Service

industries we service
