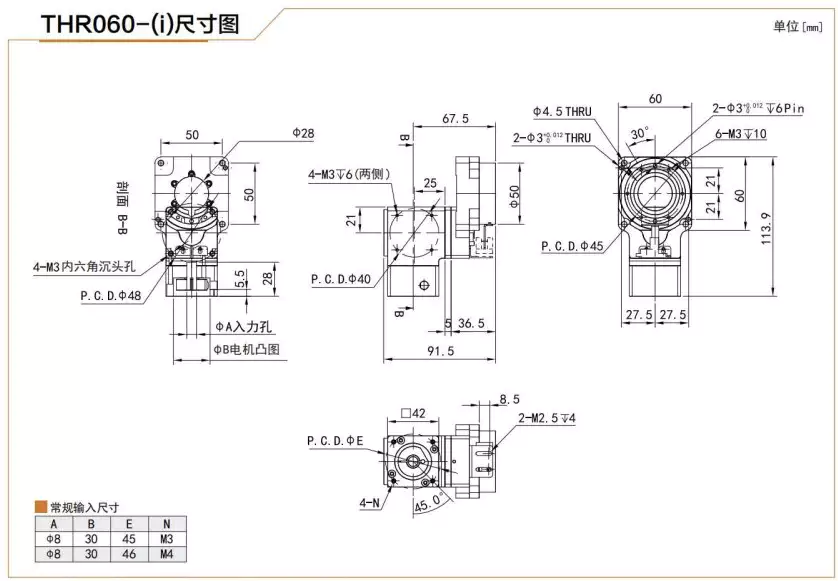

THR060 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

The THR060 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox is a high-precision motion control device that provides accurate rotary positioning. It is designed with a hollow structure, which allows cables, piping, or other necessary components to pass through the center of the device without affecting its rotary motion. This feature greatly enhances the device's integration capability in limited spaces.

The Hollow Rotary Actuator is widely used in various industries due to its high precision and compact design. It is also known as the Hollow Rotary Platform and Hollow Rotary Table. The device has a high-precision planetary gearbox that ensures accurate positioning and high torque output. The device has a wide range of applications in industrial automation, robotics, aerospace, and medical equipment.

Technical Parameter

Specifications	THR060
Reduction ratio	5/10/15/20/25/30/50
Rated torque	14Nm
Adapted motor	50/100W AC Servo motor
Emergency stop torque	2.5x rated torque
Rated input speed	1500rpm
Maximum input speed	2500rpm
Return gap	≤1arcmin
Torsional rigidity
Permissible radial force	300N
Permissible axial force	150N
Service life	20000hr （Continuous operation reduces service life by 50%)
Transmission efficiency	95%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤65dB(A)
Moment of inertia	0.003kg.cm²
Weight	1.45kg

Basic Construction of the Hollow Rotary Actuator

The Hollow Rotary Actuator consists of five main components:

1. Cross-roller bearing
2. Precision gears
3. Input mounting flange
4. Input shaft
5. Sensing device

Cross-roller bearing

The cross-roller bearing is a key component of the Hollow Rotary Actuator. It provides high rigidity and accuracy, making it ideal for applications that require high precision and repeatability.

Precision gears

The precision gears are another important component of the Hollow Rotary Actuator. They ensure accurate positioning and high torque output. The use of a planetary gearbox allows the device to provide high torque output while maintaining a compact design.

Input mounting flange and input shaft

The input mounting flange and input shaft are used to connect the Hollow Rotary Actuator to the driving motor. The input shaft transfers the motor's power to the gearbox, which then drives the output shaft.

Sensing device

The sensing device is used to detect the device's position accurately. This information is used to provide feedback to the control system, ensuring that the Hollow Rotary Actuator moves to the desired position.

Working Principle of the Hollow Rotary Actuator

The Hollow Rotary Actuator typically uses an electric motor to provide the driving force. The motor can be a servo motor, stepper motor, or DC motor. The motor converts electrical energy into mechanical energy, which is then transmitted to the driving system via the input shaft. The driving system usually consists of a set of precision gears, such as a planetary gearbox. The motor's power is transmitted to the sun gear via the input shaft, and the sun gear drives a set of planetary gears that rotate around it. These planetary gears also revolve around the internal gear, reducing the rotation speed and increasing the torque output. The hollow shaft design is a core feature of the Hollow Rotary Actuator, allowing cables, fluid pipelines, or other necessary components to pass through the shaft center without affecting the device's rotation function. To achieve accurate position control, the Hollow Rotary Actuator is equipped with position sensors, such as encoders or magnetostrictive displacement sensors. These sensors detect the device's rotational angle in real-time and transmit the data back to the control system, forming a closed-loop feedback mechanism that ensures the device moves accurately to the desired position. The device connects to the output end via a flange or other interface method to the rotating load, such as a robot joint, radar antenna, or medical equipment, enabling precise continuous or intermittent rotation operations.

Design and Selection Considerations of the Hollow Rotary Actuator

When designing and selecting a Hollow Rotary Actuator, several factors must be considered:

Factor	Description
Load capacity	The maximum load that the device can handle must be considered.
Mounting options	The device's mounting configuration can affect its performance in certain applications.
Environmental factors	The operating environment, such as temperature, humidity, and vibration, can affect the device's performance.
Speed and accuracy	The speed and accuracy requirements of the application must be considered to ensure the device's suitability.
Size and weight	The device's size and weight can affect its integration and performance in certain applications.

Applications of the Hollow Rotary Actuator

The Hollow Rotary Actuator has a wide range of applications in various fields, including:

1. Robotics technology
2. Aerospace
3. Medical equipment
4. Military equipment
5. Optical instruments
6. Industrial automation

Some specific applications of the device in these fields include:

Robotics technology

The Hollow Rotary Actuator is widely used in robotics technology for precise rotary positioning, such as robot arms, joints, and grippers.

Aerospace

The device is used in aerospace for applications such as satellite antenna positioning, camera gimbal systems, and spacecraft docking systems.

Medical equipment

The Hollow Rotary Actuator is used in medical equipment, such as CT scanners, X-ray machines, and robotic surgical systems, for precise and accurate motion control.

Military equipment

The device is used in military equipment, such as radar systems and missile launchers, for precise and accurate motion control.

Optical instruments

The Hollow Rotary Actuator is used in optical instruments, such as telescopes and cameras, for precise and accurate motion control.

Industrial automation

The device is used in various industrial automation applications, such as assembly line automation, packaging equipment, and material handling systems, for precise and accurate motion control.

About Our Company

We are a professional modern enterprise that specializes in the development, production, and sales of servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales, and after-sales service team. The company mainly researches and produces servo cylinders, servo press machines, electric push rods, electric sliding tables, multi-degree-of-freedom platforms, and other servo stamping equipment. Our goal is to provide high-quality products and services to our customers and establish long-term cooperative relationships with them.

Author: Miya
