Trailer Parts 12” Fanned Brake drum with 6 bolts

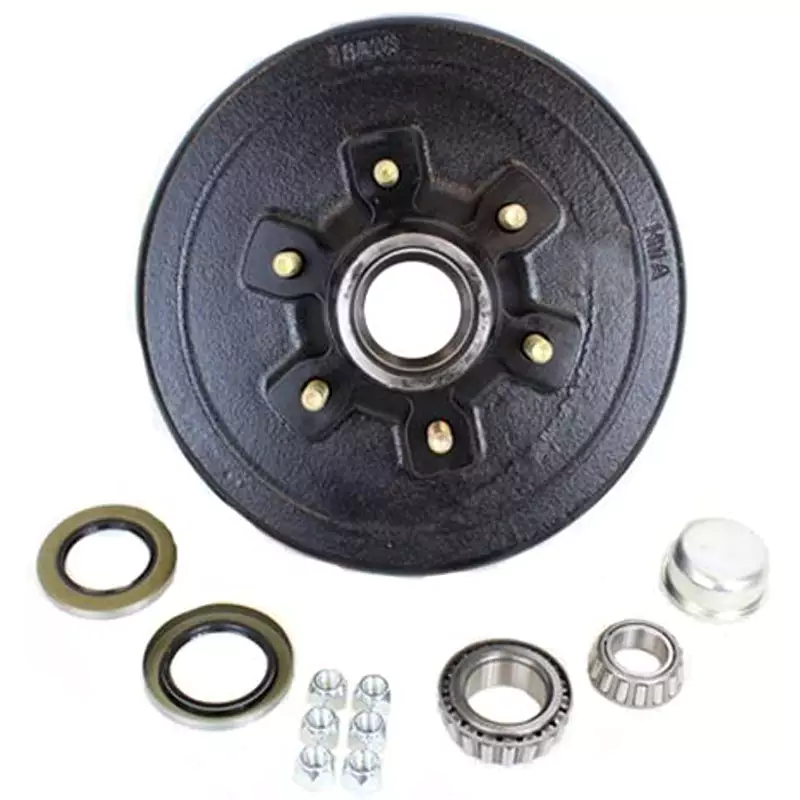

12” Fanned Brake drum with 6 bolts

Brake drums are most commonly found on older vehicles that were manufactured before 1998. That being said, some newer vehicles, such as Chevrolet Silverado’s, are still manufactured with drum brakes. Drum brakes function similarly to break pads and rotors… The brake shoes press up against the drums to create friction which slows the rotation of the wheel.

Category: Tag:
Get a Quote

12” Fanned Brake drum with 6 bolts

Product Features:

  • Can be used with either electric or hydraulic drum brake assemblies
  • Durable, cast iron construction for greater longevity
  • Black painted finish
  • Pre-pressed races and studs
  • Includes bearings, grease seal and cap, and lug nuts
  • Used on axles with 3,500 lbs. capacities
  • Fits 10" brakes
  • Grease sold separately

Trailer Parts 12” Fanned Brake drum with 6 bolts Brake drums are most commonly found on older vehicles that were manufactured before 1998. That being said, some newer vehicles, such as Chevrolet Silverado’s, are still manufactured with drum brakes. Drum brakes function similarly to break pads and rotors… The brake shoes press up against the drums to create friction which slows the rotation of the wheel.

Trailer Hub and Drum

Trailer Hub and Drum H440-2A
Bt Idler 4-bolts 4.0” BC
2000-22001bs

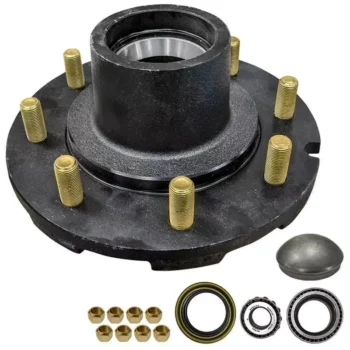

Hub+bolts+nut+bearing cups 44610/44610+bearing cone 44649/44649+seals+dust cap		 Trailer Hub and Drum H865-2A
Bt Idler 8-bolts 6.5”BC;
6000-7000lbs
Hub+bolts+nuts +bearing cups 14276/25520 +bearing cone 14125/25520 +seals+dust cap
Trailer Hub and Drum H545-1A / H550-1A / H555-1A
Bt Idler 5-bolts 4.5”;5.0;4.0;5.5BC
2000-2200lbs
Hub+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap		 Trailer Hub and Drum D545-1FA
10'' fanned brake drum 5 bolt on
4,5 b.c
3500lbs
Hub drum+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap
Trailer Hub and Drum H545-2A
Bt Idler 5-bolts 4.5”BC
3500lbs
Hub+bolts+nuts +bearing cups 44610/68111 +bearing cone 44649/68149 +seals+dust cap		 Trailer Hub and Drum D655-12A
Brake drum 12” 6bolts 5.5” BC
6000lbs
Hub drum+bolts+nuts+bearing cups 15245/25520+bearing cone 15123/25580+seals+dust cap
Trailer Hub and Drum H655-2A
Bt Idler 6-bolts 5.5”BC
6000lbs
Hub+bolts+nuts +bearing cups 15245/25520 +bearing cone 15123/25580 +seals+dust cap		 Trailer Hub and Drum D865-12
Brake drum 12” 8bolts 6.5” BC
7000lbs
Hub+drum+bolts+nuts+bearing cups 14276/25520+bearing cone 14125/25520+seals+dust cap

How Do You Replace A Brake Drum?

  1. Jack up the vehicle and ensure it is secured safely using jack stands.
  2. Remove the tire and wheel assembly from the vehicle.
  3. Next, you’ll remove the brake drum from the wheel hub. You may find that the drum has rusted onto the hub, making it more difficult to remove.
  4. Once you have gotten the drum removed, you should properly inspect the brake shoes, springs, parking brake mechanism, and wheel cylinder.
  5. Replace the old brake shoe and install the new drum. Anytime you’re replacing the brake drums, you’ll also need to replace the shoes.
  6. Put the tire back onto the vehicle and lower the vehicle off the jack stands.

Can I replace the brake drum myself?

We definitely recommend employing a professional mechanic to repair your drum brakes. The process of replacing drums on a vehicle is not an easy task and its important that the replacement is done properly to ensure you and your vehicle’s safety. If you’re feeling ambitious, you could give a brake drum replacement your best shot but keep in mind that there are several small pieces and springs involved that can quickly create a headache.
