Two Piece Double Wide Shaft Collars (Shaft Clamps) Inch Series

Two Piece Double Wide Shaft Collars (Shaft Clamps) Inch Series

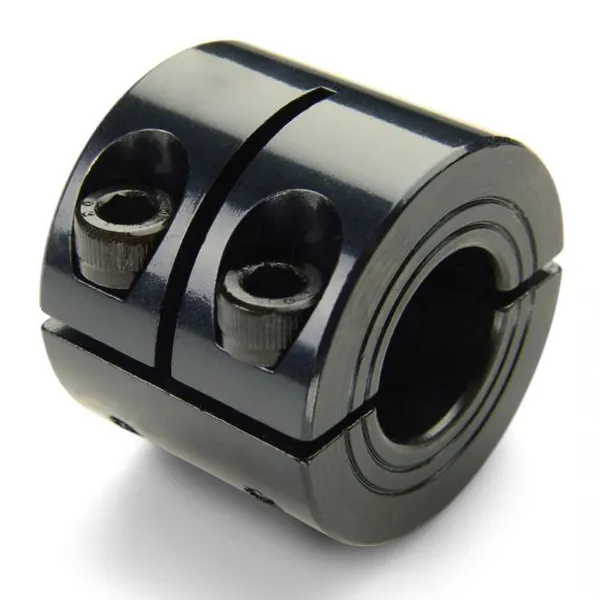

The inch series two piece double wide shaft collars are mechanical components used to secure two or more objects onto a common shaft. These double wide shaft collar types consist of two separate pieces, each with a semi-circular shape that can be clamped together around the shaft of a machine or other mechanical device.

The double-wide design of these shaft collars provides a wider surface area for clamping, which can help to distribute the clamping force more evenly and reduce the risk of damage to the shaft or other components. This can be especially important in high-torque or heavy-duty applications.

Inch series two piece double wide shaft collars are available in a range of sizes and materials to suit different applications. They are commonly used in industrial machinery, automation equipment, and other mechanical systems where precise positioning and secure attachment are required. If you are looking for a shaft collar that can support high axial loads and is available in a variety of sizes and materials, then inch series two piece double wide shaft collars are a great option.

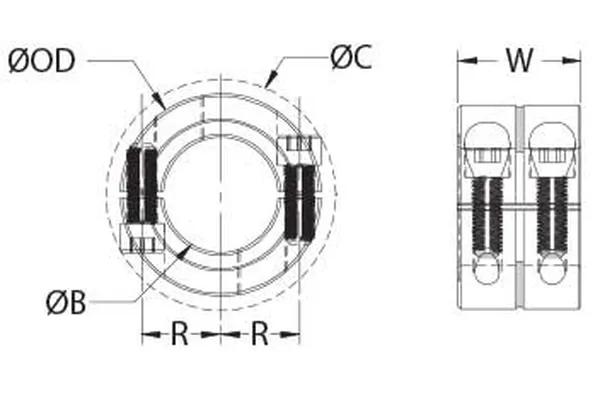

▍Two Piece Double Wide Shaft Collar Sizes Chart (Inch Series)

Part Number Steel	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
WSP-2-F	WSP-2-SS	0.1250	5/8	5/8
WSP-4-F	WSP-4-SS	0.2500	5/8	5/8
WSP-5-F	WSP-5-SS	0.3125	11/16	5/8
WSP-6-F	WSP-6-SS	0.3750	7/8	3/4
WSP-8-F	WSP-8-SS	0.5000	1 1/8	7/8
WSP-10-F	WSP-10-SS	0.6250	1 5/16	15/16
WSP-12-F	WSP-12-SS	0.7500	1 1/2	1 1/16
WSP-14-F	WSP-14-SS	0.8750	1 5/8	1 1/16
WSP-16-F	WSP-16-SS	1.0000	1 3/4	1 1/16
WSP-18-F	WSP-18-SS	1.1250	1 7/8	1 1/16
WSP-20-F	WSP-20-SS	1.2500	2 1/16	1 1/16
WSP-24-F	WSP-24-SS	1.5000	2 3/8	1 3/16
WSP-28-F	WSP-28-SS	1.7500	2 3/4	1 15/32
WSP-32-F	WSP-32-SS	2.0000	3	1 15/32

▍Benefit of Using the Two Piece Double Wide Shaft Collars

Two-piece double wide shaft collars offer several benefits over traditional one-piece shaft collars. Here are some of the benefits:

1. Increased Clamping Force: The double wide design of these shaft collars provides a larger contact area with the shaft, which results in increased clamping force. The increased clamping force helps to prevent slippage or movement of the collar on the shaft.

2. Improved Shaft Protection: The two-piece design of these shaft collars allows for easier installation and removal without damaging the shaft. This is particularly important for shafts that are made of softer materials or have delicate finishes.

3. Greater Versatility: Two-piece double wide shaft collars can be used in a variety of applications, including those that require precision alignment or where there is limited space available for installation.

4. Reduced Downtime: Because these double wide shaft collars are easier to install and remove, they can help reduce downtime during maintenance or repairs. This can save time and money in the long run.

5. Customizable: Two-piece double wide shaft collars can be customized to meet specific application requirements. This includes the option to add tapped holes, keyways, or other features to the shaft collar to better fit the application.

Overall, the use of two-piece double wide shaft collars can provide improved clamping force, shaft protection, versatility, reduced downtime, and customization options for a wide range of applications.

▍Two Piece Double Wide Shaft Collars Vs One Piece Double Wide Shaft Collars

Two-piece double wide shaft collars and one-piece double wide shaft collars are both types of shaft collars that are used to secure components to a shaft. They are both made up of two halves that are clamped together around the shaft, but there are some key differences between the two types.

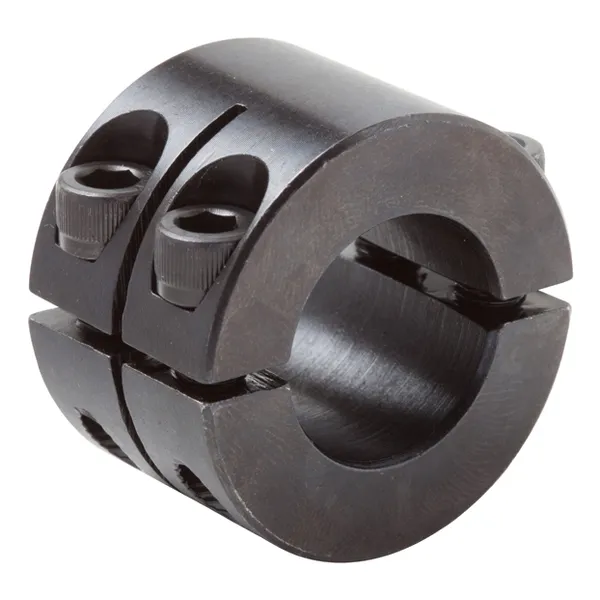

Two-piece double wide shaft collars are made up of two separate halves that are joined together by a bolt or screw. This allows for more flexibility in terms of installation and adjustment, as the two halves can be separated to allow the collar to be slipped over the shaft. Two-piece double wide shaft collars also tend to be more durable than one-piece collars, as the two halves can absorb more shock and vibration.

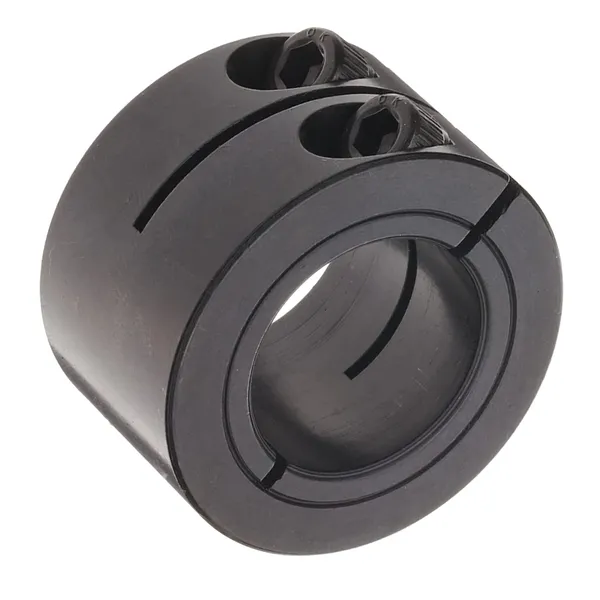

One-piece double wide shaft collars are made up of a single piece of material that is split down the middle. This type of collar is easier to install than a two-piece collar, as it does not require the two halves to be joined together. One-piece double wide shaft collars are also less expensive than two-piece collars.

In general, two-piece double wide shaft collars are a better choice for applications where high holding power and durability are required. One-piece double wide shaft collars are a better choice for applications where ease of installation and lower cost are more important.

Here is a table that summarizes the key differences between two-piece double wide shaft collars and one-piece double wide shaft collars:

Ultimately, the best types of shaft collars for your application will depend on your specific needs and requirements.

Two-Piece Double Wide Shaft Collars	One-Piece Double Wide Shaft Collars

▍Where Is Two Piece Double Wide Shaft Collar Commonly Used?

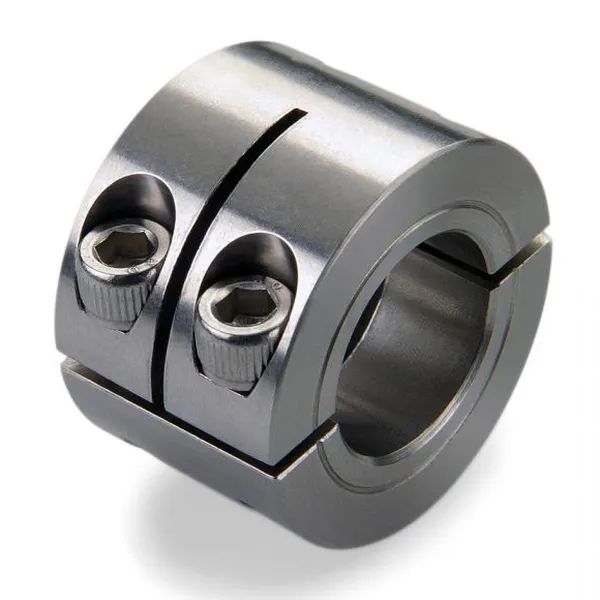

Two-piece double wide shaft collars are commonly used in a variety of applications where a secure and reliable shaft-hub connection is required, and where there may be limited space for installation or removal. Here are some examples of where two-piece double wide shaft collars are commonly used:

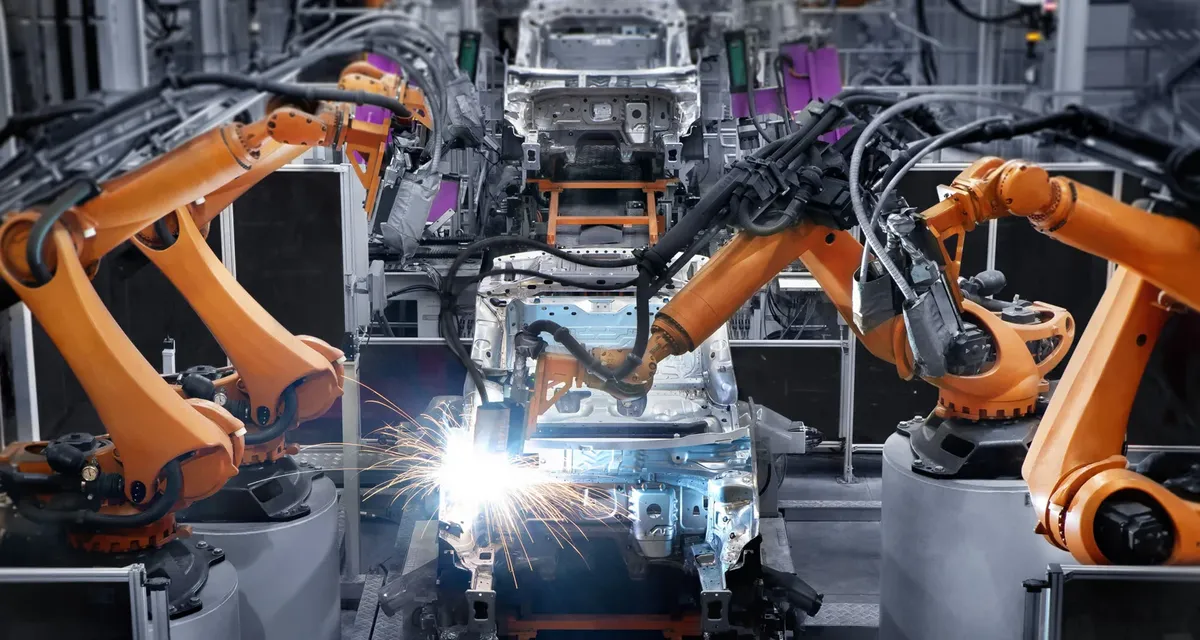

Robotics and Automation: Two-piece double wide shaft collars are used in robotics and automation applications where precise alignment and positioning is critical. Their two-piece design allows for easy installation and removal, which can save time and reduce downtime during maintenance or repairs.

Power Transmission: Two-piece double wide shaft collars are used in power transmission applications, such as in motors, generators, and turbines. Their double-wide design provides increased clamping force and helps to prevent slippage or movement of the shaft.

Aerospace and Defense: Two-piece double wide shaft collars are used in aerospace and defense applications, such as in aircraft engines, missile guidance systems, and satellite components. Their two-piece design allows for easy installation and removal in tight spaces, and their increased clamping force helps to ensure reliability and safety in critical applications.

Medical Equipment: Two-piece double wide shaft collars are used in medical equipment applications, such as in surgical robots, imaging equipment, and patient monitoring devices. Their two-piece design allows for easy installation and removal, which can facilitate maintenance and repairs.

Semiconductor Manufacturing: Two-piece double wide shaft collars are used in semiconductor manufacturing equipment, such as in wafer handling systemsand precision machining tools. Their double-wide design provides increased clamping force and helps to prevent slippage or movement of the shaft, which is critical for maintaining precise alignment and positioning in these applications.

Overall, two-piece double wide shaft collars are commonly used in applications where a secure and reliable shaft-hub connection is critical and where there may be limited space for installation or removal. Their increased clamping force, ease of installation and removal, and versatility make them a popular choice across a wide range of industries and applications.

▍Two Piece Double Wide Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.

Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.

As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, HZPT has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q1: What is a double wide shaft collar?
A: A double wide shaft collar is a mechanical component used to secure two parallel shafts together by clamping onto them. It is called a double wide shaft collar because it has a wider width than a standard shaft collar, allowing it to fit over two shafts instead of just one.

Q2: What are the benefits of using a double wide shaft collar?
A: The main benefit of using a double wide shaft collar is that it provides a secure and stable connection between two parallel shafts. This can be important in many applications where the shafts need to be kept in alignment, such as in conveyor systems, printing presses, and other industrial machinery.

Q3: What materials are double wide shaft collars made of?
A: Double wide shaft collars can be made of a variety of materials, including steel, stainless steel, aluminum, brass, and plastic. The choice of material will depend on the specific application and the requirements for strength, durability, and resistance to corrosion.

Q4: What sizes are available for double wide shaft collars?
A: Double wide shaft collars are available in a range of sizes to fit different shaft diameters. The sizes typically range from 1 inch to 6 inches or more, with offering custom sizes as well.

Q5: How are double wide shaft collars installed?
A: Double wide shaft collars are typically installed by sliding them onto the shafts and tightening the set screws to secure them inplace. It is important to ensure that the shaft collars are positioned correctly and that they are tightened evenly to avoid any misalignment or damage to the shafts.

Q6: What are some common applications for double wide shaft collars?
A: Double wide shaft collars are commonly used in industrial machinery applications, such as conveyor systems, printing presses, and packaging equipment. They can also be used in robotics, medical equipment, and other precision machinery where shaft alignment is critical.

Q7: Can double wide shaft collars be used in high speed applications?
A: Yes, double wide shaft collars can be used in high speed applications, but the design and materials used must be appropriate for the specific application. For example, shaft collars made of lightweight materials such as aluminum may be suitable for high speed applications where weight is a concern, while shaft collars made of steel or stainless steel may be better suited for heavy-duty applications.

Q8: Are there any special considerations when using double wide shaft collars?
A: It is important to ensure that the shafts being clamped together are parallel and aligned properly before installing double wide shaft collars. Any misalignment can cause excessive wear on the shaft collars and the shafts, leading to premature failure. Additionally, it is important to choose the correct size and material for the application and to follow the manufacturer's installation instructions carefully.
