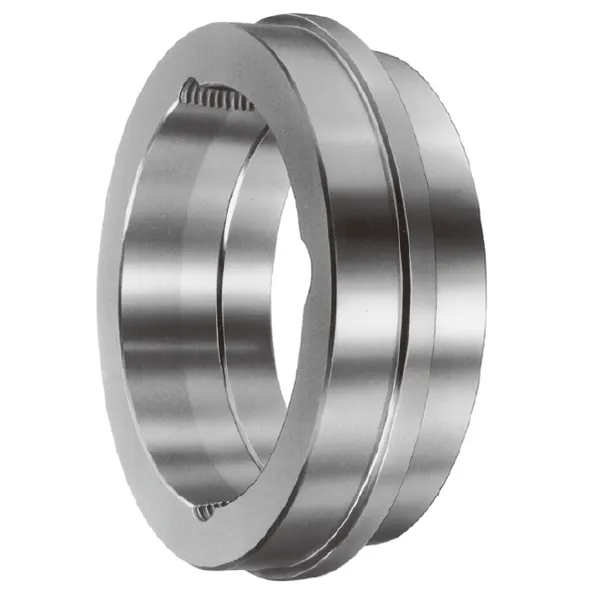

Type F Taper Lock Weld-On Hubs

Type F Taper Lock Weld-On Hubs

Type F taper lock weld-on hubs are mechanical components used in power transmission systems to connect shafts and other rotating equipment. These hubs are designed to provide a secure and reliable connection between the shaft and the driven component.

Taper lock is a popular locking mechanism used in power transmission applications. It utilizes a tapered bushing that is inserted into the hub and tightened onto the shaft, creating a tight and secure fit. Weld-on hubs, as the name suggests, are hubs that are welded directly onto a shaft or other compatible surfaces. They are commonly used when a permanent and robust connection is required. Welding the hub onto the shaft ensures a strong bond and eliminates the need for additional fasteners.

Type F taper bore weld-on hubs offer several advantages. First, the taper lock design provides excellent concentricity and alignment between the hub and the shaft, minimizing vibration and maximizing power transmission efficiency. Second, the weld-on feature ensures a durable and long-lasting connection, suitable for high torque and heavy-duty applications. Finally, the Type F taper bushed weld-on hubs are available in various sizes and configurations to accommodate different shaft diameters and application requirements.

These Type F taper lock weld-on hubs are commonly used in industries such as mining, construction, agriculture, and manufacturing, where reliable power transmission is crucial. Typical applications include conveyor systems, gearboxes, pumps, and other machinery that require a secure shaft connection.

Type F Taper Lock Weld-On Hubs Dimensions:

Advantages of Type F Taper Lock Weld-On Hubs:

Type F taper lock weld-on hubs offer several advantages in power transmission applications. Here are some of the key benefits:

1. Secure Shaft Connection: The taper lock design ensures a secure and reliable connection between the Type F weld-on hubs and the shaft. The tapered bushing is tightened onto the shaft, creating a tight fit that minimizes slippage and maximizes torque transmission. This results in enhanced power transfer efficiency and improved overall performance of the system.

2. Easy Installation: Type F taper lock weld-on hubs are relatively easy to install. The hubs can be welded directly onto the shaft or compatible surfaces, eliminating the need for additional fasteners or complex assembly procedures. This simplifies the installation process, saves time, and reduces the risk of misalignment or loosening of components.

3. Strong and Durable Connection: Welding the Type F weld-on hubs onto the shaft creates a robust and permanent connection. The welded joint provides excellent strength and durability, capable of withstanding high torque, heavy loads, and harsh operating conditions. This ensures long-lasting performance and reduces the likelihood of failure or maintenance issues.

4. Versatility: Type F taper bushed weld-on hubs are available in a wide range of sizes and configurations to accommodate different shaft diameters and application requirements. This versatility allows for flexibility in system design and enables the hubs to be used in various industrial applications.

5. Improved Alignment and Balance: The taper lock design promotes excellent concentricity and alignment between the Type F taper bore weld-on hubs and the shaft. This helps to minimize vibration, runout, and misalignment, which can lead to premature wear, increased noise, and reduced system efficiency. By ensuring proper alignment, the hubs contribute to smoother operation and extended equipment lifespan.

China Taper Lock Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than HZPT, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
