Taper Bore Weld-On Hubs

If the product you need is not listed, Go to GET A FREE QUOTE!

Taper bore weld-on hubs are a great way to attach standard taper bushings to a shaft. Taper bore weld-on hubs are made of steel, drilled, tapped, and taper bored to receive standard taper bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators, and many other devices, which must be firmly fastened entirely suitable for usage where severe operating conditions are met. Tightening the screws contracts the bore of the bush, thereby locking it to the shaft with the equivalent of a press fit. This type of construction eliminates mounting difficulties, and it also prevents loosening and wearing from happening to the hub during operation.

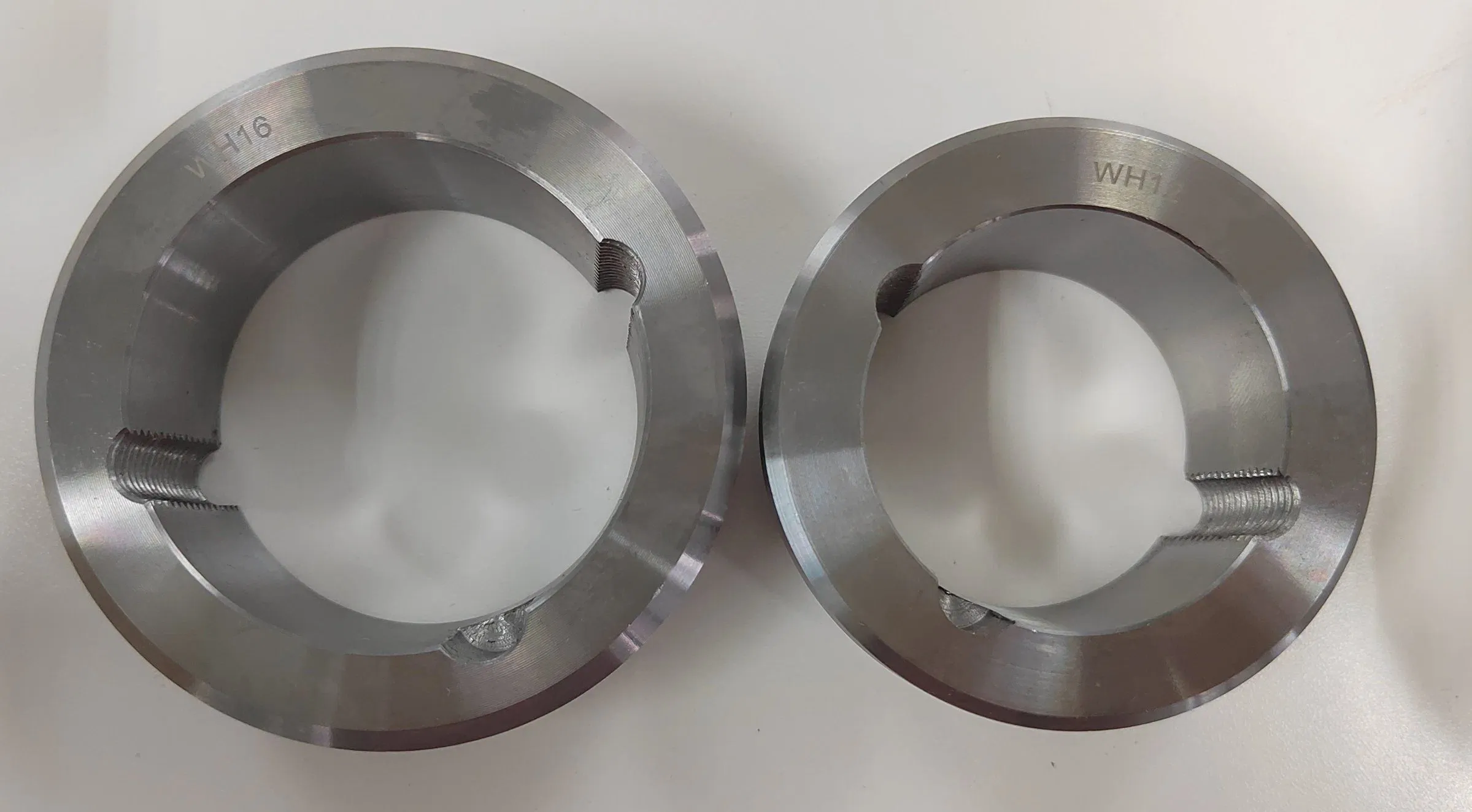

Taper Bore Weld-On Hubs Features:

Taper bore weld-on hubs offer several features that make them suitable for various industrial applications. Here are some key features of taper bore weld-on hubs:

1. Taper Bore Design: Taper bore hubs feature a tapered bore that matches the taper of the shaft. This design allows for easy installation and removal while ensuring a tight fit and optimal power transmission. The taper provides a self-locking effect, preventing slippage and maintaining a secure connection.

2. Weld-On Capability: Taper bore weld-on hubs are specifically designed to be welded onto a shaft. The hubs have a weld-preparation surface that facilitates the welding process. Welding creates a strong metallurgical bond between the hub and the shaft, resulting in a secure and reliable connection.

3. Material Options: Taper bore weld-on hubs are typically made from high-quality materials such as steel or stainless steel. These materials offer excellent strength, durability, and resistance to corrosion, making them suitable for demanding industrial environments.

4. Size and Configuration Options: Taper bore weld-on hubs come in various sizes and configurations to accommodate different shaft diameters and application requirements. This allows for a wide range of compatibility and versatility when integrating the taper lock weld-on hubs into different systems.

5. Easy Maintenance and Replacement: In the event of damage or wear, taper bore weld-on hubs can be easily removed and replaced without requiring significant disassembly of the entire system. This ease of maintenance reduces downtime and allows for quick repairs or replacements.

6. Application Flexibility: Taper bore weld-on hubs find applications in various industries, including fans, conveyor systems, pumps, generators, agitators, impellers, and more. Their versatility makes them suitable for a wide range of applications where a secure and reliable shaft-to-hub connection is required.

Taper Bore Weld-On Hubs Vs Taper Bore Bolt-On Hubs:

Taper bore weld-on hubs and taper bore bolt-on hubs are commonly used in various mechanical applications to connect rotating shafts to other components, such as pulleys, sprockets, or gears. The choice between weld-on and bolt-on hubs depends on several factors, including the specific application requirements, ease of installation, and maintenance considerations. Let’s compare taper bore weld-on hubs and taper bore bolt-on hubs:

Taper Bore Weld-On Hubs:

Installation: Taper bore weld-on hubs are permanently attached to the shaft by welding. This creates a strong and rigid connection, ensuring a high level of torque transmission and alignment accuracy.
Strength:Taper bore weld-on hubs are typically stronger than bolted connections, as they eliminate the risk of loosening or disengagement under heavy loads or vibrations.
Space considerations: Taper bore weld-on hubs do not require additional space for mounting bolts, which can be advantageous in compact equipment or tight spaces.
Customization: Taper bore weld-on hubs can be easily customized to fit specific shaft sizes or configurations, as they can be machined or fabricated according to the required specifications.

Taper Bore Bolt-On Hubs:

Installation: Taper bore bolt-on hubs are attached to the shaft using bolts, which allows for easier installation and removal compared to weld-on hubs. This can be particularly beneficial when frequent maintenance or replacement is required.
Flexibility: Taper bore bolt-on hubs offer more flexibility in terms of repositioning or replacing components, as they can be easily disassembled and reassembled without the need for welding or machining.
Interchangeability: Taper bore bolt-on hubs can be readily interchanged between different shafts or components, providing versatility and compatibility in various applications.
Adjustability: Taper bore bolt-on hubs often feature multiple bolt-hole patterns, allowing for fine adjustments in alignment or positioning.

Ultimately, the choice between taper bore weld-on hubs, and taper bore bolt-on hubs depends on the specific needs of the application. Taper bore weld-on hubs provide a strong and permanent connection, ideal for heavy-duty or high-torque applications, while taper bore bolt-on hubs offer more flexibility, ease of installation, and interchangeability. It’s important to consider factors such as load requirements, maintenance needs, installation constraints, and overall system design when making a decision.
