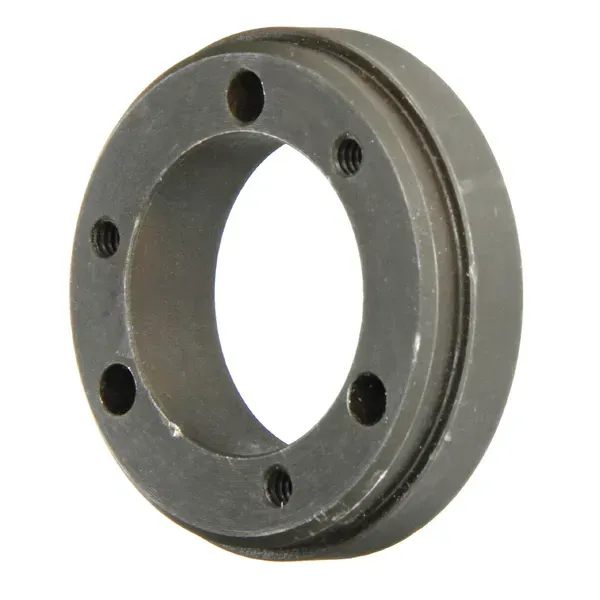

W-A QD Weld-On Hubs

W-A QD Weld-On Hubs

The W-A QD weld-on hubs are a type of hub specifically designed for use with W QD (Quick Detachable) bushings. These hubs are commonly used in power transmission applications to provide a secure and efficient connection between a shaft and a mounted component such as a pulley, sprocket, or gear.

The W-A QD weld-on hubs are made from high-quality materials that offer excellent strength and durability. They are typically constructed from steel or other suitable alloys to withstand the demands of heavy-duty applications. The weld-on design allows for a permanent attachment, ensuring a reliable and rigid connection between the hub and the shaft.

These W-A QD weld-on hubs feature a Quick Detachable (QD) system, which enables easy installation and removal of the mounted component without requiring extensive disassembly. The W QD bushings used in conjunction with the W-A QD weld-on hubs provide a secure grip on the shaft, minimizing slippage and maximizing power transmission efficiency.

To install the W-A QD weld-on hub, the bushing is first mounted onto the shaft and tightened using the appropriate mounting screws. The hub is then aligned with the bushing and securely welded in place. This welding process ensures a strong and permanent bond between the hub and the shaft, capable of withstanding high torque and radial loads.

The W-A QD weld-on hubs are available in various sizes and configurations to accommodate different shaft diameters and mounting requirements. It is important to select the correct hub size and bushing to ensure compatibility and optimal performance.

W-A QD Weld-On Hubs Dimensions:

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

W-A QD Weld-On Hubs Benefits:

W-A QD weld-on hubs offer a number of benefits, including:

1. Strength and durability: W-A QD weld-on hubs are made of steel, which makes them strong and durable. They can withstand high loads and stresses without breaking or becoming damaged.

2. Precision fit: W-A QD weld-on hubs have a tapered bore that is compatible with W QD bushings. This ensures a precise and secure fit, which is essential for preventing vibration and misalignment.

3. Ease of use: W-A QD weld-on hubs are easy to weld. This makes them a quick and easy way to mount a drive to a shaft.

4. Versatility: W-A QD weld-on hubs are available in a variety of sizes and styles to accommodate different shaft diameters and drive types. This makes them a versatile option for a wide range of applications.

W-A QD Weld-On Hubs Applications:

W-A QD weld-on hubs are used in a variety of applications, including:

(1) V-belt drives: W-A QD weld-on hubs can be used to mount V-belt drives to shafts. This is a common application in manufacturing plants, where V-belt drives are used to transmit power from motors to machines.

(2) Synchronous belt drives: W-A QD weld-on hubs can also be used to mount synchronous belt drives to shafts. Synchronous belt drives are more precise than V-belt drives, and they are often used in applications where there is a need for high accuracy, such as in machine tools.

(3) Fan rotors: W-A QD weld-on hubs can be used to mount fan rotors to shafts. This is a common application in HVAC systems and other industrial applications.

(4) Pulleys: W-A QD weld-on hubs can also be used to mount pulleys to shafts. Pulleys are used to transmit power from one shaft to another, and they are a common component in many machines.

(5) Plate sprockets: W-A QD weld-on hubs can also be used to mount plate sprockets to shafts. Plate sprockets are used in chain drives, and they are a common component in many machines.

(6) Impellers: W-A QD weld-on hubs can be used to mount impellers to shafts. Impellers are used to move fluids, and they are a common component in many machines, such as pumps and mixers.

(7) Agitators: W-A QD weld-on hubs can also be used to mount agitators to shafts. Agitators are used to mix fluids, and they are a common component in many machines, such as tanks and vats.

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than HZPT, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
