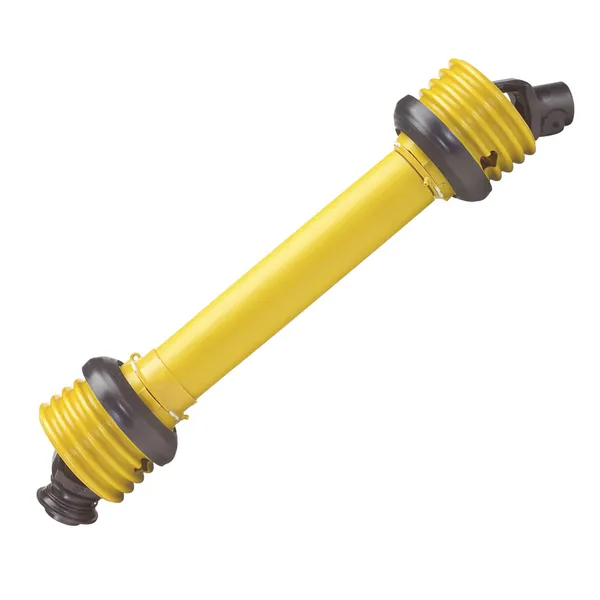

The W100E series PTO shaft is a type of power take-off (PTO) shaft used for transmitting power from a tractor or other power source to an attached implement, such as a rotary cutter or mower. The W100E series PTO shaft is a high-performance PTO drive shaft. It is designed for continuous heavy-duty use and meets the requirements of large farms and contractors. The W100E series PTO shaft is a complete assembly from tractor to implement, and it is available in a variety of lengths to accommodate different applications.

The W100E series PTO shaft features a telescoping design that allows it to extend and retract, making it easier to connect and disconnect the shaft from the tractor and implement. It also has a high torque capacity and can operate at speeds up to 540 rpm. The PTO shaft is made of high-strength steel and is designed to withstand the rigors of heavy-duty use in agricultural and industrial settings. If you are looking for a high-performance PTO drive shaft that is designed for continuous heavy-duty use, then the W100E series PTO shaft is a great option.

▍W100E Series PTO Shaft Specifications

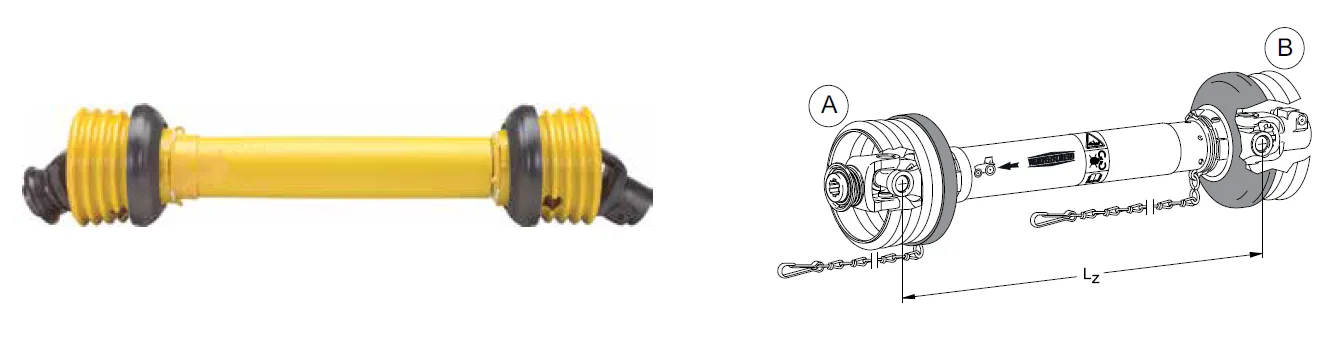

▍W100E Series PTO Shaft Size Chart

1. W100E Series PTO Drive Shaft

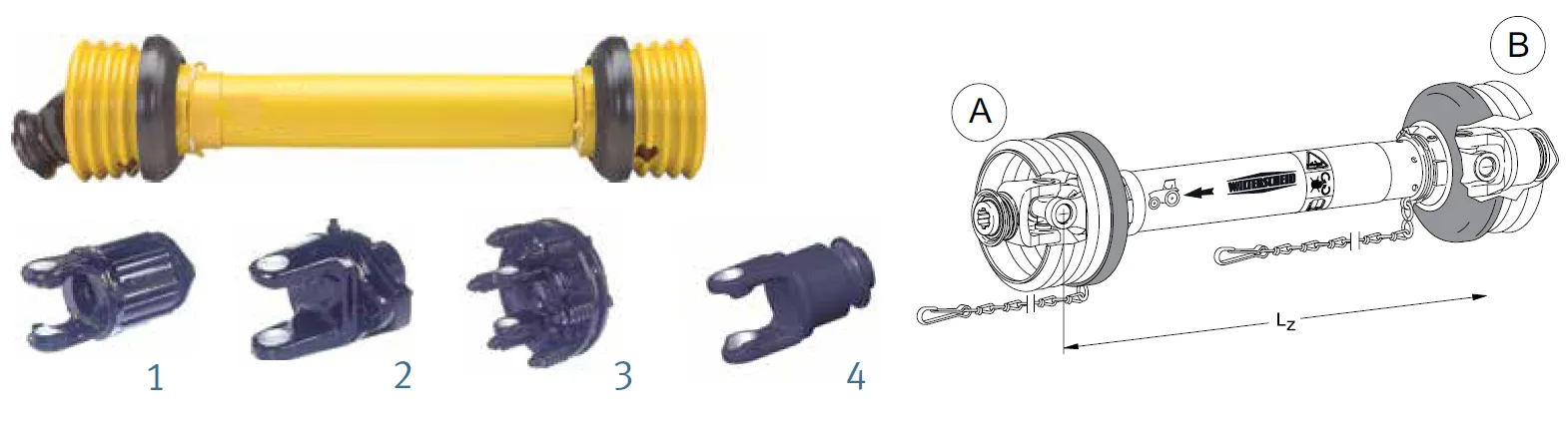

2. W100E Series PTO Shaft with Slip Clutch

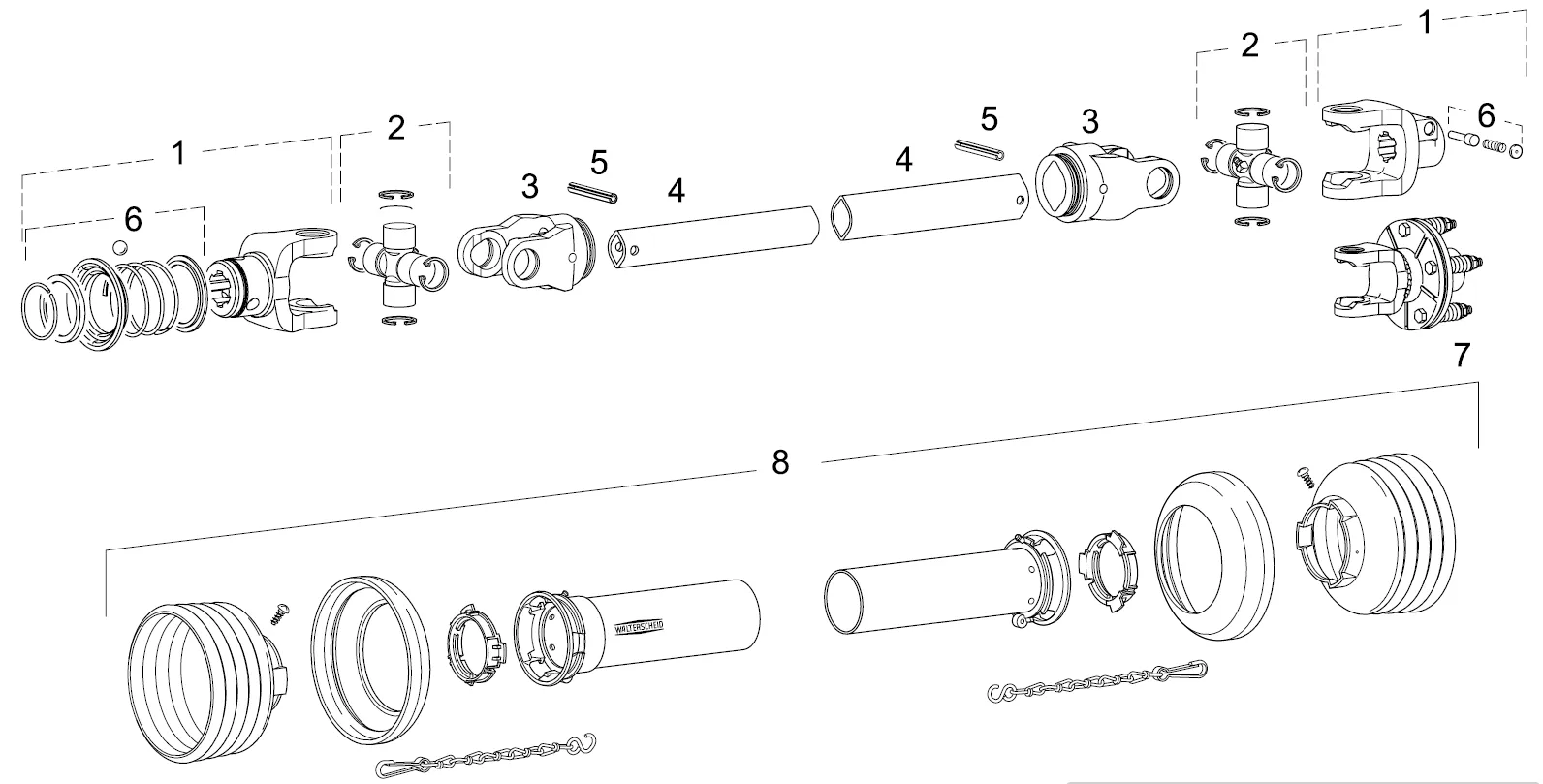

▍W100E Series PTO Shaft Parts Diagram

▍W100E Series PTO Shaft Dimensions

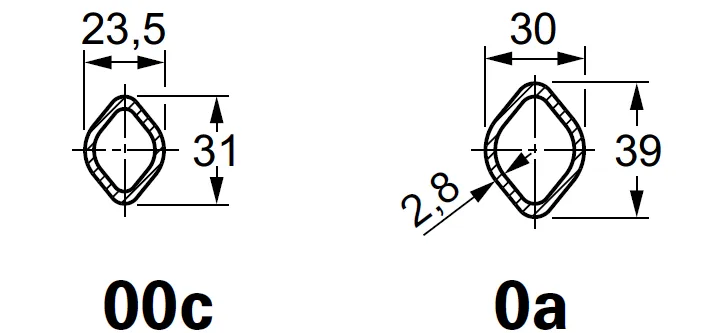

Size Dimension	U joint	Yoke	Profile matings	Guard tubes (SC/SD)
W100E

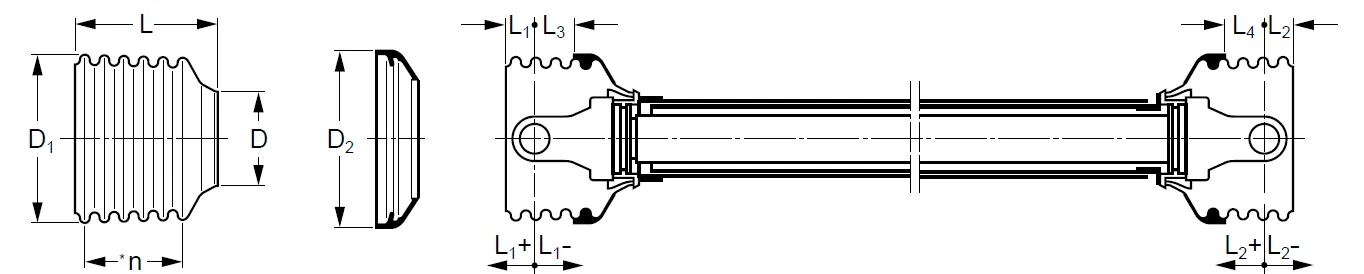

▍W100E Series PTO Shaft Guard Cones

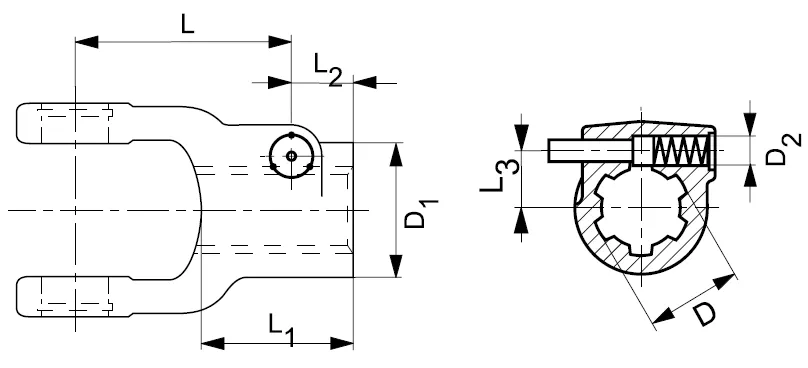

▍W100E Series PTO Drive Shaft Yokes

D	D1	D2	L	L1	L2	L3	N	N1	G	Drawing No.	Part No.	AGZ

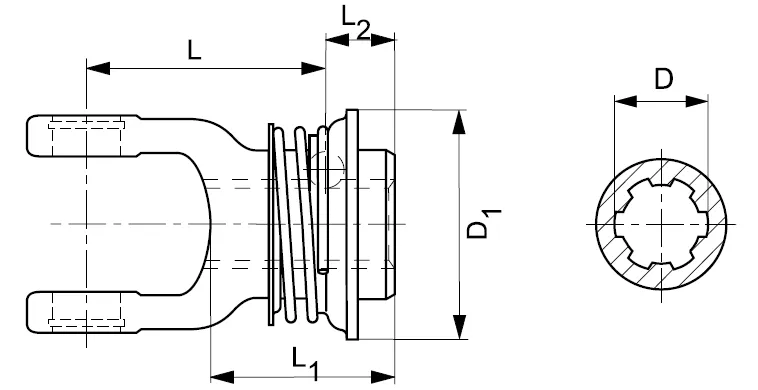

1 3/8"(6)	84		96	56	20					10.83.40	134744
1 3/8"(21)	84		96	56	20					10.83.41	134745
8 x 32 x 38 (8)	84		96	56	20					10.83.42	147613
13/8" (6)	48	13	89	51	14	21,5				10.10.00	040154	AG
13/8" (21)	48	13	89	51	14	21,5				10.50.00	040460
8 x 32 x 38 (8)	48	13	89	51	14	23,2				10.34.110	083069

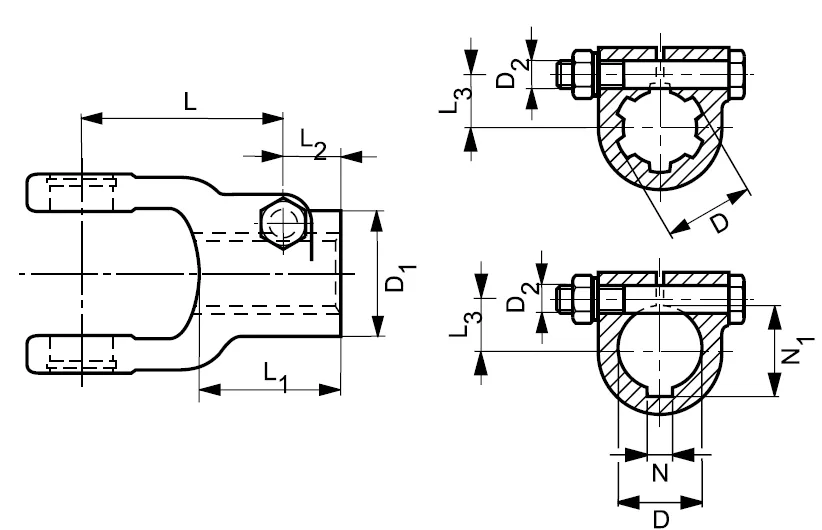

13/8" (6)	48	M12	89	51	14	21,5				10.10.06	040162	AGKF
30 H8	48	M12	89	51	14	19	8JS9	33,3		10.10.162	356305

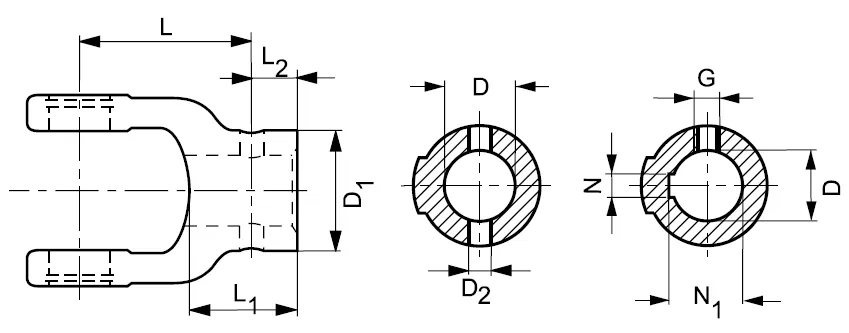

25 H8	45	10 H12	78	40	15					10.22.133	040276	NG
30 H8	45	10 H12	78	40	15					10.22.108	040251
25 H8	45		78	40	20		8JS9	28,3	M10	10.22.31	040217
13/8" (6)	45	8 H12	78	40	15					10.22.199	043317
00c		8 H12	66	28	18					10.48.00	040444	RG
0a		8 H12	66	28	18					10.49.00	040456

▍W100E Series PTO Shaft Design Features

The W100E series PTO shaft has several design features that make it a reliable and durable option for transmitting power between a tractor and an attached implement. Some of these design features include:

1. Telescoping Design: The W100E series PTO shaft has a telescoping design that allows it to extend and retract, making it easier to connect and disconnect the shaft from the tractor and implement. This design feature reduces the need for adjusting the length of the shaft manually, saving time and effort.

2. High Torque Capacity: The W100E series PTO shaft has a high torque capacity, which means it can transmit a significant amount of power between the tractor and the implement. This makes it suitable for heavy-duty applications such as rotary cutters and other implements that require high torque.

3. Sealed Bearings: The W100E series PTO shaft has sealed bearings that protect the bearings from dirt and debris and help to extend the life of the shaft. The sealed bearings also reduce the need for maintenance and lubrication, making the shaft more convenient to use.

4. Plastic Guard: The W100E series PTO shaft has a plastic guard that covers the universal joint and helps to prevent injury and damage to the shaft. The guard is removable, making it easy to access the universal joint for maintenance and repair.

5. High-Strength Steel Construction: The W100E series PTO shaft is made of high-strength steel, which provides durability and long-lasting performance. The steel also helps to reduce vibration and noise during operation.

Overall, the W100E series PTO shaft is a reliable and durable option for transmitting power between a tractor and an attached implement. Its design features make it convenient to use and maintain, while its high torque capacity and construction materials make it suitable for heavy-duty applications.

▍W100E Series PTO Shaft for Agricultural Machinery

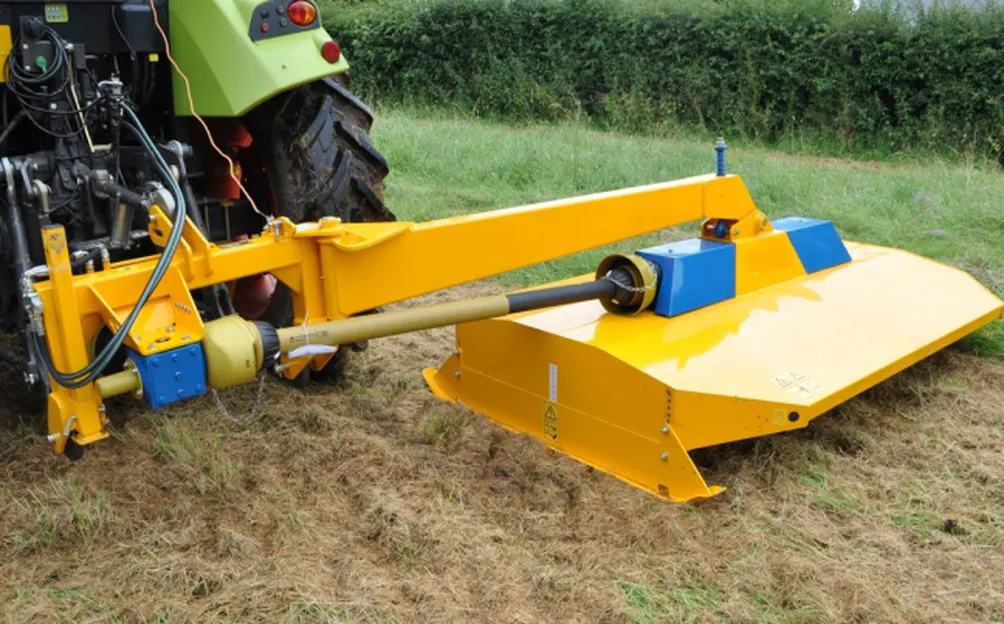

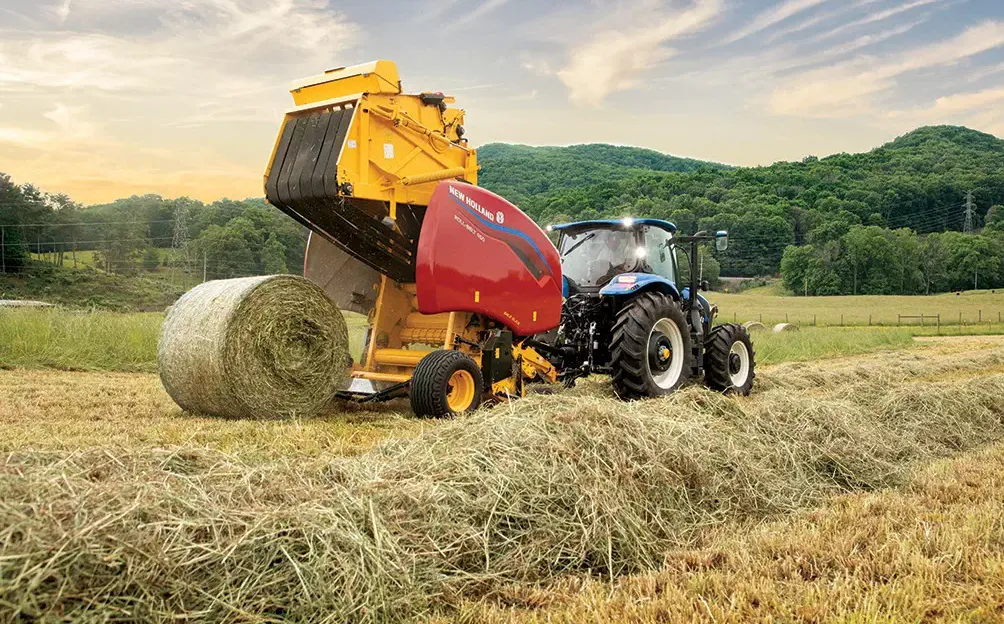

The W100E series PTO shaft is commonly used in agricultural applications such as rotary cutters, mowers, rotary tillers, fertilizer spreaders, post hole diggers, and hay balers. The high torque capacity of the PTO shaft makes it suitable for heavy-duty applications such as cutting or baling hay. The telescoping design of the PTO shaft allows it to adjust to different hitch heights and implement sizes, making it a versatile option for a range of agricultural equipment.

The W100E series PTO shaft can also be used in industrial applications such as pumps, compressors, and generators. The high torque capacity and durable construction of the PTO shaft make it suitable for transferring power from the engine to the equipment in these heavy-duty applications. Overall, the W100E series PTO shaft is a versatile and reliable drivetrain component that can be used in a wide range of applications. Its design features make it easy to use and maintain, while its high torque capacity and construction materials make it suitable for heavy-duty applications in agricultural, industrial, and commercial settings.

▍Agricultural Gearbox and W100E Series PTO Shaft

An agricultural gearbox and W100E series PTO shaft work together to transfer power from the tractor to the implement. An agricultural gearbox is a mechanical device that changes the speed and torque of the tractor's power output to match the requirements of the implement. The PTO shaft transfers the power from the gearbox to the implement.

The W100E series PTO shaft is designed to be compatible with a wide range of agricultural gearboxes. The telescoping design of the PTO shaft allows it to adjust to different hitch heights and implement sizes, making it easy to connect and disconnect from the gearbox and implement.

When selecting an agricultural gearbox and W100E series PTO shaft combination for agricultural applications, it is important to consider factors such as the torque requirements of the implement, the speed of the tractor's power output, and the weight and size of the implement.

The W100E series PTO shaft is a reliable and durable option for use with agricultural gearboxes. Its high torque capacity and convenient design features make it suitable for heavy-duty applications such as cutting or baling hay.

Overall, the combination of an agricultural gearbox and W100E series PTO shaft can help farmers and agricultural workers to efficiently and effectively transfer power from the tractor to the implement, reducing the time and effort required to complete agricultural tasks.
