The W300E series PTO shaft is a type of power take-off (PTO) shaft used in agricultural and industrial equipment to transfer power from a tractor or other power source to a connected implement or machine. The W300E series PTO shaft is designed to provide reliable and efficient power transfer in demanding applications. It features a compact and durable design, with high-strength steel tubing and yoke assembly, and a wide-angle constant-velocity joint that allows for smooth and consistent power transmission even at steep angles.

The W300E series PTO shaft also includes a variety of options and accessories to fit a wide range of equipment and applications, such as different lengths, end fittings, and guarding options, to ensure safe operation. If you are looking for a high-quality, reliable PTO shaft for your agricultural or lawn & turf equipment, the W300E series PTO shaft is a great option.

▍W300E Series PTO Shaft Specifications

▍W300E Series PTO Shaft Size Chart

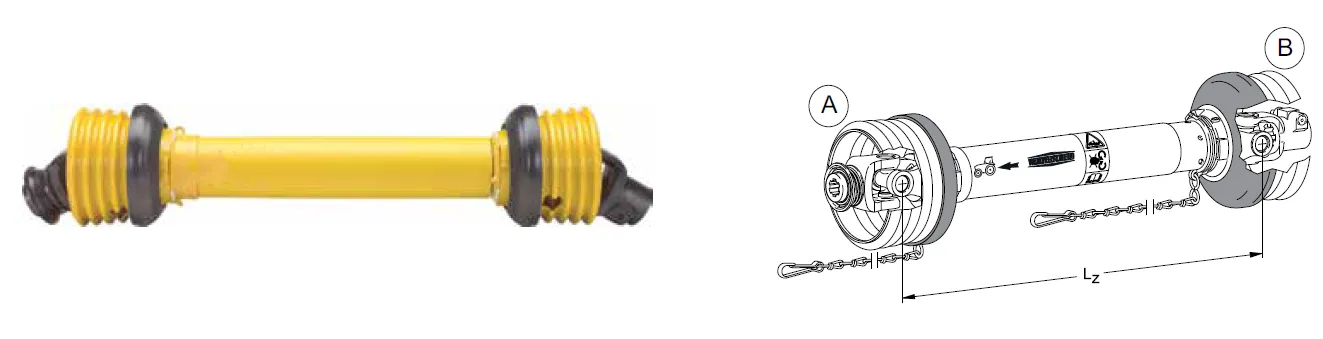

1. W300E Series PTO Drive Shaft

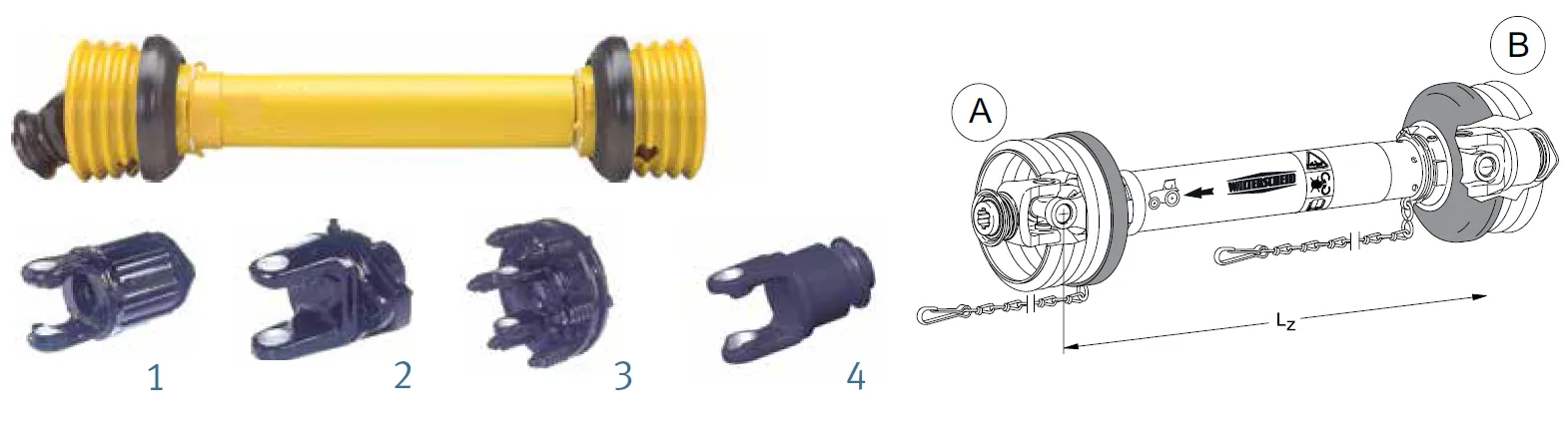

2. W300E Series PTO Shaft with Slip Clutch

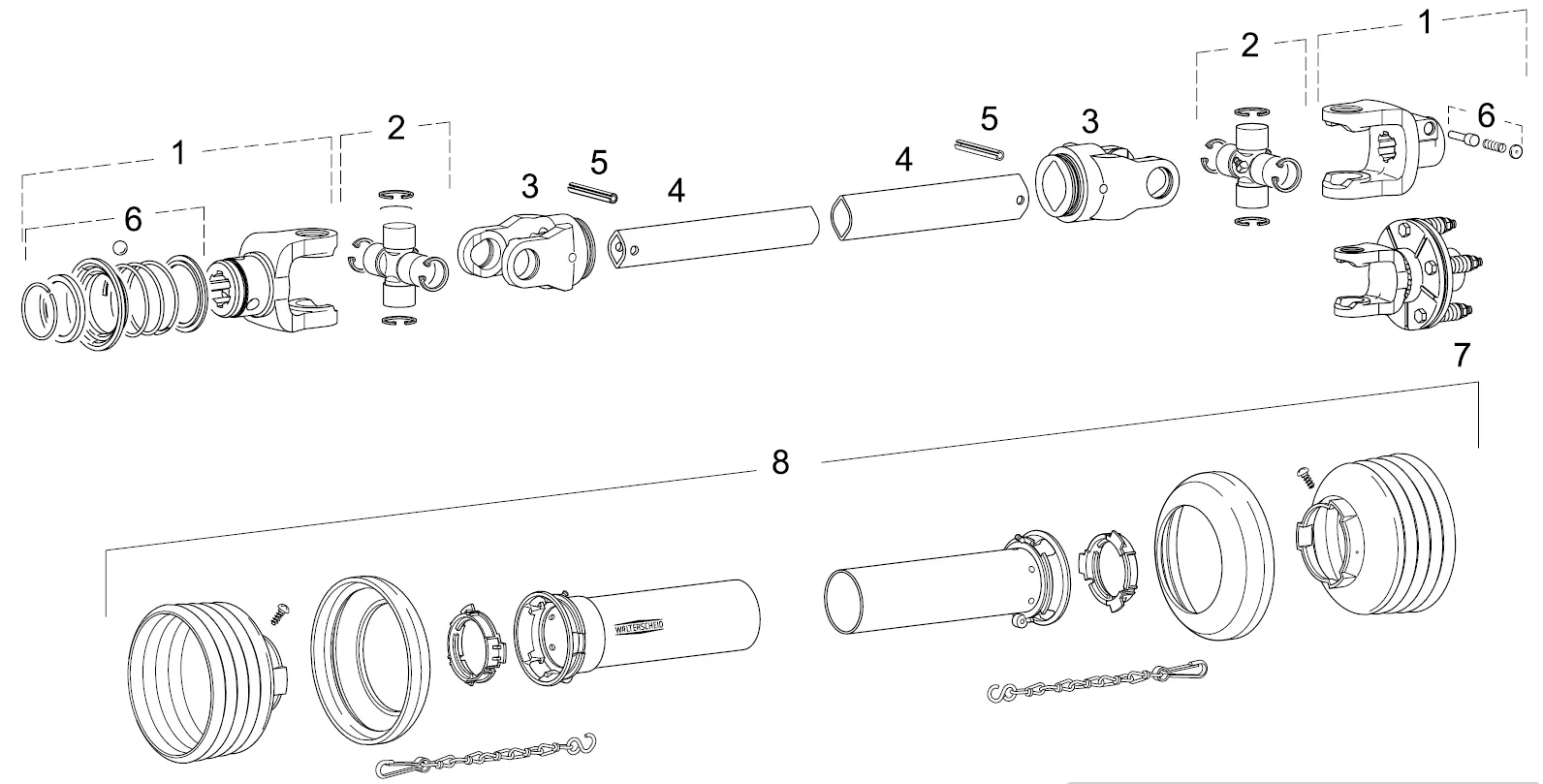

▍W300E Series PTO Shaft Parts Diagram

▍W300E Series PTO Shaft Dimensions

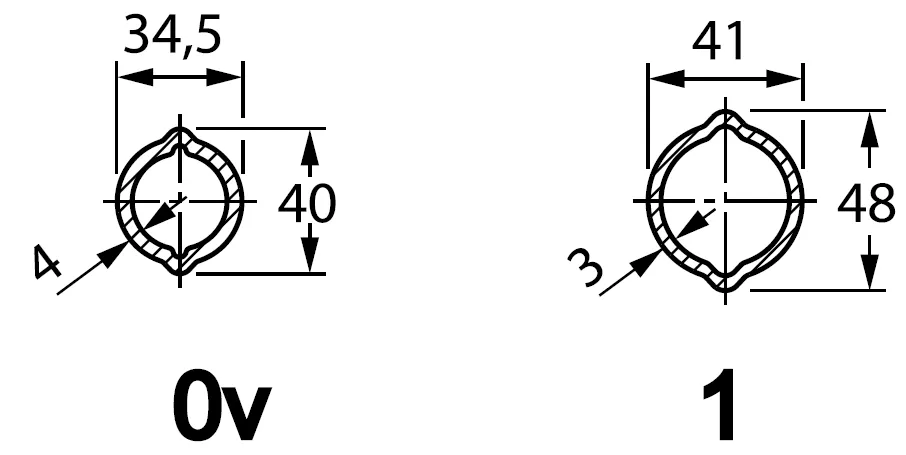

Size Dimension	U joint	Yoke	Profile matings	Guard tubes (SC/SD)
W200E

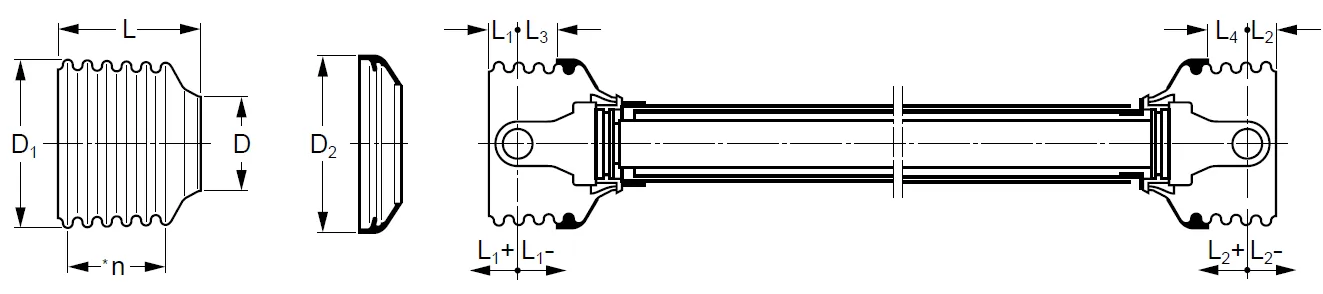

▍W300E Series PTO Shaft Guard Cones

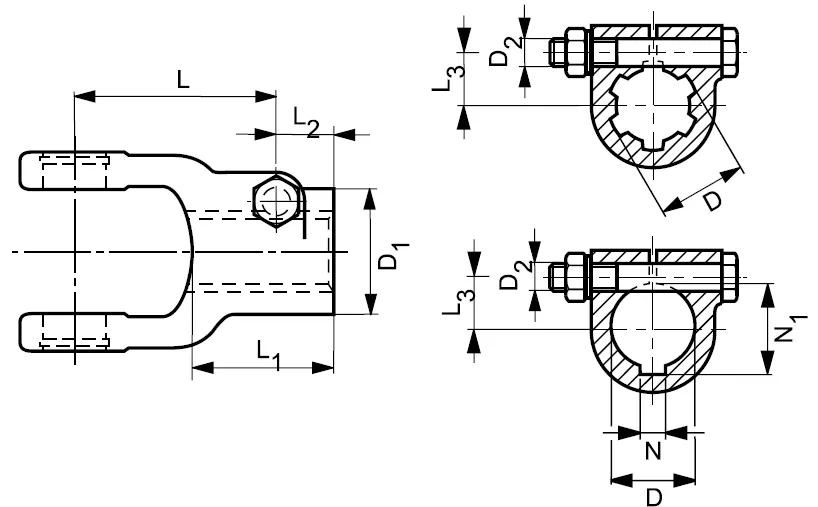

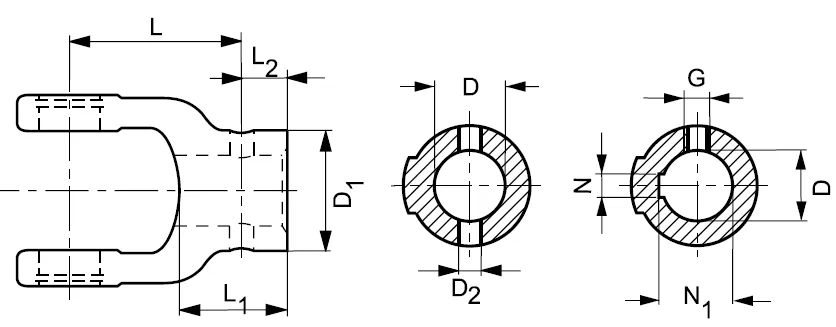

▍W300E Series PTO Drive Shaft Yokes

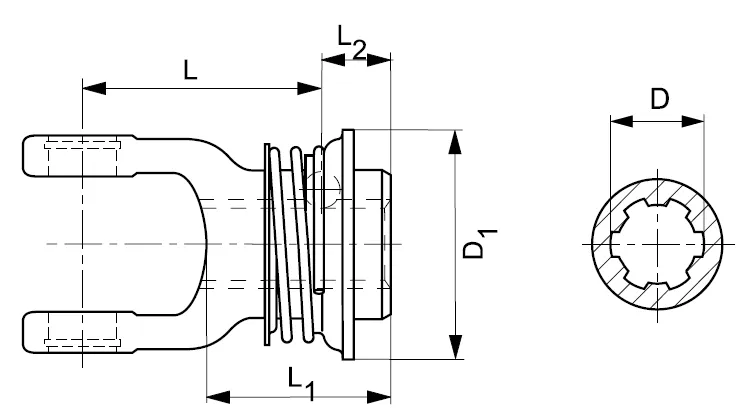

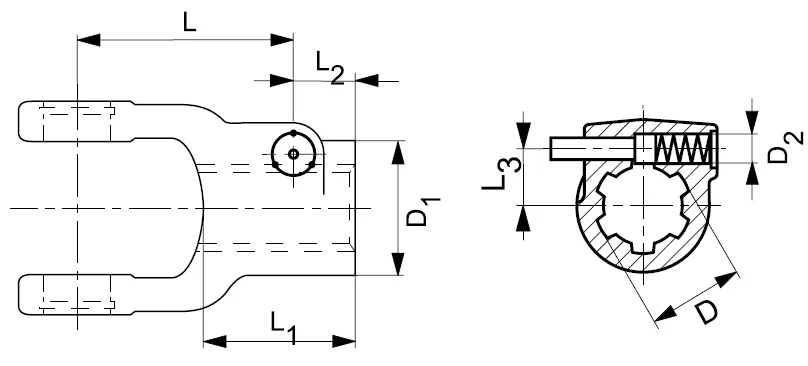

D	D1	D2	L	L1	L2	L3	N	N1	G	Drawing No.	Part No.	AZG
1 3/8" (6)	84		107	58	20					21.83.40	134748
1 3/8" (21)	84		107	58	20					21.83.41	134749
8 x 32 x 38 (8)	84		107	58	20					21.83.42	147615
13/8" (6)	50	13	107	58	20	21,5				21.10.00	041378	AG
13/8" (21)	50	13	107	58	20	21,5				21.19.00	041341
8 x 32 x 38 (8)	50	13	107	58	20	23,2				21.18.124	045163
13/8" (6)	50	M12	107	58	20	21,5				21.29.00	041356	AGKF
13/8" (21)	50	M12	107	58	20	21,5				21.10.110	097671
30 H8	50	M12	107	58	20	19	8 JS9	33,3		21.29.02	041360
35 H8	50	M12	107	58	20	21,5	10 JS9	38,3		21.18.02	041333
30 H8	56	10 H12	95	46	20					21.30.04	041472	NG
35 H8	56	13 H12	95	46	20					21.24.01	041408
13/8" (6)	56	8 H12	95	46	20					21.30.105	041624
30 H8	56		95	46	20		8 JS9	33,3	M12	21.30.07	041475
35 H8	56		95	46	20		10 JS9	38,3	M12	21.24.03	041410
0v		10 H12	85	36	22					21.11.00	041315	RG
1		10 H12	85	36	22					21.12.00	041318

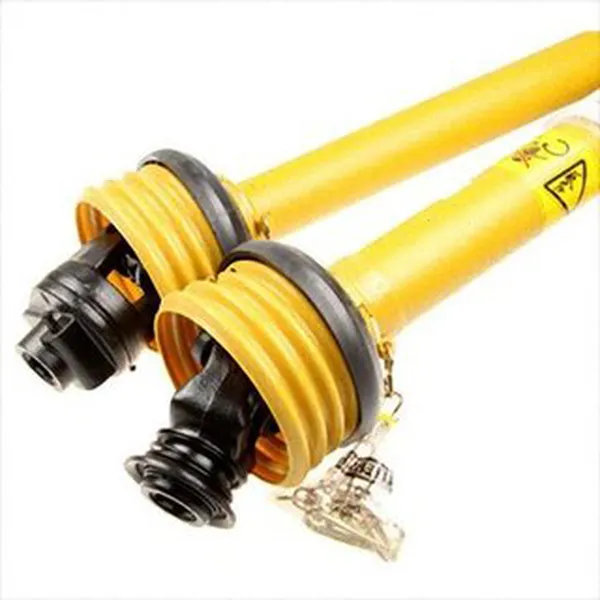

▍Benefits of Using the W300E Series PTO Shaft

There are several benefits to using the W300E series PTO shaft in agricultural and industrial applications. Here are a few:

1. Efficient Power Transfer: The W300E series PTO shaft is designed to efficiently transfer power from a tractor or other power source to a connected implement or machine. Its wide-angle constant-velocity joint ensures smooth and consistent power transmission even at steep angles, which can improve the performance and productivity of the equipment.

2. Durable and Reliable: The W300E series PTO shaft is built with high-strength steel tubing and yoke assembly that can withstand heavy loads and harsh operating conditions. Its compact and durable design ensures long-lasting performance and reduces the need for frequent maintenance.

3. Compatibility: The W300E series PTO shaft is designed to fit a wide range of equipment and applications, including tractors, balers, mowers, and other agricultural and industrial machines. It includes a variety of options and accessories to ensure compatibility with different equipment and operating conditions.

4. Safety: The W300E series PTO shaft includes various guarding options to ensure safe operation. Guards protect operators and bystanders from contact with moving parts, reducing the risk of accidents and injuries.

5. Versatility: The W300E series PTO shaft is available in different lengths and end fittings, making it highly versatile and adaptable to different equipment and applications. This can reduce the need for multiple PTO shafts and simplify equipment setup and maintenance.

▍How to Repair a W300E Series PTO Shaft?

Repairing a W300E series PTO shaft should only be performed by a qualified technician or professional who has experience working with drivetrain components. Here are some general steps that may be involved in repairing a W300E series PTO shaft:

Diagnose the Problem: The first step in repairing a W300E series PTO shaft is to diagnose the problem. This may involve inspecting the shaft for damage or wear, checking the joints and bearings for play or looseness, and testing the shaft for proper operation.

Disassemble the Shaft: Once the problem has been identified, the technician may need to disassemble the shaft to access the damaged or worn components. This may involve removing the guards, end fittings, and other components that are attached to the shaft.

Replace or Repair Components: Depending on the extent of the damage, the technician may need to replace or repair various components of the W300E series PTO shaft, such as the tubing, yoke assembly, bearings, or joints. It is important to use genuine replacement parts to ensure proper fit and function.

Reassemble the Shaft: Once the damaged components have been replaced or repaired, the technician will need to reassemble the W300E series PTO shaft. This may involve reattaching the guards, end fittings, and other components and torquing the fasteners to the manufacturer's specifications.

Test the Shaft: After reassembly, the technician should test the W300E series PTO shaft to ensure proper operation and performance. This may involve running the shaft at various speeds and angles, checking for any vibrations or unusual noises, and verifying that the guards and safety features are functioning properly.

It is important to follow the manufacturer's guidelines and safety precautions when repairing a W300E series PTO shaft, as improper repairs can lead to serious accidents and injuries.

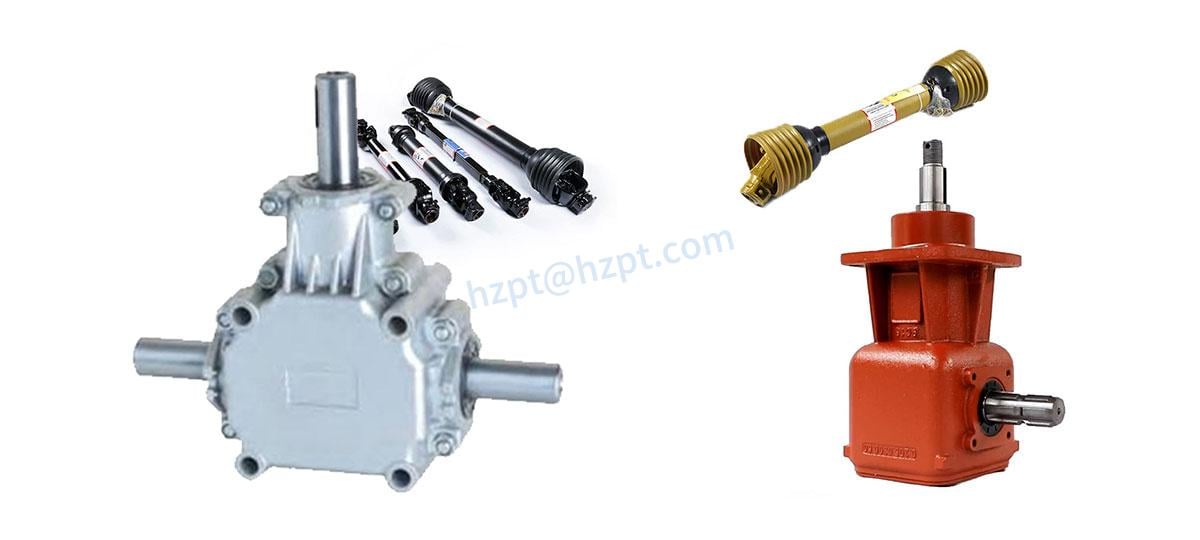

▍Agricultural Gearbox for W300E Series PTO Shaft

An agricultural gearbox may be used in conjunction with the W300E series PTO shaft to further enhance the performance and functionality of agricultural equipment. The agricultural gearbox is typically mounted on the implement or machine and connects to the PTO shaft, allowing the power to be transferred at a specific speed and torque to drive the implement.

Here are some features and benefits of an agricultural gearbox for use with the W300E series PTO shaft:

Speed and Torque Control: An agricultural gearbox can help control the speed and torque of the PTO shaft, allowing for more precise and efficient operation of the implement. This can improve the performance and productivity of the equipment.

Versatility: Depending on the type of agricultural gearbox, it may offer multiple speed options and the ability to adjust the output torque, making it a versatile addition to agricultural equipment.

Durability: Agricultural gearboxes are typically built with high-strength materials and designed to withstand the heavy loads and harsh operating conditions found in agricultural applications. This can improve the lifespan of the equipment and reduce the need for frequent repairs or replacements.

Compatibility: Agricultural gearboxes are available in a variety of sizes and configurations to fit different implements and machines, making them compatible with a wide range of equipment.

Safety: Some agricultural gearboxes may include safety features such as overload protection and slip clutches to prevent damage to the equipment and reduce the risk of accidents or injuries.

When selecting an agricultural gearbox for use with the W300E series PTO shaft, it is important to ensure that the gearbox is compatible with the equipment and operating conditions and to follow the manufacturer's guidelines for installation and operation.
