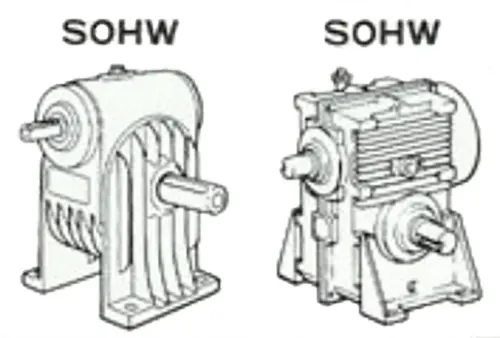

Worm Gear Reducer-Replacement of Mitsubishi Heavy Worm Gear Unit SOHW Series Base Mounting Single Stage Reducer SOHW100R12.5

Introduction

The SOHW Series Worm Gear Reducer is a high-efficiency, durable, and compact reducer designed for various industrial applications. With its advanced features and robust construction, it ensures efficient power transmission, reduced energy consumption, and long-term reliability. The SOHW100R12.5 is an excellent choice for precision machinery, steel rolling machinery, semiconductor manufacturing equipment, aerospace industry, rubber processing machinery, printing machinery, and textile machinery.

We, at HZPT, provide Mitsubishi brand replacement worm reducers that are of high quality and affordable. Please note that our products are replacement parts and not original parts. If you require original parts, please contact the original supplier for purchase.

Applications

The SOHW100R12.5 Worm Gear Reducer is suitable for a wide range of industries. It can be used in:

• Precision machinery
• Steel rolling machinery
• Semiconductor manufacturing equipment
• Aerospace industry
• Rubber processing machinery
• Printing machinery
• Textile machinery

Mitsubishi Worm Gear Reducer Replacement

Our worm reducers are the perfect replacement for Mitsubishi brand reducers. Here are some of the advantages of using our product:

1. High quality material used in construction
2. Affordable price
3. Easy to install and maintain
4. Flexible customization options
5. Available in a wide range of sizes and configurations

Our products are replacement parts and not original parts. If you require original parts, please contact the original supplier for purchase. We also welcome custom orders based on your specific requirements.

Disassembly of Worm Gear Reducer

The disassembly of the SOHW100R12.5 Worm Gear Reducer requires the following steps:

Preparing for Disassembly:

• Turn off the power
• Wear appropriate personal protective equipment (PPE)
• Clean the area
• Collect all necessary tools
• Record the assembly

Disassembly Steps:

• Remove external mounting bolts or brackets
• Disconnect all components or couplings connected to the input and output shafts of the reducer
• Drain lubricating oil
• Check the oil for contamination or metal particles
• Remove all external covers, guards, or shields to expose the internal components
• Remove the internal worm gear or other internal gears, taking care to note their location and direction
• If necessary, carefully remove the bearings using a bearing puller or similar tool
• Remove other internal components as needed, following the same precautions to avoid damage

Inspection of Components:

• Visually inspect all disassembled components for wear, damage, or contamination
• Clean all components with an appropriate cleaning solution and ensure they are free of debris

After Disassembly:

• Organize and label all components for easy reassembly
• Store components in a clean, dry place to avoid damage

Problems with Worm Gear Reducers

During the use of the SOHW100R12.5 Worm Gear Reducer, you may encounter the following problems:

Motors for Worm Reducers

Worm gear reducers and electric motors are closely related. The speed and torque produced by the reducer must be matched to the motor to achieve optimal performance. At HZPT, we provide various types of electric motors for use with our worm reducers. Our motors are designed to work seamlessly with our reducers, ensuring maximum efficiency and durability.

About HZPT

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With over 20 years of experience in designing, producing, manufacturing, and selling gearboxes, we serve customers all over the world. Our products have won the praise of the market due to the high-quality materials used in their construction, easy installation, and maintenance, flexible customization options, and being available in a wide range of sizes and configurations.

We have introduced advanced production equipment and testing equipment at home and abroad. We employ industry professionals and technicians to carry out innovative research and development and manufacturing. The use of standardized production management methods ensures strict control of every aspect of reducer production. Over the years, we have provided customers with high-quality, high-energy-efficiency, and high-stability production. Our gearboxes are widely used in the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and so on. We provide our customers with the highest quality products, best service, and most competitive prices. We welcome you to explore our products and contact us for purchase.
