WPLF Series High Precision Planetary Gearbox

Overview

WPLF Series High Precision Planetary Gearbox is a type of gearbox that is widely used in various industries. The gearbox provides high precision transmission, high torque density, stable operation, reliability, durability, and multiple installation methods and configurations. It also has a wide range of speed adjustment and strong adaptability. The gearbox is suitable for various applications due to its efficient nature and protective measures.

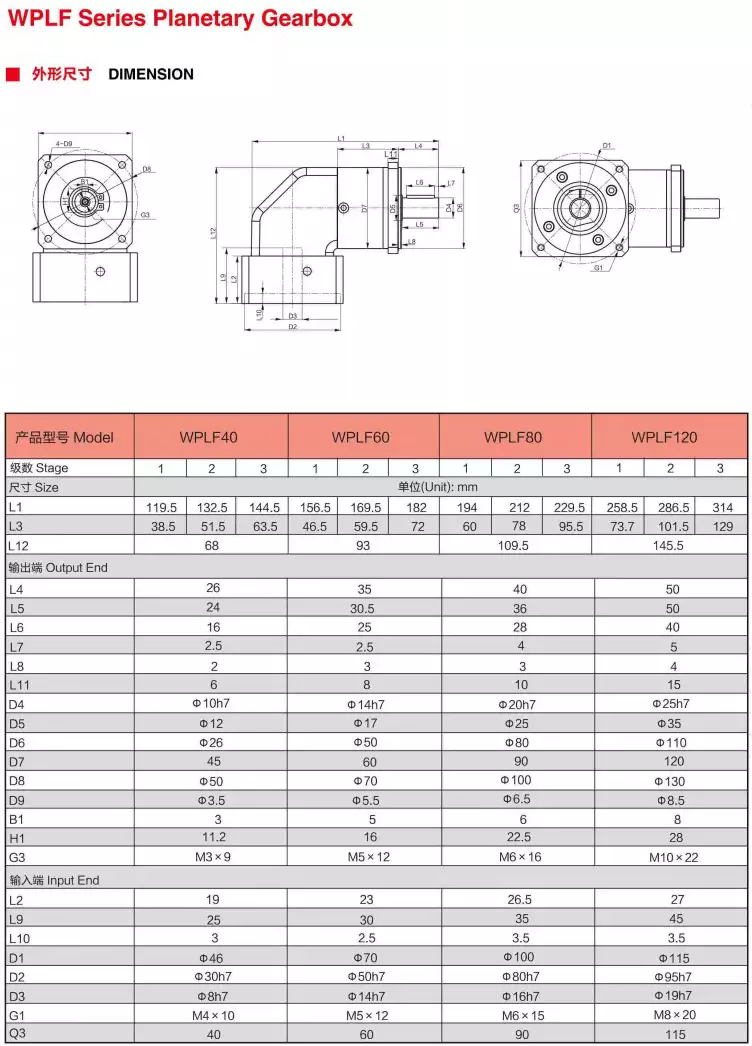

Technical Parameters

Features

1. High-precision Transmission

The gearbox has high-precision transmission, ensuring the accuracy of the output speed and torque.

2. High Torque Density

The high torque density of the WPLF Series High Precision Planetary Gearbox allows it to transmit higher torque with a smaller size.

3. Stable Operation

The precision of the gearbox ensures that it operates smoothly and without any vibrations.

4. Reliability and Durability

The gearbox is reliable and durable, ensuring long-lasting performance even under heavy loads and extreme conditions.

5. Multiple Installation Methods and Configurations

The gearbox has multiple installation methods and configurations to fit different application requirements.

6. Wide Range of Speed Adjustment

The gearbox has a wide range of speed adjustment, making it suitable for applications with different speed requirements.

7. Strong Adaptability

The gearbox can adapt to various working environments due to its protective measures against dust, water, and other environmental factors.

8. High Efficiency

The WPLF Series High Precision Planetary Gearbox has high efficiency and can transmit power with minimal energy loss.

9. Protective Measures

The gearbox has protective measures in place to ensure it operates reliably and safely, including temperature, vibration, and pressure sensors.

Internal Structure

1. Integral Double Wall Planet Pinion Carrier

The integral double wall planet pinion carrier helps to distribute the torque evenly among the planets, ensuring smooth operation and long lifespan.

2. Bearing for the Output Shaft

The bearing for the output shaft ensures stable and reliable operation under heavy loads.

3. Steel Output Flange

The steel output flange provides a secure connection between the gearbox and the output shaft.

4. Integral Inner Gear Housing

The integral inner gear housing helps to distribute the torque evenly and reduce noise and vibration.

5. Planetary Wheel

The planetary wheel transmits the torque from the input shaft to the output shaft through the planets.

6. Sun Wheel

The sun wheel is the central gear that transmits power to the planetary gears.

7. Bearing for the Input Shaft

The bearing for the input shaft ensures stable and reliable operation under heavy loads.

8. Integral Hoop Clamp Coupling

The integral hoop clamp coupling provides a secure connection between the gearbox and the input shaft.

9. Back Cover

The back cover provides protection and support for the internal structure of the gearbox.

Applications

WPLF Series High Precision Planetary Gearbox is widely used in various applications, including:

1. Robotics

The gearbox is used in industrial robots for precision motion control.

2. Packaging Machinery

The gearbox is used in packaging machinery for precise movement and high torque transmission.

3. Medical Equipment

The gearbox is used in medical equipment for precise positioning and movement control.

4. Material Handling

The gearbox is used in material handling equipment for reliable and durable operation under heavy loads.

5. Printing Machinery

The gearbox is used in printing machinery for accurate color registration and precise movement control.

6. Textile Machinery

The gearbox is used in textile machinery for precise speed and torque control, reducing energy consumption and improving efficiency.
