WT-250 CNC Rotary Table
Introduction to CNC Rotary Table
The CNC Rotary Table is a precision machine tool that plays an indispensable role in CNC machining centers. It is an essential part of various processes such as milling, drilling, reaming, and boring. The WT-250 CNC Rotary Table enables precise positioning and machining, making it an ideal choice in the demanding field of CNC machining.
Application Areas of the WT-250 CNC Rotary Table
The WT-250 CNC Rotary Table is widely used in the automotive, aerospace, energy, military, and 3C industries. Its efficiency and precision make it a standout in the realm of non-standard automatic special machines and metal cutting machines.
Product Features and Specifications of the WT-250 CNC Rotary Table
Among the various features of the WT-250 CNC Rotary Table are its large aperture design, high segmentation accuracy, high rigidity and high performance, and a high efficiency and strong braking structure system. The following table presents the detailed specifications of this product:

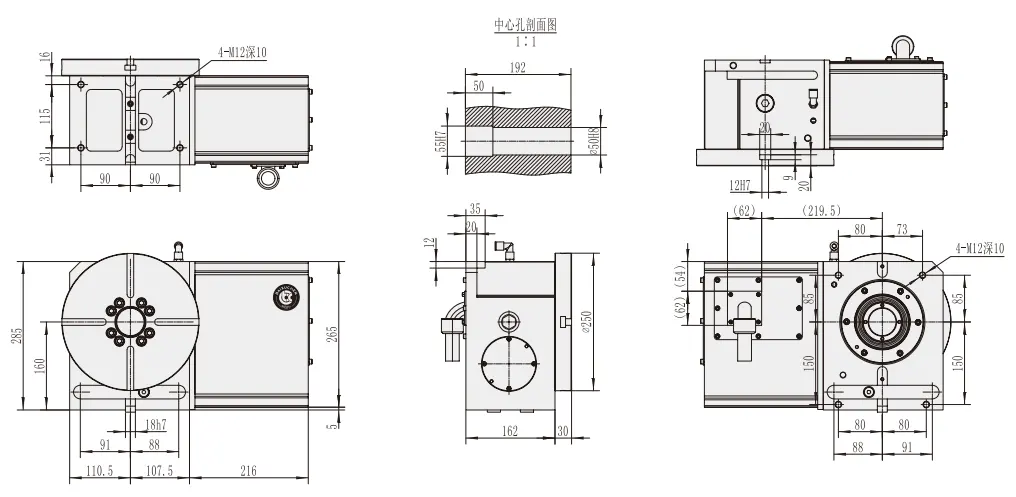

Dimension Parameters
| Product Model | Disk Diameter | Center Diameter | Spindle Hole | Center Height | T-Slot Width | Positioning Button | Min lncrement | |
| WT-250 | ??250mm | ??55mm | ??50mm | 160mm | 12H7mm | 18H7mm | 0.001?? | |
| Segmentation accuracy | Repeat positioning | Locking Mode | Servo Motor | Speed Reduction\nRatio | Maximun Speed | Allowable Work Inertia | Allowable Cutting Torque | Weight??Without Motor?? |
| 20 ?? | 4 ?? | 45kg.m | ??8is;HF-104 | 1:72 | 55.5r.p.m | 8.3kg.cm.sec2 | 18Kg.m | 75Kg |
In terms of maximum load, the WT-250 CNC Rotary Table can handle up to 80KG vertically, 160KG horizontally, and 160KG when a tailstock is applied.
Key Features of the WT-250 CNC Rotary Table
The WT-250 CNC Rotary Table boasts numerous features that set it apart in the market:
Common Structures and Components of CNC Rotary Tables
The CNC Rotary Table is typically available in horizontal and vertical configurations, each with their unique applications. Horizontal rotary tables are often used for machining asymmetric parts, while vertical rotary tables are ideal for parts requiring multiple sides machining.
worm gear and Worm Group in WT Series CNC Rotary Table
The WT Series CNC Rotary Table incorporates an imported worm gear set known for its high hardness and low friction coefficient. The worm gear is crafted from special high tensile brass from Japan, promising a lifespan of 10 years.
About Ever-power
Ever-power is one of the leading suppliers of CNC Rotary Table. With a commitment to R&D innovation and production technology, Ever-power designs customer-centric CNC rotary tables. The company prides itself on its ability to keep pace with the rapidly changing needs of its customers. Ever-power's main products are 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for tool machine tools. The company also offers solutions for CNC precision rotary tables or swing mechanisms.
Explore the WT-250 CNC Rotary Table Today!
Experience the precision and efficiency of the WT-250 CNC Rotary Table. Contact us today to learn more about this product and make your purchase!
Edited by Zqq.
