WT-RT170 CNC 5th Axis 170mm Indexing Rotary Table

Introduction

The WT-RT170 CNC 5th Axis 170mm Indexing Rotary Table, manufactured by HZPT (Hangzhou Ever-power), is a precision machine tool accessory designed to maximize accuracy and efficiency in various machining processes. This rotary table is a critical component of CNC machine tools, enabling the precise positioning and rotation of workpieces for multi-axis machining. The rotary table is primarily used in Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines.

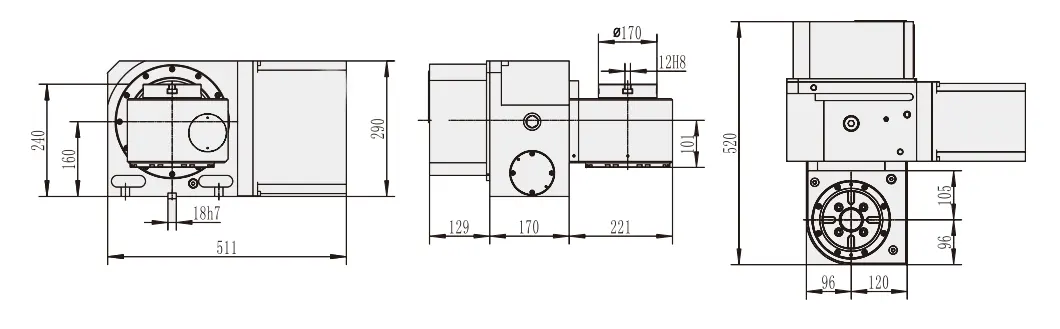

Product Specifications

Key Features

• Five axis linkage machining: Enables complex geometrical shapes and angles to be achieved with high precision.
• High segmentation accuracy: Ensures precise positioning and rotation of workpieces for high-quality machining results.
• High performance and efficiency: Maximizes machining productivity and output.
• Strong braking system: Provides superior control and stability during machining processes. Optional hydraulic braking system available for enhanced performance.

Working Principle of CNC Rotary Tables

A CNC Rotary Table consists of three fundamental components: the spindle, the drive mechanism, and the control system. The spindle is the axis that rotates the workpiece or tool. The drive mechanism provides the power to the spindle, and the control system regulates the speed and direction of the spindle.

Advantages of Using CNC Rotary Tables

• Improved production efficiency: With its ability to automatically rotate workpieces or tools, a CNC rotary table significantly enhances production efficiency.
• Enhanced product quality: By ensuring precise positioning and rotation of workpieces or tools during machining, a CNC rotary table contributes to superior product quality.
• Reduced labor costs: By minimizing the need for manual intervention, a CNC rotary table helps lower labor costs.

worm gear System in CNC Rotary Tables

The worm gear, a helical structure similar to a propeller, and the worm wheel, the gear that engages with the worm, typically have more teeth than the worm. This design provides a high transmission ratio, allowing for greater torque output in a smaller space. CNC machines often use worm gear systems in their rotary tables because these systems provide precise positioning and stable rotational motion, which is crucial for machining tasks that require precision and stability.

About HZPT (Hangzhou Ever-power)

HZPT is a leading supplier of CNC rotary tables, renowned for its commitment to R&D innovation and production technology. Adhering to the business philosophy of "honesty based, harmony based, technology-based, industry competitive", HZPT has developed a range of 4-axis and 5-axis high-precision rotary tables that cater to diverse machining needs. The company's products are widely used in various processing equipment, such as non-standard automatic special machines, metal cutting machines, etc., in 3C, automotive, energy, military, aerospace and other fields. With continued support, HZPT is committed to advancing in R&D and service, striving to become a reliable professional service provider and leading brand in China's machine tool industry.

Explore Our Products and Contact Us

Discover the quality, efficiency, and precision of HZPT's CNC rotary tables. Don't hesitate to contact us for more information or to place your order.

Frequently Asked Questions

Q: What is the weight of the WT-RT170 CNC 5th Axis 170mm Indexing Rotary Table?

A: The net weight of the rotary table is 120 kg.

Q: What is the braking system of the rotary table?

A: The rotary table uses a pneumatic/hydraulic braking system.

Q: Is customization available for the rotary table?

A: Yes, we accept customization requests for the rotary table.
