WT-S255-T2 5th Axis Rotary Table for CNC Machine

Introduction to CNC Rotary Tables

A CNC rotary table is a precision mechanical component used in CNC machining centers. This tool allows the workpiece to be rotated or indexed to an exact position, enabling the machine to perform precise machining operations on multiple sides of the workpiece without repositioning it manually. The WT-S255-T2 model, brought to you by HZPT (Hangzhou Ever-power), is a high precision 5th axis rotary table designed for various CNC machines.

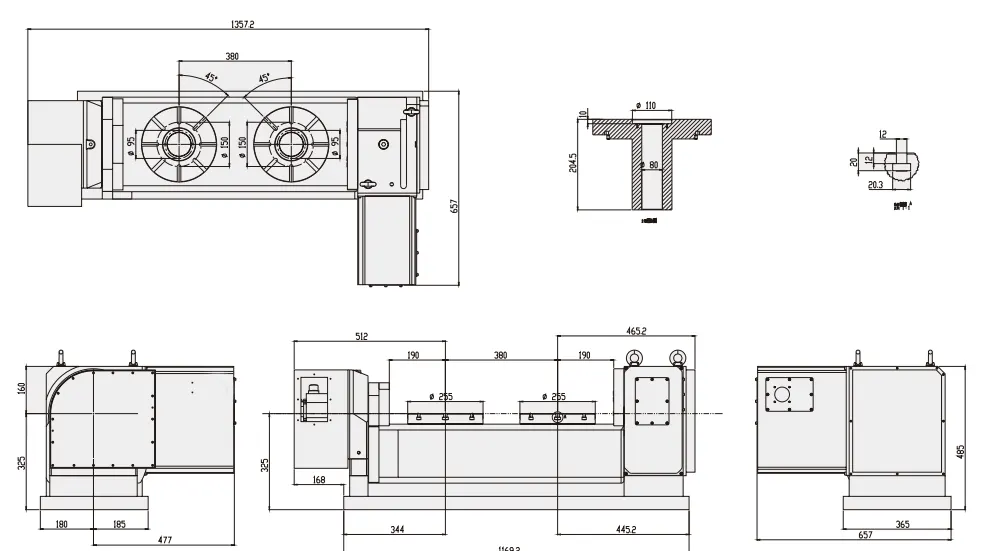

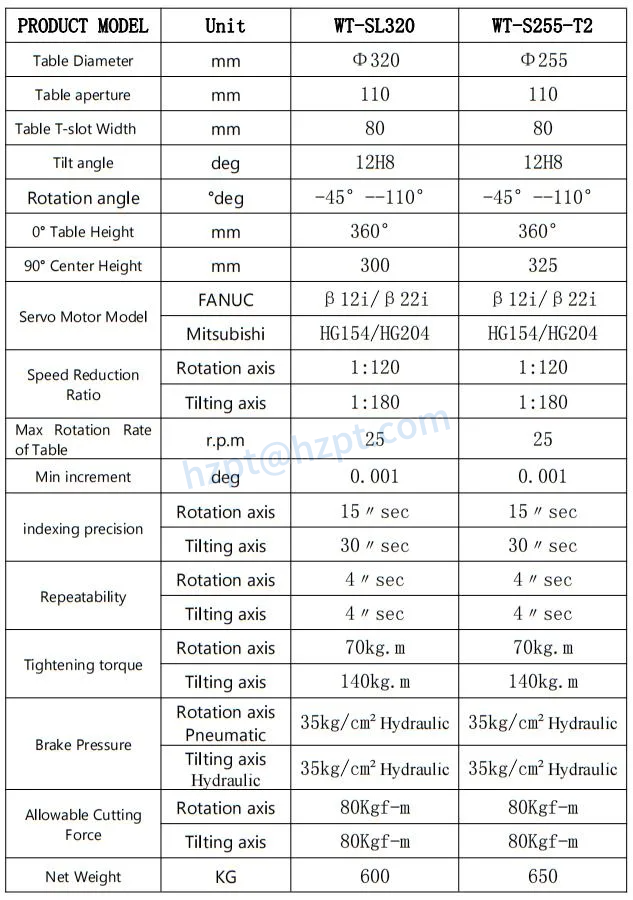

Product Specifications

Key Features of the WT-S255-T2 5th Axis Rotary Table

• Cradle type and extended type: This rotary table features a cradle-type design with an extended base, providing enhanced stability and precision during operations.
• The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism: This feature results in smoother operation, improved safety, and reduced wear and tear.

Working Principle of CNC Rotary Tables

A CNC rotary table consists of three main components: the spindle, the drive system, and the control system. The spindle is the axis that rotates the workpiece or tool. The drive system provides the power for the spindle, and the control system controls the speed and direction of the spindle.

Applications of the WT-S255-T2 5th Axis Rotary Table

This rotary table is suitable for a variety of machine tools, including Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines and Boring Machines. It offers significant improvements in terms of production efficiency, product quality, and labor costs.

Worm Gear System in CNC Rotary Tables

The worm gear system is a common feature in CNC rotary tables. The worm, a helical structure similar to a propeller, meshes with a worm gear, a gear with more teeth than the worm. This design provides a high transmission ratio, allowing for a large torque output in a small space. In CNC machines, rotary tables often use worm gear systems because they offer precise positioning and stable rotational motion, making them ideal for tasks that require precision and stability.

worm gear group">

About HZPT (Hangzhou Ever-power)

HZPT is one of the leading suppliers of CNC rotary tables. We actively develop innovative production technologies to meet the rapidly changing needs of our customers. Our commitment to honesty, harmony, technology, and competitiveness has enabled us to cooperate with leading machine tool manufacturers at home and abroad for many years. We have developed a range of high-precision 4-axis and 5-axis rotary tables that meet the diverse needs of different processing fields. Our products are widely used in various processing equipment, such as non-standard automatic special machines, metal cutting machines, and more, in fields ranging from 3C, automotive, energy, military, to aerospace.

Frequently Asked Questions (FAQs)

Q: How long is the quality guarantee for the WT-S255-T2 5th Axis Rotary Table?

A: We offer a one-year quality guarantee for our products.

Q: Can the product and the package be customized?

A: Yes, we accept OEM orders. You can have your trademark on the machine body and customize the packaging as you need it.

Q: How about the lead time?

A: For common models, the lead time is about 5-7 workdays. For customized models, the lead time may be about 30 workdays.

Explore the WT-S255-T2 5th Axis Rotary Table and experience the high precision and efficiency it brings. Contact us now to place your order!
