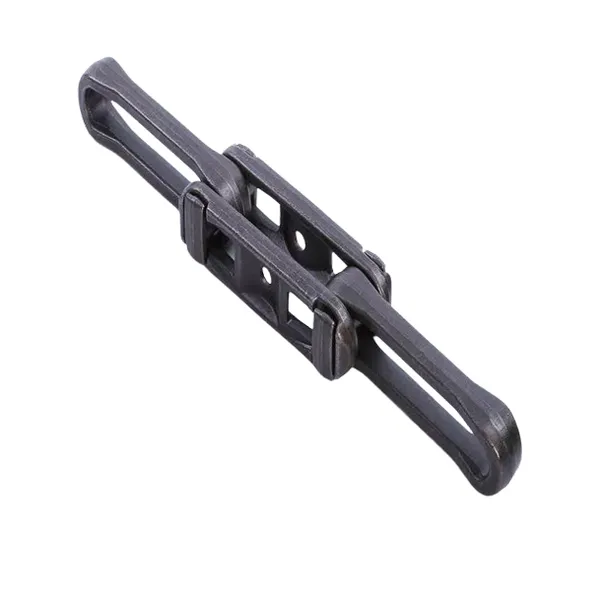

X458 Car Wash Chain

X458 Car Wash Chain

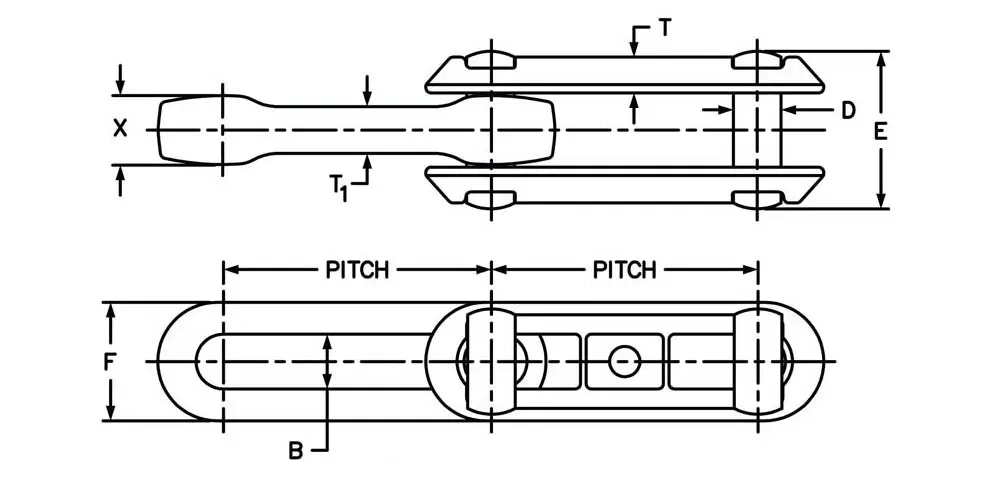

▍X458 Chain Specification

Pitch:	4.031"
Dimension (D):	0.625"
Dimension (E):	2.19"
Dimension (F):	1.44"
Dimension (T):	0.48"
Dimension (T1):	0.66"
Dimension (X):	1.02"
Dimension (B):	0.69"
Ultimate Strength:	48,000 LBS
Links Per 10ft:	30
Weight:	3.2 lbs/ft



This X458 car wash chain is manufactured using the highest quality components. Each component of this chain has been specifically engineered to have optimal performance and high strength. Something that is notable about this chain is that the components also have been fully heat-treated, manufactured using high-grade and high-strength steel, as well as tested for quality. Using a high-quality X458 car wash chain means that you have a much lower possibility of having a costly breakdown, and your equipment will run better. Putting together a chain with high-quality and precision components creates a chain that will hold up in harsh and demanding applications, have great performance, and be extremely durable.

▍X458 Car Wash Chain Features

The X458 car wash chain is a high-quality chain that is made of steel and has a tensile strength of 48,000 pounds. It is also heat-treated, which makes it more durable. X458 chains are used in a variety of car wash applications, including conveyor belts, brush systems, and tire scrubbers.

Here are some of the features of X458 car wash chains:

1. High tensile strength: The X458 car wash chain has a tensile strength of 48,000 pounds, which means that it can withstand a lot of force. This makes it a good choice for applications where the chain is subjected to a lot of stress, such as conveyor belts and brush systems.

2. Heat-treated: The X458 chain is heat-treated, which makes it more durable. Heat treatment is a process that strengthens the metal by heating it to a specific temperature and then cooling it rapidly. This process makes the chain more resistant to wear and tear.

3. Flexible: The X458 car wash chain is flexible, which allows it to move smoothly through the car wash system. This is important for applications where the chain is subjected to a lot of movement, such as conveyor belts.

4. Inexpensive: The X458 chain is relatively inexpensive, which makes it a cost-effective option for car washes.

5. Rivetless: The X458 car wash chain is rivetless, which means that the links are connected by pins. This makes the chain more flexible and easier to maintain.

6. Drop forged: The X458 chain is drop forged, which means that the links are made by forging the metal. This process makes the links stronger and more durable.

7. Increased flexibility: The X458 car wash chain has increased flexibility, which allows it to move more smoothly through the car wash system. This can help to prevent damage to cars.

Overall, the X458 car wash chain is a high-quality chain that is strong, durable, and flexible. It is a good choice for a variety of car wash applications. If you are looking for a high-quality chain for your car wash, the X458 car wash chain is a good option. It is strong, durable, flexible, and relatively inexpensive.

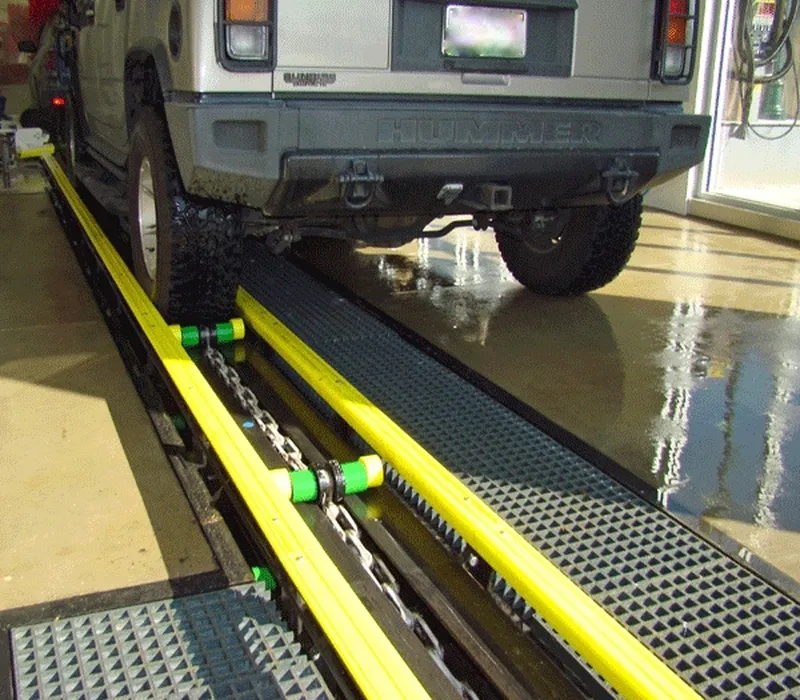

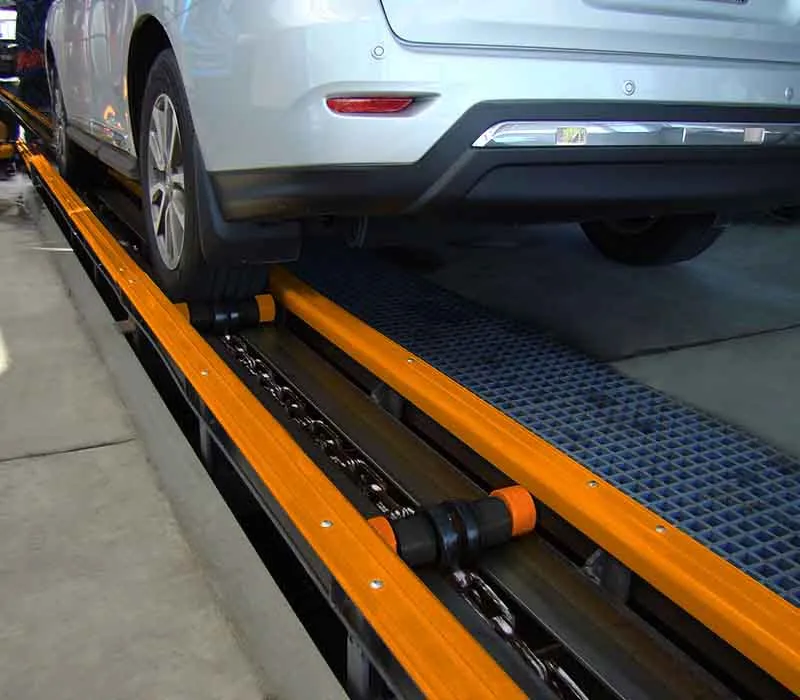

▍X458 Car Wash Chain Applications

The X458 car wash chain is a high-quality chain that is used in a variety of car wash applications. Some of the most common applications for X458 chains include the following:

(1) Conveyor belts: X458 car wash chains are often used in conveyor belts to move cars through the car wash system. The chain's high tensile strength and flexibility make it ideal for this application.

(2) Brush systems: X458 chains are also used in brush systems to clean cars. The chain's strong links can withstand the force of the brushes, and its flexibility allows the chain to move smoothly through the system.

(3) Tire scrubbers: X458 car wash chains are also used in tire scrubbers to clean the tires of cars. The chain's strong links can withstand the force of the scrubbers, and its flexibility allows the chain to move smoothly around the tires.

(4) Foam machines: X458 chains can be used in foam machines to dispense foam onto cars. The chain's flexibility allows it to move smoothly through the foam machine, and its strong links can withstand the force of the foam.

(5) Wax applicators: X458 car wash chains can be used in wax applicators to apply wax to cars. The chain's flexibility allows it to move smoothly through the wax applicator, and its strong links can withstand the force of the wax.

(6) Drying systems: X458 chains can be used in drying systems to dry cars. The chain's flexibility allows it to move smoothly through the drying system, and its strong links can withstand the force of the air.

Overall, the X458 car wash chain is a versatile chain that can be used in a variety of car wash applications. Its high tensile strength, flexibility, and durability make it a reliable and cost-effective choice for car washes.



▍How to Choose the Right X458 Car Wash Chain?

Choosing the right X458 car wash chain for your system requires consideration of several important factors, including:

Chain Material: The material of the X458 car wash chain is an important factor to consider, as it determines the chain's ability to withstand the harsh chemicals and high-pressure water used in car wash systems. Stainless steel or plated carbon steel chains are commonly used in car wash systems as they offer good resistance to corrosion.

Chain Pitch: The pitch of the chain refers to the distance between the centers of adjacent pins on the chain. X458 car wash chains have a pitch of 4.00 inches, which is a standard size for overhead conveyor systems. Ensure that the chain pitch matches the pitch of your existing conveyor system.

Chain Strength: The strength of the X458 car wash chain is determined by its tensile strength, which is the amount of force the chain can withstand before breaking. Choose a chain with a tensile strength that exceeds the maximum load capacity of your conveyor system.

Chain Length: The length of the X458 car wash chain is determined by the length of the conveyor system. Measure the length of the existing chain or the conveyor system and choose a chain that matches the length.

Chain Attachment: The type of attachment on the chain is an important factor to consider. Most X458 car wash chains come with standard attachments, but some systems may require custom attachments to fit specific equipment.

Operating Environment: Consider the temperature, humidity, and other environmental factors that the X458 car wash chain will be exposed to. Choose a chain that can withstand the operating conditions of your car wash system.



▍X458 Chain Sprockets

X458 car wash chain is a type of industrial chain commonly used in overhead conveyors, including but not limited to car wash systems. X458 chain sprockets are specifically designed to work with X458 chains. Sprockets are toothed wheels that mesh with the chain and are responsible for transferring power from the chain to other components of the conveyor system. X458 chain sprockets typically have a pitch diameter of 11.938 inches and are available in a range of tooth counts, bore sizes, and hub styles to match the requirements of different equipment.

X458 car wash chain is a variant of the X458 chain that is specifically designed for use in car wash systems. These chains are typically made of stainless steel or plated carbon steel to resist corrosion and withstand the harsh chemicals and high-pressure water used in car washes. X458 car wash chains are often used in conjunction with X458 chain sprockets to drive the conveyor system that moves cars through the wash process.

Overall, X458 chain sprockets and X458 car wash chains are important components of conveyor systems used in car washes and other industrial applications. They are designed to work together to provide reliable and efficient movement of materials through the system.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
