Electric Motor Slide Base
Our high-strength and high-quality steel slide bases for electric motors are dimensionally universal to other brands of manufacturers and are able to attach NEMA normal electric motors. The electric motor slide base made of high-strength steel comes with an exclusive primer, and is constructed to be tough and durable. The slide-base design makes it easier to make adjustment of alignment and positioning of electric motors. They are great for fine motor placement, tightening belts and alignment purposes. Our slide base models come equipped with washers as well as all the D-Bolts (motor mounting bolts) are welded to the exact foot design of the motor and location to stop spinning and falling out of slots, while making it easier to install motors.

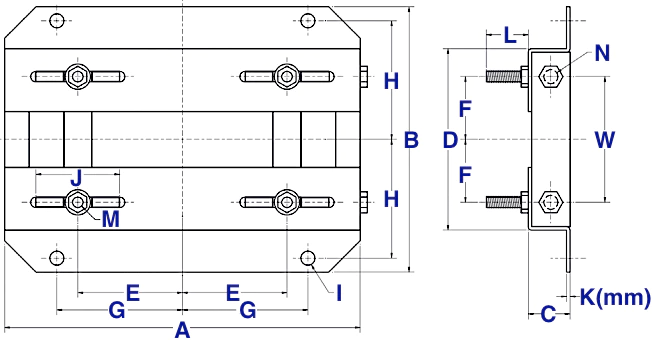

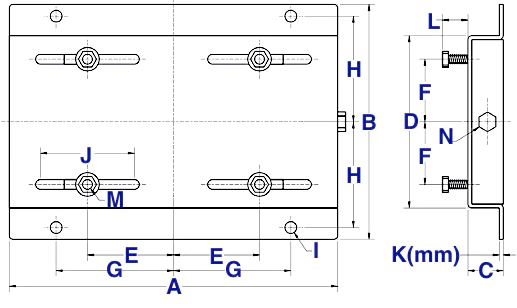

Motor Slide Base Dimensions
56-145T Slide Bases:
|
Frame
|
(A)
|
(B)
|
(C)
|
(D)
|
(E)
|
(F)
|
(G)
|
(H)
|
(I)
|
(J)
|
(K) mm
|
(L)
|
(M)
|
(N)
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56 | 10.625″ | 6.5″ | 1.125″ | 4.5″ | 2.4375″ | 1.5″ | 3.8125″ | 2.875″ | 0.375″ | 3″ | 2mm | 0.875″ | 5/16 X 1 | 3/8 X 4 | 3 |
| 143T | 10.5″ | 7.5″ | 1.125″ | 5.5″ | 2.75″ | 2″ | 3.75″ | 3.375″ | 0.375″ | 3″ | 3mm | 0.8125″ | 5/16 X 1 | 3/8 X 4 | 6 |
| 145T | 10.5″ | 8.5″ | 1.125″ | 6.5″ | 2.75″ | 2.5″ | 3.75″ | 3.875″ | 0.375″ | 3″ | 3mm | 0.8125″ | 5/16 X 1 | 3/8 X 4 | 7 |
182T-505T Slide Bases:
|
Frame
|
(A)
|
(B)
|
(C)
|
(D)
|
(E)
|
(F)
|
(G)
|
(H)
|
(I)
|
(J)
|
(K) mm
|
(L)
|
(M)
|
(N)
|
(W)
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 182T | 12.75″ | 9.50″ | 1.50″ | 6.50″ | 3.75″ | 2.25″ | 4.50″ | 4.25″ | 0.5″ | 3″ | 3.5mm | 1.5″ | 3/8 X 1-3/4 | 1/2 X 6 | 4.5″ | 10 |
| 184T | 12.75″ | 10.5″ | 1.5″ | 7.5″ | 3.75″ | 2.75″ | 4.5″ | 4.75″ | 0.5″ | 3″ | 3.5mm | 1.5″ | 3/8 X 1-3/4 | 1/2 X 6 | 5.5″ | 10 |
| 213T | 15″ | 11″ | 1.75″ | 7.5″ | 4.25″ | 2.75″ | 5.25″ | 4.75″ | 0.5″ | 3.5″ | 3.8mm | 1.5″ | 3/8 X 1-3/4 | 1/2 X 6 | 5.5″ | 15 |
| 215T | 15″ | 12.5″ | 1.75″ | 9″ | 4.25″ | 3.5″ | 5.25″ | 5.5″ | 0.5″ | 3.5″ | 3.8mm | 1.5″ | 3/8 X 1-3/4 | 1/2 X 6 | 7″ | 17 |
| 254T | 17.75″ | 15.125″ | 2″ | 10.75″ | 5″ | 4.125″ | 6.25″ | 6.625″ | 0.625″ | 4″ | 4.6mm | 1.4375″ | 1/2 X 1-3/4 | 5/8 X 6 | 5.3125″ | 19 |
| 256T | 17.75″ | 16.875″ | 2″ | 12.5″ | 5″ | 5″ | 6.25″ | 7.5″ | 0.625″ | 4″ | 4.6mm | 1.4375″ | 1/2 X 1-3/4 | 5/8 X 6 | 7″ | 20 |
| 284T | 19.75″ | 16.875″ | 2″ | 12.5″ | 5.5″ | 4.75″ | 7″ | 7.5″ | 0.625″ | 4.5″ | 4.6mm | 1.6875″ | 1/2 X 2 | 5/8 X 6 | 7″ | 24 |
| 286T | 19.75″ | 18.375″ | 2″ | 14″ | 5.5″ | 5.5″ | 7″ | 8.25″ | 0.625″ | 4.5″ | 4.6mm | 1.6875″ | 1/2 X 2 | 5/8 X 6 | 8″ | 25 |
| 324T | 22.75″ | 19.25″ | 2.5″ | 14″ | 6.25″ | 5.25″ | 8″ | 8.5″ | 0.75″ | 5.25″ | 4.6mm | 2.1875″ | 5/8 X 2-1/2 | 3/4 X 9 | 7″ | 35 |
| 326T | 22.75″ | 20.75″ | 2.5″ | 15.5″ | 6.25″ | 6″ | 8″ | 9.25″ | 0.75″ | 5.25″ | 4.6mm | 2.1875″ | 5/8 X 2-1/2 | 3/4 X 9 | 8.5″ | 36 |
| 364T | 25.5″ | 20.5″ | 2.5″ | 15.5″ | 7″ | 5.625″ | 9″ | 9.125″ | 0.75″ | 6″ | 5.8mm | 2.0625″ | 5/8 X 2-1/2 | 3/4 X 9 | 7.75″ | 49 |
| 365T | 25.5″ | 20.5″ | 2.5″ | 16.5″ | 7″ | 6.125″ | 9″ | 9.625″ | 0.75″ | 6″ | 5.8mm | 2.0625″ | 5/8 X 2-1/2 | 3/4 X 9 | 8.75″ | 50 |
| 404T | 28.75″ | 22.375″ | 3″ | 16.5″ | 8″ | 6.125″ | 10″ | 9.875″ | 0.875″ | 7″ | 5.8mm | 2.5″ | 3/4 X 3 | 3/4 X 11 | 8.75″ | 66 |
| 405T | 28.75″ | 23.875″ | 3″ | 18″ | 8″ | 6.875″ | 10″ | 10.625″ | 0.875″ | 7″ | 5.8mm | 2.5″ | 3/4 X 3 | 3/4 X 11 | 10.25″ | 68 |
| 444T | 31.25″ | 24.625″ | 3″ | 19.25″ | 9″ | 7.25″ | 11″ | 11″ | 0.875″ | 7.5″ | 5.8mm | 2.5″ | 3/4 X 3 | 3/4 X 11 | 11″ | 74 |
| 445T | 31.25″ | 26.625 | 3″ | 21.25″ | 9″ | 8.25″ | 11″ | 12″ | 0.875″ | 7.5″ | 5.8mm | 2.5″ | 3/4 X 3 | 3/4 X 11 | 13″ | 76 |
| 447T | 31.25″ | 30.125″ | 3″ | 24.75″ | 9″ | 10″ | 11″ | 13.75″ | 0.875″ | 7.5″ | 8mm | 3″ | 3/4 X 3-1/2 | 3/4 X 11 | 16.5″ | 102 |
| 449T | 31.25″ | 35.125″ | 3″ | 29.75″ | 9″ | 12.5″ | 11″ | 16.25″ | 0.875″ | 7.5″ | 8mm | 3″ | 3/4 X 3-1/2 | 3/4 X 11 | 21.5″ | 105 |
| 505T | 35″ | 30″ | 3.5″ | 22.75″ | 10″ | 9″ | 12.5″ | 13.5″ | 1″ | 8″ | 8mm | 3″ | 7/8 X 3-1/2 | 7/8 X 12 | 14.5″ | 137 |
HZPT is one of the leading China electric motor base manufactures with more than 15 years. Contact us now to get more about our electric motor slide base for sale!
