Feed Mixer Gearbox

HZPT is a prominent manufacturer of high-performance feed mixer gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom feed mixer gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing a feed mixer gearbox.

The first step in this procedure is to determine which sort of gearbox is suitable for your application. We are one of the reputable manufacturers and suppliers with years of expertise in farm equipment manufacturing and distribution. HZPT provides high-quality agricultural equipment wholesale at a reasonable price. In addition, we also offer agricultural PTO shafts! Contact us now!

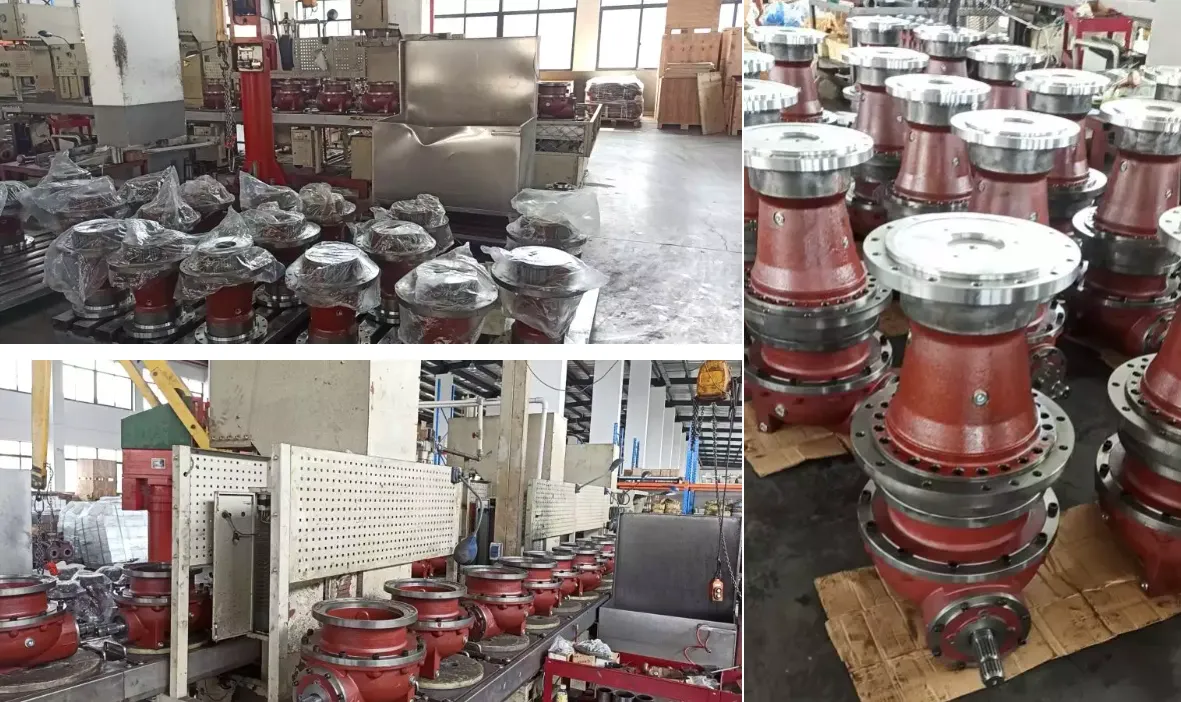

Feed Mixer Gearbox Manufacturers

The Role of Feed Mixer Gearbox in Agriculture

A feed mixer gearbox is an essential component of a mixing wagon used in the agricultural industry. It plays a crucial role in the efficient and effective mixing of animal feed ingredients. The primary function of the gearbox is to transmit power from the tractor or another power source to the mixing mechanism of the wagon, allowing it to blend various feed ingredients thoroughly.

The mixing wagon, also known as a feed mixer or TMR (Total Mixed Ration) mixer, is a specialized piece of equipment used to combine different types of animal feed, including grains, forages, minerals, and additives. The feed mixer gearbox is responsible for converting the rotational power provided by the tractor's power take-off (PTO) or another power source into the appropriate speed and torque required for the mixing mechanism.

Here are some key features and functions of a feed mixer gearbox:

(1) Power Transmission: The gearbox transfers power from the tractor to the mixing mechanism through a series of gears, shafts, and bearings. It ensures that the rotational energy is efficiently transmitted to the mixing auger or paddle system.

(2) Speed and Torque Regulation: The gearbox allows for speed and torque control, enabling the operator to adjust the mixing intensity according to the specific requirements. This flexibility ensures thorough and consistent mixing of the feed ingredients.

(3) Gear Ratio Selection: The gearbox often incorporates different gear ratios, allowing the operator to choose the appropriate speed for the mixing process. This selection is based on the type of ingredients, desired mixing time, and the desired consistency of the final feed mixture.

(4) Durability and Reliability: Feed mixer gearboxes are designed to withstand the demanding conditions of agricultural applications. They are built to be robust and resistant to wear, as they need to handle heavy loads and continuous operation.

(5) Safety Features: Some feed mixer gearboxes include safety features such as overload protection or shear pins. These mechanisms prevent damage to the gearbox or other components in case of excessive load or blockage.

(6) Maintenance and Lubrication: Proper maintenance and regular lubrication are crucial for the longevity and optimal performance of the feed mixer gearbox. Lubricants help reduce friction and heat, ensuring smooth operation and preventing premature wear.

Feed Mixer Gearbox PGA-1602 for Mixing Wagon Working Principle

Types of Feed Mixer Gearboxes

Feed mixer gearboxes are categorized based on their design and functionality, each suited for specific types of operations and scales of farming. Here are the primary types of feed mixer gearboxes commonly used in agriculture:

(1) Vertical Feed Mixer Gearboxes

  • Single Auger Gearboxes: Ideal for smaller farms, these gearboxes drive mixers that use a single vertical auger to combine feed ingredients. They are compact and generally more economical.
  • Multiple Auger Gearboxes: Used in larger vertical mixers, these gearboxes handle multiple augers, providing a more thorough mix and capable of processing larger volumes of feed.

(2) Horizontal Feed Mixer Gearboxes

  • Paddle Mixer Gearboxes: These gearboxes are designed for horizontal mixers that use paddles to stir the feed. They are effective for mixing wet and dry ingredients and provide a rapid, even mix.
  • Reel Mixer Gearboxes: Driving horizontal mixers that utilize a rotating reel and auger system, these gearboxes ensure a gentle but effective mixing process, which is suitable for delicate feed components.

(3) Specialized Feed Mixer Gearboxes

  • Self-Propelled Mixer Gearboxes: These are part of systems used in self-propelled feed mixing machines, which are equipped with their own engine and operate independently of tractors.
  • Portable Mixer Gearboxes: Small, portable mixer gearboxes are designed for use in mobile feed mixers, which are ideal for farmers who need to mix feed at multiple locations.

(4) Hybrid Feed Mixer Gearboxes

  • Combination Mixer Gearboxes: Some modern gearboxes are designed to operate in both vertical and horizontal mixer setups, offering flexibility depending on the mixer attachment and specific farm needs.

Advantages of Agricultural Gearbox for Feed Mixer

Using a feed mixer gearbox for mixing wagons offers several advantages that contribute to efficient and effective feed mixing operations. Here are some key advantages of using a feed mixer gearbox:

(1) Power Transmission Efficiency: A feed mixer gearbox ensures efficient power transmission from the tractor or power source to the mixing mechanism of the wagon. The gearbox reduces energy losses and ensures that the rotational power is effectively utilized, maximizing the mixing efficiency.

(2) Speed and Torque Control: The gearbox allows for precise control over the rotational speed and torque applied to the mixing mechanism. This control enables operators to adjust the mixing intensity according to the specific feed ingredients and desired mixing results. It allows for consistent and thorough mixing, ensuring a homogeneous feed mixture.

(3) Flexibility and Customization: Different types of feed mixer gearboxes, such as two-speed or variable-speed gearboxes, provide flexibility and customization options. Operators can choose the appropriate mixing speed and intensity based on the specific ingredients, desired mixing time, and the type of livestock being fed. This adaptability ensures optimal feed quality and nutrition.

(4) Durability and Reliability: Feed mixer gearboxes are designed to withstand the demanding conditions of agricultural operations. They are built to be durable, capable of handling heavy loads and continuous operation. The gearbox's robust construction and quality materials contribute to its reliability and longevity.

(5) Easy Maintenance: Feed mixer gearboxes are typically designed for ease of maintenance. They often have accessible lubrication points and inspection ports, allowing for straightforward lubrication and visual checks. Proper maintenance, including regular lubrication, helps extend the lifespan of the gearbox and ensures optimal performance.

(6) Compatibility and Integration: Feed mixer gearboxes are designed to integrate seamlessly with mixing wagons and other components of the feeding system. They are available in various sizes and configurations to match different mixing wagon models and requirements. This compatibility ensures smooth operation and efficient integration within the feeding process.

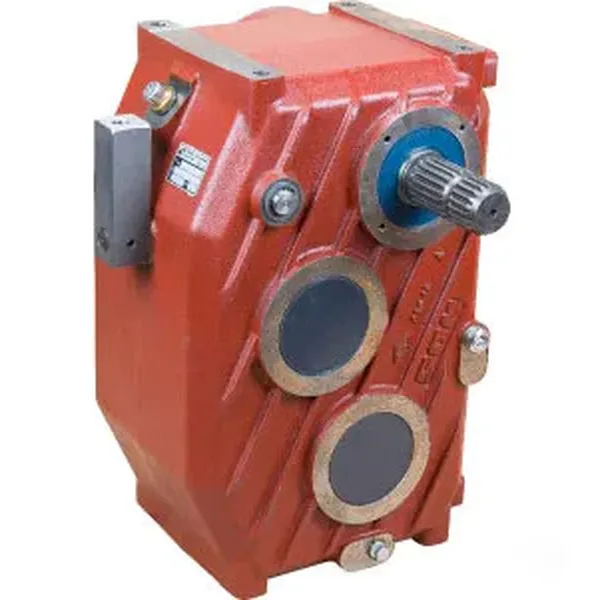

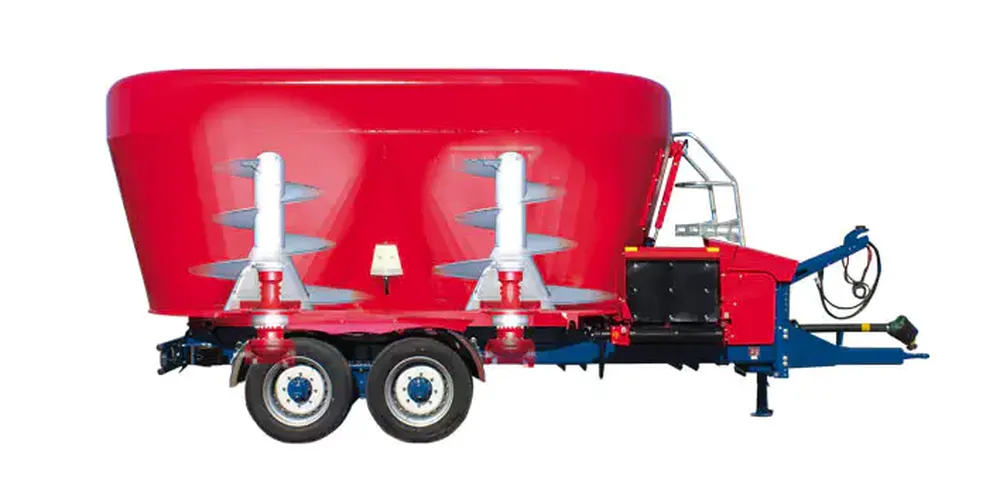

Feed Mixer Machines Gearbox PGA-1602 for Mixing Wagon

Typical Application of Gearbox for Feed Mixer

The feed mixer gearbox finds its typical application in the agricultural industry, specifically in livestock farming, where it is used in mixing wagons or TMR (Total Mixed Ration) mixers. Here are the typical applications of the feed mixer gearbox:

  • Livestock Feed Mixing: The primary application of the feed mixer gearbox is in the mixing of animal feed ingredients. It is used in mixing wagons to blend various components such as grains, forages, minerals, and additives into a homogeneous feed mixture. The gearbox ensures thorough and consistent mixing of the ingredients, resulting in a nutritionally balanced and uniform feed ration.
  • Dairy Farms: Dairy farms often utilize feed mixer gearboxes to prepare the total mixed ration for dairy cattle. The gearbox allows for the precise blending of ingredients to meet the specific nutritional requirements of the dairy herd. It ensures that the feed mixture is properly mixed and evenly distributed, promoting optimal milk production and herd health.
  • Beef Cattle Operations: In beef cattle operations, feed mixer gearboxes are used to mix and prepare feed rations for growing and finishing cattle. The gearbox enables the thorough incorporation of various ingredients, including grains, roughages, and supplements, ensuring a balanced diet for the cattle. Properly mixed feed promotes efficient weight gain, overall health, and carcass quality.
  • Poultry Farms: Poultry farms often employ feed mixer gearboxes in the preparation of feed for broilers, layers, and other poultry species. The gearbox ensures that the feed ingredients, including grains, protein sources, and minerals, are uniformly mixed, providing the necessary nutrients for growth and production.
  • Swine Operations: Swine producers utilize feed mixer gearboxes to blend feed ingredients for pigs. The gearbox facilitates the incorporation of grains, protein sources, vitamins, and minerals into a consistent diet. Properly mixed feed promotes optimal growth, feed efficiency, and reproductive performance in swine.
  • Custom Feed Mixing Services: Feed mixer gearboxes are also used in custom feed mixing services, where operators mix and deliver feed rations to various livestock operations. The gearbox allows for precise control over the mixing process, ensuring accurate ingredient incorporation and consistent feed quality.

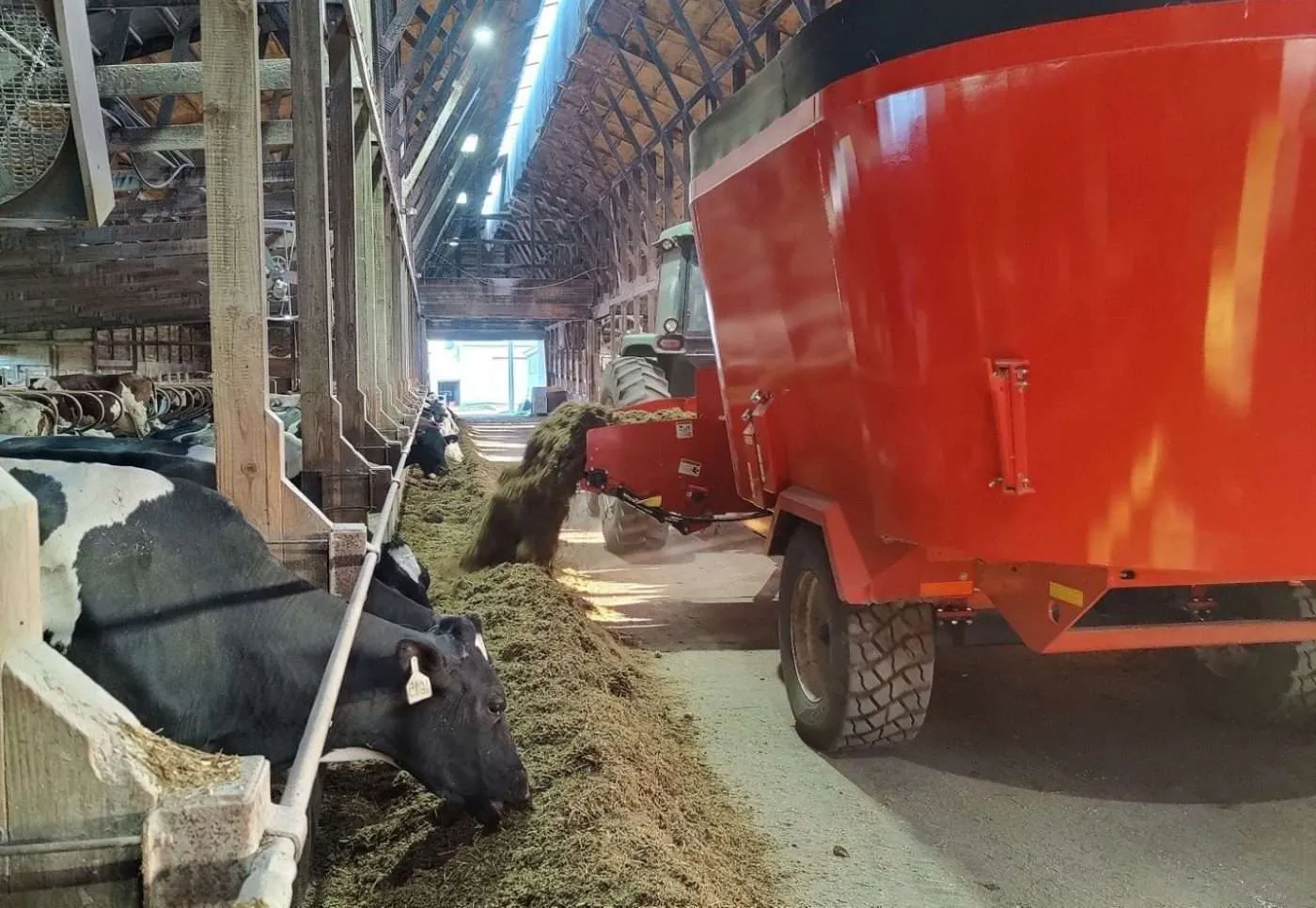

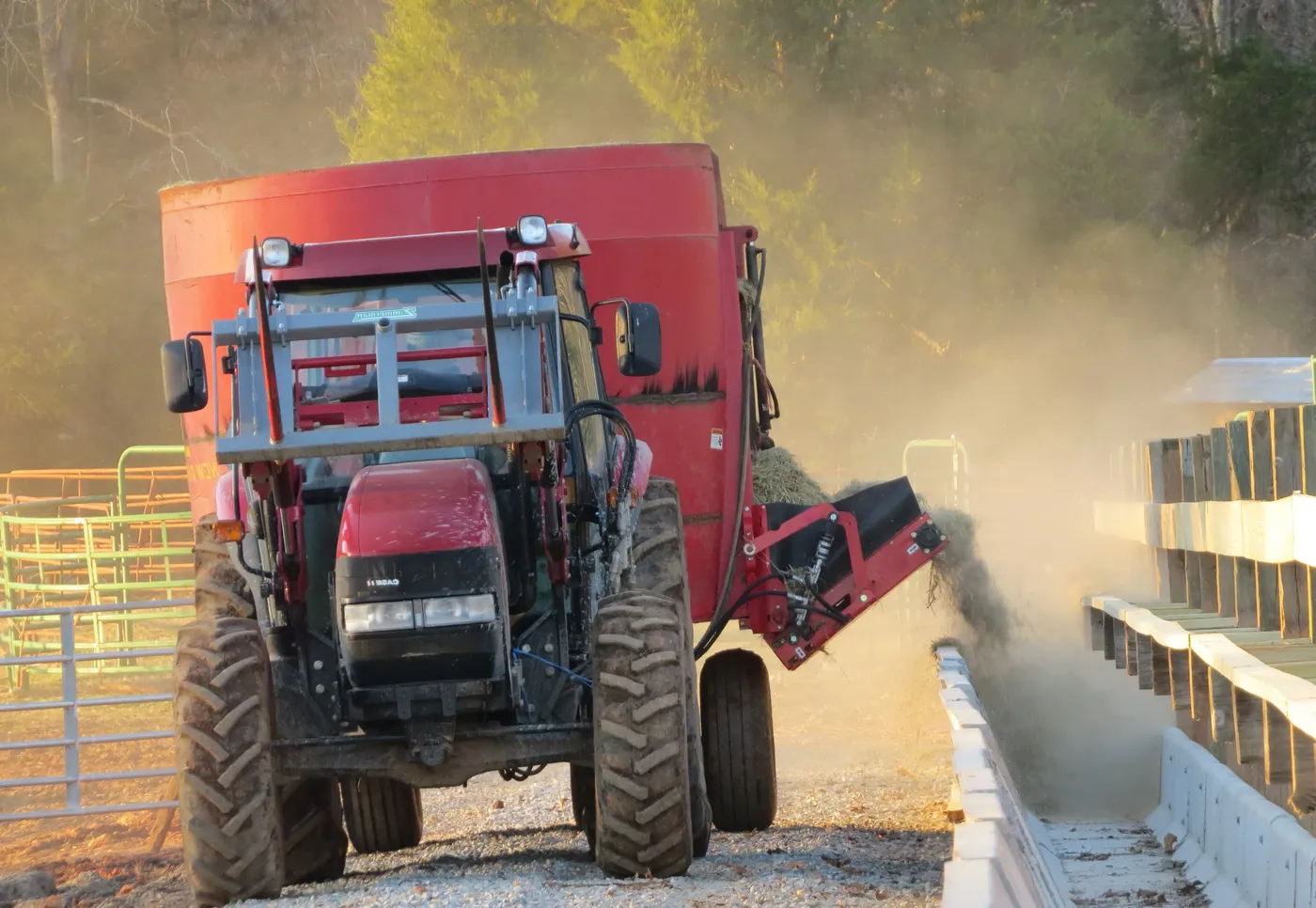

Feed Mixer Gearbox C3A Applications
Feed Mixer Gearbox C3A Applications

Key Components:

A feed mixer gearbox is a complex mechanical device that consists of various components working together to ensure efficient and reliable operation. Understanding the key components can help in maintaining and troubleshooting the gearbox. Here are the essential parts of a feed mixer gearbox:

1. Housing

  • The housing encases all the internal components of the gearbox, providing structural support and protection from external elements. It is typically made from cast iron or steel, offering robustness and resistance to operational stresses such as vibration and impact.

2. Gears

  • Gears are the core components that transmit torque from the power source to the mixing mechanism. They come in various shapes, such as spur, helical, or planetary, depending on the design and efficiency requirements. High-quality steel is used to ensure strength and wear resistance.

3. Bearings

  • Bearings support the rotational movement of the gears and shafts, reducing friction and wear. They must be precisely selected and maintained to handle the high load and continuous operation of the mixer, ensuring smooth and efficient gearbox performance.

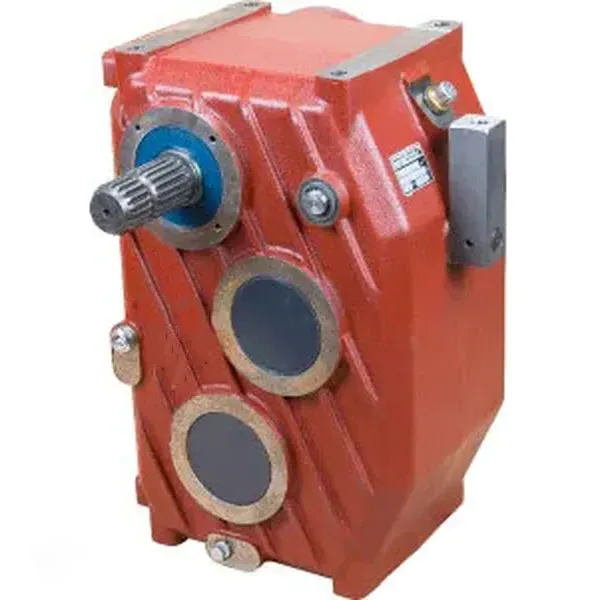

Feed Mixer Gearbox
Feed Mixer Gearbox

4. Shafts

  • Shafts transmit the rotational force from the motor or engine to the gears. Made from high-tensile steel, they are designed to withstand torsional stresses and transmit power efficiently throughout the gearbox.

5. Seals

  • Seals prevent the leakage of lubricants and protect internal components from dirt and moisture ingress. Good sealing is crucial for maintaining the lubrication within the gearbox and ensuring a long service life by preventing contamination.

6. Lubrication System

  • The lubrication system plays a vital role in reducing friction between moving parts, cooling the gearbox, and preventing wear and tear. It might include oil pumps, channels, and filters to maintain clean and effective lubrication throughout the operation.

Working Principle of Tractor PTO Driven Feed Mixer Gearbox for Mixing Feeds

The working principle of a tractor PTO (Power Take-Off) driven feed mixer gearbox involves several steps that efficiently transfer and convert power from the tractor to the mixing mechanism of the feed mixer. Here's a detailed explanation of how it works:
  1. Power Source Connection: The tractor's PTO shaft provides the primary power source for the gearbox. When the tractor's engine is activated, it generates mechanical power, which is transmitted via the PTO shaft to the feed mixer gearbox.
  2. Engagement of the Gearbox: The operator engages the gearbox using a lever or switch that connects the PTO shaft to the gearbox's input shaft. This engagement is crucial for transferring power to the mixer while allowing for disconnection when the mixer is not in use.
  3. Conversion of Rotational Speed: Inside the gearbox, the input rotational speed from the tractor's PTO is adapted to the optimal speed necessary for mixing. This is done through a series of gears that increase or decrease the rotation speed according to the design and requirements of the mixer.
  4. Torque Amplification: The gearbox not only adjusts speeds but also amplifies the torque. By adjusting gear ratios, the gearbox can increase the torque output, which is essential for turning the mixing mechanism under the load of feed materials.
  5. Power Transmission to Mixer: The modified power (speed and torque) is then transmitted from the output shaft of the gearbox to the mixing mechanism. This usually involves additional drive components like chains or belts that convey the power to where it is needed.
  6. Activation of Mixing Mechanism: The mechanical energy delivered by the gearbox drives the mixing mechanism, which can be augers, paddles, or reels, depending on the mixer type. These components physically mix the feed ingredients by moving them around in the mixing chamber.

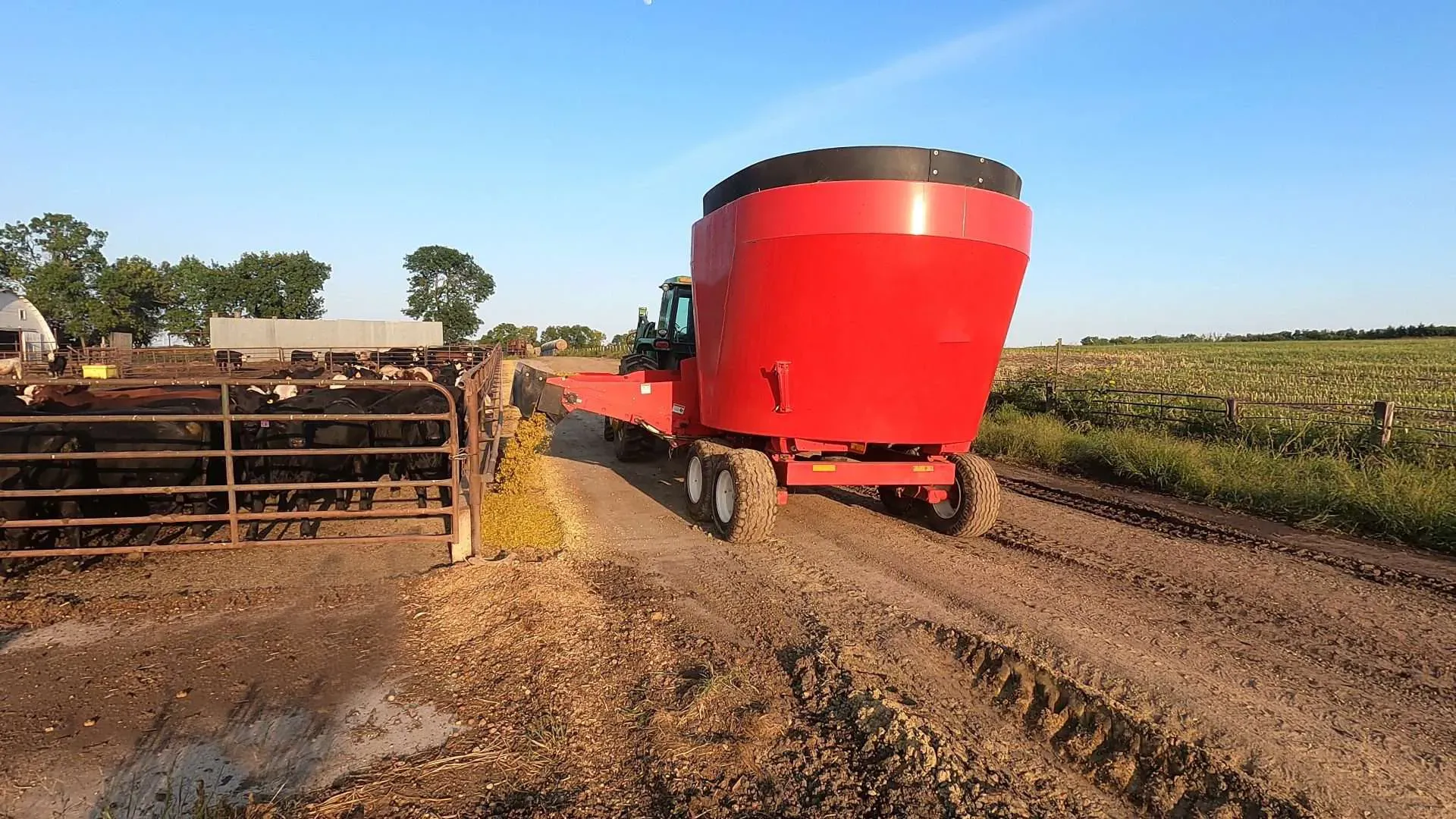

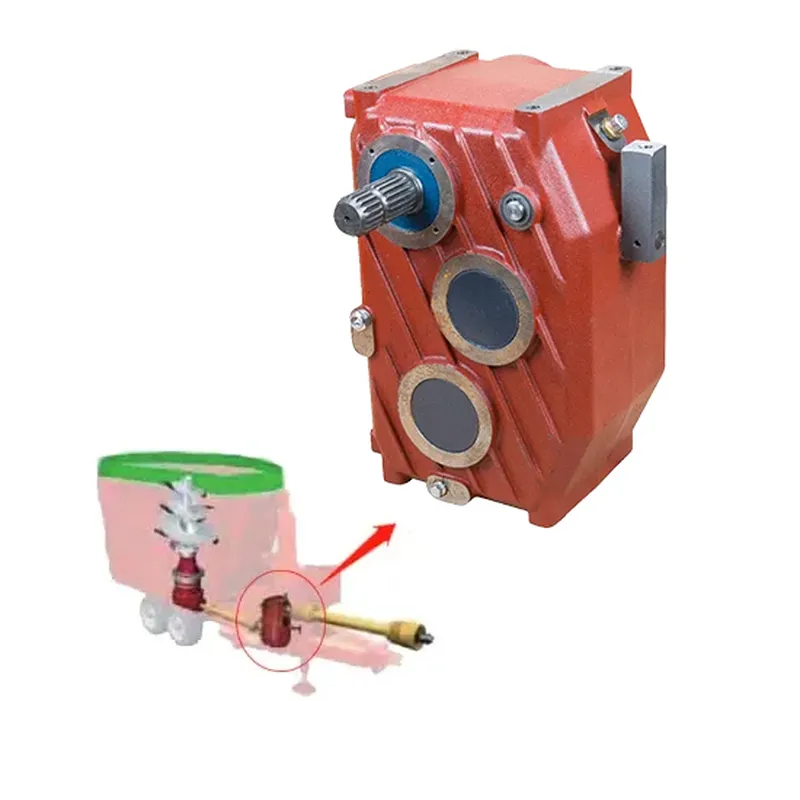

Horizontal Feed Mixer Gearbox

Proper Maintenance:

Proper maintenance of the feed mixer gearbox is essential to ensure its efficient and reliable operation. Here are some guidelines to help you maintain the gearbox effectively:

1. Regular Inspection: Perform routine visual inspections of the gearbox to check for any signs of wear, leaks, or damage. Look for oil leaks, loose bolts, or unusual noises during operation. If you notice any issues, address them promptly.

2. Lubrication: Proper lubrication is crucial for the gearbox's performance. Follow the manufacturer's recommendations for the type of lubricant to use and the recommended intervals for oil changes. Regularly check the oil level and top it up as needed.

3. Oil Analysis: Periodically, send oil samples to a laboratory for analysis. Oil analysis can help identify contaminants, monitor wear particles, and detect any potential problems in the gearbox. Follow the manufacturer's guidelines for the recommended frequency of oil analysis.

4. Seal Inspection: Check the condition of the gearbox seals regularly. Damaged or worn seals can lead to oil leaks and contamination. Replace any faulty seals promptly to prevent further damage.

5. Temperature Monitoring: Keep an eye on the gearbox temperature during operation. Excessive heat can indicate a problem such as inadequate lubrication or excessive friction. If you notice abnormal temperature readings, investigate the cause and take appropriate action.

6. Alignment and Coupling: Check the alignment of the gearbox and ensure proper coupling with the motor or other connected equipment. Misalignment can cause excessive vibration, premature wear, and damage to the gearbox components. Correct any alignment issues promptly.

Agricultural PTO Shaft for Feed Mixer Machine Gearbo

Agricultural PTO Shaft for Feed Mixer Gearbox

An agricultural power take-off (PTO) shaft is a mechanical component used to transfer power from a tractor or other power source to various agricultural implements, including feed mixer gearboxes. The PTO shaft connects to the tractor's PTO output shaft on one end and the input shaft of the feed mixer gearbox on the other end.

The feed mixer gearbox is a critical component of a feed mixer machine, which is used to mix animal feed ingredients. The gearbox is responsible for transmitting power from the PTO shaft to the mixing paddles or augers inside the mixer. When selecting a PTO shaft and feed mixer gearbox, here are some important considerations:

(1) PTO Shaft Type: Determine the appropriate PTO shaft type based on the tractor's PTO output speed and the gearbox's input speed requirements. The most common PTO shaft speeds are 540 and 1000 RPM, so ensure compatibility between the tractor and gearbox.

(2) PTO Shaft Length: Measure the distance between the tractor's PTO output shaft and the feed mixer gearbox's input shaft. Consider any necessary clearance and ensure the PTO shaft is of sufficient length to connect the two components.

(3) Spline Size: Check the spline size and type of both the PTO shaft and the gearbox input shaft. The spline size should match to ensure a proper and secure connection.

(4) Gearbox Capacity: Consider the power and torque requirements of your specific feed mixer, as well as the capacity of the gearbox. Ensure that the gearbox is rated to handle the power output of your tractor and the demands of your feed mixing operations.

(5) Durability and Maintenance: Look for a high-quality PTO shaft and feed mixer gearbox from reputable manufacturers or suppliers. Consider factors such as material quality, design, and warranty. Additionally, ensure that both the PTO shaft and gearbox are properly maintained according to the manufacturer's guidelines.

(6) Safety Features: Prioritize safety by choosing a PTO shaft with appropriate shielding or guarding to prevent accidental contact with rotating components. The gearbox should also have safety features, such as protective covers and emergency stop mechanisms.

PTO Shaft for Feed Mixer Gearbox

Choosing the Right Gearbox for Your Farm

Choosing the right feed mixer gearbox for your farm is crucial for optimizing productivity and maintaining feed quality. Here's a guide to help you select the best gearbox for your agricultural needs:

1. Type of Feed Mixer

  • Determine whether a vertical or horizontal mixer best suits your needs. Vertical mixers are excellent for farms with limited space and can handle a variety of feed components, while horizontal mixers are ideal for producing a more homogenous mix and work well for large volumes of feed.

2. Farm Size and Capacity Requirements

  • Assess the size of your farm and the amount of feed you need to process daily. Larger operations may require a more robust gearbox capable of handling increased loads and continuous operation, whereas smaller farms might benefit from a simpler, more economical gearbox.

3. Feed Ingredients

  • Consider the types of ingredients you are mixing. Some gearboxes are better suited for heavy materials like silage and whole grains, while others might be more efficient for lighter, dryer ingredients. The right gearbox should handle the specific characteristics of your farm's feed.
    Horizontal Feed Mixer Gearbox
    Horizontal Feed Mixer Gearbox

    4. Power Source Compatibility

    • Ensure the gearbox is compatible with your available power sources, such as electric motors or tractor PTOs. The efficiency of power transmission and the overall fuel or energy consumption can significantly impact operational costs.

    5. Durability and Material Quality

    • Look for gearboxes made from high-quality, durable materials that can withstand the harsh conditions of farming. Stainless steel or reinforced alloys offer longevity and resistance to corrosion, which is crucial for gearboxes exposed to moist or acidic feed components.

    6. Maintenance and Serviceability

    • Opt for a gearbox that is easy to maintain and service. Regular maintenance is crucial for the longevity of the machinery, so accessible parts and clear maintenance guides are beneficial. Additionally, consider the availability of spare parts and local service technicians.

    We also Offer Other Agricultural Gearboxes

    We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

    Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

    China Agricultural Gearboxes

    Why Choose HZPT?

    HZPT Agricultural Machinery Co., Ltd. has been engaged in the research and development of the feed mixer gearbox. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong, and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production and mainly produce agricultural gearbox machinery and its accessories. Our main products are PTO shafts, agricultural gearboxes, rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

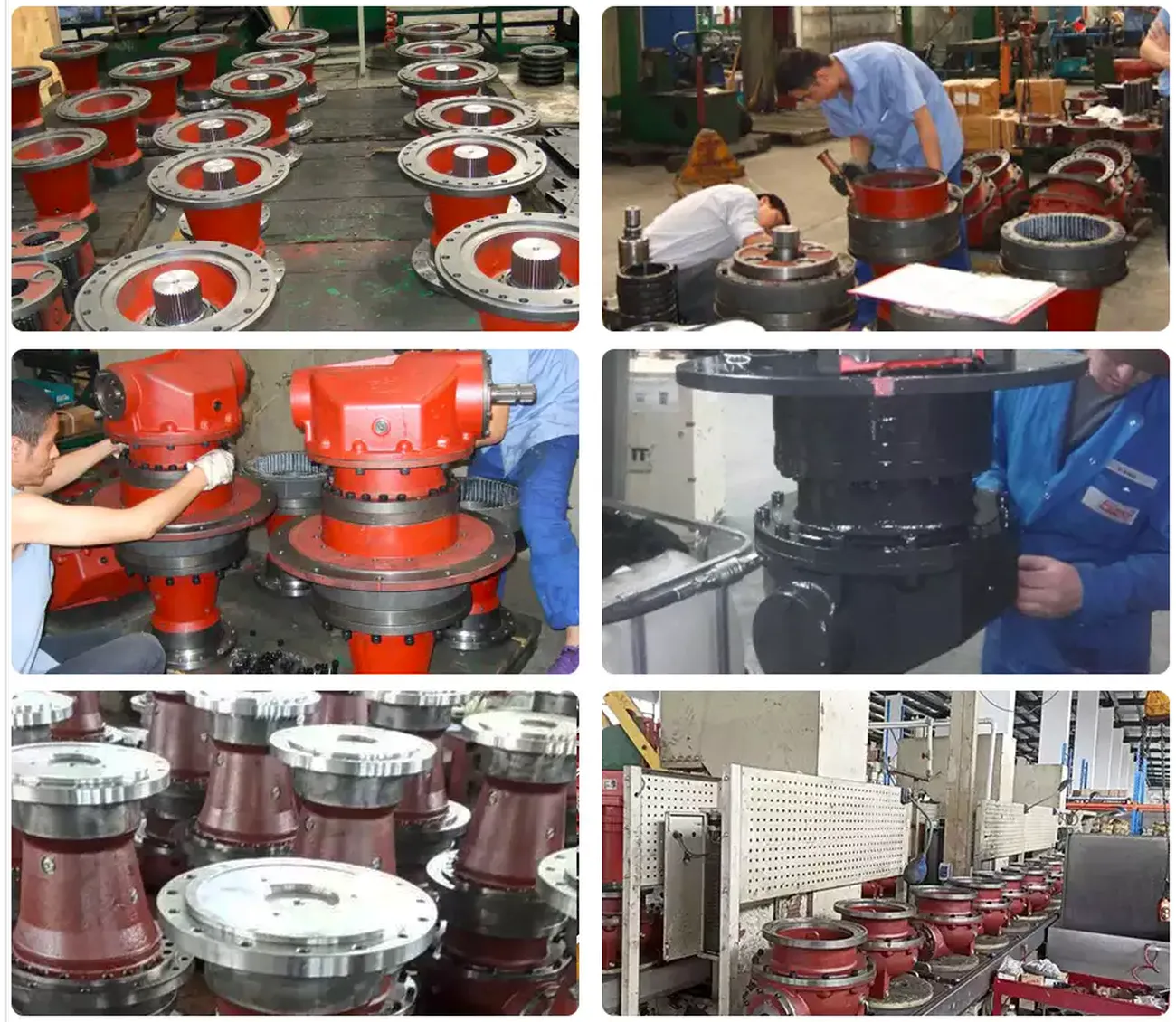

    Feed Mixer Gearbox Manufacturers
