35 Series PTO Shaft-Replacement of Weasler PTO Shaft

35 Series PTO Shaft-Replacement of Weasler PTO Shaft

The Weasler 35 series PTO shaft is a type of power take-off (PTO) shaft used in agricultural machinery to transfer power from a tractor or other source to a piece of equipment, such as a mower or baler. The Weasler 35 series PTO shaft is designed for use in medium-duty applications and is capable of transmitting up to 35 horsepower. It features a compact design with a 1 3/8-inch 6-spline yoke and a 1 3/8-inch smooth bore shaft and is available in various lengths to accommodate different equipment setups.

One of the key features of the Weasler 35 series PTO shaft is its use of high-strength materials and precision manufacturing techniques to ensure durability and reliability in demanding agricultural environments. It also has a unique locking collar design that makes it easy to connect and disconnect from equipment without the need for tools. Overall, the Weasler 35 series PTO shaft is a popular choice for farmers and other agricultural professionals who need a reliable and efficient way to transfer power between their equipment and their tractors or other power sources.

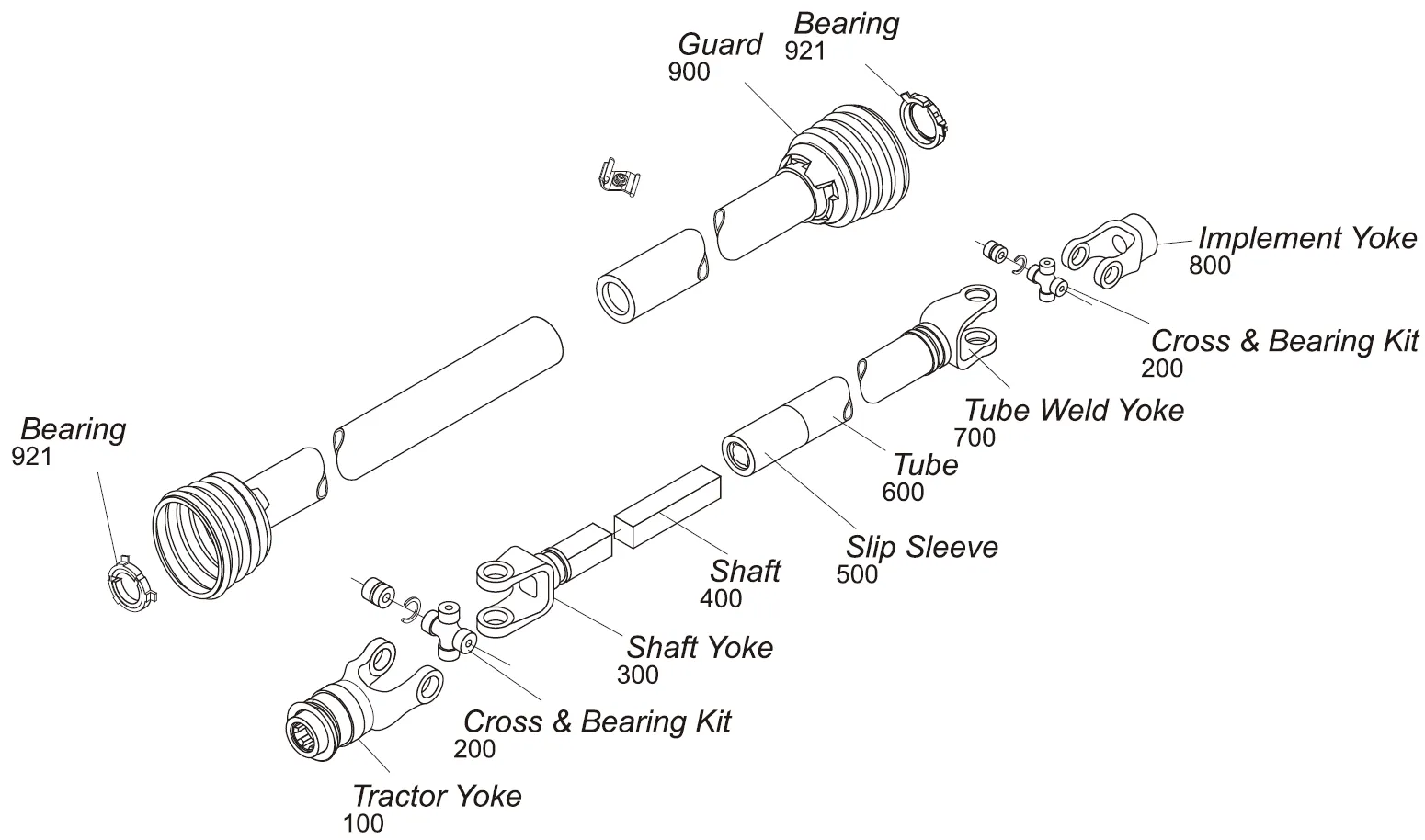

▍Weasler 35 Series PTO Shaft Parts Diagram

The Weasler 35 series PTO shaft is a modular design, which means that it is made up of a variety of individual parts that can be replaced or upgraded as needed. This makes it a very versatile and reliable shaft that can be customized to meet the specific needs of your application.

Here are some of the most common Weasler 35 series PTO shaft parts:

• Tractor yoke: This is the part that connects the shaft to the tractor. It is available in a variety of sizes and styles to fit different tractors.
• Cross and bearing kit: This is the part that transfers power from the tractor yoke to the shaft. It is made up of a cross, which is a series of bearings that allow the shaft to flex, and a bearing kit, which is a set of bearings that support the cross.
• Shaft: The shaft is the main part of the PTO shaft. It is made of high-quality steel and is designed to withstand heavy-duty use.
• Slip sleeve: The slip sleeve is a sleeve that is inserted between the shaft and the yoke. It helps to prevent the shaft from binding and allows for some degree of adjustment.
• Tube: The tube is the outer part of the PTO shaft. It is made of high-quality steel and is designed to protect the shaft from damage.
• Implement yoke: This is the part that connects the shaft to the implement. It is available in a variety of sizes and styles to fit different implements.

In addition to these common parts, there are a number of other Weasler 35 series PTO shaft parts that are available, such as guards, guard bearings, and extended lubrication kits.

▍Weasler 35 Series PTO Shaft Tractor Yoke

	Dim. “A” Bore	Dim. “B”
Safety Slide Lock	1 3/8” × 6 Spl.	5 1/4”
	1 3/8” × 20 Spl.	6 1/8”
	1 3/8” × 21 Spl.	5 1/4”
	Dim. “A” Bore	Dim. “B”
Auto-Lok	1 3/8” × 6 Spl.	5 1/4”
	1 3/4” × 20 Spl.	6 1/8”
	1 3/8” × 21 Spl.	5 1/4”

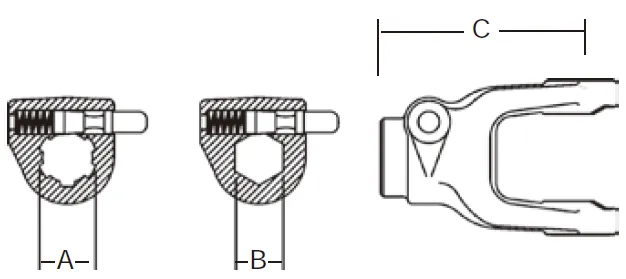

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C”
Quick Disconnect	-	1 1/4” Hex	4 3/4”
	1 3/8” × 6 Spl.	-	4 3/4”
	-	1 1/8” Hex	4 3/4”
	1 3/4” x 20 Spl.	-	5 3/8”
	1 3/8” × 21 Spl.	-	4 3/4”
	1 3/4” x 6 Spl.	-	5 5/16”
	Dim. “A” Bore	Shear Bolt	Dim. “B”
Ball Shear Device With Spring-lok	1 3/8” × 6 Spl.	(2) 3/8” - 16 Gr. 5	5 1/2”
	1 3/4” × 20 Spl.	(2) 3/8” - 16 Gr. 5	6”
	1 3/8” × 21 Spl.	(2) 3/8” - 16 Gr. 5	5 1/2”
	1 1/2” Rd. 3/8” Kwy.	(2) 3/8” - 16 Gr. 5	6”

▍Weasler 35 Series PTO Shaft Cross and Bearing Kit

	Dim. “A”	Dim. “B”
	1 1/4”	3 7/32”

▍Weasler 35 Series PTO Shaft Slip Sleeve

	Length	Dim. “A” Bore	Dim. “B” Bore	Fits Tube Size
Slip Sleeve With Grease Groove	5”	1 3/16” Sq.	-	2 1/8” (.120 Wall)
	5”	1 3/16” Sq.	-	2 1/8” (.083 Wall) & 2 1/4” (.120 Wall)
	8”	1 5/16” Sq.	-	2 1/2” (.120 Wall)
	5”	-	1 11/16” × 20 Spl.	2 1/2” (.120 Wall)

	Length	Dim. “A” Bore	Fits Tube Size
Spline Sleeve With Grease Reservoir	8”	1 5/16” × 20 Spl.	2 1/8” (.120 Wall)
	8”	1 11/16” × 20 Spl.	2 1/2” (.120 Wall)

▍Weasler 35 Series PTO Shaft Weld Yoke

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C”
With Bearing Groove	1 3/16” Sq.	-	4 1/4”
	-	1 5/16” × 20 Spl.	4 1/4”
	-	1 11/16” × 20 Spl.	3 3/4”

▍Weasler 35 Series PTO Shaft Tube

	Length (mm)	Dim. “A” Size
	6’	2 1/8” (.120 Wall)
	3’	2 1/8” (.120 Wall)

▍Shaft of Weasler 35 Series PTO Shaft

	Length
1 3/16” Square	6'/3'

	Dim. “A” Size	Length	Major Dim.
Spline Shaft Induction Hardened	1 5/16” × 20 Spl.	3’	1.380/1.375
	1 11/16” × 20 Spl.	3’	1.790/1.785

▍Weasler 35 Series PTO Shaft Tube Weld Yoke

	Dim. “A”	Fits Tube Size
With Bearing Groove	4 1/4”	2 1/8” (.120 Wall)
	4 1/4”	2 1/8” (.083 Wall)
	4 1/4”	2 1/4” (.120 Wall)
	4 1/4”	2 1/2” (.120 Wall)
	4 1/4”	2 1/8” (.120 Wall)

▍Weasler 35 Series PTO Shaft Implement Yoke

	Dim. “A” Bore	Dim. “B”	Standard Keyway
Round Bore With Keyway & Set Screw	1”	4 1/4”	1/4”
	1 1/8”	4 1/4”	1/4”
	1 3/16”	4 1/4”	1/4”
	1 1/4”	4 1/4”	1/4”
	1 3/8”	4 1/4”	5/16”
	1 7/16”	4 1/4”	3/8”
	1 1/2”	4 1/4”	3/8”
	1 1/2”	4 1/4”	3/8” with 5/16” Pinhole
	1 3/4”	4 1/4”	3/8”
	1 5/8”	4 1/4”	3/8”
	Dim. “A” Bore	Double Keyway	Dim. “B”
Double Keyway & Set Screw	1 3/16”	1/4” & 5/16”	4 1/4”
	1 1/4”	1/4” & 5/16”	4 1/4”
	1 3/8”	5/16” & 3/8”	4 1/4”
	Dim. “A” Bore	Dim. “B”	Dim. “C”
Stock Bore With Hub O. D. Turned	1”	4 1/4”	2 1/4”

	Dim. “A” Bore	Dim. “B”
Square Bore With Set Screw	1”	4 1/4”
	1 1/8”	4 1/4”
	1 3/16”	4 1/4”
	1 1/4”	4 1/4”
	1 1/2”	4 1/4”
	Dim. “A” Bore	Dim. “B”
Shear pin With 1/4'' Pin Hole	1 1/4''	4 1/4”
	1 3/8''	4 1/4”
	1 1/2”	4 1/4”
	Dim. “A” Bore	Dim. “B”
Spline Bore With 21/64” Pin Hole	1 3/8” × 6 Spl.	4 1/4”
	1 3/8” × 21 Spl.	4 1/4”
	Dim. “A” Bore	Dim. “B”
Clamp Yoke	1 3/8” × 6 Spl.	4 3/4”
	1 3/4” × 20 Spl.	5 3/8”
	1 3/8” × 21 Spl.	4 3/4”
	1 3/4” × 27 Spl.	5 1/4”

	Dim. “A”
Torque Limiter Flange	5''

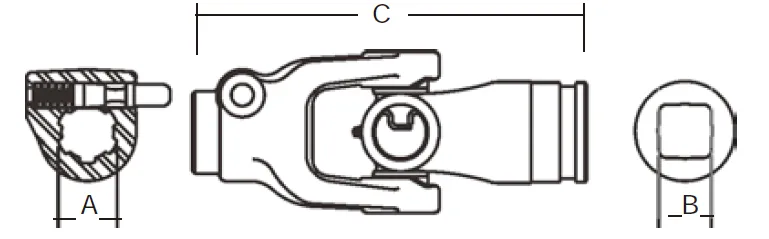

▍Weasler 35 Series PTO Shaft Universal Joints

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C”
Quick Disconnect to Shaft Weld Yoke	1 3/8” × 6 Spl.	1 3/16” Sq.	8 7/8”

▍Weasler 35 Series PTO Shaft Yoke & Shaft Assembly

	Dim. “A”
1 3/16” Square Shaft	17.69”
	21.69”
	28.69”
	33.19”
	44.94”

▍Weasler 35 Series PTO Shaft Yoke, Tube & Sleeve Assembly

	Dim. “A”
1 3/16” Square	17.69”
	21.69”
	29.69”
	34.69”
	46.69”

▍Weasler 35 Series PTO Shaft Guard

Overall Driveline Length	Bearing Kit (2 per kit)
48”	921-1200
60”	921-1200
Easy Lock Replacement Kit
Guard Chain Kit

▍Weasler 35 Series PTO Shaft Drivelines

Tractor Yoke	Implement Yoke	Overall Compressed Length Dim. “A”	Max Running Length	Application
1 3/8” × 6 Spl. Q.D.	1 3/8” Round 1/2” Shear Pin Hole	64 7/8”	88 7/8”	7 ft. Pull Type Rotary Cutter
1 3/8” × 6 Spl. Q.D.	1 1/2” Round 3/8” Keyway	48”	71 3/4”	Pumps
1 3/8” × 6 Spl. Safety Slide Lock	1 3/8” × 6 Spl. Safety Slide Lock	36”	47 3/4”	All Purpose
1 3/8” × 21 Spl. Safety Slide Lock	1 1/8” Hex Clamp	31”	44”	Combine Header

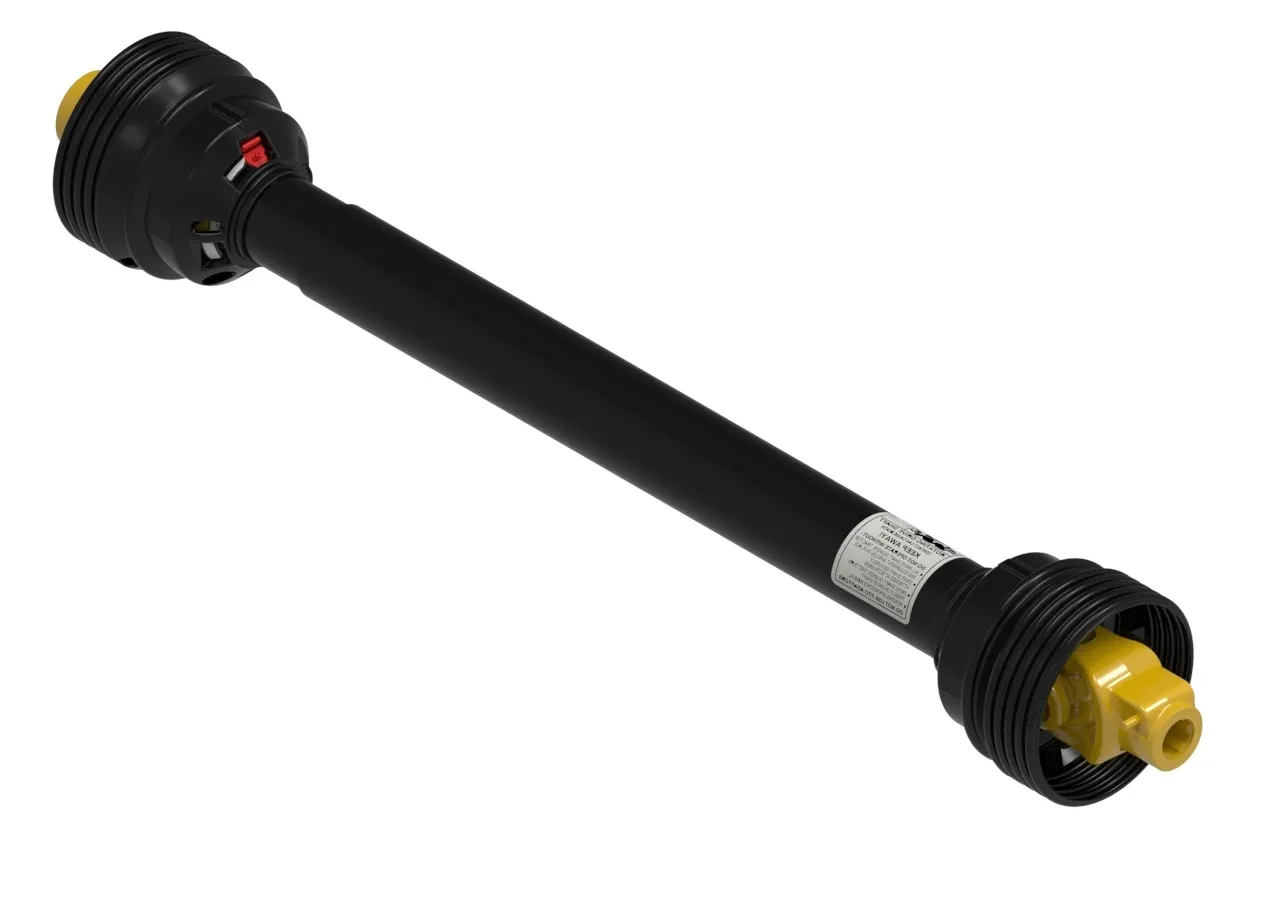

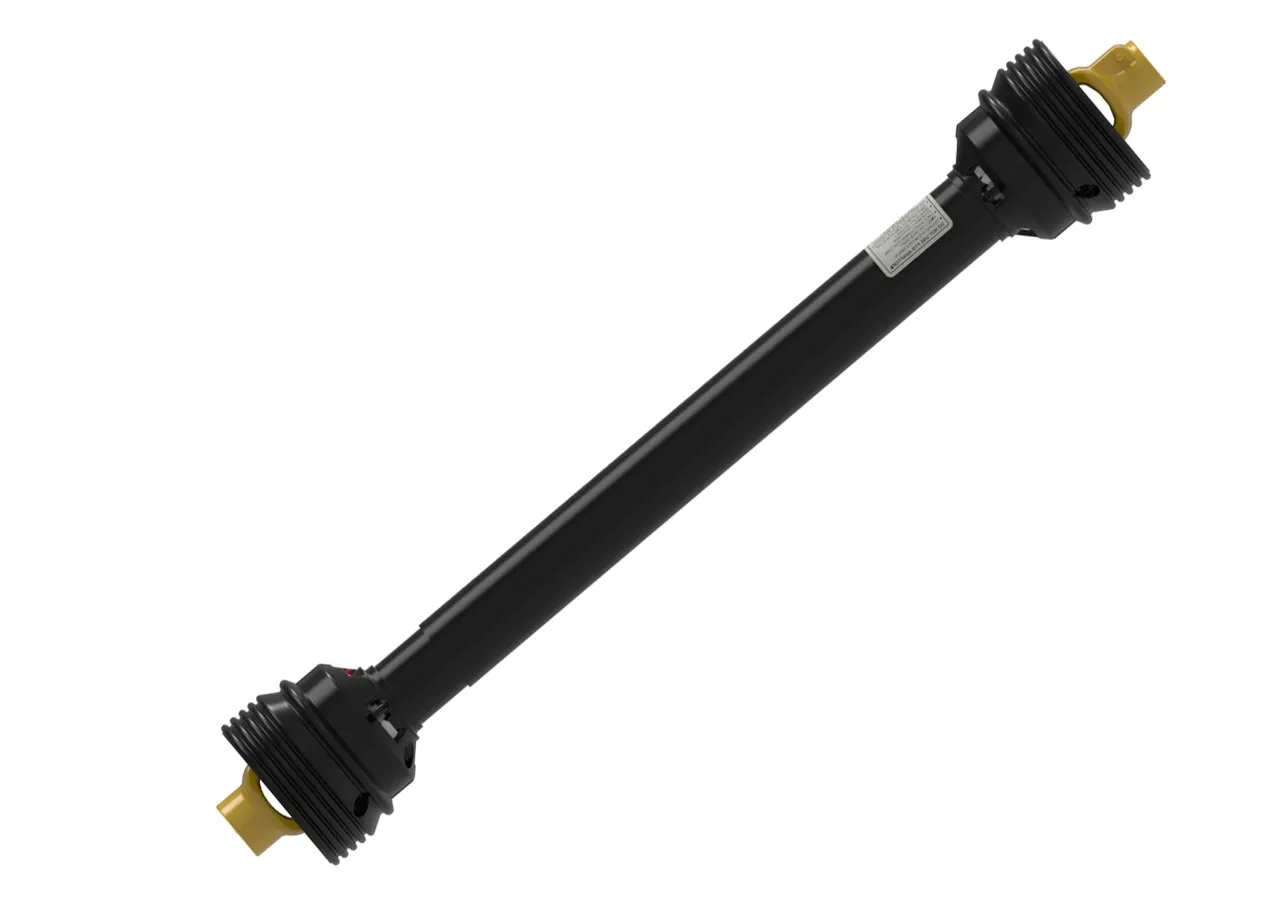

▍Characteristic of Weasler 35 Series PTO Shaft

The Weasler 35 series PTO shaft is a high-performance PTO drive shaft designed for continuous heavy-duty use in the agriculture and lawn & turf industries. It is interchangeable with standard PTO driveshafts available in the market and can be adjusted to fit most competitor models. The Weasler 35 series PTO shaft features a full 360° friction weld on the guard bell, which provides full coverage at maximum angles. It is also black colored, which is durable against ultraviolet light and ozone. The shaft is cold weather impact rated to -35°C and meets and exceeds all applicable safety standards. It is quick and easy to remove and install.

Here are some of the key characteristics of the Weasler 35 series PTO shaft:

1. High-performance design for continuous heavy-duty use: The Weasler 35 series PTO shaft is made of high-quality steel and is designed to withstand the rigors of continuous heavy-duty use. It is also equipped with a full 360° friction weld on the guard bell, which provides full coverage at maximum angles.

2. Interchangeable with standard PTO driveshafts: The Weasler 35 series PTO shaft is interchangeable with standard PTO driveshafts available in the market. This makes it a versatile option that can be used with a variety of different tractors and implements.

3. Adjustable to fit most competitor models: The Weasler 35 series PTO shaft can be adjusted to fit most competitor models. This makes it a great option for farmers and contractors who need a shaft that will work with their existing equipment.

4. Full 360° friction weld on guard bell: The Weasler 35 series PTO shaft features a full 360° friction weld on the guard bell. This provides full coverage at maximum angles and helps to protect the shaft from damage.

5. Black colored for durability: The Weasler 35 series PTO shaft is black colored, which is durable against ultraviolet light and ozone. This helps to extend the life of the shaft and keep it looking good for years to come.

6. Cold weather impact rated to -35°C: The Weasler 35 series PTO shaft is cold weather impact rated to -35°C. This means that it can be used in even the coldest climates without the risk of damage.

7. Meets and exceeds all applicable safety standards: The Weasler 35 series PTO shaft meets and exceeds all applicable safety standards. This ensures that it is a safe and reliable option for use in agricultural and lawn & turf applications.

8. Quick and easy to remove and install: The Weasler 35 series PTO shaft is quick and easy to remove and install. This makes it a convenient option for farmers and contractors who need to change shafts frequently.

Overall, the Weasler 35 series PTO shaft is a high-quality, heavy-duty PTO drive shaft that is designed for continuous use in agricultural and lawn & turf applications. It is interchangeable with standard PTO drive shafts, adjustable to fit most competitor models, and features a full 360° friction weld on the guard bell. It is also black colored for durability, cold weather impact rated to -35°C, meets and exceeds all applicable safety standards, and is quick and easy to remove and install.

▍Weasler 35 Series PTO Shaft for Agricultural Equipment

The Weasler 35 series PTO shaft is a versatile component that can be used in a variety of agricultural applications. Some of the most common applications for the Weasler 35 series PTO shaft include:

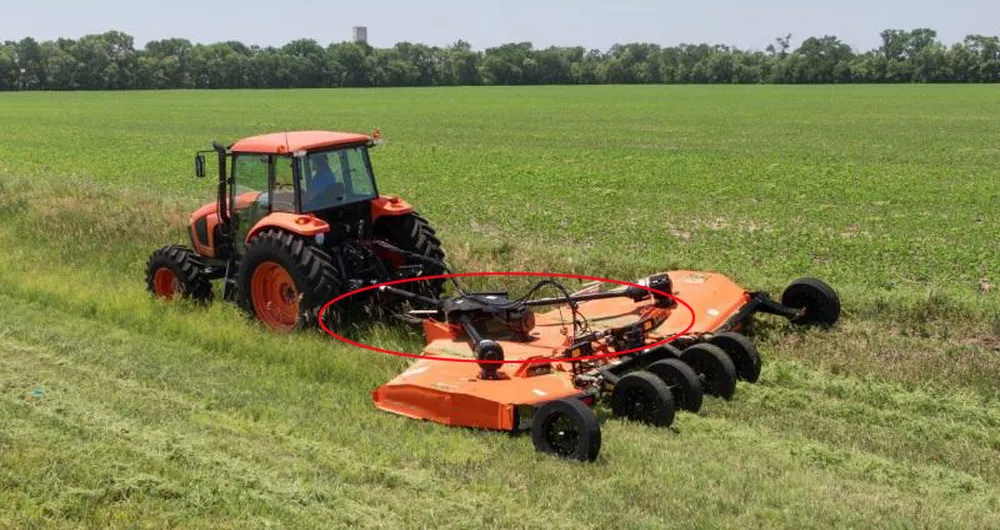

Mowers: The Weasler 35 series PTO shaft is often used in rotary cutters and other types of mowers to provide power for cutting grass and other vegetation.

Hay Balers: The Weasler 35 series PTO shaft can be used in round balers and square balers to power the baling process, including the pickup, compression, and wrapping of the hay or other crop material.

Harvesters: The Weasler 35 series PTO shaft can be used to combine harvesters and other types of harvesters to power the cutting and threshing mechanisms that separate the grain from the stalks and other plant material.

Fertilizer Spreaders: The Weasler 35 series PTO shaft can be used in manure spreaders and fertilizer spreaders to power the spreading mechanism that distributes the material evenly over the field.

Tillage equipment: The Weasler 35 series PTO shaft can be used in tillage equipment such as plows and cultivators to power the cutting or tilling mechanism that prepares the soil for planting.

Overall, the Weasler 35 series PTO shaft is a versatile component that can be used in a wide range of agricultural applications. Its durability, high power transmission capacity, and easy-to-use features make it a popular choice for farmers and other agricultural professionals who need a reliable and efficient way to transfer power between their tractors and equipment.

▍How to Remove a PTO Shaft from a Tractor?

Removing a Weasler 35 series PTO shaft from a tractor is a similar process to removing any other PTO shaft, but here are the steps you can follow:

Turn off the tractor: Before attempting to remove the PTO shaft, make sure that the tractor is turned off and the engine is cool.

Lower any attached equipment: If the PTO shaft is currently attached to equipment, make sure to lower the equipment to the ground to prevent any accidents while removing the shaft.

Locate the locking collar: The Weasler 35 series PTO shaft has a locking collar that needs to be released before the shaft can be removed. Locate the locking collar on the PTO shaft. Typically, it will be on the end that connects to the tractor.

Release the locking collar: To release the locking collar, grip it firmly and twist it counterclockwise. This will loosen the collar and allow it to slide back along the shaft.

Slide the shaft out of the tractor's PTO output shaft: With the locking collar released, the PTO shaft should now be free to slide out of the tractor's PTO output shaft. Carefully slide the shaft out, taking care not to damage the universal joints or any other components.

Store the shaft: Once the PTO shaft has been removed, store it in a safe place where it will not be damaged or cause any accidents.

It is important to remember to follow all safety precautions when removing a Weasler 35 series PTO shaft from a tractor. Always wear appropriate safety gear and take care not to damage any components during the removal process. If you are unsure about how to remove the PTO shaft, consult the manufacturer's instructions or seek advice from a qualified professional.

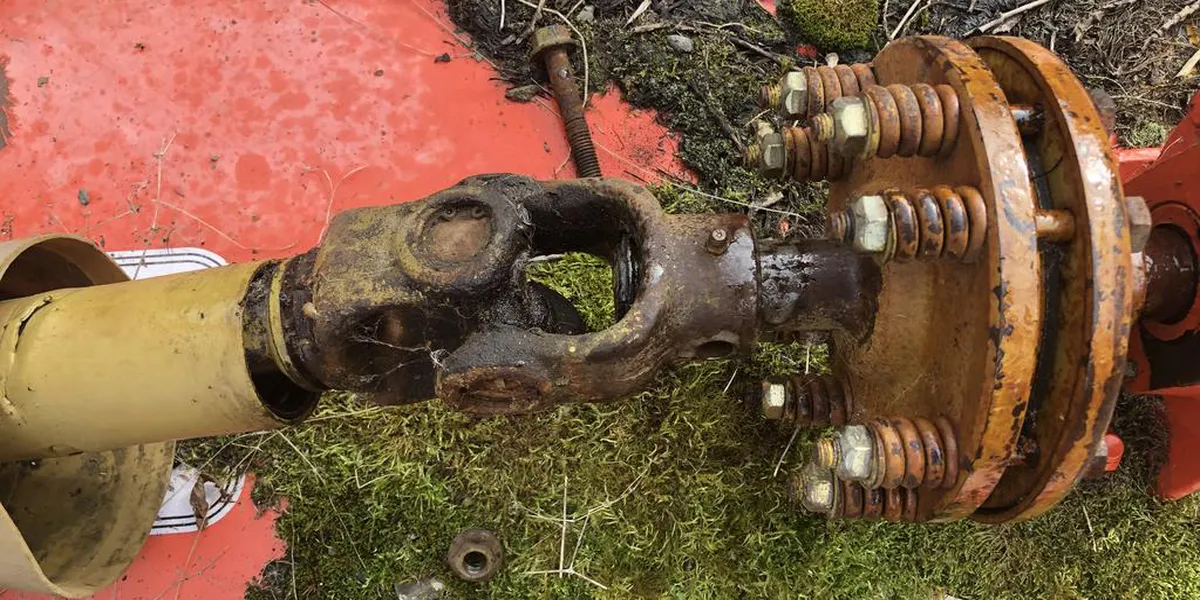

▍Weasler 35 Series PTO Shaft Removal Additional Tips:

Here are some additional tips to keep in mind when removing a Weasler 35 series PTO shaft from a tractor:

1. Make sure the tractor is on a level surface: Removing a PTO shaft from a tractor can be a little tricky, so it's important to make sure that the tractor is on a level surface to prevent it from rolling or tipping over during the removal process.

2. Use caution when handling the shaft: The PTO shaft can be heavy, so it's important to use caution when handling it. Always lift with your legs, not your back, and be sure to get help if needed to avoid injury.

3. Inspect the shaft for damage: Before reinstalling the PTO shaft, inspect it thoroughly for any signs of damage, such as cracks, bent components, or worn bearings. If any damage is found, the shaft may need to be repaired or replaced before it can be used again.

4. Lubricate the universal joints: The universal joints on the PTO shaft should be lubricated regularly to keep them functioning smoothly. Before reinstalling the shaft, apply a small amount of grease to the universal joints to ensure they are properly lubricated.

5. Follow the manufacturer's instructions: Different types of PTO shafts may have slightly different removal procedures, so it's important to follow the manufacturer's instructions carefully. This will ensure that the shaft is removed safely and correctly, and will help prevent any damage to the tractor or the shaft itself.

By following these additional tips, you can help ensure that the removal process goes smoothly and safely and that the PTO shaft can be reinstalled and used effectively in the future.

▍Weasler 35 Series PTO Shaft for Agricultural Gearbox

Agricultural gearboxes and Weasler 35 series PTO shafts are commonly used together in agricultural machinery. The agricultural gearbox is responsible for transmitting power from the tractor's engine to the various components of the machine, while the PTO shaft transfers power to the equipment being used in the field.

The agricultural gearbox and PTO shaft work together to provide the power needed to operate agricultural machineries such as mowers, balers, and harvesters. The agricultural gearbox typically has an input shaft that is connected to the tractor's engine and an output shaft that is connected to the PTO shaft. As the engine runs, it provides power to the input shaft, which then transmits that power to the PTO shaft via the output shaft.

The PTO shaft then transfers that power to the equipment being used in the field. The Weasler 35 series PTO shaft is a popular choice for this task because of its durability, high power transmission capacity, and easy-to-use features. Its compact design also makes it ideal for use in tight spaces, which is often a requirement in agricultural machinery.

Together, the agricultural gearbox and PTO shaft provide the power needed to operate agricultural machinery effectively and efficiently. By choosing high-quality components like the Weasler 35 series PTO shaft, farmers and other agricultural professionals can ensure that their equipment is reliable and performs well in the field.
