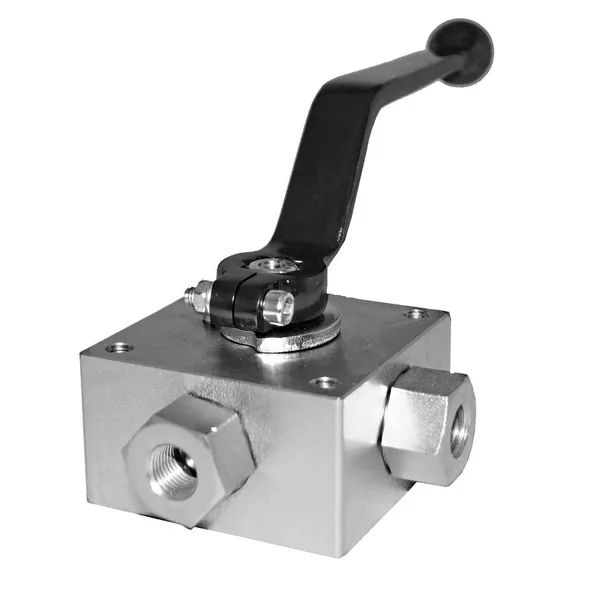

3KH Series 3-way Hydraulic Ball Valves

3KH Series 3-way Hydraulic Ball Valves

3KH Series 3-way Hydraulic Ball Valves are a type of valve that is used to control the flow of hydraulic fluid in a system. They have three ports, which allow for a variety of flow patterns, such as diverting flow from one port to another or combining flow from two ports into one.

3KH Series 3-way Hydraulic Ball Valves are made of high-quality materials, such as stainless steel and brass, and are designed to withstand the high pressures and temperatures of hydraulic systems. They are also available in a variety of sizes and configurations to meet the needs of different applications.

Features of 3KH Series 3-way Hydraulic Ball Valves:

• High pressure and temperature ratings
• Durable construction
• Variety of flow patterns
• Available in a variety of sizes and configurations

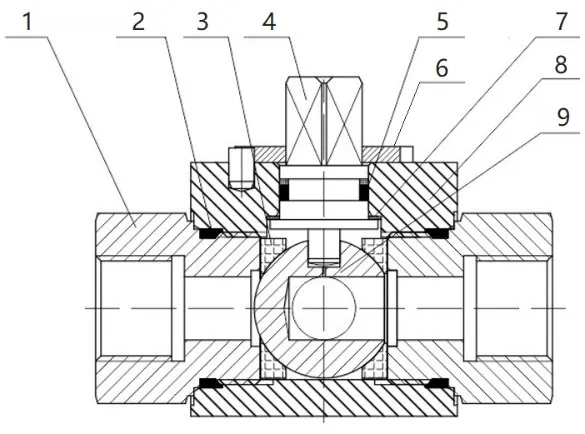

3KH Series 3-way Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

3KH Series 3-way Hydraulic Ball Valve Dimensions:

	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	3KH/4KH-FG2	500	04	G1/8	100	52	26.5	55	70	6.5	13
	3KH/4KH-FG4	500	06	G1/4	100	55	28	65	80	6.5	13
	3KH/4KH-FG6	500	10	G3/8	115	55	28	65	80	6.5	13
	3KH/4KH-FG8	500	13	G1/2	135	60	30	80	99	8.7	15
	3KH/4KH-FG12	315	20	G3/4	148	71	37	85	112	8.7	17
	3KH/4KH-FG16	315	25	G1	172	79	42.5	105	124	11	19
	3KH/4KH-FG20	315	32	G11/4	180	79	42.5	105	124	11	20
	3KH/4KH-FG24	315	40	G11/2	230	107	57.5	150	198	14.5	24
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	3KH/4KH-FN2	500	04	NPT1/8	105	52	26.5	55	70	6.5	12
	3KH/4KH-FN4	500	06	NPT1/4	105	55	28	65	80	6.5	17
	3KH/4KH-FN6	500	10	NPT3/8	115	55	28	65	80	6.5	17
	3KH/4KH-FN8	500	13	NPT1/2	140	60	30	80	99	8.7	22
	3KH/4KH-FN12	315	20	NPT3/4	154	71	37	85	112	8.7	23
	3KH/4KH-FN16	315	25	NPT1	183	79	42.5	105	124	11	27
	3KH/4KH-FN20	315	32	NPT11/4	190	79	42.5	105	124	11	28
	3KH/4KH-FN24	315	40	NPT11/2	236	107	57.5	150	198	14.5	33
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	3KH/4KH-06LR	500	04	M12*1.5	105	52	26.5	55	70	6.5	7
	3KH/4KH-08LR	500	06	M14*1.5	105	55	28	65	80	6.5	7
	3KH/4KH-10LR	500	08	M16*1.5	114	55	28	65	80	6.5	8
	3KH/4KH-12LR	500	10	M18*1.5	114	55	28	65	80	6.5	8
	3KH/4KH-15LR	315	13	M22*1.5	136	60	30	80	99	8.7	9
	3KH/4KH-18LR	315	13	M26*1.5	136	60	30	80	99	8.7	9
	3KH/4KH-22LR	315	20	M30*2	152	71	37	85	112	8.7	11
	3KH/4KH-28LR	315	25	M36*2	170	79	42.5	105	124	11	11
	3KH/4KH-35LR	315	25	M45*2	174	79	42.5	105	124	11	13
	3KH/4KH-42LR	315	40	M52*2	246	107	57.5	150	198	14.5	13
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	3KH/4KH-08SR	500	04	M16*1.5	105	52	26.5	55	70	6.5	9
	3KH/4KH-10SR	500	06	M18*1.5	105	55	28	65	80	6.5	9
	3KH/4KH-12SR	500	08	M20*1.5	116	55	28	65	80	6.5	9
	3KH/4KH-14SR	315	10	M22*1.5	121	55	28	65	80	6.5	11
	3KH/4KH-16SR	315	13	M24*1.5	140	60	30	80	99	8.7	11
	3KH/4KH-20SR	315	13	M30*2	144	60	30	80	99	8.7	13
	3KH/4KH-25SR	315	20	M36*2	162	71	37	85	112	8.7	15

Advantages of 3KH Series 3-way Hydraulic Ball Valves:

The 3KH Series 3-way hydraulic ball valves offer a number of advantages over other types of valves, including:

1. Versatility: 3KH Series 3-way hydraulic ball valves can be used for a variety of applications, including flow mixing, blending, diversion, and isolation.

2. Simplified system design: 3KH Series 3-way hydraulic ball valves can simplify the design of a hydraulic system by combining multiple functions into a single valve.

3. Reduced pressure drop: 3KH Series 3-way hydraulic ball valves have a low flow resistance, which minimizes pressure drop and improves system efficiency.

4. Quick and reliable operation: 3KH Series 3-way hydraulic ball valves can be operated quickly and reliably, even under high pressure and temperature conditions.

5. Durable and low maintenance: 3KH Series 3-way hydraulic ball valves are made from high-quality materials and are designed to withstand the rigors of industrial use. They also require minimal maintenance.

6. Compact design: 3KH Series 3-way hydraulic ball valves are compact and lightweight, making them ideal for space-constrained applications.

7. High flow capacity: 3KH Series 3-way hydraulic ball valves have a high flow capacity, making them suitable for use in high-flow systems.

8. Pressure rating: 3KH Series ball valves are available in a variety of pressure ratings, making them suitable for use in a wide range of applications.

9. Temperature rating: 3KH Series ball valves are available in a variety of temperature ratings, making them suitable for use in both high and low-temperature applications.

10. Variety of materials: 3KH Series ball valves are available in a variety of materials, including brass, stainless steel, and carbon steel, making them compatible with a wide range of fluids.

Overall, the 3KH Series 3-way hydraulic ball valves are a versatile, reliable, and durable choice for a variety of applications.
