4KH Series 4-way Hydraulic Ball Valves

4KH Series 4-way Hydraulic Ball Valves

4KH Series 4-way hydraulic ball valves are a type of valve that is used to control the flow of hydraulic fluid in a system. They have four ports, which allow them to be used in a variety of applications, such as diverting fluid between two different circuits, selecting between two different sources of fluid, or combining two streams of fluid into one.

4KH Series 4-way hydraulic ball valves are known for their durability, reliability, and leak-tight performance. They are made with high-quality materials and construction, and they are rigorously tested to ensure that they meet the highest standards.

Key Features of 4KH Series 4-Way Hydraulic Ball Valves:

1. Construction: These 4KH Series 4-way hydraulic ball valves are typically constructed with a durable and corrosion-resistant material such as stainless steel or brass. The valve body houses a ball with a hole through its center, allowing or blocking the flow of hydraulic fluid.

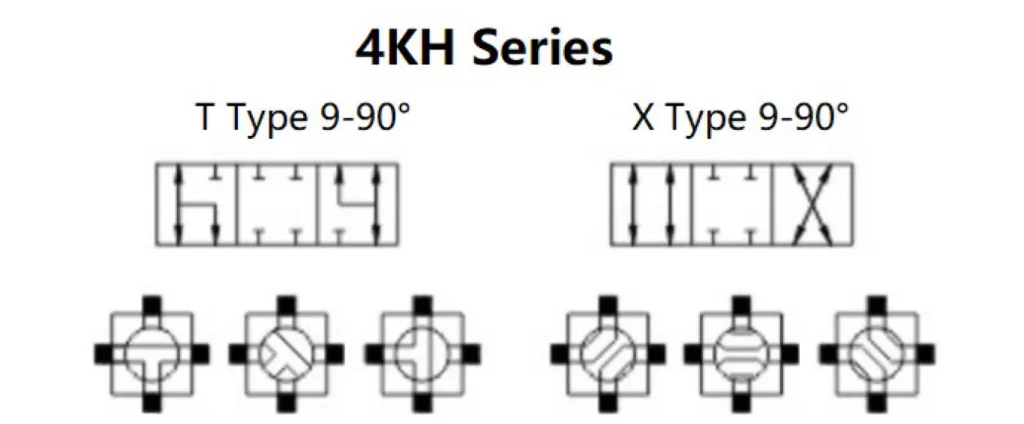

2. Four-Way Functionality: The "4-way" designation refers to the valve's ability to control hydraulic flow in four different directions. These directions are commonly labeled as P (Pump), T (Tank), A (Actuator), and B (Actuator). By rotating the valve handle or actuating the valve electronically, fluid flow can be directed to the desired circuit or actuator.

3. Ball Design: The ball inside the valve has a hole or passage drilled through it. When the valve is in different positions, the hole aligns with different ports, allowing hydraulic fluid to flow through or blocking the flow. This design provides efficient and reliable control over hydraulic systems.

4. Actuation Options: The 4KH Series 4-way hydraulic ball valves can be manually operated using a handle or lever that rotates the ball within the valve body. Alternatively, they can be actuated electronically using solenoids or hydraulic actuators for remote or automated operation.

5. Pressure and Flow Ratings: These 4KH Series 4-way ball valves are designed to handle high-pressure hydraulic systems and are rated for a specific maximum working pressure. It's important to ensure that the valve's pressure rating matches or exceeds the requirements of the hydraulic system. Similarly, the flow rating determines the maximum flow capacity of the valve.

6. Applications: 4KH Series 4-way hydraulic ball valves are commonly used in various hydraulic systems, including industrial machinery, manufacturing equipment, hydraulic power units, and mobile hydraulic applications. They are particularly suitable for applications where precise control and direction of hydraulic fluid are required.

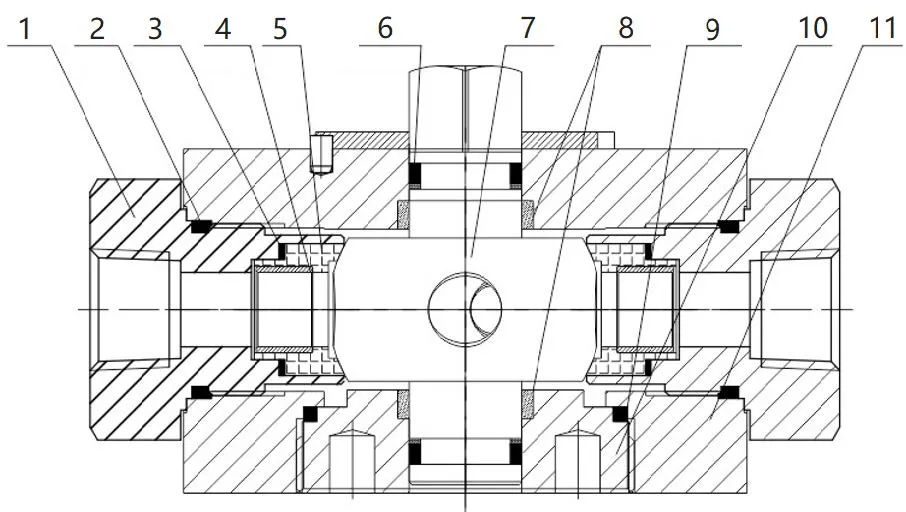

4KH Series 4-way Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

4KH Series 4-way Hydraulic Ball Valve Dimensions:

	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	4KH-FG2	500	04	G1/8	100	52	26.5	55	70	6.5	13
	4KH-FG4	500	06	G1/4	100	55	28	65	80	6.5	13
	4KH-FG6	500	10	G3/8	115	55	28	65	80	6.5	13
	4KH-FG8	500	13	G1/2	135	60	30	80	99	8.7	15
	4KH-FG12	315	20	G3/4	148	71	37	85	112	8.7	17
	4KH-FG16	315	25	G1	172	79	42.5	105	124	11	19
	4KH-FG20	315	32	G11/4	180	79	42.5	105	124	11	20
	4KH-FG24	315	40	G11/2	230	107	57.5	150	198	14.5	24
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	4KH-FN2	500	04	NPT1/8	105	52	26.5	55	70	6.5	12
	4KH-FN4	500	06	NPT1/4	105	55	28	65	80	6.5	17
	4KH-FN6	500	10	NPT3/8	115	55	28	65	80	6.5	17
	4KH-FN8	500	13	NPT1/2	140	60	30	80	99	8.7	22
	4KH-FN12	315	20	NPT3/4	154	71	37	85	112	8.7	23
	4KH-FN16	315	25	NPT1	183	79	42.5	105	124	11	27
	4KH-FN20	315	32	NPT11/4	190	79	42.5	105	124	11	28
	4KH-FN24	315	40	NPT11/2	236	107	57.5	150	198	14.5	33
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	4KH-06LR	500	04	M12*1.5	105	52	26.5	55	70	6.5	7
	4KH-08LR	500	06	M14*1.5	105	55	28	65	80	6.5	7
	4KH-10LR	500	08	M16*1.5	114	55	28	65	80	6.5	8
	4KH-12LR	500	10	M18*1.5	114	55	28	65	80	6.5	8
	4KH-15LR	315	13	M22*1.5	136	60	30	80	99	8.7	9
	4KH-18LR	315	13	M26*1.5	136	60	30	80	99	8.7	9
	4KH-22LR	315	20	M30*2	152	71	37	85	112	8.7	11
	4KH-28LR	315	25	M36*2	170	79	42.5	105	124	11	11
	4KH-35LR	315	25	M45*2	174	79	42.5	105	124	11	13
	4KH-42LR	315	40	M52*2	246	107	57.5	150	198	14.5	13
	Part NO.	PN	DN	Dimension(mm)
				DM	L	H	H1	A	B	D	L1
	4KH-08SR	500	04	M16*1.5	105	52	26.5	55	70	6.5	9
	4KH-10SR	500	06	M18*1.5	105	55	28	65	80	6.5	9
	4KH-12SR	500	08	M20*1.5	116	55	28	65	80	6.5	9
	4KH-14SR	315	10	M22*1.5	121	55	28	65	80	6.5	11
	4KH-16SR	315	13	M24*1.5	140	60	30	80	99	8.7	11
	4KH-20SR	315	13	M30*2	144	60	30	80	99	8.7	13
	4KH-25SR	315	20	M36*2	162	71	37	85	112	8.7	15

Benefits of 4KH Series 4-way Hydraulic Ball Valves:

The 4KH Series 4-way hydraulic ball valves offer several benefits that make them a popular choice for hydraulic applications. Here are some of the key advantages:

(1) Precise Control: These 4KH Series 4-way hydraulic ball valves provide precise control over hydraulic fluid flow in four different directions. This level of control allows for accurate and efficient operation of hydraulic actuators or circuits, ensuring optimal performance of the hydraulic system.

(2) Versatility: The 4KH Series 4-way ball valves are highly versatile due to their four-way functionality. They can be used in a wide range of hydraulic systems and applications, including industrial machinery, manufacturing equipment, hydraulic power units, and mobile hydraulic systems. Their ability to direct hydraulic flow in multiple directions makes them suitable for complex hydraulic systems.

(3) Durability: These 4KH Series 4-way hydraulic ball valves are typically constructed with durable and corrosion-resistant materials such as stainless steel or brass. This ensures their longevity and ability to withstand harsh operating conditions. They can handle high-pressure hydraulic systems and are designed to provide reliable performance even in demanding environments.

(4) Efficient Flow Control: The ball design of these 4KH Series 4-way ball valves allows for efficient flow control. When the valve is in different positions, the ball's hole aligns with different ports, enabling or blocking hydraulic fluid flow. This design minimizes pressure drop and ensures smooth and efficient operation of the hydraulic system.

(5) Manual and Automated Operation: The 4KH Series 4-way hydraulic ball valves offer both manual and automated operation options. They can be manually operated using a handle or lever, providing convenience and control for operators. Additionally, they can be actuated electronically using solenoids or hydraulic actuators, enabling remote or automated control of hydraulic flow.

(6) Compatibility: These 4KH Series 4-way ball valves are compatible with a wide range of hydraulic fluids, making them suitable for various hydraulic systems. They can handle different types of fluids, including mineral oils, synthetic fluids, and biodegradable hydraulic fluids. This compatibility enhances their versatility and applicability in different industries.

(7) Easy Installation and Maintenance: The design of these 4KH Series 4-way hydraulic ball valves allows for easy installation and maintenance. They typically have standardized mounting options and come with clear instructions for installation. Routine maintenance tasks such as cleaning and lubrication can be performed easily, ensuring the longevity and optimal performance of the valves.
