Steel Pintle Chain 662 667H 667X 667XH 667K 667J 88K 88C 308C
The steel pintle chain gets its characteristic name from its design. A pintle is a pin or bolt, typically inserted into a socket-like cylindrical fitting known as a gudgeon. Applying this way of attachment to chain links allows pivoting or hinging connection to a second, similar component which builds up a solid yet flexible chain for conveying heavy material. Steel pintle chain consists of a barrel and link as a single casting. Each casting is then connected with a steel pin to the next, forming a chain. The castings and linkage provide increased strength compared to other chains, allowing a wider range of applications.

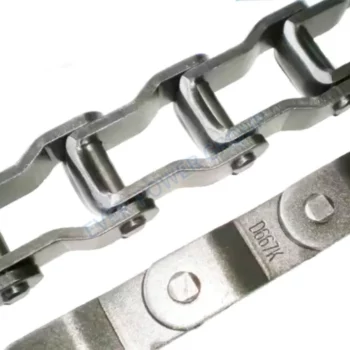

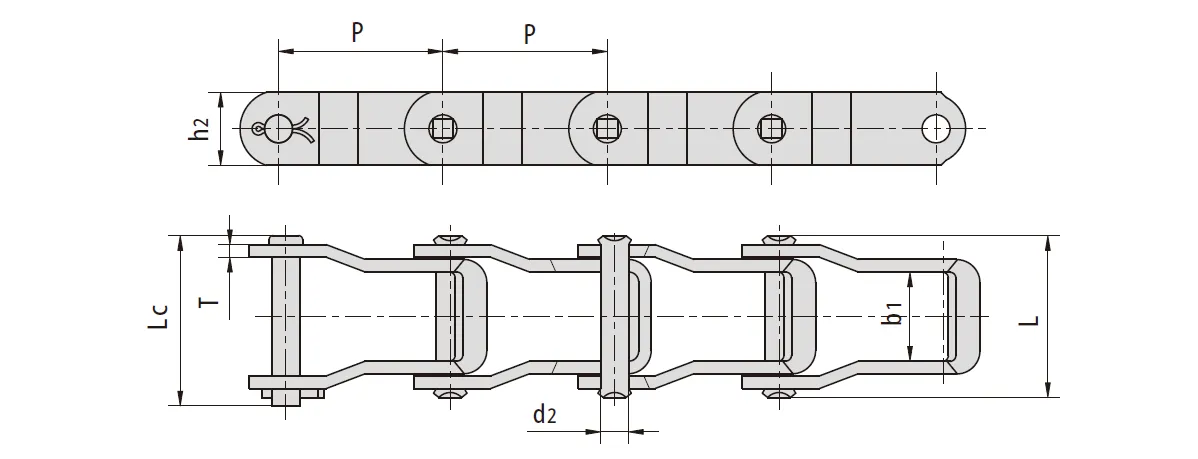

▍Steel Pintle Chain Sizes Chart:
| Chain No. | Pitch | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | b1 min | d2 max | L max |
Lc max | h2 max | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 662 Pintle Chain | 42.27 | 22.9 | 7.19 | 41.2 | 44.2 | 18.8 | 3.2 | 37.80/8591 | 49.8 | 1.63 |
| 667H Pintle Chain | 58.75 | 25.4 | 7.94 | 43.7 | 46.7 | 22.2 | 3.2 | 42.30/9614 | 59.3 | 1.87 |
| 667X Pintle Chain | 57.15 | 26.6 | 11.10 | 50.2 | 55.0 | 23.8 | 4.3 | 66.70/15159 | 96.5 | 2.98 |
| 667XH Pintle Chain | 57.15 | 27.4 | 11.91 | 58.0 | 62.0 | 27.3 | 5.7 | 124.50/28295 | 138.6 | 4.34 |
| 667K Pintle Chain | 57.15 | 27.4 | 11.10 | 55.5 | 60.0 | 27.3 | 5.1 | 89.00/20227 | 123.2 | 3.91 |
| 667J Pintle Chain | 57.15 | 26.6 | 9.53 | 50.2 | 55.0 | 27.3 | 4.3 | 62.28/14155 | 84.1 | 2.81 |
| 88K Pintle Chain | 66.27 | 27.4 | 11.10 | 55.5 | 60.0 | 27.3 | 5.1 | 89.00/20227 | 123.2 | 3.73 |
| 88C Pintle Chain | 66.27 | 31.4 | 12.70 | 64.6 | 69.0 | 28.9 | 6.4 | 133.36/30309 | 160.5 | 5.17 |
| 308C Pintle Chain | 78.10 | 32.5 | 15.88 | 72.6 | 78.0 | 38.1 | 8.0 | 227.00/51030 | 249.7 | 8.40 |
▍Advantages of the Steel Pintle Chain
Steel Pintle chains have several benefits that allow them to be applicable to various cases involving considerable workload and corrosive-resistant material environments.
(1) Steel Pintle Chains Can Handle Abrasive Temperatures
Many agricultural and industrial applications require materials to handle harsh conditions while remaining efficient and with reduced wear. The simple design of steel pintle chains ensures minimal contact between the pin and changing gear surfaces. This feature reduces the seizure in the chain links due to constant grinding and scraping.
(2) High Strength To Withstand Heavy Shock Loads
Steel Pintle Chains are constructed in a manner that can handle sudden and drastic increases in load without breaking, even in cases when these shifts are high. This strength is helpful in highly abrasive applications like mining, where chain breakages can result in fatal accidents. These chains’ load threshold and flexibility enable them to apply in particular use cases.
(3) Provides Support for Conveying Material Over Long Lengths

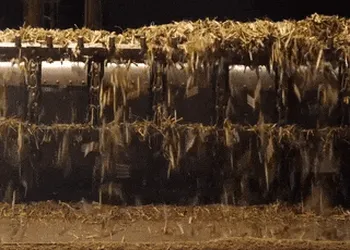

In cases like palm oil and sugar milling — where you need to convey large amounts of materials over lengthy distances — sluggish movement or repairs along the conveyor line can halt and delay your work. Steel Pintle Chains give ample reinforcement to move these items efficiently and conveniently, enabling you to move materials quickly.
(4) Minimal Material Buildup Within Chain Links
When you constantly use some chains over time, dirt and matter can amass in the sprocket tooth pockets. To an extent, such buildup prevents the proper seating of the chain, resulting in an overload condition between the link and tooth. The open barrel construction of steel pintle chains keeps foreign materials from building up.
▍Steel Pintle Chain Direction of Travel
Unlike traditional roller chains, the pintle chain is designed to only run in one direction, which is illustrated in the image below.
▍Other Types of Pintle Chain
The benefits of using a pintle chain depend on the type of chain and the way it is used.
400 Class Pintle Chain
The 400 class pintle chains can be used in the same ways as steel detachable chains, but the sprockets don’t need to be changed. They can also hold much more weight than steel detachable chains. This class is also made of cast steel alloys that can handle corrosive and abrasive environments. Our 400-class pintle chains come standard with stainless steel cotters.
600 Class Pintle Chain
Pinch chains in the 600 class are strong and come at an affordable price. They are also made with an open barrel that keeps materials from getting stuck in the chain. This series can also be used in abrasive environments.
700 Class Pintle Chain
The 700-class pintle chains offer a lot of support and capabilities when it comes to moving or driving over long distances. Carbon steel, cast steel, stainless steel, and non-metallic plastics can be used to make these chains. They are used in sugar, wastewater, mining, and other industries.
800 Class Pintle Chain
An 800 class pintle chain is a very strong pintle chain that is often used in mining and other harsh environments. The benefits of these chains come from their special design, which keeps them from breaking under high shock loads and lets them work in situations that aren’t ideal for chains.
900 Class Pintle Chain
This type of pintle chain only comes in one size. Because it can withstand rough environments for long periods of time, it is mostly used in palm oil and sugar mills.
| 400 Class Pintle Chain | 700 Class Pintle Chain |
 |
 |
| 800 Class Pintle Chain | 900 Class Pintle Chain |
 |
 |
▍Steel Pintle Chain Applications
You can apply steel pintle chains to different systems. Most of these systems involve gathering, hauling, and transporting material. Pintle chains can handle such work because of their design and high strength.
Mechanized Farming
Practicing agriculture over large landscapes requires equipment for spreading, including fertilizers, seeds and manure. Steel pintle chains are used in such spreader applications mainly because they are less likely to have material buildup and do not need as much maintenance as other chains. Typically, the chains are used in conjunction with crossbars or slats for moving the material efficiently.
Conveyor Systems
A conveyor system refers to a piece of mechanical handling equipment that transports raw goods, products and other materials from one spot to another. For conveyor systems that involve moving heavy bulk material such as sand, grains and salt, steel pintle chains have high durability to handle these heavy loads for an extended period.

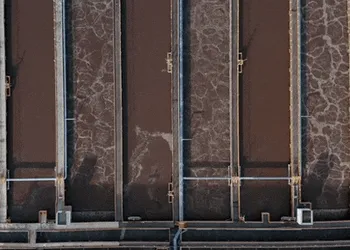

Wastewater Collection
Steel pintle chains are used in water treatment facilities on several conveying and drive applications that facilitate the process. These chains are used in wastewater facilities with their high resistance to corrosive environments.
 |
 |
 |
▍Matching Pintle Chain Sprockets
Our line of pintle chain sprockets ranges in bore size, hub type (A-plate, B-Hub, or C-Hub), and material (cast or steel). Please note that the majority of our steel sprockets are supplied with heat-treating on the teeth but additional hardened is available upon request. We also supply split, idler, and segmented tooth sprockets. All of our American steel pintle chain sprockets are manufactured using the ASME elongated tooth structure to promote longevity and a self-cleaning design to prevent chain jumping. What separates our pintle chain sprockets from others is the high-quality steel and high-grade cast materials used for each sprocket type, also the majority of our sprockets are manufactured right here in China! We also stock a full line of premium quality pintle chains.
Stock Pintle Chain Sprockets include chain sizes: 662, 667H, 667X, 667XH, 667J, 88C, 88K, 88XH
Non-Stock Pintle Chain Sprockets include chain sizes: 308C and 58, and these can be manufactured within 1-2 weeks.
Note: Our sprockets directly interchange with other sprocket and chain brands.
 |
 |
▍Pintle Chain Sprocket Size Chart
This chart shows the standard tooth count size for each pintle chain size. For additional information, select the tooth count needed or part number, or contact us.
|
662
|
667
|
667H
|
667J
|
667X
|
667XH
|
88C
|
88K
|
88XH
|
|---|---|---|---|---|---|---|---|---|
| 6-tooth | 667B6 | 667H B6 | 667J B6 | 667X B6 | 667XH B6 | 88C6 | 88C6 | 88C6 |
| 7-tooth | 667B8 | 667H B8 | 667J B8 | 667X B8 | 667XH B8 | 88C7 | 88C7 | 88C7 |
| 8-tooth | 667B9 | 667H B9 | 667J B9 | 667X B9 | 667XH B9 | 88C8 | 88C8 | 88C8 |
| 9-tooth | 667C6 | 667H C6 | 667J C6 | 667X C6 | 667XH C6 | 88C9 | 88C9 | 88C9 |
| 10-tooth | 667C8 | 667H C8 | 667J C8 | 667X C8 | 667XH C8 | 88C10 | 88C10 | 88C10 |
| 11-tooth | -- | -- | -- | -- | -- | 88C11 | 88C11 | 88C11 |
| 12-tooth | -- | -- | -- | -- | -- | 88C12 | 88C12 | 88C12 |
| 13-tooth | -- | -- | -- | -- | -- | 88C14 | 88C14 | 88C14 |
| 14-tooth | -- | -- | -- | -- | -- | 88C16 | 88C16 | 88C16 |
| 15-tooth | -- | -- | -- | -- | -- | 88C19 | 88C19 | 88C19 |
| 16-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 17-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 18-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 19-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 20-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
Additional sizes are available upon request.
▍China Steel Pintle Chain Manufacturers
Steel pintle chains are utilized in a wide range of applications such as fertilizer spreaders, feeder systems, hay handling equipment and spray box applications. Our pintle chains feature a single-piece alloy link, heat-treated with the most modern techniques and “quad-staked”, riveted pins. The open barrel design eliminates material build-up in both the connection points and root of the sprocket teeth ensuring smooth operation, uniform wear, and resistance to fatigue. Most common sizes are available from inventory to meet on-demand ordering and emergency repair needs.
All of our steel and cast pintle chains use the most up-to-date production procedures and features to provide you with the highest quality pintle chain available. Pintle chain sprockets, attachments, and more are also available.
 |
 |
 |
 |
