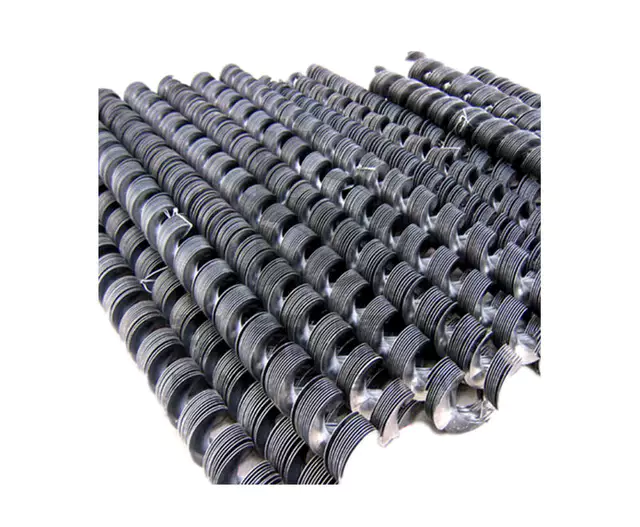

Continuous Screw Flight Rolling Spiral Blade Auger Knife

If the inner diameter of the customized specification is required to be within the range of the minimum inner diameter + 5mm, the maximum outer diameter of the specification cannot exceed three times the inner diameter.



Categories: , Tag:
Get a Quote

Auger Knife Features

Continuous Screw Rolling Spiral Blade Auger Knife

1. The spiral forming speed is fast, the production efficiency is high, the material utilization rate is high, the rigidity is good, and the strength is high. ;

2. The welding assembly is convenient and quick, and the overall strength is good;

3. The thickness of the outer edge is about 1/2 of the thickness of the inner hole, but after hardening by rolling and cooling, the hardness of the outer edge is more than doubled, which correspondingly compensates for the wear resistance of the outer edge;

4. Heat treatment can be carried out according to requirements to improve the surface hardness of the blade and improve the wear resistance;

5. The forming size is limited; only the spiral blade of low carbon steel material with a thickness ≤ 8mm and the maximum radius difference (outer diameter/2-inner diameter/2) ≤ 165mm can be formed;

6. The one-time debugging before production consumes high materials, which is not suitable for a one-time small batch supply of one specification, and there is a minimum order quantity requirement.

Product material: SPHC

Product specifications: Within the scope of meeting the following table, customized production according to customer requirements.

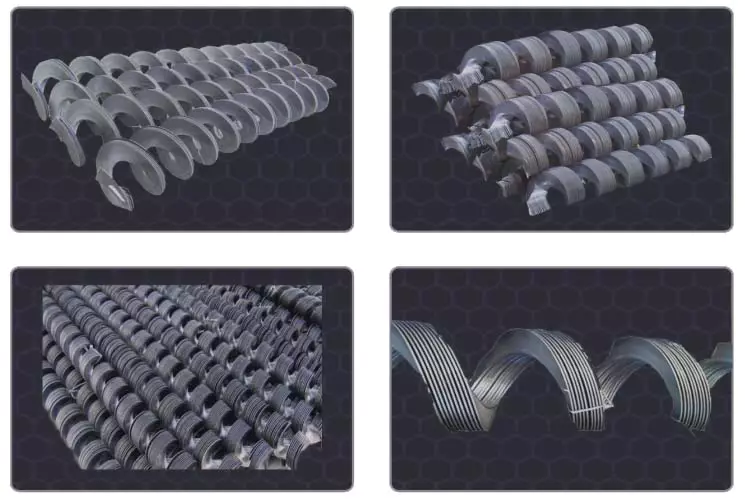

Continuous Screw Rolling Spiral Blade Auger Knife

Inner hole plate thickness
(mm)
Minimum inner diameter
(mm)
Maximum outer diameter
(mm)
Maximum radius difference
(mm)
Pitch outer diameter ratio Outer diameter inner diameter ratio
3.0 20 500 165 0.6-1.3 4.0
3.5 20 500 165 0.6-1.3 4.0
4.5 28 500 165 0.75-1.3 4.0
5.0 28 500 165 0.8-1.3 4.0
6.0 40 500 165 0.8-1.2 4.0

Customized service of Auger Knife

1. If the inner diameter of the customized specification is required to be within the range of the minimum inner diameter + 5mm, the maximum outer diameter of the specification cannot exceed three times the inner diameter.

2. For orders whose plate thickness is not within the range of the above table due to material preparation reasons, the product weight for one order must be greater than 15 tons.Continuous Screw Rolling Spiral Blade Auger Knife

We can also supply all the parts for the feed mixer.

Knife Blade Manufacturer

EVER-POWER, founded in 2000, is an enterprise that earlier achieved the industrial production of spiral blades in China and used rolling technology to manufacture spiral blades. Over the years, we have been committed to the more profound research and development of "spiral products." We have production, technology, and service team engaged in the industry for more than 20 years, providing you with an adequate and timely supply of goods and excellent quality assurance and meeting all your needs in "spiral products."

Continuous Screw Rolling Spiral Blade Auger Knife

Our company has two patents for invention and 32 patents for utility models. Now we are a national high-tech enterprise, a small and medium-sized technology-based enterprise in Jiangsu Province, an agricultural technology-based enterprise in Jiangsu Province, and Zhenjiang Research Center for Helical Blade Engineering Technology; Among them, our company's "continuous cold rolling spiral blades" and "sectional spiral blades with equal thickness" have been recognized as high-tech products by the Science and Technology Department of Jiangsu Province; The project of "Roll Rolling and One-time Forming High-Performance Spiral Blades" won the technical innovation fund for small and medium-sized technology-based enterprises approved by the Ministry of Science and Technology of the People's Republic of China.
