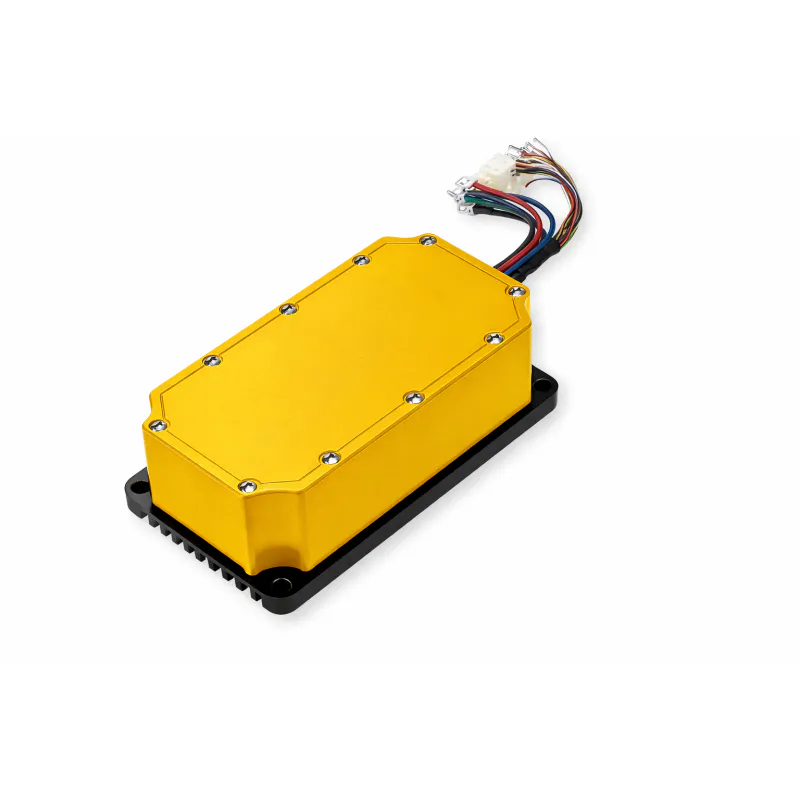

EP-1.5-2.0kW Electric Vehicle Motor Controller
This product is an Electric Vehicle Permanent Magnet Synchronous Drive Controller designed for electric vehicles with power ratings ranging from 1.5 to 2.0 kW. It is particularly suitable for various types of electric vehicles such as electric motorcycles, golf carts, electric trikes, and low-speed electric cars.
With RS232, RS485, and CAN communication options, it supports flexible configuration for monitoring and external control systems. It can operate within a temperature range of -15°C to 55°C, making it versatile for different operating environments.
1. Technical Specifications of Electric Vehicle Motor Controller
| Model Power (kW) | Voltage Range (V) | Rated Current (A) | Working Temperature (°C) | Cooling Method | Protection Rating | Communication |
|---|---|---|---|---|---|---|
| 1.8 kW | 48 / 60 / 72 | 100 / 90 / 70 | -15 to 55 | Natural Cooling | IP65 | CAN / RS232 / RS485 |
| 2.0 kW | 60 / 72 | 100 / 90 | -15 to 55 | Natural Cooling | IP65 | CAN / RS232 / RS485 |

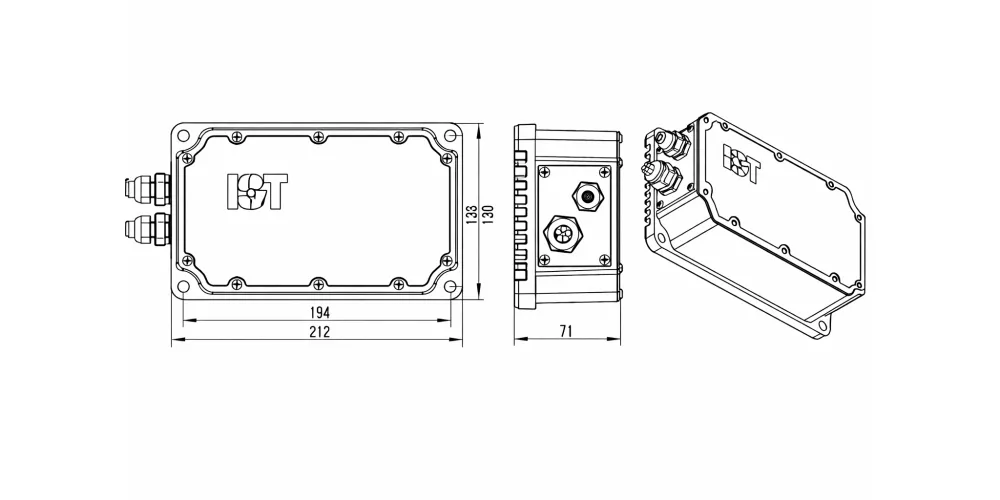

1.5-2.0kW Electric Vehicle Motor Controller Dimensions
2. Working Principle of Electric Vehicle Motor Controller
The core working principle of the EP-1.5-2.0kW electric vehicle motor controller relies on advanced Field Oriented Control (FOC), also known as vector control. Unlike older square-wave or trapezoidal control methods used in basic bldc motor controllers for electric vehicle systems, FOC allows for the independent control of the magnetic flux and torque-producing currents within the motor. By mathematically decoupling these two components, our controller can maintain the motor's magnetic field at the optimal angle relative to the rotor's permanent magnets, regardless of the speed or load. This results in smooth, ripple-free torque delivery, significantly reducing noise and vibration—a common complaint in lower-end ev motors and controllers.
The controller continuously monitors the rotor's position via high-precision sensors (Hall effect, magnetic encoder, or resolver) and adjusts the Pulse Width Modulation (PWM) signals to the inverter bridge thousands of times per second. This real-time adjustment ensures that the Electric vehicle permanent magnet synchronous motor drive controller operates at peak efficiency across the entire RPM range, preventing energy loss as heat and maximizing battery life.
3. Materials of Electric Vehicle Motor Controller
As a professional electric vehicle motor controller manufacturer, we understand that an electric vehicle charge controller and motor driver must endure extreme environmental conditions.
The EP-1.5-2.0kW series is housed in a custom-die-cast aluminum alloy enclosure. This material is chosen not only for its lightweight properties but also for its exceptional thermal conductivity, which allows for effective natural cooling without the need for failure-prone external fans. The internal electronics are built using automotive-grade power MOSFETs and capacitors, selected for their ability to handle high surge currents during acceleration and regenerative braking.
To ensure reliability in humid or dusty environments, the internal PCB assembly is treated with a conformal coating, and the entire unit is sealed to achieve an IP65 protection rating. This rugged construction effectively shields the sensitive logic circuits from water splashes, road dust, and vibration, making it a superior choice compared to standard industrial electric car controllers. Every connector and terminal is designed for secure, low-resistance contact, minimizing voltage drop and ensuring that the power from your evse controller system is delivered efficiently to the wheels.
4. Features and functions of 1.5-2.0kW Electric Vehicle Motor Controller
4.1. 1.5-2.0kW Electric Vehicle Motor Controller's Features
- Advanced and efficient vector control technology improves system efficiency and extends driving range.
- Smooth control with minimal torque ripple, effectively reducing motor vibration and noise.
- High starting torque significantly enhances hill-climbing performance.
- Anti-slip slope design ensures safety and stability.
- Automotive-grade design and component selection ensure high system reliability.
- IP65 protection rating for dust and water resistance.
4.2. 1.5-2.0kW Electric Vehicle Motor Controller's Functions
- Built-in multiple protection mechanisms to effectively ensure system safety.
- Optional position sensors (Hall effect, magnetic encoder, rotary transformer, etc.).
- Intelligent fault diagnosis and management for system status, enabling effective monitoring of operational conditions and external input states.
- Online monitoring and parameter configuration via computer.
- Support for communication protocols such as RS232, RS485, and CAN, with optional configurations.

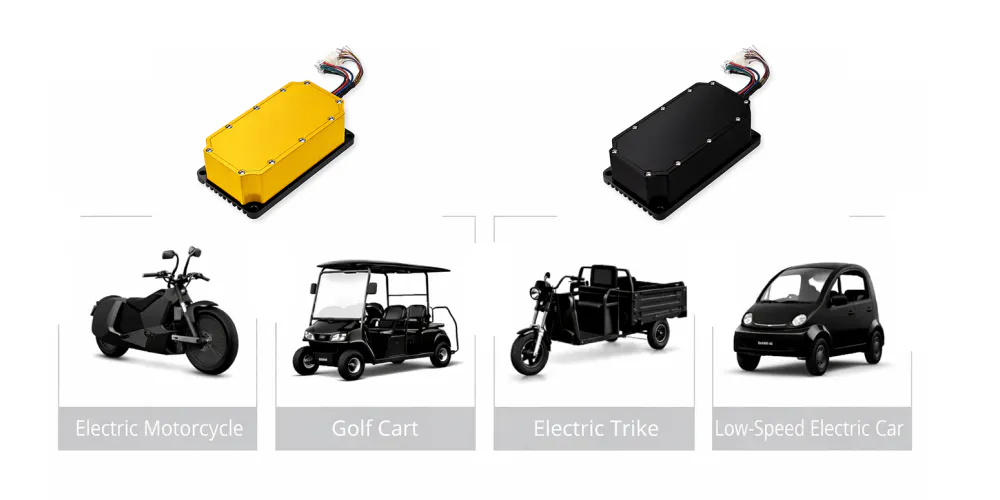

5. Electric Vehicle Motor Controller's Application Scenarios
Electric Motorcycles: Designed for electric motorcycles, providing high efficiency, low vibration, and minimal noise, ensuring a smooth and quiet riding experience.
Golf Carts: Ideal for electric golf carts, delivering reliable and efficient power for extended usage, offering smooth acceleration and energy efficiency.
Electric Three-Wheelers: Perfect for electric three-wheelers, ensuring efficient and high-performance driving for short-distance urban transportation, contributing to reduced energy consumption and enhanced durability.
Low-Speed Electric Vehicles: Suitable for low-speed electric cars, offering powerful and reliable performance for urban commuting, with optimized efficiency to extend driving range.
6. How to choose the right 1.5-2.0kW Electric Vehicle Motor Controller？
Power and Voltage Ratings: The motor controller is available in power ratings from 1.5 to 2.0 kW, supporting different voltage configurations of 48/60/72 V (depending on the specific model). Ensure that the motor controller's power output and voltage match the requirements of your electric vehicle (EV) system.
Current and Temperature Range: These controllers provide specific current limits of 100/90 and 100/70 A, and they are designed to operate within temperatures from -15°C to 55°C. Verify that the controller's current and temperature ratings align with your operational conditions.
Cooling Method: The controller uses natural air cooling, which is efficient for managing heat dissipation during extended use. If your application involves high power or heavy usage, consider ensuring that the system provides adequate airflow or ventilation.
Protection and Safety Features: The controller is equipped with multiple safety protections, including system fault management, and is IP65 rated for dust and water protection. This makes it suitable for use in various weather conditions and environments.
Communication and Monitoring: It supports communication protocols such as RS232, RS485, and CAN for monitoring and controlling the motor's performance. Ensure that the controller is compatible with your vehicle’s diagnostic and monitoring systems.
7. Why Choose Our Electric Vehicle Motor Controller?
Professional team: Our team of domestic top-tier experts, many holding advanced degrees, brings deep R&D capabilities in motor design, electromagnetic analysis, and intelligent drive systems to every project.
Backed by a complete, scientific R&D process, we begin with your vehicle parameters to define motor specifications, followed by precise performance calculations, detailed design, and comprehensive simulation—ensuring optimal performance before a single prototype is built.
Superior Performance & Efficiency: Our permanent magnet synchronous motor technology delivers the "high power density and high efficiency" that defines the next generation of EVs. As demonstrated by our products, we achieve peak efficiencies exceeding 96%, ensuring maximum range and performance for your vehicles—from low-speed logistics trikes to passenger cars.
This excellence is rooted in our advanced electromagnetic field analysis using EasiMotor software, which allows us to simulate magnetic flux distribution, optimize thermal management, and validate torque characteristics at the design stage, minimizing losses and maximizing output.
End-to-End Quality Assurance: Quality is our lifeblood. We operate under a rigorous quality management system certified to IATF 16949 and ISO 9001 standards. From our advanced manufacturing lines with automated processes to our comprehensive R&D-level testing platforms, we guarantee reliability and consistency in every motor we ship.
Our professional and efficient simulation platform enables full-system validation of the motor, controller, and vehicle dynamics—allowing us to predict real-world performance, optimize control algorithms, and ensure seamless integration across the entire drivetrain.
Tailored Solutions, Not Just Products: We understand that one size doesn't fit all. Our scientific design process starts with your vehicle's specific parameters, allowing us to match or custom-develop the perfect motor and controller system for your unique application, whether it's for a main drive, air compressor, oil pump, or other auxiliary systems.
With end-to-end simulation and virtual prototyping, we can rapidly iterate designs, reduce development cycles, and deliver customized solutions that meet your exact requirements—without compromising on quality or performance.

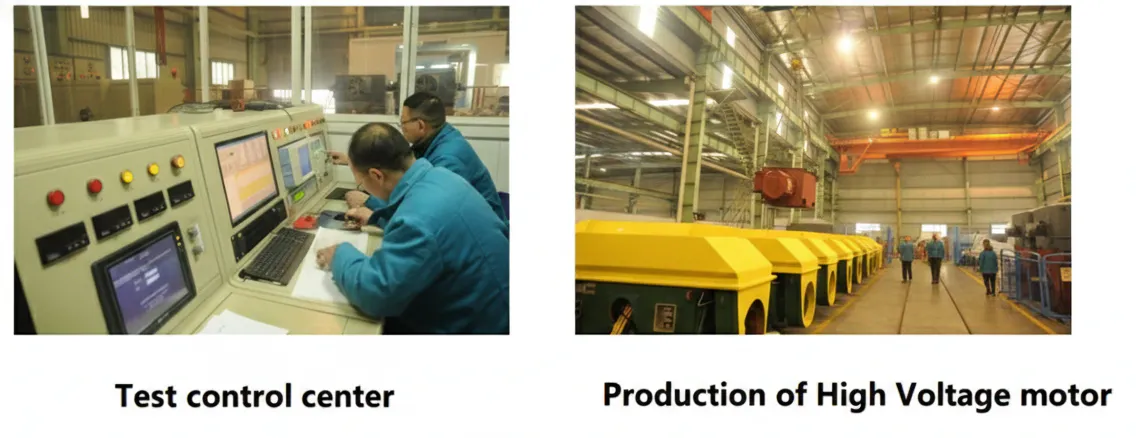

Proven Track Record: With a modern 80,000 sqm production base and a workforce of over 800 professionals, we have a proven history of successful partnerships with major OEMs.
Whether your vehicle operates in dusty construction sites or rainy urban streets, the internal electronics remain isolated and secure. Our manufacturing system, backed by ISO9001 and IATF16949 certifications, ensures that every controller leaving our 80,000 square meter facility meets the highest global standards for quality and durability.
8. Related Products
Frequently Asked Questions (FAQ)
Q1. What communication protocols are supported by this motor controller for electric vehicle applications?
A1. Our motor controller for electric vehicle applications supports industry-standard communication protocols, including CAN bus, RS232, and RS485, facilitating seamless integration with vehicle dashboards and battery management systems (BMS).
Q2. Is the electric vehicle's permanent magnet synchronous drive system waterproof for outdoor use?
A2. Yes, the Electric vehicle permanent magnet synchronous drive controller is rated at IP65, providing complete protection against dust ingress and low-pressure water jets, making it suitable for all-weather outdoor vehicle operations.
Q3. What protection features are integrated into the motor controller in electric vehicle systems?
A3. The motor controller in electric vehicle systems includes comprehensive protections such as over-voltage, under-voltage, over-current, over-temperature, and throttle fault detection to ensure maximum safety and reliability.
Q4. Does the bldc motor controller for electric vehicle support regenerative braking functions?
A4. Yes, our bldc motor controller for electric vehicle (and PMSM controller) features advanced regenerative braking, which recovers kinetic energy during deceleration to recharge the battery and extend range.
