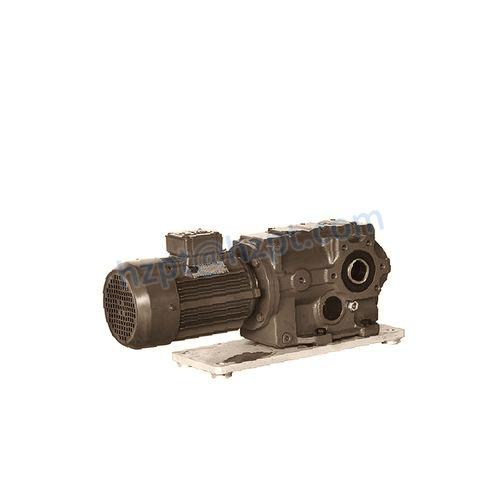

Helical Bevel Gearbox Transmission Gear

advantage:

1. High modular design
2. High load support, stable transmission, and low noise.
3. Good sealing, wide range of industry applications.
4. High efficiency and power saving.
5. Cost saving and low maintenance.

Main application:

1. Ports and Shipping
2. Lifting and transporting
3. Electricity
4. Coal mining
5. Cement and Construction
6. Paper and Light Industry
7. Chemical and environmental protection, etc.

Technical Data:

Housing material
Cast iron/Ductile iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears Accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment Tempering, cementing, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. Rise (MAX) 40°C
Temp. Rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin



Size Solid Shaft Dia.

(mm)

Hollow Shaft Dia.

(mm)

Center Height

(mm)

Output Flange Dia.

(mm)

Power

(kw)

Ratio Permissible Torque

(n.m)

Weight

(kgs)

37 φ25k6 φ30h7 100 φ110/160 0.18-3.0 5.36-106.38 200 11
47 φ30k6 φ35h7 112 φ120/200 0.18-3.0
5.81-131.87
400 20
57 φ35k6 φ40h7 132 φ155/250 0.18-5.5 6.57-145.14 600 27
67 φ40k6 φ40h7 140 φ155/250 0.18-5.5
7.14-144.79
820 33
77 φ50k6 φ50h7 180 φ170/300 0.37-11.0 7.24-292.18 1550 57
87 φ60m6 φ60h7 212 φ215/350 0.75-22.0 7.19-197.18 2700 85
97 φ70m6 φ70h7 265 φ260/450 1.1-30.0
8.95-176.05
4300 130
107 φ90m6 φ90h7 315 φ304/450 3.0-45.0 8.74-141.46 8000 250
127 φ110m6 φ100h7 375 φ350/550 7.5-90.0 8.68-146.07 13000 380
157 φ120m6 φ120m6 450 φ400/660 11.0-160.0 12.65-150.41 18000 610
167 φ160m6 φ160m6 500 φ800 11.0-200.0 17.28-163.91 32000 1015
187 φ190m6 φ190m6 600 φ800 18.5-200.0 17.27-180.78 50000 1700





Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Professional

As one of the leading bevel gearbox manufacturers, mechanical product suppliers, and factories, we supply angular contact worm gearboxplanetary gearbox, and many other products.
