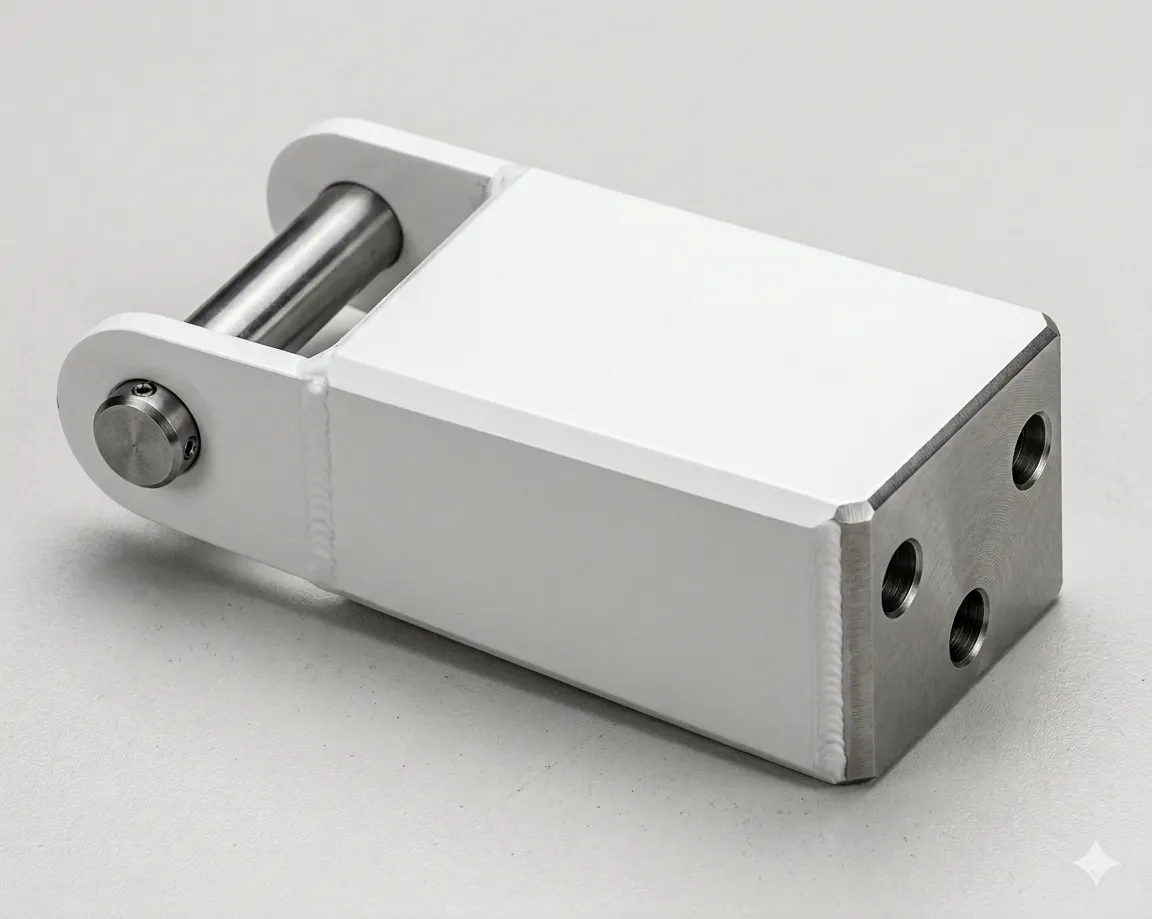

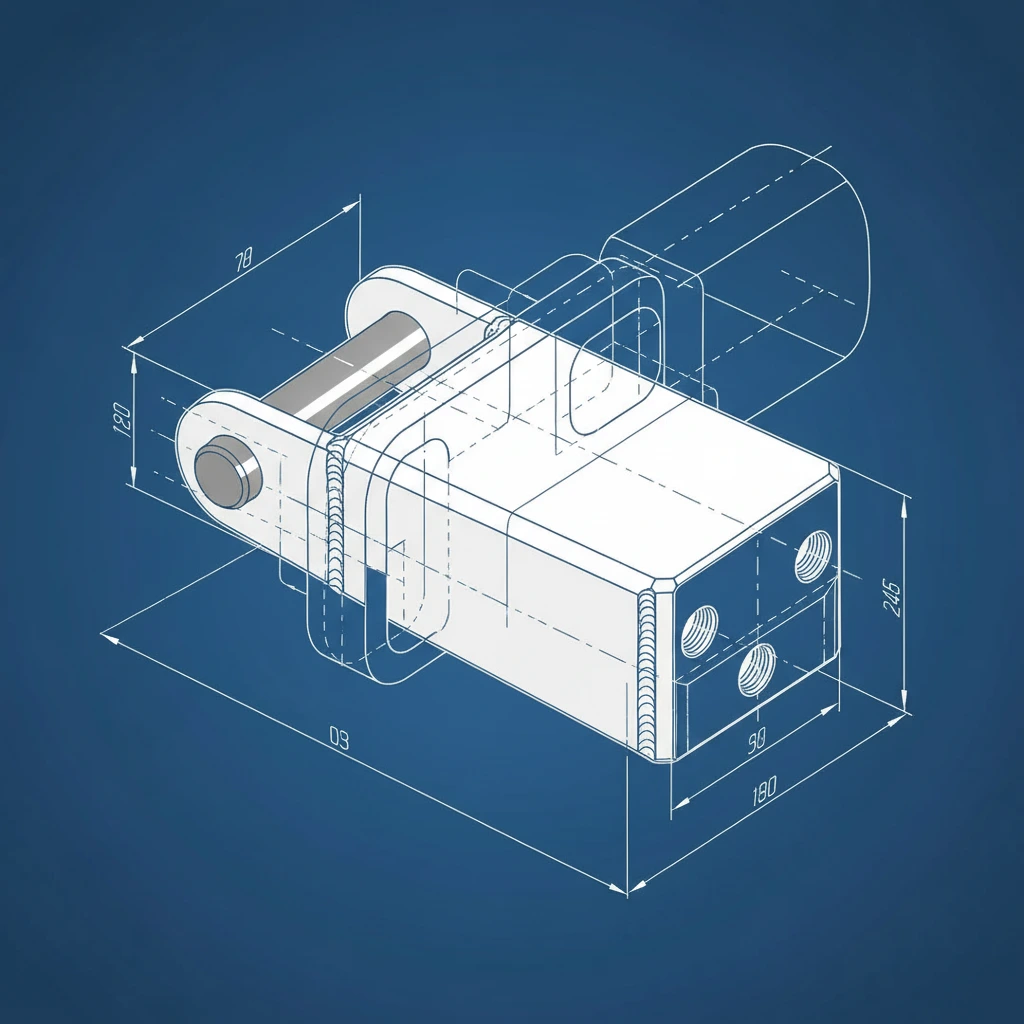

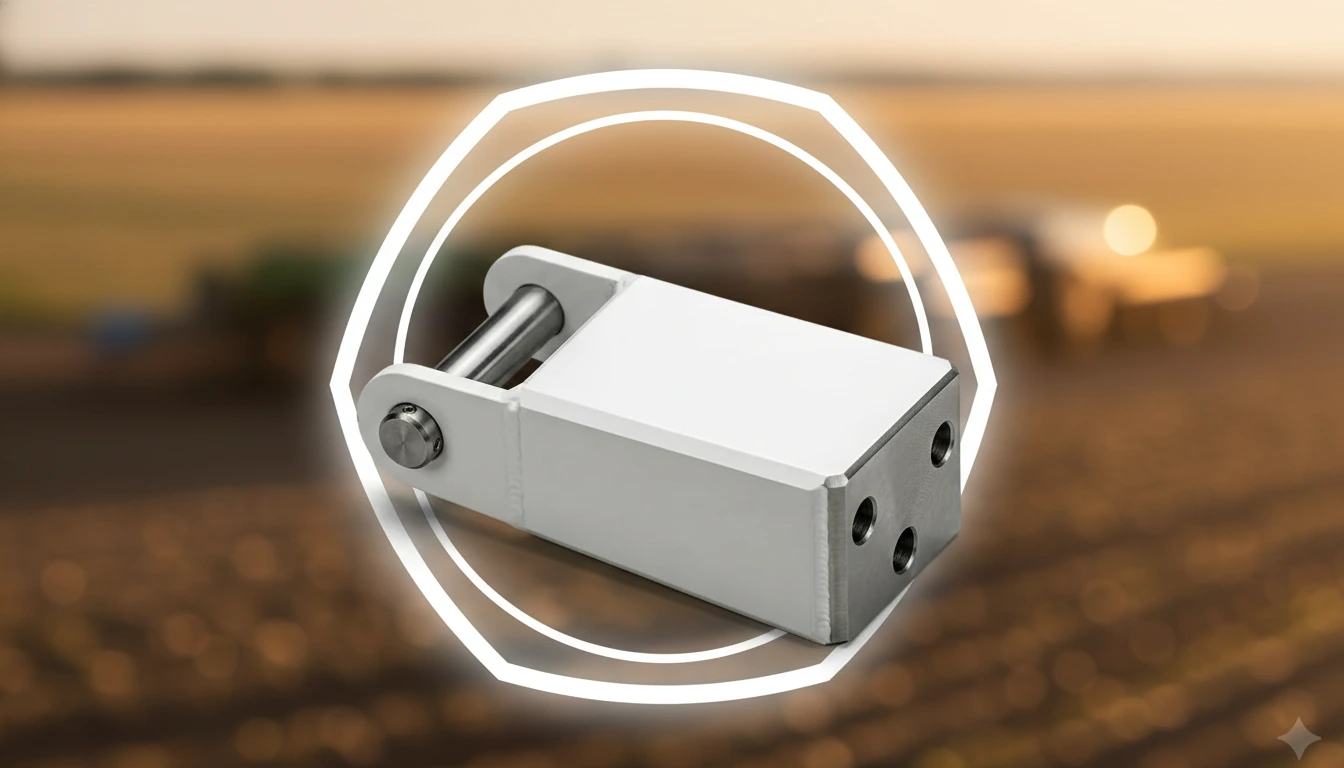

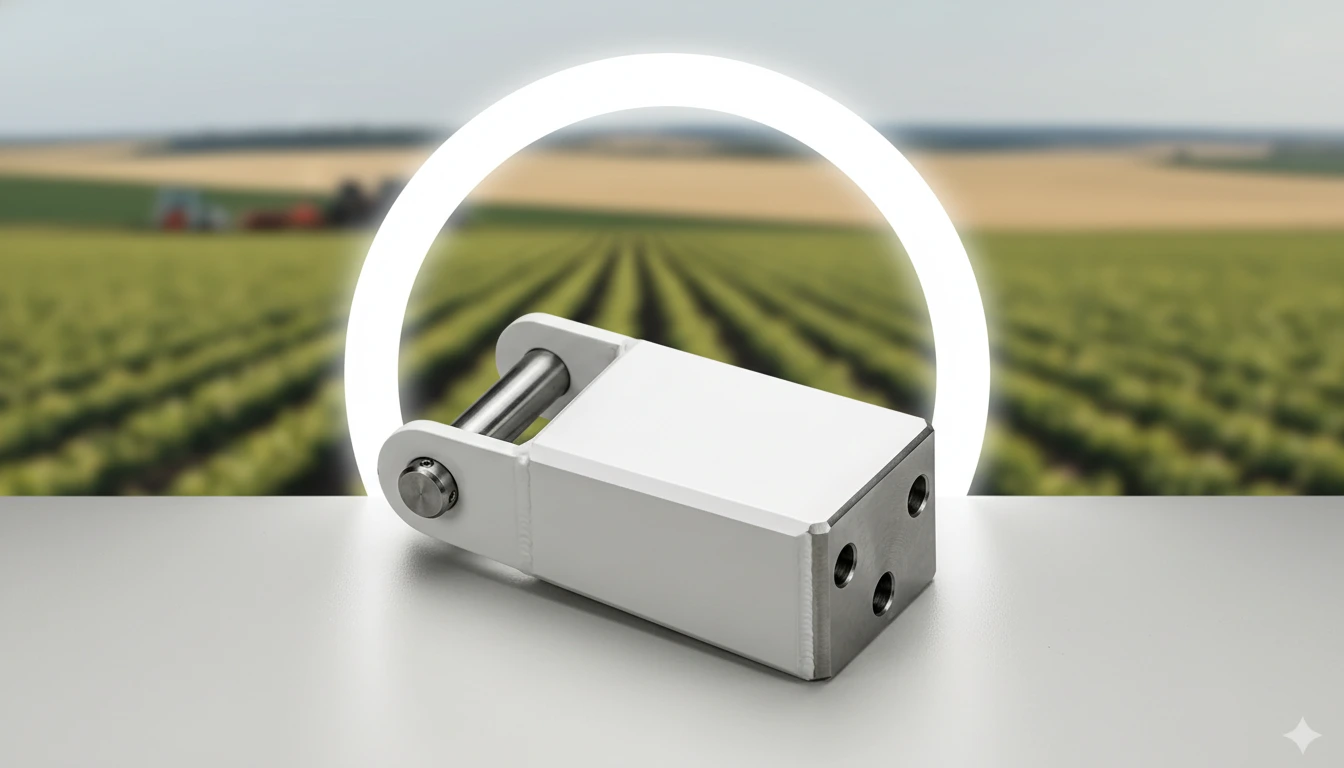

Hook-Lock Seat Welding

Product Specifications

Hook-Lock Seat Welding · EVER-POWER Header Structural Division

The Ø25 mm pivot bore that locates the latch hook pin is CNC-drilled after all welding and thermal settling — never before. Pre-weld drilling allows the welding heat cycle to shift the bore from its nominal centre by 0.4–0.9 mm, producing a hook that cams under load rather than seating cleanly. EVER-POWER's post-assembly drilling holds bore centres within ±0.2 mm of nominal on 100% of production units, with CMM verification before any unit advances to the coating stage.

The primary hook-engagement face is machined flat after welding to ≤ 0.3 mm over the 200 mm reference span. An unflat latch face causes the hook to rock under shock loading during re-engagement, concentrating the impact energy at a single edge rather than distributing it across the designed contact area. This edge loading accelerates both the hook wear and the seat face deformation that eventually prevents positive latch engagement in heavy clay soil conditions.

Sa 2.5 shot-blast establishes a clean anchor profile. Zinc-rich epoxy primer at ≥ 55 µm DFT provides cathodic protection at damage sites — zinc particles sacrifice before the base steel corrodes. Electrostatic powder topcoat at ≥ 80 µm DFT adds UV and abrasion resistance. The combined system passes 480 hours of neutral salt-spray per ISO 9227 — essential for a latch seat that accumulates soil debris in the hook pocket throughout every working day.

All structural weld joints — seat body to mounting plate, seat body to pivot boss, and reinforcing gusset connections — receive full-penetration weld profiles per GB/T 12467. Partial-penetration welds at these joints retain notch-geometry weld roots that become fatigue crack initiation sites under the repetitive shock loading of latch re-engagement cycles. EVER-POWER's PQR prohibits partial-penetration welds at all primary load-path joints in the Hook-Lock Seat Welding assembly.

All sub-components are loaded into a purpose-built steel fixture that enforces nominal geometry to ±0.4 mm before any tack weld is placed. A precision mandrel aligned with the pivot boss pre-positions the hook pivot axis relative to the mounting face before the first tack — ensuring the pivot bore's relationship to the frame mounting surface is geometrically correct through the entire weld thermal cycle. Fixture geometry is CMM-verified at the start of each batch.

The three M10 mounting holes and the Ø25 pivot pin bore are positioned to the ISO-pitch hook-lock frame standard used across the Kubota, Yanmar, and Dongfeng 4.0 m tiller platforms — covering the vast majority of in-service machines globally in this header class. This direct-replacement geometry eliminates the shimming and re-drilling that would re-introduce positional error into the latch engagement geometry after installation.

Q235B is specified for the latch seat for its low distortion in welding thin-to-medium sections, not for its strength margin. The hook-lock seat's loading is dominated by impact dynamics, not static stress — and the fatigue-crack resistance at weld toes under repeated impact loading is more sensitive to residual welding stresses and geometric distortion than to the base plate yield strength. Q235B's low carbon equivalent (CE ≤ 0.38%) minimises both weld distortion and HAZ brittleness, directly supporting the dimensional tolerances that determine latch engagement quality.

ER49-1 (AWS ER70S-3 equivalent) is selected for its lower silicon content compared to the more common ER50-6, which reduces weld spatter on the latch engagement face and pivot boss vicinity. Spatter deposits on these precision surfaces require manual grinding before CNC machining — any spatter that escapes the grind-down step becomes a high spot that compromises the ≤ 0.3 mm flatness requirement on the engagement face. Lower-spatter wire reduces this rework burden substantially while maintaining deposited tensile strength ≥ 490 MPa and Charpy impact toughness ≥ 47 J at −20 °C.

At ≥ 55 µm DFT, the zinc-rich epoxy primer provides cathodic protection at coating damage sites where soil abrasion has breached the topcoat — the zinc particles sacrifice sacrificially before the base steel corrodes. The hook pocket interior, which accumulates damp soil debris at every headland turn, is the most corrosion-active surface on this component. Without cathodic zinc protection, corrosion pitting in the hook pocket interior changes the engagement geometry within a single season in coastal paddy or saline-soil environments.

Safety Shut-Down and Header Lower

Disengage PTO, shut off engine, remove key, and lower the header fully to the ground before working near the latch zone. The latch hook retains spring tension even when the header is stationary — do not release the latch with the header raised. Tag the PTO lever before beginning disassembly.

Remove Hook and Pivot Pin

Compress or unhook the release spring before withdrawing the pivot pin retaining clips. Slide out the pivot pin using a pin punch — do not drive forcefully as this risks distorting the pivot boss on the seat. Inspect the pivot pin diameter with a micrometer and record the measurement before deciding whether to reuse or replace it.

Remove Old Seat and Inspect Frame Face

Remove the three M10 mounting bolts. If bolts are seized by rust, apply penetrating fluid and allow 15 minutes — do not force Grade 10.9 bolts as head shearing significantly extends repair time. After removing the old seat, clean the frame rail mounting face and check it with a straight-edge. Dress any high spots above 0.3 mm before proceeding.

Inspect Hook Body Before Reusing

Examine the hook engagement profile for impact deformation — a notched or bent hook profile will not seat cleanly in a new seat and must be replaced regardless of its apparent integrity. Measure the hook pivot bore for ovality with an internal gauge; ovality ≥ 0.1 mm at the pivot bore warrants hook replacement to prevent rattle in the new seat from day one.

Install New Seat and Torque Bolts

Engage all three M10 bolts finger-tight before introducing any torque. Torque in a diagonal sequence in three stages to 55 N·m (M10 Grade 10.9, lightly oiled threads). Confirm the seat mounting face is flush with the frame before final torque — rock it gently to detect any remaining high spot requiring additional dressing before final tightening.

Refit Hook, Spring and Verify Engagement

Install a new pivot pin with fresh retaining clips and a new release spring. Pack the pivot pin grease nipple with NLGI #2 grease before assembly. Manually cycle the latch through ten full engagement-and-release cycles to verify clean engagement without cam-loading and clean release without binding before returning the header to field operation.

• Pump 2–3 strokes of NLGI #2 grease through the pivot pin nipple — the pivot pin turns in its bore at every headland turn and requires continuous lubrication
• Wipe soil debris from the hook pocket interior after each field day — accumulated damp soil accelerates pocket corrosion and changes hook engagement depth
• Check all three M10 mounting bolts for seating — feel for lateral play under hand pressure
• Listen for hook rattle during the first engagement cycle after each start-up — early rattle indicates pivot pin wear before visual inspection detects it

• Remove pivot pin and measure its diameter with a micrometer — replace when worn below h8 minimum diameter
• Re-torque all M10 mounting bolts to 55 N·m after initial settling period
• Inspect hook pocket interior with a torch for corrosion pitting — pitting ≥ 0.3 mm depth requires pocket-face repair or seat replacement before it changes engagement geometry
• Measure hook pocket engagement depth with a depth gauge; wear beyond 1.0 mm from nominal depth changes hook engagement load distribution and accelerates further wear

• Remove pivot pin completely; wash and dry the pivot bore and pin channel; re-grease before reassembly
• Inspect seat weld toes — particularly at the pivot boss-to-seat-body junction — for fatigue cracking under magnification
• Measure pocket profile with a radius gauge and compare to new-part reference — wear beyond the replacement threshold warrants seat replacement before next season
• Touch-up all bare-metal patches on the exterior and pocket interior with cold zinc spray, then apply a thin rust-inhibitor film before winter storage

China's domestic 4.0 m rotary tiller aftermarket is the world's largest by unit volume. EVER-POWER materials are procured against GB/T 700 mill certificates. The ISO 9001:2015 facility satisfies China's agricultural machinery purchase subsidy programme documentation requirements. Laser-cutting steel scrap is 100% recycled through contracted mills, and the powder coating line uses zero-VOC formulations compliant with China's GB 30981 industrial coating emission standard.

EU Machinery Directive 2006/42/EC requires safety-related latch components of powered agricultural machinery to meet minimum design standards. EVER-POWER supplies welding PQR documentation, GB/T 700 material declarations, and CMM dimensional reports suitable for CE technical file preparation. Italy, France, and Germany are the three largest EU buyers. The coating system complies with EU REACH Regulation 1907/2006 — no SVHC substances are present in primer or topcoat formulations.

South and Southeast Asia represent the fastest-growing export segment, driven by mechanisation programmes expanding large-format tiller deployment into paddy regions. BIS (India) and TCVN (Vietnam) import documentation requirements for HS Code 8432.80 are bundled into EVER-POWER's standard export package. EVER-POWER's distributor network in Punjab maintains local stock to serve the intensive spring and post-monsoon tiller maintenance calendar.

The seat's 4–6 season service life reduces material consumption per unit of agricultural output compared to generic alternatives requiring replacement every 1–2 seasons. Shot-blast wastewater processes through a closed sediment-filter loop meeting China GB 8978 standard. The part contains no deliberate heavy-metal additions subject to EU RoHS Directive 2011/65/EU — all coating, weld wire, and base steel materials are compliant with current RoHS restrictions.

The cooperative had experienced two latch-failure incidents with generic aftermarket seats within a single rice season — in both cases the hook disengaged from the pocket during heavy clay tillage, dropping the header unexpectedly. The post-incident inspection found seat pockets with engagement depth worn 1.8–2.3 mm from nominal, traced to pre-weld-drilled pivot bores in the generic seats that had allowed the hook to cam-load the pocket wall rather than seating cleanly. After switching to EVER-POWER seats on all twelve machines before the following wheat season, the cooperative tracked latch engagement behaviour for two full seasons. Zero latch disengagement events were recorded; at the two-year inspection, pocket wear depth averaged 0.6 mm versus the 1.8 mm that had caused the previous incidents within a single season.

A major Veneto machinery dealer specialising in rotary tiller header overhauls adopted EVER-POWER Hook-Lock Seat Weldments as their standard replacement specification in 2022 after a competing supplier's seats had produced a pattern of customer callbacks — specifically, hooks that jammed in the pocket during headland release and required manual clearing before the header could be raised for transport. The inspection-room diagnosis was uniform: competing seats with engagement face flatness measuring 0.6–0.9 mm deviation, causing the hook to bind on the high side of the face under the weight of the lowered header. Across 64 EVER-POWER seat installations in the 2023 and 2024 seasons, zero jammed-latch complaints attributable to seat engagement face geometry were recorded.

A Vietnamese cooperative running a three-crop annual paddy calendar in brackish deltaic soil conditions had been replacing hook-lock seats every 8–10 months — pocket corrosion in the hook-engagement zone was the consistent diagnosis, with chloride-rich soil moisture accumulated in the pocket during headland turns penetrating single-coat painted alternatives within a single wet season and pitting the engagement surface to depths that prevented proper hook seating. EVER-POWER seats with the 480-hour salt-spray coating were introduced across 12 machines at the start of the 2022 wet season. At the 2024 dry-season end-of-year inspection, all 12 seats showed outer surface coating abrasion but zero substrate corrosion in the hook pocket zone — the zinc primer was visibly active at abrasion sites.

Complete the Header System

Front Upper Locating Plate and S4.0B Upper Body Weldment

The Hook-Lock Seat Welding, the Front Upper Locating Plate, and the S4.0B Upper Body Weldment form the precision structural and safety-critical latch chain of the EVER-POWER S4.0 header system. Sourcing all three from EVER-POWER delivers matched dimensional compatibility and consolidated compliance documentation.

Quality Documentation Available

Mill test certs · Welding PQR · CMM inspection reports · Salt-spray test certificates — available per production batch on request.
