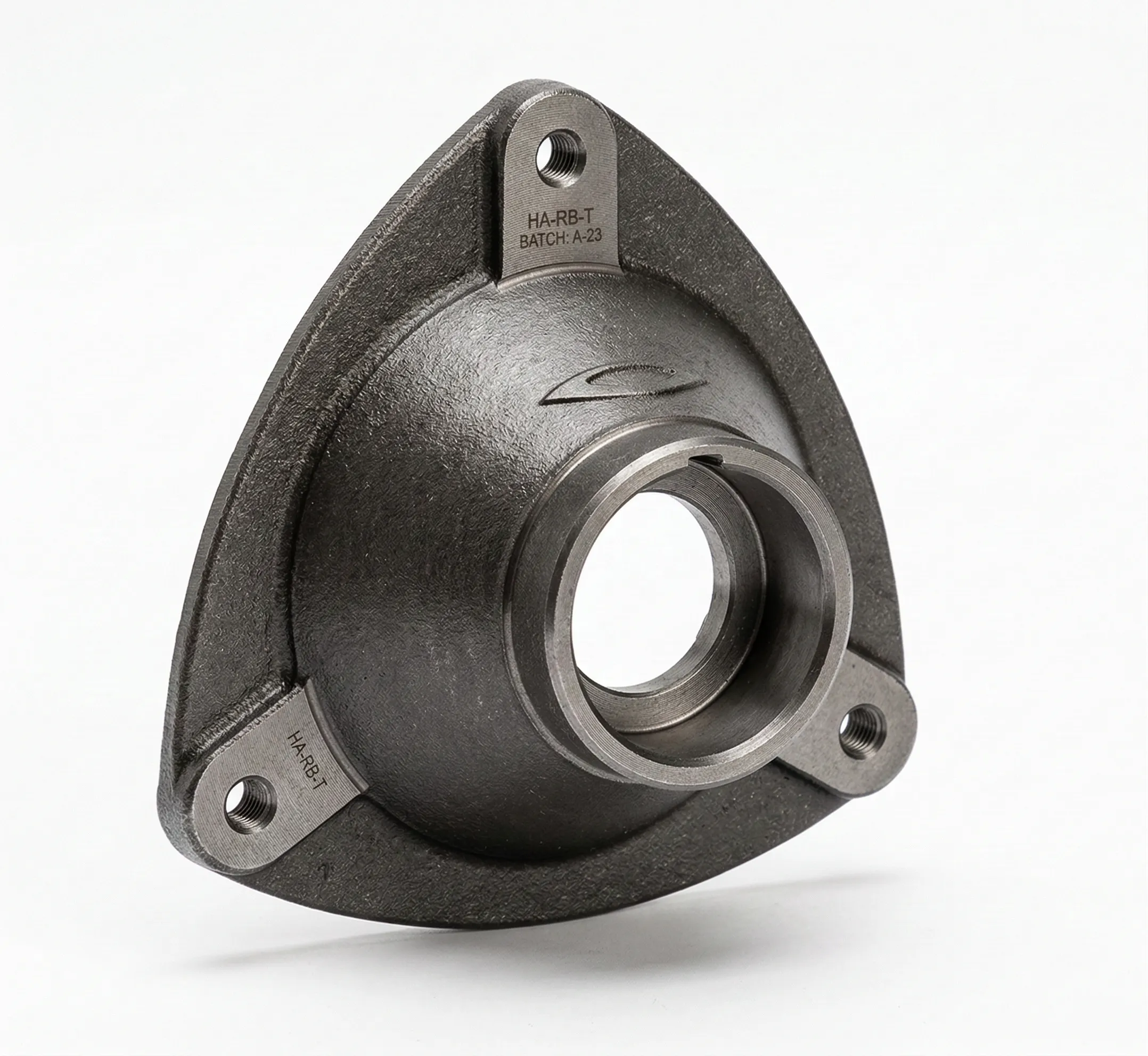

Premium Triangle Horizontal Auger Bearing Housing

Precision Molding

High-pressure sand molding ensures zero air voids in the ductile iron housing, providing maximum impact resistance.

CNC Machining

Bearing seats and mounting holes are processed on multi-axis CNC centers for sub-micron tolerance levels.

Surface Finishing

A multi-stage electrophoretic coating process provides superior chemical and UV resistance for field use.

"We switched to EVER-POWER for our fleet of tillers in Nebraska. The triangular housings have held up significantly better in sandy soil where previous units were cracking. Maintenance is much faster now."

- Marcus R., Operations Lead

"As a distributor in Australia, consistency is key. These housings arrive with perfect dimensions every time. The anti-rust coating is superior to other suppliers we've used in the past."

- David S., Ag-Supply Solutions

"The triple-lip seal design is a game changer for our muddy European conditions. We've seen a 40% reduction in bearing failures since installing these on our horizontal augers."

- Henrik B., Farm Manager

"Excellent balance of price and performance. For the reliability we get, the TCO is far lower than buying the cheapest parts on the market every season."

- Tiago L., OEM Purchaser

What is the benefit of the triangular 3-bolt pattern?

The triangular pattern creates a more stable geometric plane for the shaft to rotate on. Unlike 2-bolt housings, it prevents "rocking" under high radial loads. In the context of rotavator components, this means less strain on the mounting frame and a longer life for the internal bearing balls due to reduced vibration.

Is the housing compatible with all UC-series bearings?

Yes, our housings are bored to international ISO/JIS standards. They are designed to accommodate standard UC, HC, and UK series bearing inserts with spherical outer diameters. This modularity allows you to choose the specific bearing grade and locking mechanism (set screw or eccentric collar) that suits your application.

How often should I grease the bearing through the housing port?

For heavy agricultural use, we recommend a small amount of high-pressure lithium grease every 50-100 operational hours. The goal is to purge any micro-contaminants that have reached the seals. Over-greasing can damage the seals, so it is important to apply grease slowly while the shaft is rotating if possible.

What material is the grease nipple made from?

We use zinc-plated carbon steel as our standard for grease nipples to provide a balance of strength and corrosion resistance. For extreme coastal environments or pharmaceutical packaging machinery, we can provide 304 or 316 stainless steel fittings upon request to ensure zero oxidation over the unit's lifespan.

Can I use this housing for vertical auger shafts?

Yes, it is physically capable, but care must be taken with lubrication. In vertical positions, gravity can cause grease to settle at the bottom of the housing. We recommend using a thicker grease and checking seals more frequently to ensure the top portion of the bearing remains protected and lubricated.

Does EVER-POWER offer custom-colored coatings?

For OEM orders exceeding 500 units, we can match specific RAL colors to align with your machinery's branding. Our standard production colors are industrial blue and deep black, both of which utilize a high-durability electrophoretic process that resists chipping and chemical erosion better than standard liquid paint.

What is the tensile strength of the ductile iron used?

Our QT500-7 material provides a minimum tensile strength of 500 MPa and an elongation of 7%. This specific grade is chosen because it offers the perfect balance of hardness and "toughness," allowing the housing to absorb shock loads without catastrophic failure, which is essential for components hitting underground obstructions.

What is the lead time for international bulk orders?

For standard sizes in our inventory, we can dispatch within 3-5 business days. For large-scale manufacturing orders, the typical lead time is 25-35 days depending on the volume and customization requirements. We utilize major logistics hubs to ensure efficient delivery to North America, Europe, and Australia.

Are the mounting bolts included with the housing?

The base price includes the housing and the lubrication fitting. Because mounting plate thicknesses vary widely between machine manufacturers, bolts are generally sold separately. However, we can supply high-tensile Grade 8.8 or 10.9 mounting kits upon request to ensure you have a complete installation solution.

How do I check for wear in the housing seat?

If you notice the bearing insert can be moved by hand within the housing when not secured by the shaft, the seat has likely become "oversized" due to extreme vibration or lack of lubrication. At this point, the housing should be replaced to prevent the shaft from spinning out of concentricity and damaging other drive train parts.
