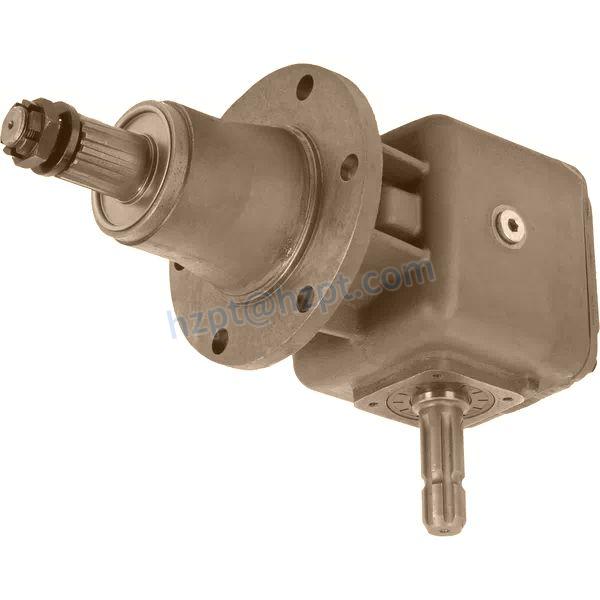

Rotary Mower Gearbox – Replacement of Comer Code LF227J

Rotary Mower Gearbox - Replacement of Comer Code LF-227J

Rotary mower gearbox LF-227J is a gearbox designed for use in rotary mowers. The rotary mower gearbox LF-227J is a highly reliable and durable unit that is capable of providing the necessary power to efficiently drive the rotary mower blades for cutting grass and other vegetation. The rotary mower gearbox LF-227J is designed to be versatile and is ideal for use in a wide range of applications, including in agricultural machinery, lawn tractors, and other areas that require the use of rotary mower gearboxes.

The rotary mower gearbox LF-227J features a sturdy cast-iron housing that is designed to resist the forces and strains produced during the operation of the mower. The gearbox is also designed with large bearings and gears that offer high reliability and a longer lifespan. One of the key features of the rotary mower gearbox LF-227J is its excellent lubrication design, which allows for smooth and efficient operation of the gearbox. The gearbox is equipped with an oil seal to prevent oil leaks, and it also features an oil bath lubrication system.

In summary, rotary mower gearbox LF-227J is a highly reliable, durable, and versatile gearbox that is designed to provide the necessary power for the efficient cutting of vegetation in rotary mowers. Its excellent lubrication system and robust design allow for smooth operation, and it is suitable for use in a wide range of applications.

▍Specification of Rotary Mower Gearbox LF-227J

Product	Rotary Mowers Gearboxes – Replacement of Comer Gearbox LF-227J
Application	Mowers
Technical information	All gearboxes are supplied without oil. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Max. input power	55 kW
Contains oil	No
Max. oil capacity	0,8 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Weight	37 kg
Gear arrangement Increasing	3
Gear ratio	1: 1.83
Input power kW / HP Increasing	55 / 75 kW/HP
Input shaft Increasing	X
Output Torque DaNm Increasing	51.7 daNm
Ratio Increasing	1: 1.83
Ratio Reducing	1.83: 1
Shaft X	1 3/8" (6)
Shaft Z	ASA Z15 D.P. 8/16

▍LF-227J Rotary Mower Gearbox Parts

The rotary mower gearbox LF-227J has several parts that work together to provide high-quality performance. These rotary mower gearbox parts include:

(1) Input Shaft: The input shaft transfers power from the engine or motor to the rotary mower gearbox.

(2) Gears: The gears are responsible for transferring power within the gearbox and converting it to the appropriate speed and torque. The rotary mower gearbox LF-227J has hardened gears that are designed to handle heavy loads.

(3) Bearings: The bearings support the rotating components of the gearbox, and help reduce friction and wear.

(4) Oil Seal: The oil seal is responsible for keeping the rotary mower gearbox lubricant inside the gearbox and preventing dirt and debris from entering the gearbox.

(5) Housing: The housing is a rugged cast-iron structure that provides the necessary support and protection for the internal components of the rotary mower gearbox.

(6) Output Shaft: The output shaft transfers power from the rotary mower gearbox to the cutting blades of the mower.

(7) Lubrication System: The lubrication system ensures that the internal components of the rotary mower gearbox remain properly lubricated to reduce friction and wear.

Overall, the rotary mower gearbox LF-227J is a complex piece of machinery that requires all of its parts to work together seamlessly to provide the required performance. Regular maintenance and inspection of these components are vital to ensure the rotary mower gearbox continues to operate at its optimum level.

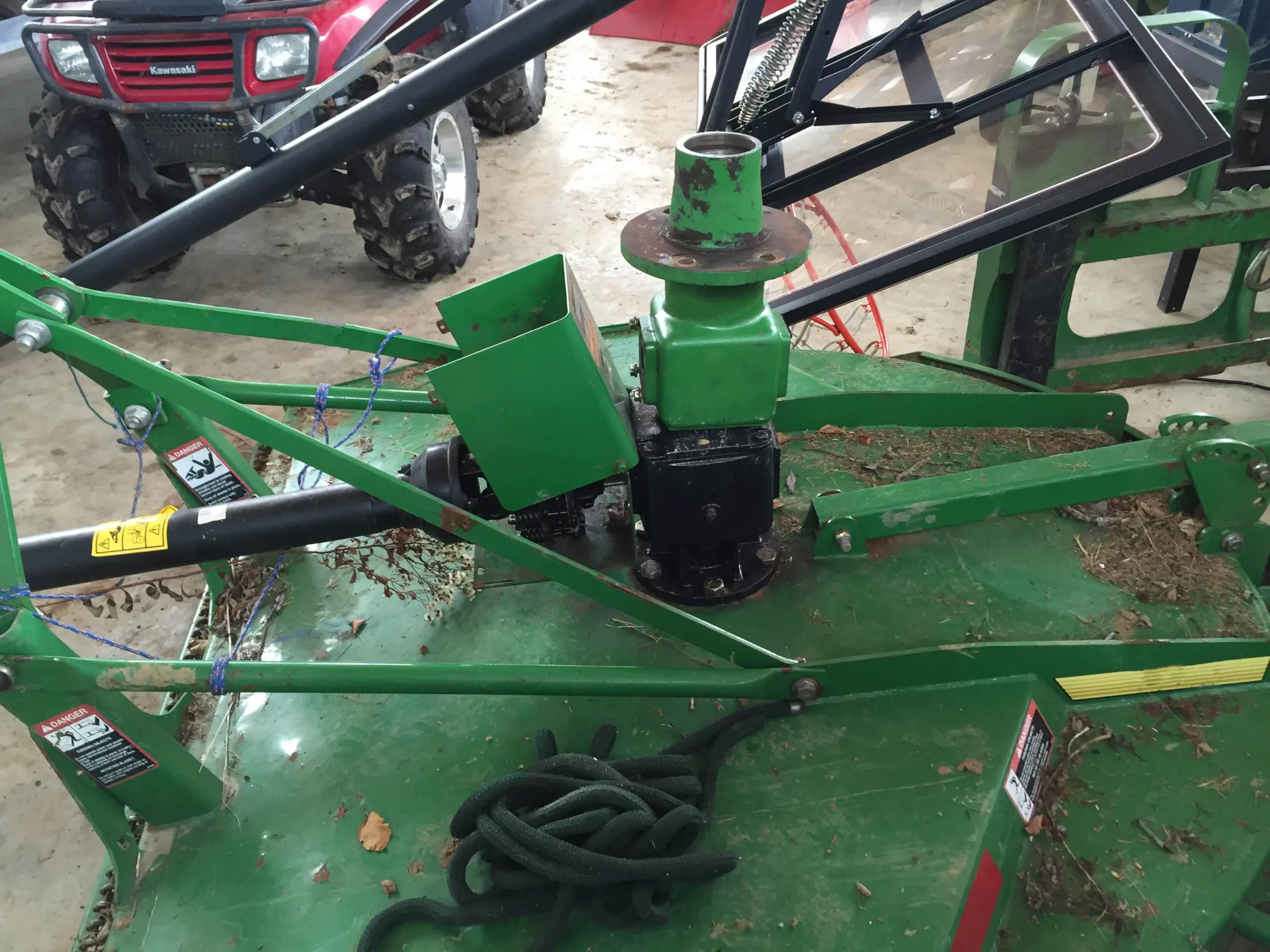

▍Characteristics of Rotary Mower Gearbox LF-227J

The rotary mower gearbox LF-227J has several characteristics that make it a highly suitable option for powering rotary mowers. Some of its key characteristics include:

Durability: The rotary mower gearbox LF-227J is made with sturdy cast-iron housing that is designed to withstand the strains and stresses of regular use. This makes it highly durable and resistant to wear and tear.

High Load Capacity: The rotary mower gearbox has been designed with large bearings and gears that provide a high load capacity, allowing it to handle heavy loads with ease.

Lubrication System: The rotary mower gearbox LF-227J has been designed with a highly efficient lubrication system that ensures smooth operation and reduces wear and tear. The oil bath lubrication system keeps the internal components lubricated, preventing damage due to friction.

Versatility: The rotary mower gearbox is versatile and can be used in a wide range of applications, including agricultural machinery, lawn tractors, and other areas that require the use of rotary mower gearboxes.

Easy to Install: The rotary mower gearbox LF-227J is easy to install and can be fitted to a range of different mowers without the need for any custom modifications.

Low Maintenance: The rotary mower gearbox's reliable construction and excellent lubrication system means that it requires minimal maintenance, reducing downtime and maintenance costs.

In summary, the rotary mower gearbox LF-227J is a highly durable, efficient, and versatile gearbox that is ideal for use in a range of applications. Its reliable construction, high load capacity, and efficient lubrication system make it an excellent choice for powering rotary mowers.

▍Rotary Mower Gearbox Oil Level Inspection

To inspect the oil level of a rotary mower gearbox LF-227J, you can follow these steps:

1. Ensure the gearbox is leveled: Before checking the oil level, it's important to make sure the rotary mower gearbox is on a level surface to get an accurate reading.

2. Locate the oil dipstick: The oil dipstick is usually located on the top or side of the rotary mower gearbox. It's a small metal or plastic rod with markings indicating the oil level.

3. Remove the dipstick: Pull the dipstick out of the rotary mower gearbox and wipe it clean with a rag or paper towel.

4. Reinsert the dipstick: Insert the dipstick fully back into the rotary mower gearbox and then pull it out again.

5. Check the oil level: Look at the level of the oil on the dipstick. The oil level should be between the minimum and maximum marks on the dipstick. If the oil level is below the minimum mark, add more oil to the rotary mower gearbox.

6. Reinsert the dipstick: After checking the oil level, firmly reinsert the dipstick securely into the rotary mower gearbox.

It's important to check the oil level regularly, especially before starting up the mower. If the oil level is too low or too high, it can cause damage to the rotary mower gearbox and reduce its performance. By maintaining the proper oil level, you can prolong the lifespan of the rotary mower gearbox and ensure that it operates properly.

▍Rotary Mower Gearbox Replacement Precautions

When replacing a rotary mower gearbox, there are several precautions that you should take to ensure your safety and proper installation. Here are some of the most important precautions to keep in mind:

Wear Protective Gear: Always wear safety glasses, work gloves, and appropriate clothing when repairing or replacing a rotary mower gearbox.

Disconnect the PTO Shaft: Always disconnect the PTO shaft before working on the rotary mower gearbox. This will prevent the shaft from accidentally turning and causing an injury.

Secure the Mower: Make sure that the mower is securely supported and will not shift or tip over while you are working on it. Use sturdy blocks, or jack stands to support the mower throughout the process.

Keep the Work Area Clean: Keep the work area clean and free of debris. This will help prevent tripping hazards and ensure that you have adequate space to work.

Use Proper Tools: Always use the proper tools and equipment when working on the rotary mower gearbox. Using incorrect tools can cause damage to the rotary mower gearbox and increase the risk of injury.

Torque Bolts Properly: When tightening bolts or nuts, use a torque wrench to ensure that they are tightened to the correct specifications. Over-tightening or under-tightening can cause damage to the rotary mower gearbox or result in a loose connection.

Check Oil Level: Always check the oil level in the rotary mower gearbox before using the mower after the replacement. Adding too much or too little oil can affect the gearbox's operation and cause further damage.

▍Agricultural PTO Shaft for Rotary Mower Gearbox

An agricultural PTO (Power Take Off) shaft is a critical component for a rotary mower gearbox to function properly. Here are some basic points to know about an agricultural PTO shaft for rotary mowers:

What is an agricultural PTO shaft? - An agricultural PTO shaft is a driveline component that hooks up to the tractor's PTO and provides power to operate rotary mowers or other agricultural equipment.

What is the purpose of an agricultural PTO shaft? - The main purpose of a PTO shaft is to transfer power from the tractor's engine to the rotary mower gearbox. This allows the mower gearbox to turn the rotary blades to cut the grass.

How does an agricultural PTO shaft work? - The PTO shaft has a splined end that fits into the tractor's PTO, which is located on the rear of the tractor. The other end of the PTO shaft has a yoke that fits onto the gearbox input shaft. The rotation of the tractor's engine drives the PTO shaft, which turns the gearbox input shaft in turn.

Types of PTO shafts - There are three types of PTO shafts - the standard 540 PTO shaft, the 1000 PTO shaft, and the dual-speed PTO shaft.

Maintenance for PTO shafts - It's important to keep the PTO shaft lubricated and clean. Grease the yoke ends and couplers regularly, and keep the shaft clean and free from debris to avoid damage from wear or vibration.

Proper selection and maintenance of the PTO shaft are essential for the functionality of a rotary mower gearbox. By ensuring that the PTO shaft is in good condition and properly lubricated, you can prolong the lifespan of the gearbox and ensure efficient performance on your rotary mower.
