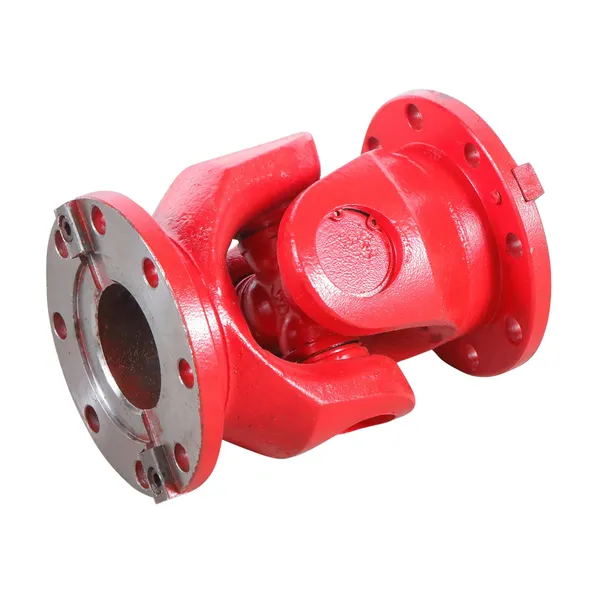

SWP-C Short Without Flex Type Universal Joint Coupling
The SWP-C short without flex type universal joint coupling is a type of universal joint that is designed for short-distance applications where there is no need for length compensation. It is a non-flexible coupling, which means that it does not allow for any movement between the two shafts that it is connecting. This makes it ideal for applications where precision is important, such as in machine tools. The SWP-C short without flex type universal joint coupling is made up of three yokes, which are connected by two cross joints. The yokes are made of high-strength steel, and the cross joints are made of high-quality bearings.
SWP-C Short Without Flex Type Universal Coupling
The SWP-C short without flex type universal joint coupling is a type of universal joint that is designed for short-distance applications where there is no need for length compensation. It is a non-flexible coupling, which means that it does not allow for any movement between the two shafts that it is connecting. This makes it ideal for applications where precision is important, such as in machine tools.
The SWP-C short without flex type universal joint coupling is made up of three yokes, which are connected by two cross joints. The yokes are made of high-strength steel, and the cross joints are made of high-quality bearings. This combination of materials ensures that the coupling is strong and durable and that it can withstand the high loads and stresses that are often encountered in industrial applications.
The SWP-C short without flex type universal joint coupling is available in a variety of sizes to accommodate different shaft diameters. It is also available with a variety of options, such as different yoke styles and different types of bearings. This makes it possible to find the perfect coupling for any application.
Here are some of the key features of the SWP-C short without flex type universal joint coupling:
- Short-distance application
- Non-flexible
- High strength and durability
- Wide range of sizes and options are available
SWP-C Short Without Flex Type Universal Joint Coupling Dimensions:
| Type | Tactical diameter D mm |
Nominal torque Tn kN·m |
Weary torque Tf kN·m |
Axis angle β (°) |
Size(mm) | Rotary inertia kg·m2 |
Mass kg |
||||||||
| L | D1 js11 |
D2 H7 |
E | E1 | B×h | h1 | L1 | n-d | |||||||
| SWP160C | 160 | 16 | 8 | ≤10 | 340 | 140 | 95 | 15 | 4 | 20×12 | 6 | 85 | 6-13 | 0.11 | 31 |
| SWP180C | 180 | 20 | 10 | ≤10 | 380 | 155 | 105 | 15 | 4 | 24×14 | 7 | 95 | 6-15 | 0.17 | 42 |
| SWP200C | 200 | 31.5 | 16 | ≤10 | 440 | 175 | 125 | 17 | 5 | 28×16 | 8 | 110 | 8-15 | 0.29 | 59 |
| SWP225C | 225 | 40 | 20 | ≤10 | 520 | 196 | 135 | 20 | 5 | 32×18 | 9 | 130 | 8-17 | 0.51 | 80 |
| SWP250C | 250 | 63 | 31.5 | ≤10 | 540 | 218 | 150 | 25 | 5 | 40×25 | 12.5 | 135 | 8-19 | 0.93 | 119 |
| SWP285C | 285 | 90 | 45 | ≤10 | 600 | 245 | 170 | 27 | 7 | 40×30 | 15 | 150 | 8-21 | 1.88 | 179 |
| SWP315C | 315 | 140 | 63 | ≤10 | 680 | 280 | 185 | 32 | 7 | 40×30 | 15 | 170 | 10-23 | 2.88 | 232 |
| SWP350C | 350 | 180 | 90 | ≤10 | 740 | 310 | 210 | 35 | 8 | 50×32 | 16 | 185 | 10-23 | 4.59 | 300 |
| SWP390C | 390 | 250 | 112 | ≤10 | 820 | 345 | 235 | 40 | 8 | 70×36 | 18 | 205 | 10-25 | 8.64 | 432 |
| SWP435C | 435 | 355 | 160 | ≤10 | 940 | 385 | 255 | 42 | 10 | 80×40 | 20 | 235 | 16-28 | 17.41 | 688 |
| SWP480C | 480 | 450 | 224 | ≤10 | 1060 | 425 | 275 | 47 | 12 | 90×45 | 22.5 | 265 | 16-31 | 28.25 | 904 |
| SWP550C | 550 | 710 | 315 | ≤10 | 1160 | 492 | 320 | 50 | 12 | 100×45 | 22.5 | 290 | 16-31 | 49.25 | 1309 |
| SWP600C | 600 | 1000 | 500 | ≤10 | 1440 | 544 | 380 | 55 | 15 | 90×55 | 27.5 | 360 | 22-34 | 87.17 | 1377 |
| SWP640C | 640 | 1250 | 630 | ≤10 | 1540 | 575 | 385 | 60 | 15 | 100×60 | 30 | 385 | 18-38 | 152.76 | 2635 |
* Note: marking examples: gyration diameter D=315mm, installment length L=680mm, C type- Short without flex type.
SWP315Cx680 coupling
SWP-C Short Without Flex Type Universal Joint Coupling Advantages:
The SWP-C short without flex type universal joint coupling has several advantages over other types of couplings. These advantages include:
1. Short-distance application: The SWP-C short without flex type universal joint coupling is designed for short-distance applications, where there is no need for length compensation. This makes it ideal for applications where space is limited.
2. Non-flexible: The SWP-C short without flex type universal joint coupling is a non-flexible coupling, which means that it does not allow for any movement between the two shafts that it is connecting. This makes it ideal for applications where precision is important, such as in machine tools.
3. High strength and durability: The SWP-C short without flex type universal joint coupling is made of high-strength steel, and the cross joints are made of high-quality bearings. This combination of materials ensures that the coupling is strong and durable and that it can withstand the high loads and stresses that are often encountered in industrial applications.
4. Wide range of sizes and options available: The SWP-C short without flex type universal joint coupling is available in a variety of sizes to accommodate different shaft diameters. It is also available with a variety of options, such as different yoke styles and different types of bearings. This makes it possible to find the perfect coupling for any application.
 |
 |
SWP-C Short Without Flex Type Universal Coupling Applications:
Here are some of the applications where the SWP-C short without flex type universal joint coupling can be used:
(1) Machine tools: The SWP-C short without flex type universal joint coupling can be used to connect the motor to the spindle, ensuring that the spindle rotates at a precise speed. This is essential for applications where precision is critical, such as in CNC machining.
(2) Conveyors: The SWP-C short without flex type universal joint coupling can be used to connect the drive shaft to the conveyor belt, ensuring that the belt moves at a constant speed. This is important for applications where the conveyor belt needs to move at a consistent rate, such as in food processing or packaging.
(3) Elevators: The SWP-C short without flex type universal joint coupling can be used to connect the motor to the elevator cable, ensuring that the elevator moves smoothly and safely. This is critical for passenger safety, as well as for the smooth operation of the elevator.
(4) Cranes: The SWP-C short without flex type universal joint coupling can be used to connect the hoist to the boom, ensuring that the load is lifted and lowered smoothly and safely. This is important for both the safety of the operator and the load.
(5) Wind turbines: The SWP-C short without flex type universal joint coupling can be used to connect the generator to the turbine shaft, ensuring that the generator produces electricity at a constant rate. This is critical for the efficient operation of the wind turbine.
The SWP-C short without flex type universal joint coupling is a versatile and reliable coupling that can be used in a wide variety of applications. If you are looking for a coupling that can handle high loads and stresses, and that can provide accurate and smooth transmission of power, then the SWP-C coupling is a great option.
 |
 |
