SWP-D Long Without Flex Type Universal Joint Coupling
The SWP-D long without flex type universal joint coupling is a type of universal joint that is designed for applications where there is a long distance between the two shafts. It is a double-joint universal joint, which means that it can operate at angles up to 90 degrees. The “Long” designation indicates that the joint has a longer body than a standard SWP-D universal coupling, which allows it to accommodate more flex in the driveline. The “Without Flex” designation indicates that the joint does not have a flexible coupling, which makes it more rigid and less susceptible to vibration. The SWP-D long without flex type universal joint coupling is typically used in agricultural, construction, and mining equipment. It is also used in some automotive applications, such as driveshafts and transfer cases.
SWP-D Long Without Flex Type Universal Coupling
The SWP-D long without flex type universal joint coupling is a type of universal joint that is designed for applications where there is a long distance between the two shafts. It is a double-joint universal joint, which means that it can operate at angles up to 90 degrees. The "Long" designation indicates that the joint has a longer body than a standard SWP-D universal coupling, which allows it to accommodate more flex in the driveline. The "Without Flex" designation indicates that the joint does not have a flexible coupling, which makes it more rigid and less susceptible to vibration.
The SWP-D long without flex type universal joint coupling is typically used in agricultural, construction, and mining equipment. It is also used in some automotive applications, such as driveshafts and transfer cases.
Here are some of the features of the SWP-D long without flex type universal joint coupling:
- Double joint design for operating angles up to 90 degrees
- Long body for accommodating more flex in the driveline
- No flexible coupling for rigidity and vibration resistance
- Used in agricultural, construction, mining, and automotive applications
SWP-D Long Without Flex Type Universal Joint Coupling Dimensions:
| Type | Tactical diameter D mm |
Nominal torque Tn kN·m |
Fatigue torque Tf kN·m |
Axis angle β (°) |
Size(mm) | Rotary inertia kg·m2 |
Mass kg |
|||||||||||
| Lmin | D1 js11 |
D2 H7 |
D3 | E | E1 | B×h | h1 | L1 | n-d | Lmin | Increase 100 |
Lmin | Increase 100 |
|||||
| SWP160D | 160 | 16 | 8 | ≤10 | 340 | 140 | 95 | 114 | 15 | 4 | 20×12 | 6 | 85 | 6-13 | 0.09 | 0.0056 | 35 | 2.1 |
| SWP180D | 180 | 20 | 10 | ≤10 | 380 | 155 | 105 | 121 | 15 | 4 | 24×14 | 7 | 95 | 6-15 | 0.16 | 0.0072 | 47 | 2.3 |
| SWP200D | 200 | 31.5 | 16 | ≤10 | 440 | 175 | 125 | 127 | 17 | 5 | 28×16 | 8 | 110 | 8-15 | 0.28 | 0.0114 | 67 | 3.4 |
| SWP225D | 225 | 40 | 20 | ≤10 | 520 | 196 | 135 | 152 | 20 | 5 | 32×18 | 9 | 130 | 8-17 | 0.53 | 0.0290 | 94 | 6.6 |
| SWP250D | 250 | 63 | 31.5 | ≤10 | 540 | 218 | 150 | 168 | 25 | 5 | 40×25 | 12.5 | 135 | 8-19 | 0.91 | 0.0407 | 140 | 7.3 |
| SWP285D | 285 | 90 | 45 | ≤10 | 600 | 245 | 170 | 194 | 27 | 7 | 40×30 | 15 | 150 | 8-21 | 1.91 | 0.0702 | 206 | 9.4 |
| SWP315D | 315 | 140 | 63 | ≤10 | 680 | 280 | 185 | 219 | 32 | 7 | 40×30 | 15 | 170 | 10-23 | 3.39 | 0.1144 | 271 | 12.0 |
| SWP350D | 350 | 180 | 90 | ≤10 | 740 | 310 | 210 | 245 | 35 | 8 | 50×32 | 16 | 185 | 10-23 | 5.35 | 0.1663 | 355 | 13.6 |
| SWP390D | 390 | 250 | 112 | ≤10 | 820 | 345 | 235 | 273 | 40 | 8 | 70×36 | 18 | 205 | 10-25 | 10.54 | 0.2695 | 501 | 18.0 |
| SWP435D | 435 | 355 | 160 | ≤10 | 940 | 385 | 255 | 299 | 42 | 10 | 80×40 | 20 | 235 | 16-28 | 18.56 | 0.3645 | 825 | 20.0 |
| SWP480D | 480 | 450 | 224 | ≤10 | 1060 | 425 | 275 | 351 | 47 | 12 | 90×45 | 22.5 | 265 | 16-31 | 31.69 | 0.7028 | 1144 | 28.0 |
| SWP550D | 550 | 710 | 315 | ≤10 | 1160 | 492 | 320 | 402 | 50 | 12 | 100×45 | 22.5 | 290 | 16-31 | 51.45 | 1.1842 | 1589 | 35.7 |
| SWP600D | 600 | 1000 | 500 | ≤10 | 1440 | 544 | 380 | 450 | 55 | 15 | 90×55 | 27.5 | 360 | 22-34 | 83.53 | 1.7159 | 2243 | 40.5 |
| SWP640D | 640 | 1250 | 630 | ≤10 | 1540 | 575 | 385 | 480 | 60 | 15 | 100×60 | 30 | 385 | 18-38 | 135.60 | 2.3080 | 3140 | 48.3 |
* Note: marking examples: gyration diameter D=315mm, installment length L=900mm, D type-long without flex type.
SWP315D x 900 coupling

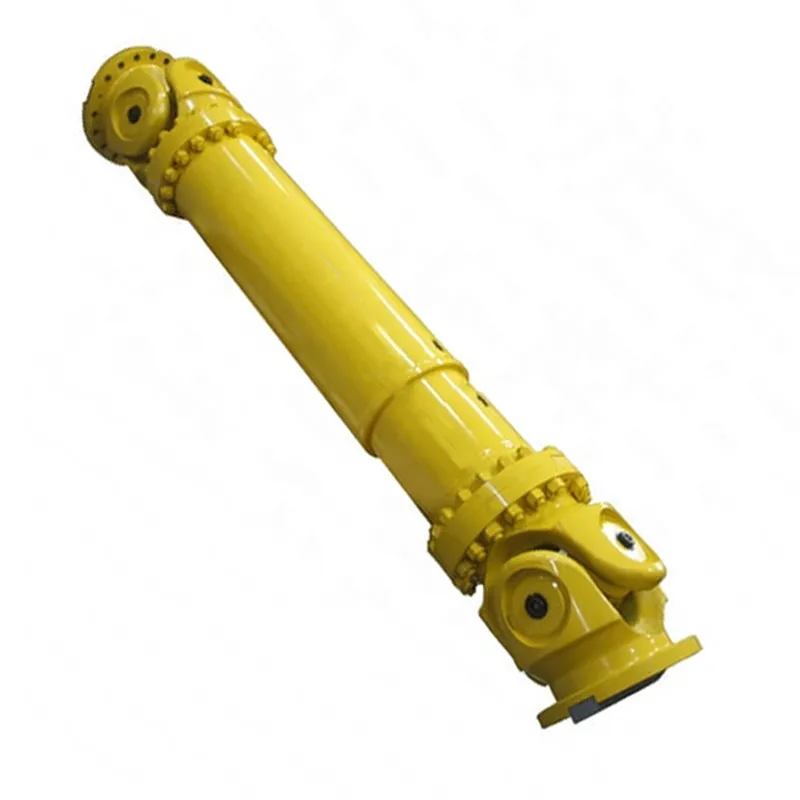

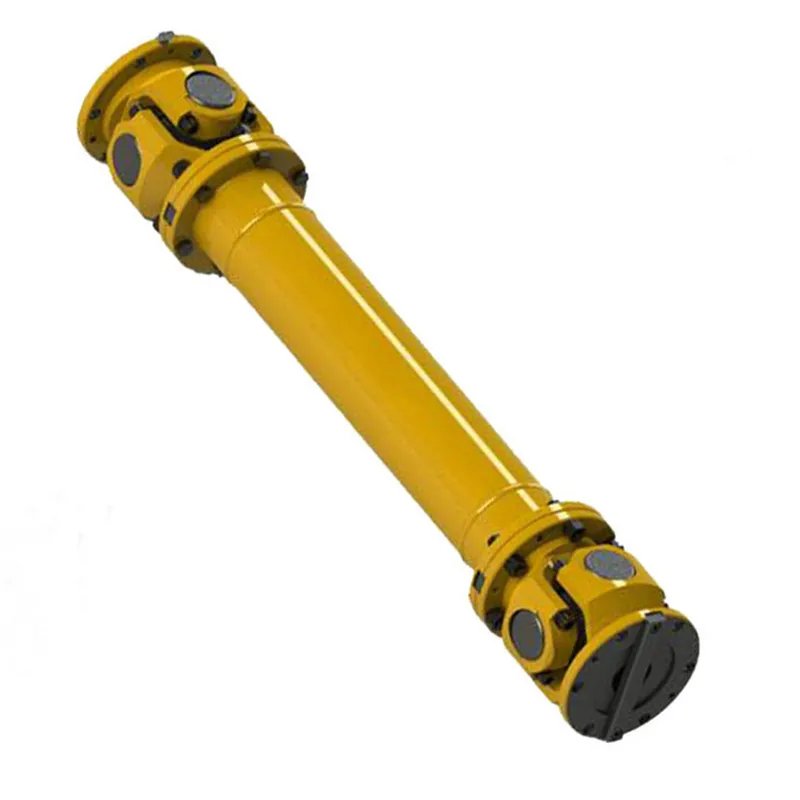

Benefits of SWP-D Long Without Flex Type Universal Joint Coupling:
The SWP-D long without flex type universal joint coupling offers a number of benefits, including:
1. Can accommodate long distances between the two shafts: The long body of the joint allows SWP-D long without flex type universal joint coupling to accommodate more flex in the driveline, which is important for applications where the two shafts are located far apart.
2. Can operate at angles up to 90 degrees: The double joint design of the SWP-D long without flex type universal joint coupling allows it to operate at angles up to 90 degrees, which is important for applications where the two shafts are not aligned.
3. More rigid and less susceptible to vibration: The lack of a flexible coupling in the SWP-D long without flex type universal joint coupling makes it more rigid and less susceptible to vibration. This is important for applications where the driveline is subject to high-vibration loads.
4. Durable and long-lasting: The SWP-D long without flex type universal joint coupling is made from high-quality materials and is designed to be durable and long-lasting.
5. Reduces noise and vibration: The rigid design of the SWP-D long without flex type universal joint coupling helps to reduce noise and vibration in the driveline.
6. Improves efficiency: The SWP-D long without flex type universal joint coupling helps to improve the efficiency of the driveline by reducing power loss.
7. Increases safety: The SWP-D long without flex type universal joint coupling helps to increase safety by reducing the risk of driveline failure.
 |
 |

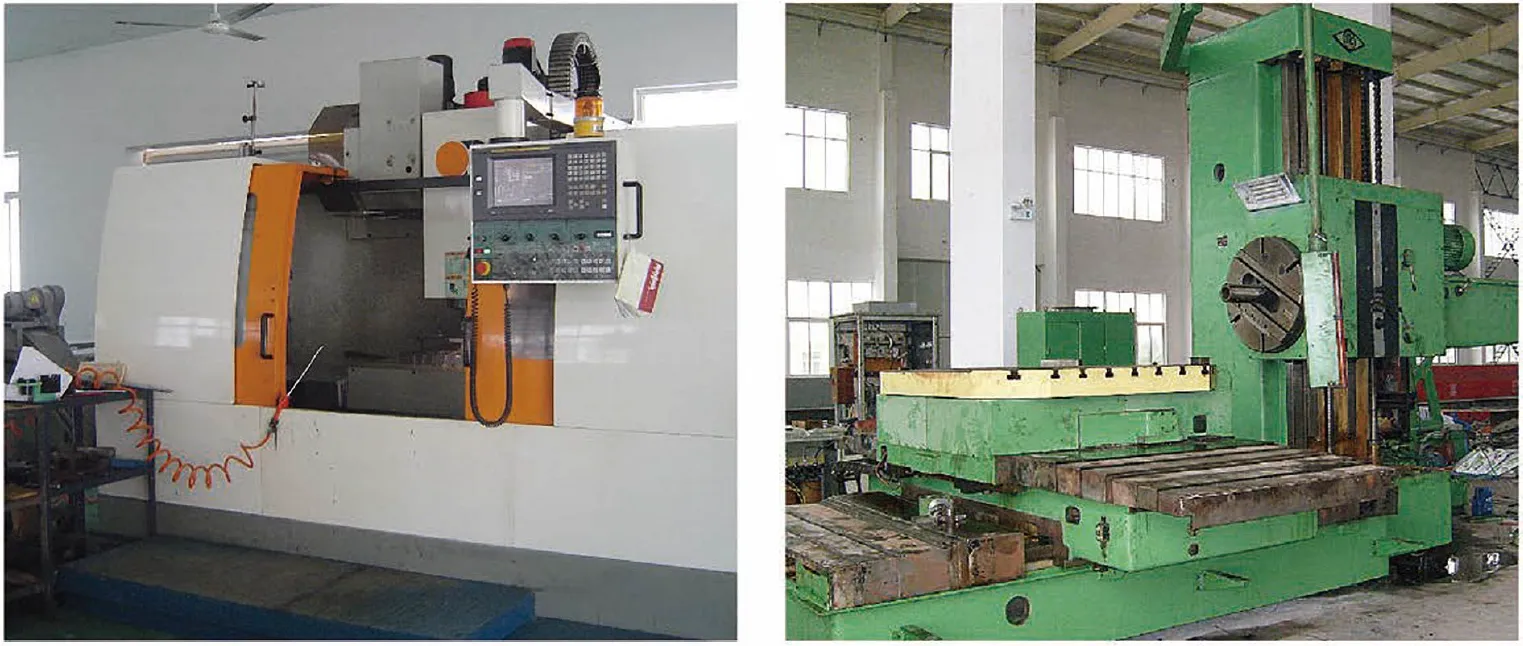

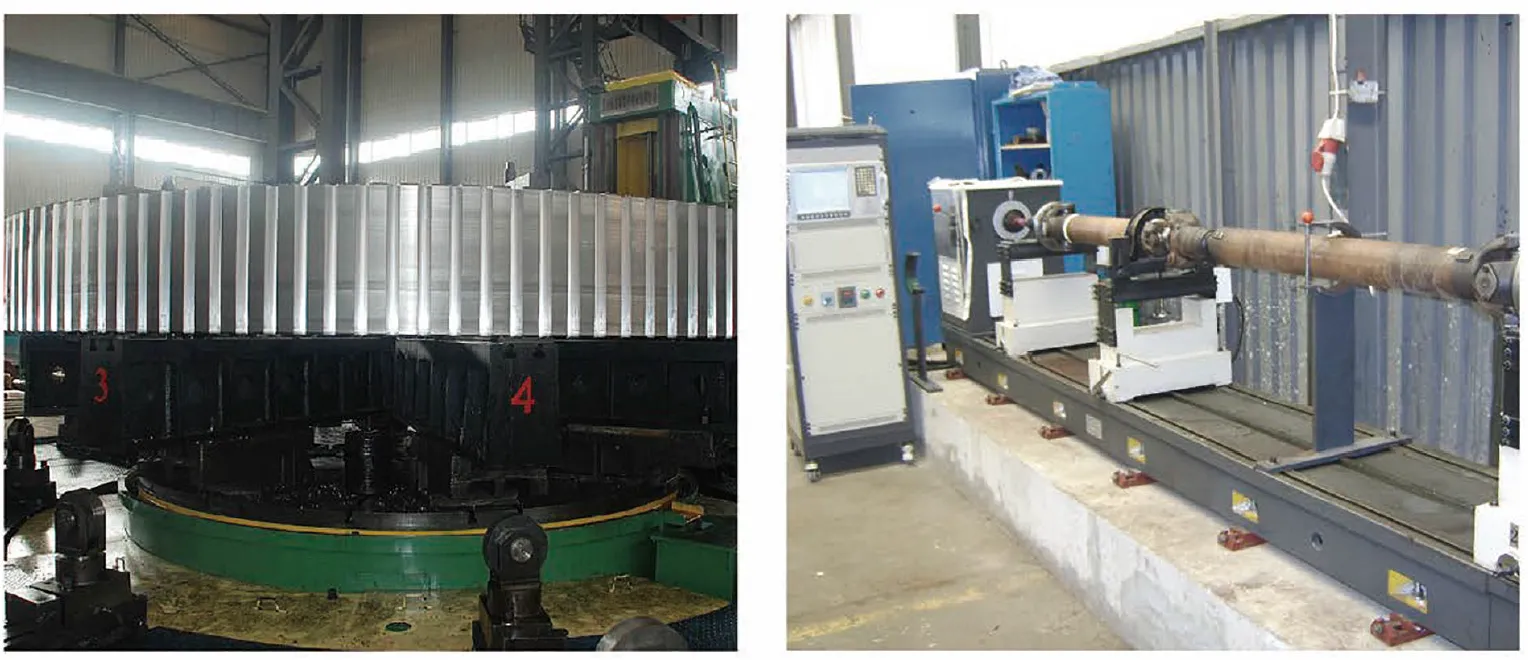

China Universal Joint Coupling Manufacturers
HZPT products sell well in the domestic market and have been exported to the international market. In order to meet the needs of different customers, our company undertakes other non-standard couplings, imported couplings design, replacement, and manufacturing; in this regard, HZPT has accumulated a wealth of experience. Our goal is to become the first choice of businessmen with strict quality control, qualified delivery control, and excellent service. The main products are standard serpentine spring couplings, spacer couplings, universal couplings, star-shaped elastic couplings, tire couplings, drum-type gear couplings, servo motor couplings, sprocket chain couplings, rigid couplings, flexible sleeve pin couplings, flexible pin couplings, HRC couplings, etc., a total of 29 series, more than five hundred and eighty specifications. There are twenty-nine series and more than five hundred and eighty kinds of specifications. They are widely used in metallurgy, mining, shipbuilding, paper-making, and heavy machinery industries.
Our company has a group of professional technicians with rich practical experience, and we have a group of excellent sales staff to provide your company with advanced transmission and conveying technology services at all times, to ensure the smooth and efficient operation of your company's equipment. We are always full of enthusiasm, a sincere attitude of cooperation, win-win business philosophy, and zealously welcome customers at home and abroad to visit our company and negotiate.
Additional information
| Editor | Yjx |
|---|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
