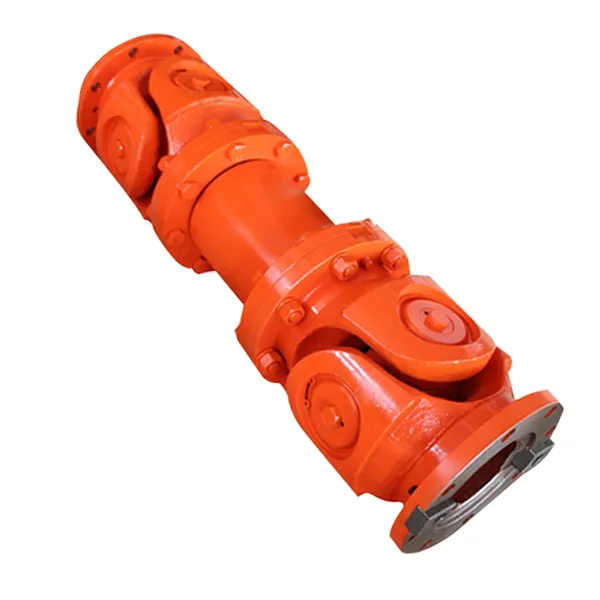

SWP-G Super Short Flex Type Universal Joint Coupling
The SWP-G super short flex type universal joint coupling is a type of universal joint that is designed for applications where there is a need for a short, flexible coupling. It is a double universal joint, which means that it has two bending joints that allow it to operate at angles up to 90 degrees. The SWP-G super short flex type universal joint coupling is also a flex type coupling, which means that it has a flexible element that allows it to absorb shock and vibration. This makes it ideal for applications where there is a lot of movement or vibration, such as in construction equipment or agricultural machinery.
SWP-G Super Short Flex Type Universal Coupling
The SWP-G super short flex type universal joint coupling is a type of universal joint that is designed for applications where there is a need for a short, flexible coupling. It is a double universal joint, which means that it has two bending joints that allow it to operate at angles up to 90 degrees. The SWP-G super short flex type universal joint coupling is also a flex type coupling, which means that it has a flexible element that allows it to absorb shock and vibration. This makes it ideal for applications where there is a lot of movement or vibration, such as in construction equipment or agricultural machinery.
SWP-G Super Short Flex Type Universal Joint Coupling Dimensions:
| Model | SWP225G | SWP250G | SWP285G | SWP315G | SWP350G | |
| D | 225 | 250 | 285 | 315 | 350 | |
| Tn KN.m | 56 | 80 | 112 | 160 | 224 | |
| Tf KN.m | 28 | 40 | 56 | 80 | 112 | |
| β≤ | 5° | 5° | 5° | 5° | 5° | |
| Size(mm) | S | 40 | 40 | 40 | 40 | 50 |
| L | 470 | 600 | 665 | 740 | 850 | |
| D | 275 | 305 | 348 | 360 | 405 | |
| D1 | 248 | 275 | 314 | 328 | 370 | |
| D2(H7) | 135 | 150 | 170 | 185 | 210 | |
| E | 15 | 15 | 18 | 18 | 22 | |
| E1 | 5 | 5 | 7 | 7 | 8 | |
| b-h | 32-18 | 40-18 | 40-24 | 40-24 | 50-32 | |
| h1 | 9 | 9 | 12 | 12 | 16 | |
| L1 | 80 | 100 | 120 | 135 | 150 | |
| n-d | 10-15 | 10-17 | 10-19 | 10-19 | 10-21 | |
| M(kg) | 78 | 142 | 190 | 260 | 355 | |
* Note: marking examples: gyration diameter D=315mm, installment length L=620mm, G type-Short without flex type
SWP315GX620 coupling

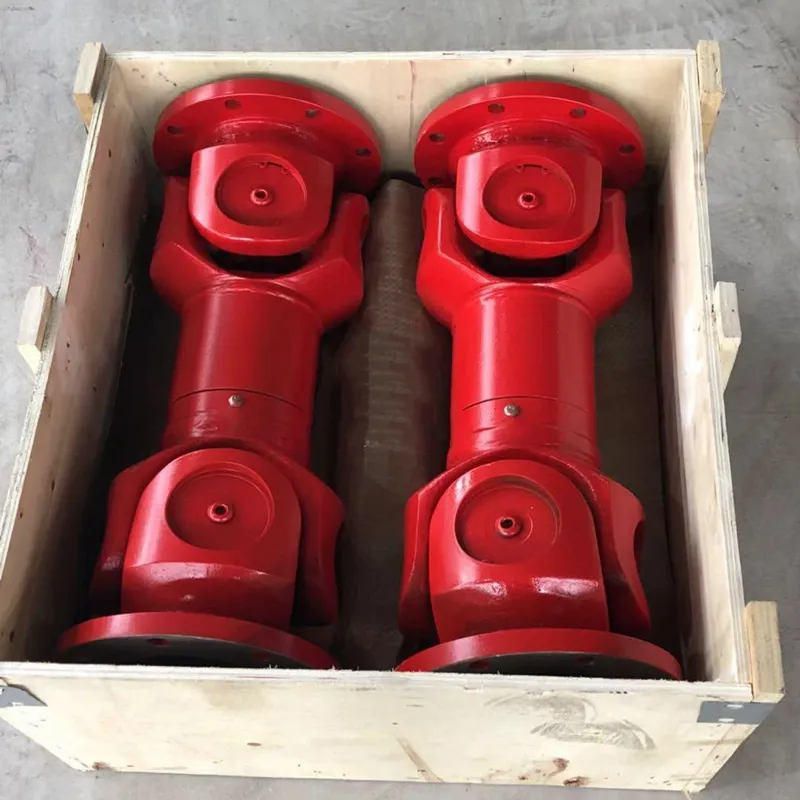

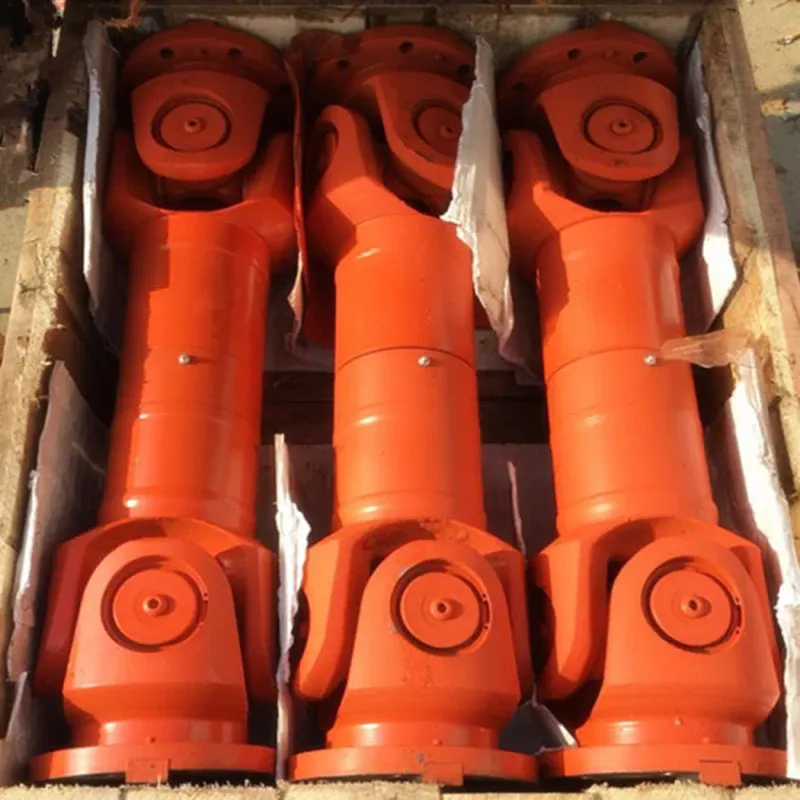

SWP-G Super Short Flex Type Universal Coupling Design Features:
The SWP-G super short flex type universal joint coupling is a double universal joint that is designed for applications where there is a need for a short, flexible coupling. It has the following design features:
1. Double universal joint design: The SWP-G super short flex type universal joint coupling has two bending joints that allow it to operate at angles up to 90 degrees. This makes it ideal for applications where the shafts need to be connected at different angles, such as in construction equipment or agricultural machinery.
2. Flex type coupling: The SWP-G super short flex type universal joint coupling is a flex type coupling, which means that it has a flexible element that allows it to absorb shock and vibration. This makes it ideal for applications where there is a lot of movement or vibration, such as in construction equipment or agricultural machinery.
3. Short design: The SWP-G super short flex type universal joint coupling is a short coupling, which makes it ideal for applications where there is limited space.
4. Heavy-duty construction: The SWP-G super short flex type universal joint coupling is made of heavy-duty materials, such as steel and bronze, which makes it durable and long-lasting.
5. Wide range of sizes and styles available: The SWP-G super short flex type universal joint coupling is available in a wide range of sizes and styles, so you can choose the one that best meets your needs.
 |
 |
China Universal Joint Coupling Manufacturers
HZPT Transmission Machinery Co., Ltd. is one of the earliest high-tech enterprises engaged in the professional design, manufacture, and sales of standard serpentine spring couplings, spacer couplings, cross cardan shaft couplings, fluid couplings, and flexible couplings in the country. The company owns two entity factories with more than 200 employees and 15 million Yuan fixed assets. The main business of the company is to produce and sell all kinds of standard serpentine spring couplings, diaphragm couplings, cross universal shaft couplings, elastic couplings, etc., and the wells can be designed and manufactured according to the needs of non-standard. Since its inception, we have been in good faith the principle of positive, enterprising, bold to explore, and constantly develop new products to meet the needs of the market, product quality, production experience, strong technical force, advanced testing equipment, product stability, and reliable quality.
Our company has a group of professional technicians with rich practical experience, and we have a group of excellent sales staff to provide your company with advanced transmission and conveying technology services at all times, to ensure the smooth and efficient operation of your company's equipment. We are always full of enthusiasm, a sincere attitude of cooperation, win-win business philosophy, and zealously welcome customers at home and abroad to visit our company and negotiate.

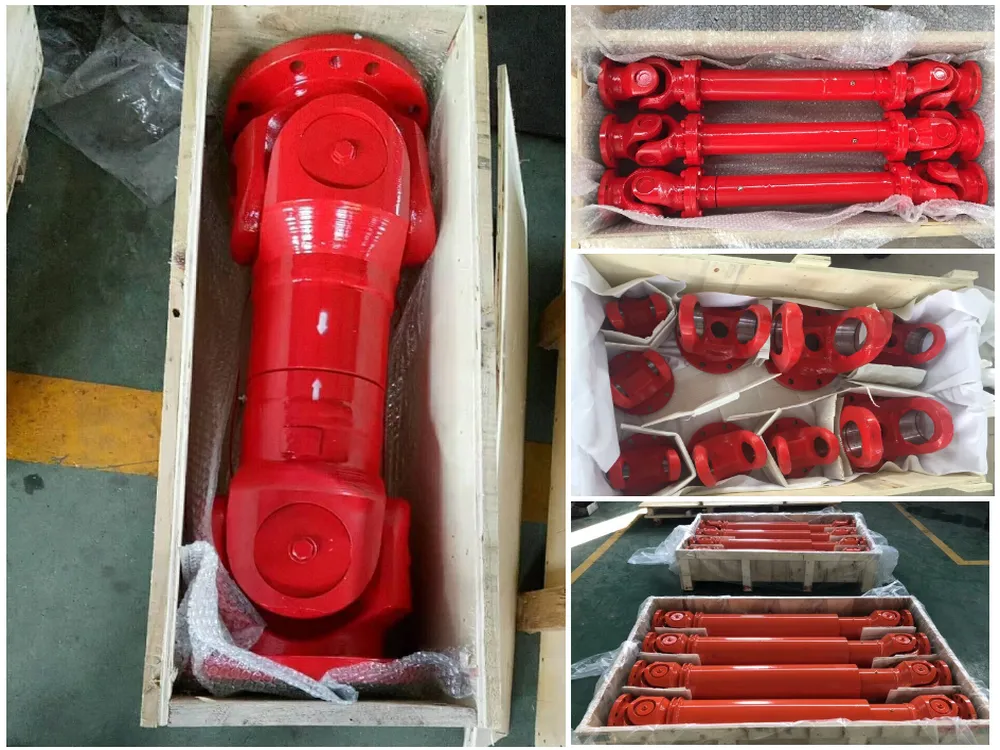

Universal Joint Coupling Packing & Delivery
Packaging Details: The equipment shall be packed in containers as per the international packaging standard or customers' requirements to ensure long-distance sea transportation and well protect against changes in climate, moisture, and shock.
Delivery details: within three months after the payment.
Additional information
| Editor | Yjx |
|---|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
