Two Piece Shaft Collars (Shaft Clamps) Metric Series

The metric series two piece shaft collars are mechanical components used to secure and position different machine parts on a shaft. They consist of two pieces that clamp around the shaft and lock in place with screws or bolts. These metric series two piece shaft collars are commonly used in various industries, including automotive, aerospace, and manufacturing. They are designed to withstand high axial loads and provide a precise and secure fit for the shaft. If you are looking for a reliable and versatile way to secure components to a rotating shaft, then a metric series two piece shaft collar is a good option.

Get a Quote

Two Piece Shaft Collars (Shaft Clamps) Metric Series

The metric series two piece shaft collars are mechanical components used to secure and position different machine parts on a shaft. They consist of two pieces that clamp around the shaft and lock in place with screws or bolts. These metric series two piece shaft collars are commonly used in various industries, including automotive, aerospace, and manufacturing. They are designed to withstand high axial loads and provide a precise and secure fit for the shaft.

The metric series two piece shaft collars are available in a range of sizes and materials, including stainless steel, aluminum, and plastic. They are also available in different styles, such as threaded and unthreaded, to suit different application requirements. Overall, the metric series two piece shaft collars are a reliable and cost-effective solution for securing and positioning machine parts on a shaft. If you are looking for a reliable and versatile way to secure components to a rotating shaft, then a metric series two piece shaft collar is a good option.

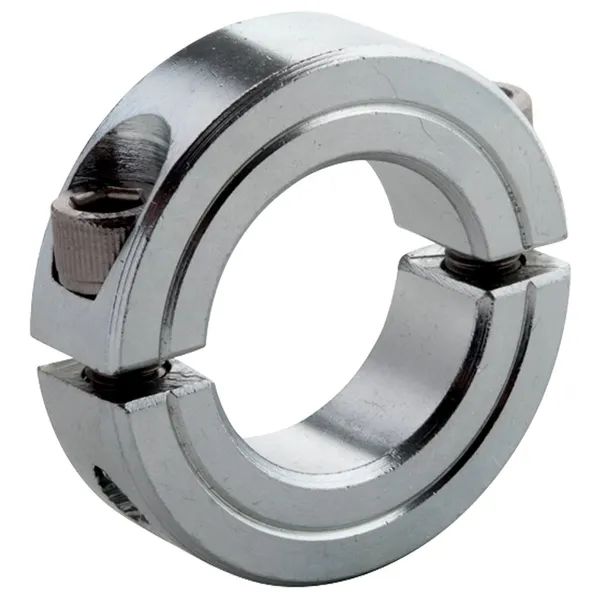

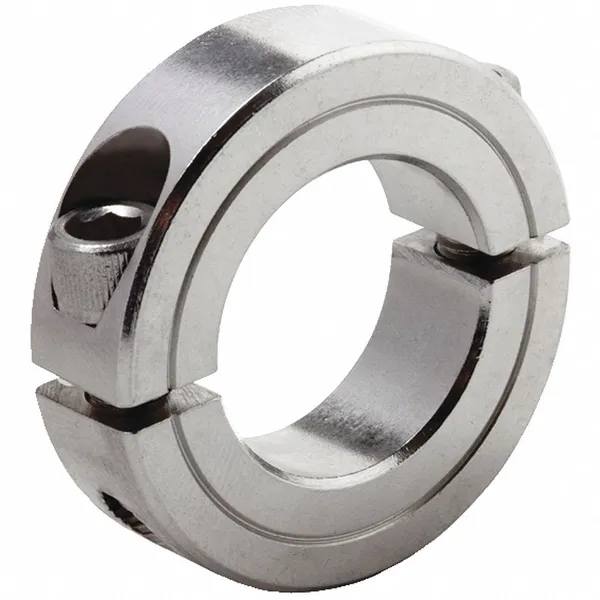

Two Piece Shaft Collars (Shaft Clamps) Metric SeriesTwo Piece Shaft Collars (Shaft Clamps) Metric Series

▍Two Piece Shaft Collar Sizes Chart (Metric Series)

Two Piece Shaft Collar Sizes Chart (Metric Series)Two Piece Shaft Collar Sizes Chart (Metric Series)
PART NUMBER STEELPART NUMBER ALUMINUMPART NUMBER STAINLESS STEELBORE B (mm)OUTER DIAM. OD (mm)WIDTH W (mm)FORGED CLAMP SCREW
MSP-3-FMSP-3-AMSP-3-SS3169M3X8
MSP-4-FMSP-4-AMSP-4-SS4169M3X8
MSP-5-FMSP-5-AMSP-5-SS5169M3X8
MSP-6-FMSP-6-AMSP-6-SS6169M3X8
MSP-7-FMSP-7-AMSP-7-SS7189M3X8
MSP-8-FMSP-8-AMSP-8-SS8189M3X8
MSP-9-FMSP-9-AMSP-9-SS9249M3X10
MSP-10-FMSP-10-AMSP-10-SS10249M3X10
MSP-11-FMSP-11-AMSP-11-SS112811M4X12
MSP-12-FMSP-12-AMSP-12-SS122811M4X12
MSP-13-FMSP-13-AMSP-13-SS133011M4X14
MSP-14-FMSP-14-AMSP-14-SS143011M4X14
MSP-15-FMSP-15-AMSP-15-SS153413M5X16
MSP-16-FMSP-16-AMSP-16-SS163413M5X16
MSP-17-FMSP-17-AMSP-17-SS173613M5X16
MSP-18-FMSP-18-AMSP-18-SS183613M5X16
MSP-19-FMSP-19-AMSP-19-SS194015M6X16
MSP-20-FMSP-20-AMSP-20-SS204015M6X16
MSP-21-FMSP-21-AMSP-21-SS214215M6X16
MSP-22-FMSP-22-AMSP-22-SS224215M6X16
MSP-23-FMSP-23-AMSP-23-SS234515M6X16
MSP-24-FMSP-24-AMSP-24-SS244515M6X16
MSP-25-FMSP-25-AMSP-25-SS254515M6X16
MSP-26-FMSP-26-AMSP-26-SS264815M6X16
MSP-28-FMSP-28-AMSP-28-SS284815M6X16
MSP-30-FMSP-30-AMSP-30-SS305415M6X18
MSP-32-FMSP-32-AMSP-32-SS325415M6X18
MSP-34-FMSP-34-AMSP-34-SS345715M6X18
MSP-35-FMSP-35-AMSP-35-SS355715M6X18
MSP-36-FMSP-36-AMSP-36-SS365715M6X18
MSP-38-FMSP-38-AMSP-38-SS386015M6X18
MSP-40-FMSP-40-AMSP-40-SS406015M6X18
MSP-42-FMSP-42-AMSP-42-SS427319M8X25
MSP-45-FMSP-45-AMSP-45-SS457319M8X25
MSP-48-FMSP-48-AMSP-48-SS487819M8X25
MSP-50-FMSP-50-AMSP-50-SS507819M8X25
MSP-54-FMSP-54-SS548219M8X25
MSP-55-FMSP-55-SS558219M8X25
MSP-60-FMSP-60-SS608819M8X25
MSP-65-FMSP-65-SS659319M8X25
MSP-70-FMSP-70-SS709819M8X25
MSP-75-FMSP-75-SS7510319M8X25
MSP-80-FMSP-80-SS8010819M8X25

▍Advantages of Using the Two Piece Shaft Collars

There are several advantages to using two piece shaft collars in mechanical applications:

1. Easy Installation: Two piece shaft collars are simple and easy to install, requiring only basic tools and minimal expertise. They can be quickly and easily adjusted or removed when necessary.

2. Precise Positioning: Two piece shaft collars provide precise positioning of components on a shaft, ensuring accurate alignment and preventing slippage or misalignment. This can help to improve the efficiency and performance of the system.

3. High Clamping Force: Two piece shaft collars can provide high clamping force, ensuring a secure and reliable hold on the shaft. This can help to prevent damage to the shaft or other components and reduce the risk of accidents or failures.

4. Versatility: Two piece shaft collars are available in a wide range of sizes, materials, and configurations, making them suitable for a variety of applications. They can be used with different types of shafts, such as round, square, or hexagonal.

5. Cost-effective: Two piece shaft collars are typically less expensive than other types of shaft collars, such as one piece shaft collars or split shaft collars. This makes them a cost-effective solution for many applications.

Overall, two piece shaft collars are a versatile and cost-effective way to secure components to a rotating shaft. They are easy to install and remove, provide a high level of holding power, and are available in a wide variety of sizes and materials.

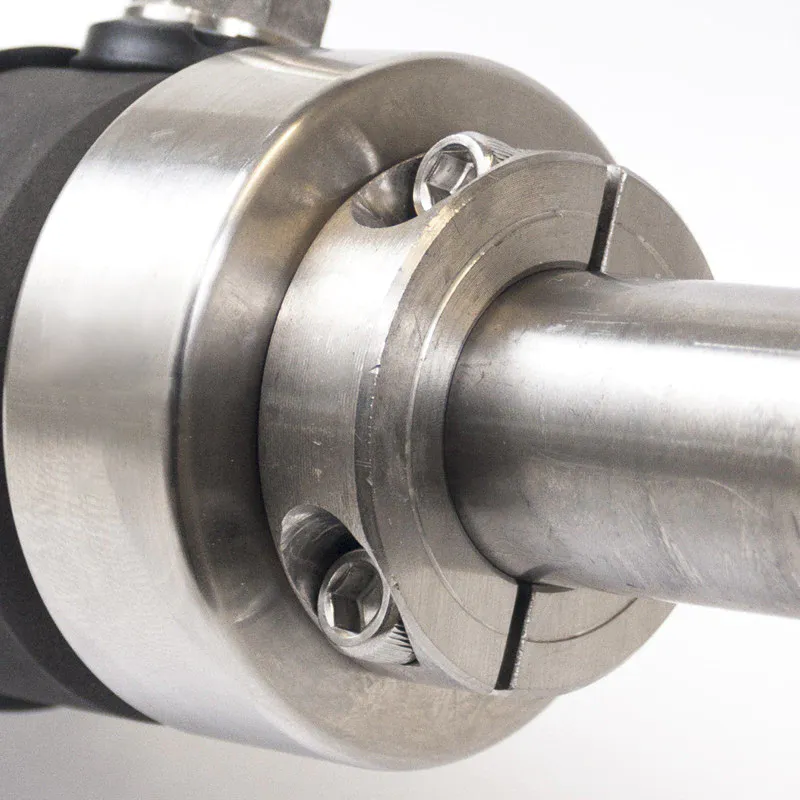

Using the Two Piece Shaft Collar AdvantagesUsing the Two Piece Shaft Collar Advantages

▍Two Piece Clamping Shaft Collar Common Applications

Two piece clamping shaft collars are commonly used in various industrial and mechanical applications where a component needs to be held in place on a shaft. Here are some common applications of two piece clamping shaft collars:

(1) Robotics: In robotics, two piece clamping shaft collars are used to hold components such as gears, pulleys, and bearings in place on a shaft. They provide a secure and precise fit, ensuring that the component doesn't slip or move during operation.

(2) Conveyor systems: Two piece clamping shaft collars are commonly used in conveyor systems to hold rollers and other components in place on the conveyor shaft. They help to prevent the components from slipping or moving during operation, ensuring smooth and efficient operation of the conveyor system.

(3) Agriculture: In agricultural machinery, two piece clamping shaft collars are used to secure components such as sprockets, pulleys, and bearings on the shafts of equipment such as tractors, harvesters, and planters. They provide a secure and reliable connection, ensuring that the machinery operates smoothly and efficiently.

(4) Industrial machinery: Two piece clamping shaft collars are used in various types of industrial machinery, such as pumps, compressors, and generators. They help to hold components such as impellers, rotors, and bearings in place on the shaft, ensuring that the machinery operates smoothly and efficiently.

(5) Automotive: Two piece clamping shaft collars are used in automotive applications such as engine components, transmissions, and suspension systems. They help to secure components such as gears, pulleys, and bearings on the shafts, ensuring that the vehicle operates smoothly and safely.

Overall, two piece clamping shaft collars are a versatile and reliable solution for holding components in place on a shaft. They are used in a wide range of industries and applications and provide a secure and precise fit that helps to ensure the efficient and safe operation of machinery and equipment.

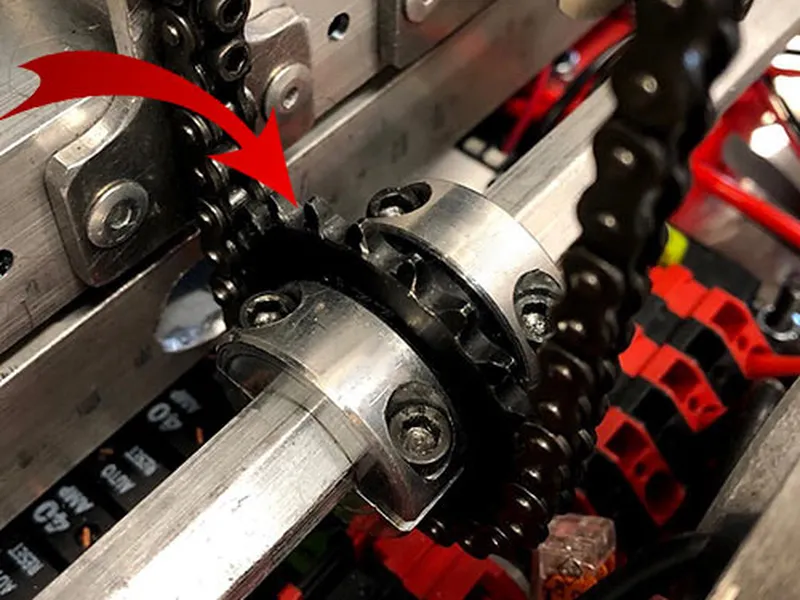

Two Piece Clamping Shaft Collar Common ApplicationsTwo Piece Clamping Shaft Collar Common Applications

▍Two Piece Shaft Collar Manufacturers & Suppliers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.

Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.

As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, HZPT has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

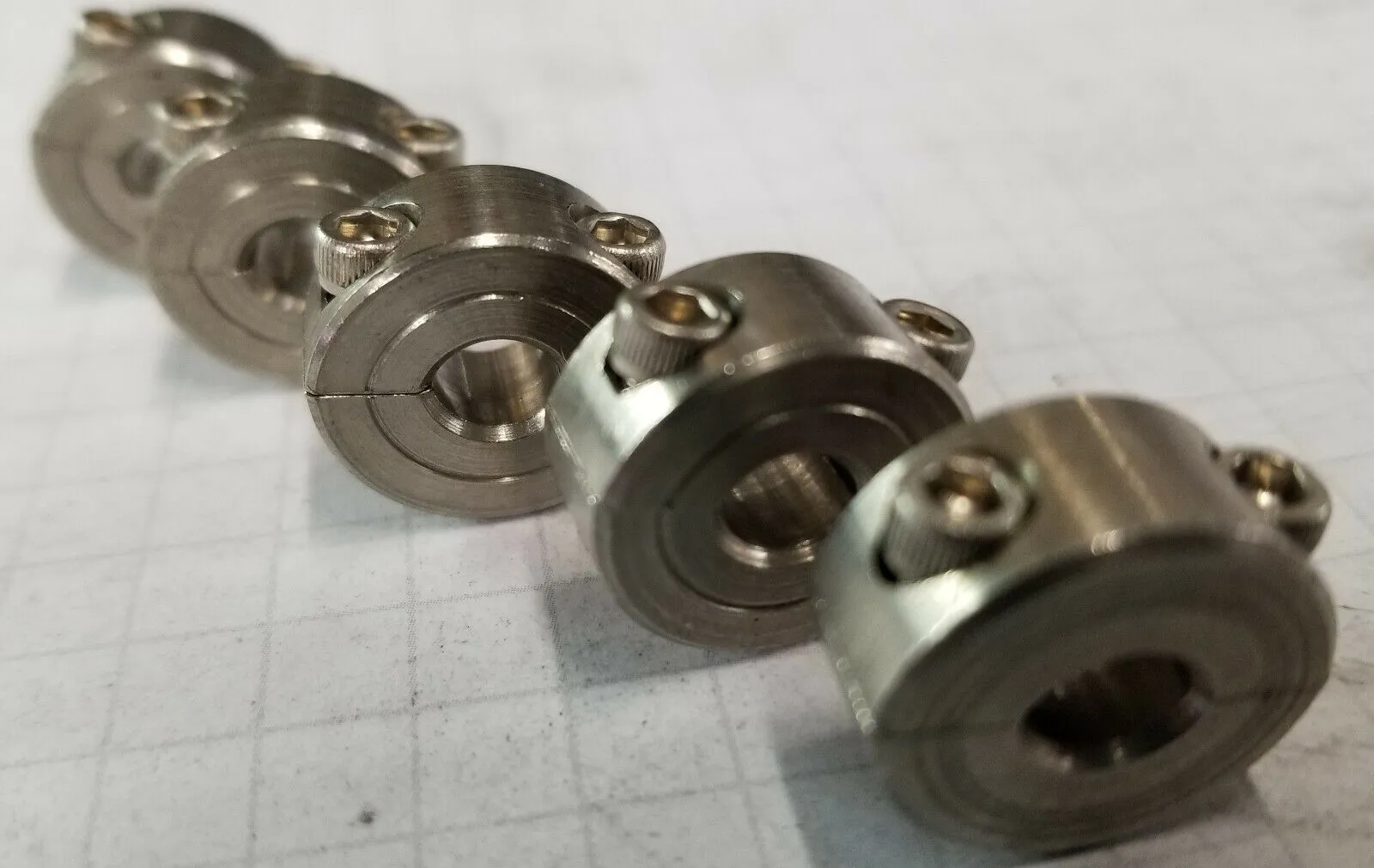

Two Piece Shaft Collar Manufacturers

We Also Provide Other Types of Shaft Collars

As a service to our customers, we offer our vast manufacturing experience and talents to meet special needs with custom shaft collars. Our in-house engineering team has extensive experience designing and custom engineering solutions to meet your requirements. If you do not see what you are looking for in our standard shaft collar line, please inquire about custom options.

Examples of Custom Shaft Collars Work:

  • Custom bore sizes, tolerances, and geometry
  • Special material or hardware requests.
  • Custom color or finish
  • Balanced designs
  • Machined flats and mounting screws
  • Set collars with extra screws
  • And Many Others...

Shaft Collar Manufacturers

▍FAQ

Q1: What is a two piece shaft collar?
A: A two piece shaft collar is a type of mechanical collar that is designed to fit around a shaft. It consists of two separate pieces that are clamped together around the shaft using screws or bolts.

Q2: What are the benefits of using a two piece shaft collar?
A: Two piece shaft collars are easy to install and remove, and they can be adjusted without having to remove the collar from the shaft. They are also more flexible than one piece shaft collars, as the two pieces can be adjusted to fit different shaft diameters.

Q3: What materials are two piece shaft collars made from?
A: Two piece shaft collars can be made from a variety of materials, including steel, stainless steel, aluminum, and plastic. The material used will depend on the application and the environment in which the shaft collar will be used.

Q4: What sizes are available for two piece shaft collars?
A: Two piece shaft collars come in a range of sizes, typically from 1/8 inch to 6 inches in diameter. Some manufacturers may offer larger sizes as well.

Q5: Can two piece shaft collars be used in high-speed applications?
A: Yes, two piece shaft collars can be used in high-speed applications, but it is important to choose a shaft collar that is designed for the specific application. Collars made from materials such as steel or stainless steel are typically better suited for high-speed applications.

Q6: How do I choose the right two piece shaft collar for my application?
A: When selecting a two piece shaft collar, consider the shaft diameter, the load capacity, the operating environment, and any other specific requirements of the application. It is also important to choose a shaft collar from a reputable manufacturer that meets industry standards and regulations.

Q7: How do I install a two piece shaft collar?
A: To install a two piece shaft collar, first loosen the screws or bolts on the collar so that the two pieces are separate. Place the shaft collar around the shaft and adjust the position as needed. Tighten the screws or bolts evenly until the shaft collar is securely clamped in place.

Q8: Can a two piece shaft collar be reused?
A: Yes, a two piece shaft collar can be reused if it is in good condition and has not been damaged during use or removal. It is important to inspect the collar for any signs of wear or damage before reusing it.

Q9: What is the difference between a two piece shaft collar and a one piece shaft collar?
A: A one piece shaft collar is a solid ring that is fitted around a shaft and held in place by set screws. A two piece shaft collar, as the name suggests, consists of two separate pieces that are clamped together around the shaft. Two piece shaft collars offer greater flexibility and ease of adjustment, while one piece shaft collars are typically more rigid and secure.
