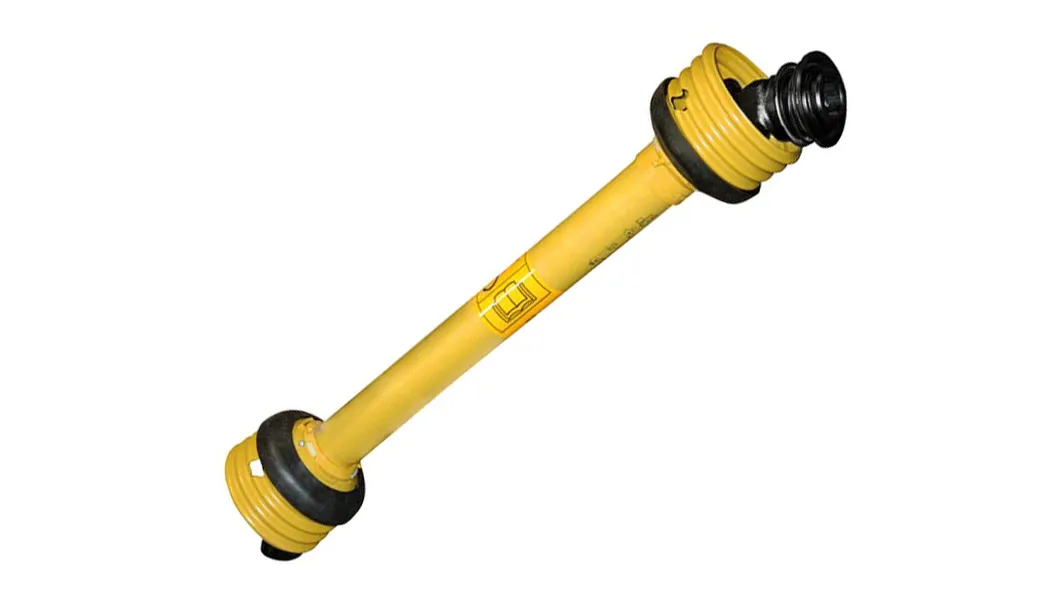

W2100 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

W2100 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The W 2100 series PTO shaft is a Power Take-Off (PTO) shaft designed for agricultural and industrial applications. It is built to withstand heavy-duty operations and transfer power from a machine's engine to a connected implement, such as a rotary mower or sprayer. The W 2100 series PTO shaft has a torque capacity of up to 214 Nm and comes with a range of safety features, including a telescopic tube and safety guards.

▍Specifications of W2100 Series PTO Shaft

▍W2100 Series PTO Shaft Parts

The W2100 series PTO shaft is a common driveline component used in many agricultural and industrial applications. Some of the main parts of a W2100 series PTO shaft include:

1. Tractor Yoke: This is the part that connects the PTO shaft to the tractor's PTO driveline.
2. Implement Pin Yoke: This is the part that connects the PTO shaft to the implements which transfer the power.
3. Telescopic Tube: This is an adjustable part of the PTO shaft that allows for changes in the distance between the tractor and the implement.
4. Safety Guards: These are protective covers that prevent contact with the rotating parts of the PTO shaft.
5. Friction Clutch: This is a feature designed to help prevent damage to equipment in the event of an overload.
6. Universal Joint: This is a flexible coupling that allows for movement between the tractor and implements.
7. Locking Mechanism: This is a component that ensures the PTO shaft remains securely attached to the tractor and implement during use.
8. Bearings: These are the components that allow for the smooth rotation of the PTO shaft.

▍W2100 Series PTO Shaft Yoke

	Dim. “A”	Dim. “B” mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	98.0	3.86”
	1 3/8” x 21 Spl.	98.0	3.86”
Quick Disconnect Yoke	1 3/8” x 6 Spl.	89.0	3.5”
	1 3/8” x 21 Spl.	89.0	3.5”

▍W2100 Series PTO Shaft Cross Kit

	Dim. “A” mm	in.	Dim. “B” mm	in.
	22.0	.87”	54.8	2.158”

▍W2100 Series PTO Shaft Inner Yoke

	Dim. “A” mm	in.	Dim. “B” mm	in.
With Bearing Groove	23.8	.94”	66.0	2.6”

▍W2100 Series PTO Shaft Outer Yoke

	Dim. “A” mm	in.	Dim. “B” mm	in.
With Bearing Groove	30	1.18”	66.0	2.6”

▍W2100 Series PTO Shaft Inner Tube

	Length m	in.
	1.5	59.06”
	1.0	39.37”

▍W2100 Series PTO Shaft Roll Pin

	Dim. “A” mm	in.	Dim. “B” mm	in.
	8.0	.31”	50.0	1.97”

▍W2100 Series PTO Shaft Outer Tube

	Length m	in.
	1.5	59.06”
	1.0	39.37”

▍W2100 Series PTO Shaft Implement Yoke

	Dim. “A”		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round Bore With Keyway & Set Screw	25.0	.98”	78.0	3.07”	8.0	.31”
	30.0	1.18”	78.0	3.07	8.0	.31”
	Dim. “A”		Dim. “B”		Pinhole
	mm	in.	mm	in.	mm	in.
Shear Pin With Pin Hole	31.8	1.25”	78.0	3.07”	6.35	.25”
	30.0	1.18”	78.0	3.07”	10.00	0.394

▍Benefits of W2100 Series PTO Shaft

The W2100 series PTO shaft offers several benefits:

Durable and Long-lasting: The W2100 series PTO shaft is built to withstand heavy-duty operations, which makes it a reliable choice for agricultural and industrial operations.

Versatile: The W2100 series PTO shaft is designed to fit a wide range of agricultural equipment and machinery, which makes it a versatile choice for farmers and other operators.

Safety features: The W2100 series PTO shaft comes with a range of safety features, such as telescopic tubes and safety guards to prevent accidents.

Interchangeable: The W2100 series PTO shaft is designed to be easily interchangeable with other PTO shafts of similar size, which makes it a convenient choice for operators who need to switch out their PTO shafts frequently.

High Torque Capacity: The W2100 series PTO shaft has a torque capacity of up to 214 Nm, which makes it capable of handling heavy loads and demanding applications.

Maintenance: The W2100 series PTO shaft requires minimal maintenance, which makes it a cost-effective and hassle-free choice for operators.

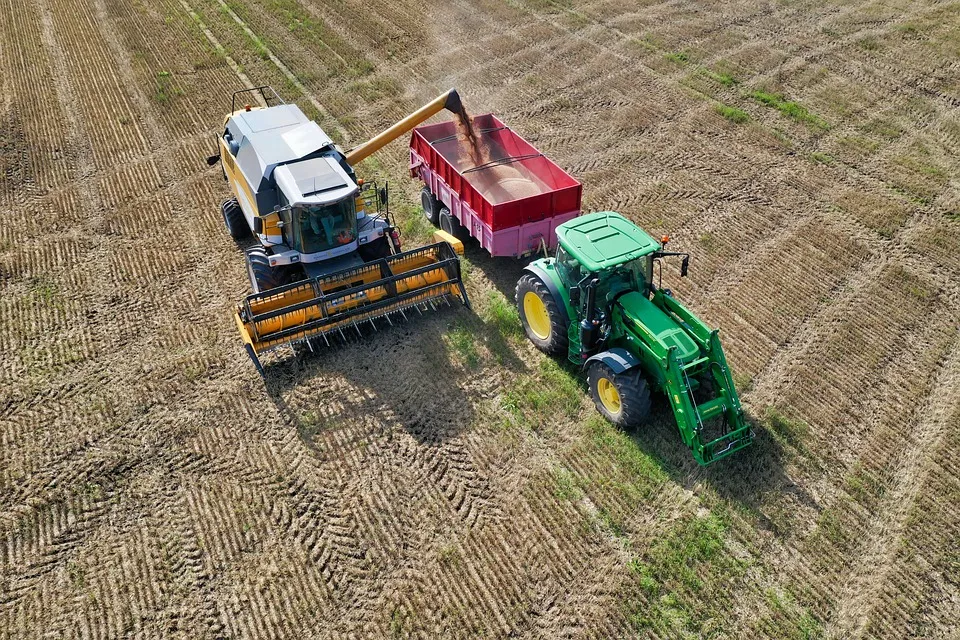

▍W2100 Series PTO Shaft Applications Area

The W2100 series PTO shaft is mainly used for agricultural equipment, such as:

Tractors: The W2100 series PTO shaft is commonly used in tractors to power attachments such as mowers, tillers, harvesters, and other implements.

Harvesters: The W2100 series PTO shaft is used in harvesting equipment to power the cutting heads, threshers, and other machinery.

Planters: The W2100 series PTO shaft is used in planters to power the seed drills.

Balers: The W2100 series PTO shaft is used in balers to power the hay balers.

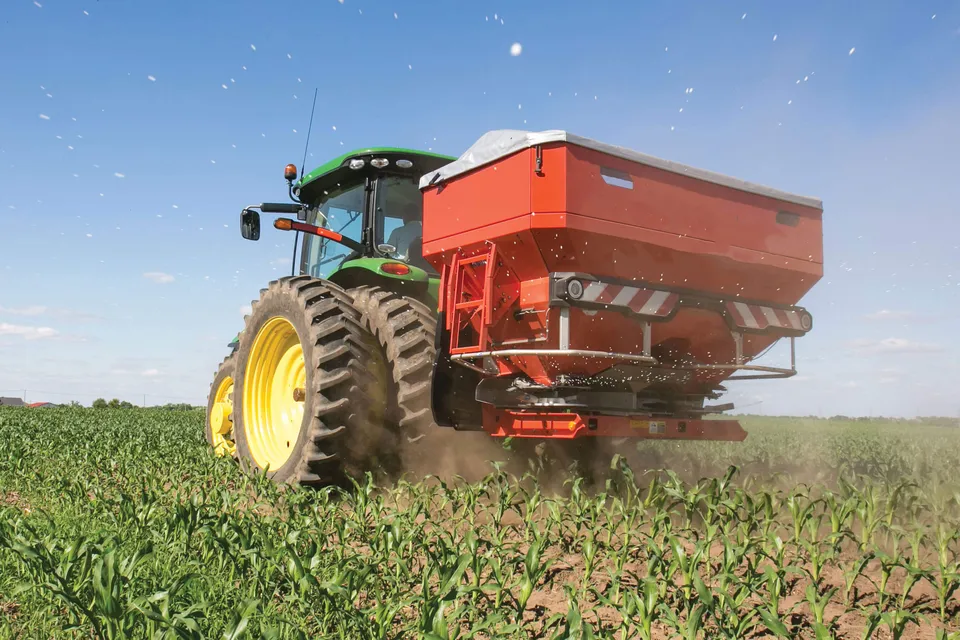

Spreaders: The W2100 series PTO shaft is used in spreaders to power the manure or fertilizer spreaders.

Irrigation Equipment: The W2100 series PTO shaft is used in irrigation equipment to power pumps and other equipment.

In addition to agricultural applications, the W2100 series PTO shaft can also be used in non-agricultural applications, such as powering generators, compressors, and other machinery. The versatility of the W2100 series PTO shaft makes it a popular choice for many different types of applications.

▍We Also Offer Agricultural Gearboxes for PTO Shaft

Agricultural gearboxes are an essential part of the PTO shaft assembly, which helps transfer power from the engine to the implement. Agricultural gearboxes are designed to provide the necessary speed and torque for different types of agricultural applications. These gearboxes come in various designs and sizes to suit specific agricultural operations. Here are some types of agricultural gearboxes for PTO shafts:

1. Standard Duty Gearbox: This type of agricultural gearbox is designed for light-duty applications such as mowers, tillers, and other small equipment. It has a low power output and a smaller body size.

2. Medium Duty Gearbox: This type of agricultural gearbox is designed for more demanding applications such as large rotary cutters and finishing mowers. It has a higher power output and can handle heavier loads.

3. Heavy Duty Gearbox: This type of agricultural gearbox is designed for heavy-duty applications such as large-scale agricultural equipment and forestry machinery. It has the highest power output and can handle the heaviest loads.

4. Angle Gearbox: This type of agricultural gearbox is designed to transfer power at an angle from the implement to the PTO shaft. It is commonly used in equipment such as post hole diggers and other applications that require an angled transmission.

5. Right Angle Gearbox: This type of agricultural gearbox is designed for applications that require power to be transferred at a right angle. It is commonly used in hay balers, spreaders, and other applications.

In summary, agricultural gearboxes for the PTO shafts are designed to provide the necessary speed and torque for different types of agricultural applications, and they come in various sizes and designs to fit the specific needs of different agricultural machines.
