The W2300 series PTO shaft is a type of power take-off (PTO) shaft that is used to transfer mechanical power from a tractor or other power source to an attached implement such as a mower, baler, or tiller. The W2300 series PTO shaft is particularly designed for use in heavy-duty applications, such as large agricultural machinery or industrial equipment, where high torque and horsepower are required. The W2300 series PTO shaft is available in a variety of lengths and configurations to meet the specific needs of different applications. It is also available with a variety of features, such as universal joints, overload clutches, and guards.

The W2300 series PTO shaft is characterized by its size and strength. It has a 2-3/8 inch diameter and is rated for up to 190 horsepower, making it capable of handling demanding tasks. The PTO shaft is also designed to be durable and long-lasting, with high-quality materials and precision engineering that ensure reliable performance in tough conditions. Overall, the W2300 series PTO shaft is an important component in many agricultural and industrial operations, providing a reliable and efficient way to transfer power from a tractor or other power source to an attached implement.

Specifications of W2300 Series PTO Shaft

Application range	Mowers Harvesters Seeders
Properties	Tractor-side 1–3/8" (6) shaft collar kit Lubrication interval from 50 to 100 hours Fulfills EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of	Semi-clutch axle with shielding Declaration of conformity Instruction manual

W2300 Series PTO Shaft Parts

The W2300 series PTO shaft is composed of several parts that work together to transfer mechanical power from a tractor or other power source to an attached implement. Here are the main components of a typical W2300 series PTO shaft:

PTO Shaft Tube: The shaft tube is the main structural component of the PTO shaft, consisting of a hollow metal tube that rotates to transfer power. The W2300 series PTO shaft tube is made of high-quality steel and is designed to withstand high torque and horsepower.

Universal Joints: Universal joints, also known as PTO shaft U joints, are mechanical components that allow the PTO shaft to transfer power at an angle. The W2300 series PTO shaft typically contains two or more PTO shaft universal joints, depending on the length and configuration of the shaft.

PTO Shaft Yoke: The yoke is a metal component that connects the PTO shaft to the tractor or other power source. The W2300 series PTO shaft yoke is designed to fit securely onto the tractor's PTO stub shaft.

PTO Shaft Safety Shield: The safety shield is an important component of any PTO shaft, as they help prevent accidents and protect operators from injury. The W2300 series PTO shaft typically includes safety devices such as a shear bolt or slip clutch, which are designed to break or slip in the event of an overload or other problem.

PTO Shaft Bearings: Bearings are used in the PTO shaft to reduce friction and ensure smooth rotation. The W2300 series PTO shaft typically contains one or more high-quality bearings, which are designed to withstand the high loads and speeds associated with heavy-duty applications.

PTO Shaft Locking Collar: The locking collar is used to secure the PTO shaft to the tractor or machinery.

Overall, the W2300 series PTO shaft is a complex mechanical component that requires careful design and precision engineering to ensure reliable performance in demanding applications.

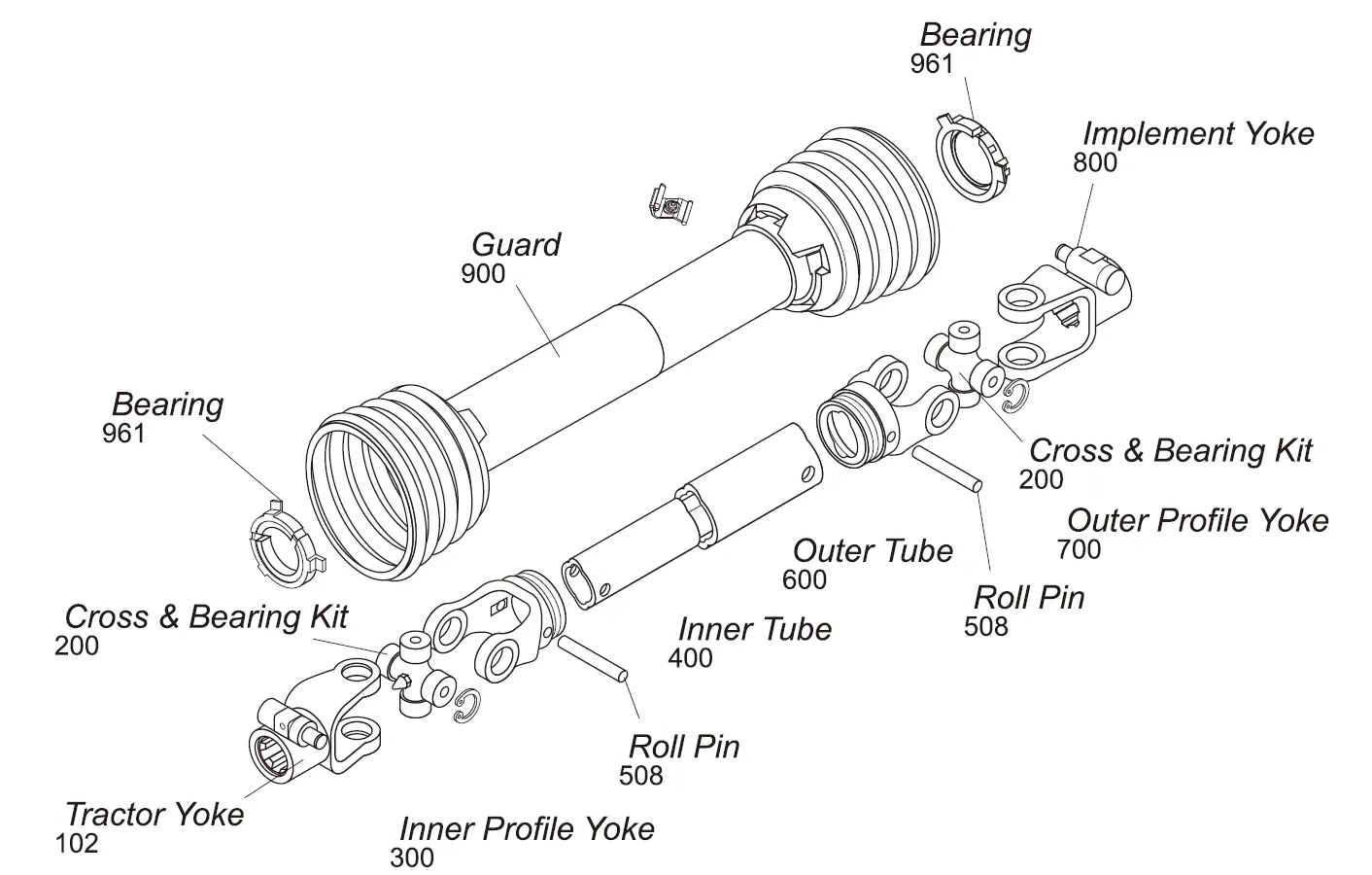

W2300 Series PTO Shaft Parts Diagram:

W2300 Series PTO Shaft Tractor Yoke

	Dim. “A”	Dim. “B” mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	113.0	4.45”
	1 3/8” x 21 Spl.	113.0	4.45”
Quick Disconnect	1 3/8” x 6 Spl.	107.0	4.21”
	1 1/8” Hex	107.0	4.21”
	1 3/8” x 21 Spl.	107.0	4.21”

	Dim. “A” Bore	Dim. “B” mm	in.	Shear Bolt
Ball Shear	1 3/8” x 6 Spl.	141.0	5.54”	3/8” - 16 Gr. 5
	1 3/4” x 20 Spl.	154.0	6.06”	3/8” - 16 Gr. 5
	1 3/8” x 21 Spl.	141.0	5.54”	3/8” - 16 Gr. 5

W2300 Series PTO Shaft Cross and Bearing Kit

	Dim. “A” mm	in.	Dim. “B” mm	in.
	27.0	1.06”	74.6	2.94”

W2300 Series PTO Shaft Inner Profile Yoke

	Dim. “A” Bore mm	in.	Dim. “B” mm	in.
With Bearing Groove	34.5	1.36”	85.0	3.35”
	39.5	1.56”	85.0	3.35”

W2300 Series PTO Shaft Outer Profile Yoke

	Dim. “A” Bore mm	in.	Dim. “B” mm	in.
With Bearing Groove	41.3	1.63”	85.0	3.35”
	48.0	1.89”	90.0	3.54”

W2300 Series PTO Shaft Inner Tube

	Length mm	in.
	1.5	59.06”
	1.0	39.37”

W2300 Series PTO Shaft Roll Pin

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	10.0	.39”	65.0	2.56”

W2300 Series PTO Shaft Outer Tube

	Length mm	in.
	1.5	59.06”
	1.0	39.37”

W2300 Series PTO Shaft Implement Yoke

	Dim. “A”		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round Bore With Keyway & Set Screw	30.0	1.18”	95.0	3.74”	8.0	.31”
	31.8	1.25”	95.0	3.74”	6.4	.25”
	34.9	1.38”	95.0	3.74”	8.0	.31”
	38.1	1.50”	95.0	3.74”	9.5	.38”
	35.0	1.38”	95.0	3.74”	10.0	.39”
	Dim. “A”		Dim. “B”		Pinhole
	mm	in.	mm	in.	mm	in.
Shear Pin With Pin Hole	31.8	1.25”	95.0	3.74”	6.35	.25”
	30.0	1.18”	95.0	3.74”	10.0	.39”
	35.0	1.38”	95.0	3.74”	12.90	.50”

W2300 Series PTO Shaft Guard

Overall Driveline Length	Bearing Kit (2 per kit)
48”	961-0251
60”	961-0251
Guard Chain Kit
Easy Lock Replacement Kit

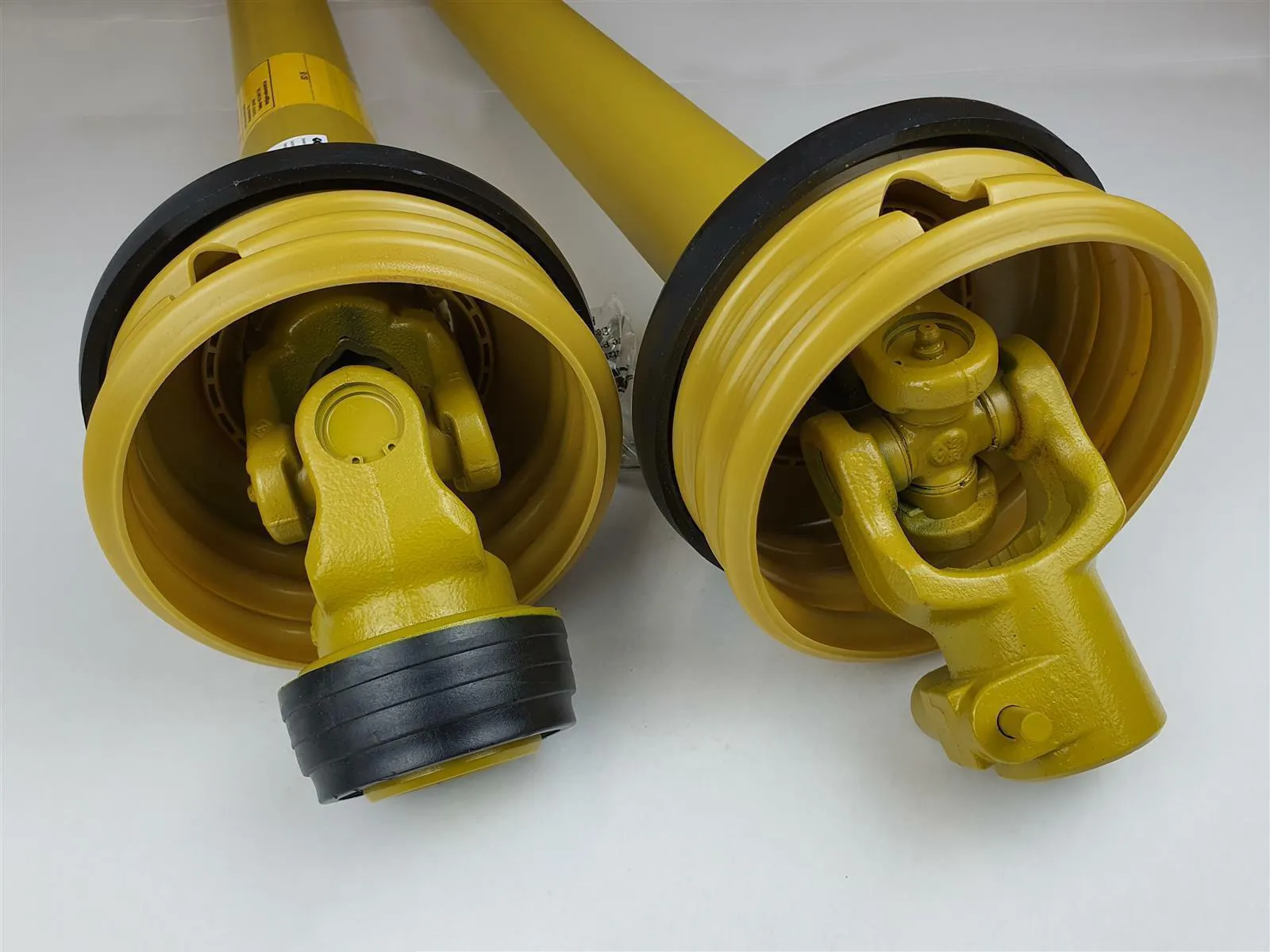

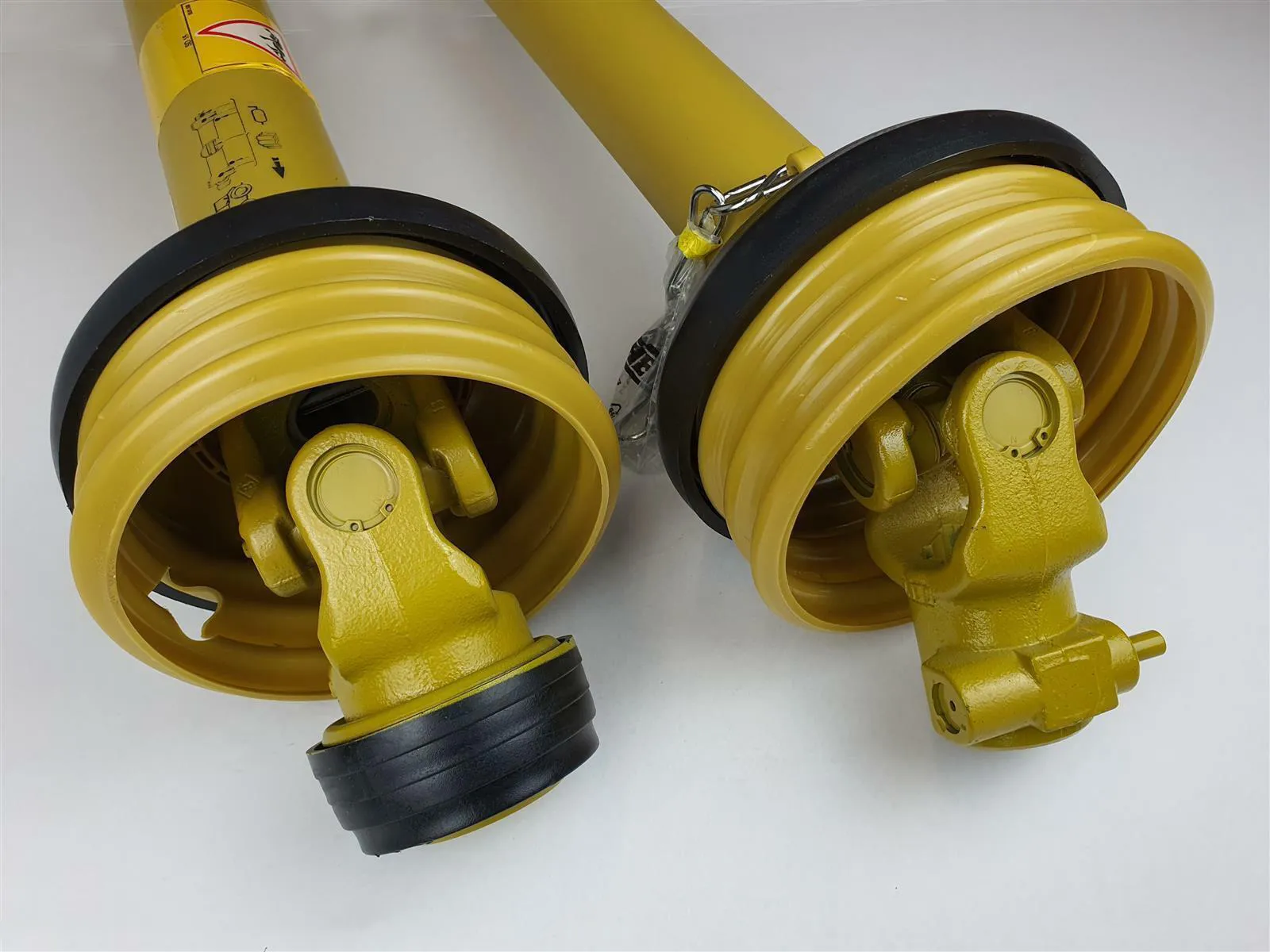

Advantages of W2300 Series PTO Shafts

The W2300 series PTO shaft offers several advantages over other types of PTO shafts. Here are some of the main benefits of using a W2300 series PTO shaft:

1. High Horsepower Capacity: The W2300 series PTO shaft is designed for heavy-duty applications and has a high horsepower capacity of up to 190 horsepower. This makes it ideal for use with large agricultural machinery and industrial equipment.

2. Durable and Long-Lasting: The W2300 series PTO shaft is made from high-quality materials and is designed to be durable and long-lasting. It is capable of withstanding the high loads and speeds associated with heavy-duty applications, which helps to reduce maintenance costs and downtime.

3. Smooth and Efficient Power Transfer: The W2300 series PTO shaft is designed to transfer power smoothly and efficiently from the tractor or other power source to the attached implement. This helps to reduce wear and tear on both the PTO shaft and the implement, which can extend the life of both components.

4. Versatile: The W2300 series PTO shaft is compatible with a wide range of implements, including mowers, balers, tillers, and more. This makes it a versatile choice for farmers, ranchers, and other professionals who need to use multiple implements with their tractors.

5. Safety Features: The W2300 series PTO shaft includes safety features such as shear bolts or slip clutches, which are designed to break or slip in the event of an overload or other problem. This helps to prevent accidents and protect operators from injury.

Overall, the W2300 series PTO shaft is a reliable and efficient choice for transferring power from a tractor or other power source to an attached implement. Its high horsepower capacity, durability, smooth power transfer, versatility, and safety features make it a popular choice among farmers, ranchers, and other professionals who need to use heavy-duty equipment.

W2300 Series PTO Shafts for Farm Equipment

The W2300 series PTO shaft is a popular choice for farm equipment due to its high horsepower capacity and durability. Here are some of the ways that the W2300 series PTO shaft can be used in farm equipment:

(1) Mowers: The W2300 series PTO shaft can be used to power a variety of mowers, including rotary cutters, flail mowers, and finishing mowers. Its high horsepower capacity and smooth power transfer make it ideal for cutting thick grass and other vegetation.

(2) Balers: The W2300 series PTO shaft can be used to power hay balers, which are used to compress and bale hay and other crops. Its high horsepower capacity and smooth power transfer make it ideal for powering the heavy-duty components of a baler.

(3) Tillers: The W2300 series PTO shaft can be used to power tillers, which are used to prepare the soil for planting. Its high horsepower capacity and smooth power transfer make it ideal for breaking up tough soil and preparing seedbeds.

(4) Spreaders: The W2300 series PTO shaft can be used to power manure spreaders and other types of agricultural spreaders. Its high horsepower capacity and smooth power transfer make it ideal for spreading heavy loads of material over large areas.

(5) Harvesters: The W2300 series PTO shaft can be used to power harvesters, which are used to harvest crops such as corn, soybeans, and wheat. Its high horsepower capacity and smooth power transfer make it ideal for powering the heavy-duty components of a harvester.

Overall, the W2300 series PTO shaft is a versatile and reliable choice for powering a variety of farm equipment. Its high horsepower capacity, durability, and smooth power transfer make it ideal for demanding agricultural applications.

Agricultural Gearbox and W2300 Series PTO Shaft

An agricultural gearbox is a mechanical device that is used to control and transfer power from the tractor or other power source to the attached implement. The W2300 series PTO shaft is often used in conjunction with an agricultural gearbox to provide power to the gearbox and ultimately to the implement.

The W2300 series PTO shaft is designed to transfer power smoothly and efficiently from the tractor or other power source to the agricultural gearbox. It is capable of handling high torque and horsepower, which makes it ideal for use with heavy-duty agricultural equipment.

When used with an agricultural gearbox, the W2300 series PTO shaft can help to improve the efficiency and performance of the attached implement. The agricultural gearbox allows the operator to control the speed and direction of the implement, which can help to optimize performance and reduce wear and tear on both the PTO shaft and the implement.

In addition, the W2300 series PTO shaft can help to improve safety when used with an agricultural gearbox. The shaft includes safety features such as shear bolts or slip clutches, which are designed to break or slip in the event of an overload or other problem. This helps to prevent accidents and protect operators from injury.

Overall, the combination of an agricultural gearbox and the W2300 series PTO shaft is a reliable and efficient way to transfer power from a tractor or other power source to an attached implement. It is a popular choice among farmers and other agricultural professionals who need to use heavy-duty equipment in their daily operations.

China PTO Shaft Manufacturers

1. Professional manufacture and sales of agricultural machinery for more than 20 years.
2. "ever-power" & “HZPT” is produced in China.
3. Certification
4. With strict quality control, and provide the best service to customers.
5. We can provide high-quality and fast after-sales service.
6. Our aim: win-win.
7. We can design and produce PTO shafts according to customers' needs.
8. We have developed dozens of replacement parts for American tractors, and we can deliver the parts together with the machine.
