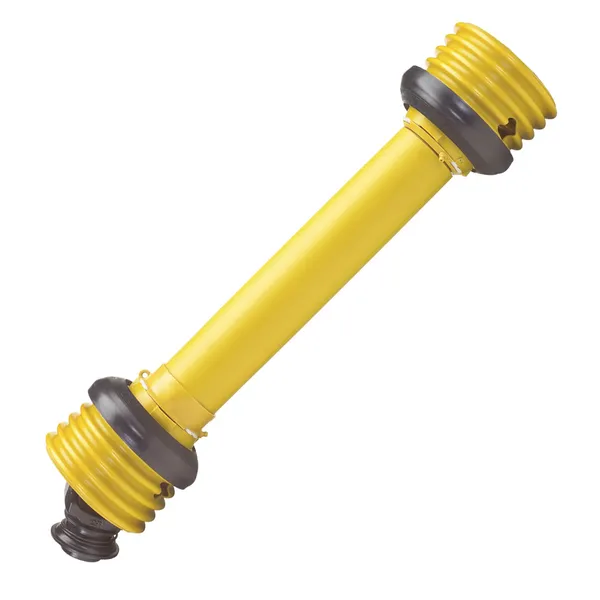

W400E Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The W400E series PTO shaft is a type of power take-off shaft used in agricultural equipment and other machinery. PTO shafts are used to transfer power from a tractor or other power source to an implement, such as a mower, tiller, or baler. The W400E series PTO shaft is designed for heavy-duty applications and is capable of transmitting high levels of power. The W400E series PTO shaft features a 1 3/8″ 6-spline yoke on both ends, which is a common size for many agricultural implements. It also has a maximum torque rating of 339 lb-ft and a maximum horsepower rating of 120 hp.

Get a Quote

W400E Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The W400E series PTO shaft is a type of power take-off shaft used in agricultural equipment and other machinery. PTO shafts are used to transfer power from a tractor or other power source to an implement, such as a mower, tiller, or baler. The W400E series PTO shaft is designed for heavy-duty applications and is capable of transmitting high levels of power.

The W400E series PTO shaft features a 1 3/8" 6-spline yoke on both ends, which is a common size for many agricultural implements. It also has a maximum torque rating of 339 lb-ft and a maximum horsepower rating of 120 hp. Overall, the W400E series PTO shaft is a reliable and durable option for farmers and other users who require high-performance power transmission components.

W400E Series PTO Shaft-Replacement of Walterscheid PTO Shaft

W400E Series PTO Shaft Specifications

TypeW400E SeriesAttachment type of profileAA
Shaft length (Lz)1010Outer profile length865
Item no. attachment WH-A321166Protective colorGELB
Item no. attachment WH-I134750Cone Type WH-ARP6
Torque of clutch in daNm135Chain WH-AK
Rotation speed max. RPM540 RPMNipple form/position I/A6A 6A
Form attachment WH-AKP1 3/8Chain WH-IK
Form attachment WH-IKP1 3/8Cross sealSTANDARD
SNR cone WH-A365386Clutch / One-way typeK92/4
Length of guard tube (inner)780Abbreviation attachment WH-AK-ZV
SNR cone WH-I365366Abbreviation attachment WH-IAZG
Cone type WH-IRP6Profile tube - outer type2A-P
Inner profile length880Profile tube - inner type1B-P
Length of guard tube (outer)795Guard typeSD25

W400E Series PTO Shaft Size Chart

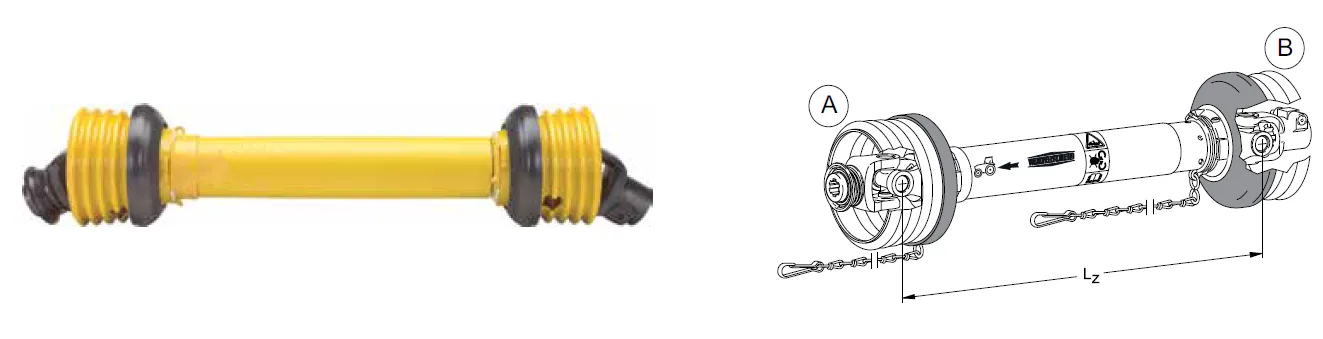

1. W400E Series PTO Drive Shaft

W400E Series PTO Drive Shaft

TypLengthGuardTubeAB
[mm]YokeBore dimYokeBore dim
W400E560SD251b/2aAZG1 3/8” x 6 SplineAG1 3/8” x 6 Spline
W400E710SD251b/2aAZG1 3/8” x 6 SplineAG1 3/8” x 6 Spline
W400E860SD251b/2aAZG1 3/8” x 6 SplineAG1 3/8” x 6 Spline
W400E1010SD251b/2aAZG1 3/8” x 6 SplineAG1 3/8” x 6 Spline
W400E1210SD251b/2aAZG1 3/8” x 6 SplineAG1 3/8” x 6 Spline

2. W400E Series PTO Shaft with Slip Clutch

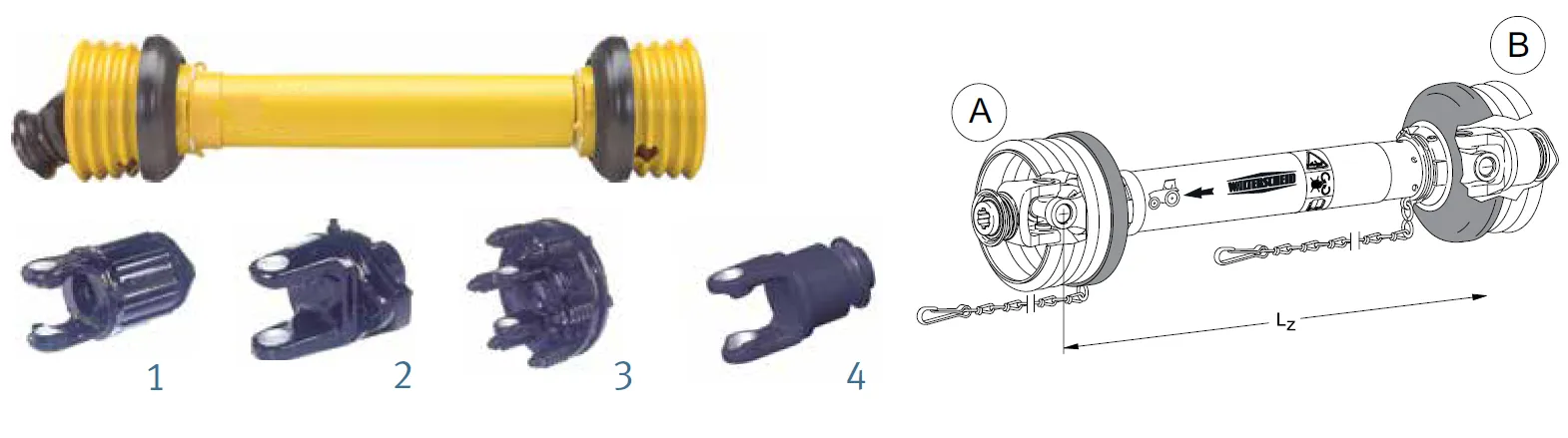

W400E Series PTO Shaft with Slip Clutch

TypeLengthGuardTubeAB
[mm]YokeBore dimSlip ClutchM [daNm]Bore dimLocking Collar
W400E1010SD251b/2aAZG1 3/8” x 6 SplineK90901 3/8” x 6 SplineKB
W400E1010SD251b/2aAZG1 3/8” x 6 SplineK90/41401 3/8” x 6 SplineKB
W400E1010SD251b/2aAZG1 3/8” x 6 SplineK92901 3/8” x 6 SplineZV
W400E1010SD251b/2aAZG1 3/8” x 6 SplineK92/41351 3/8” x 6 SplineZV
W400E1010SD251b/2aAZG1 3/8” x 6 SplineKB61/202131 3/8” x 6 SplineSTIFT
W400E1010SD251b/2aAZG1 3/8” x 6 SplineKB61/202501 3/8” x 6 SplineSTIFT
W400E1010SD251b/2aAZG1 3/8” x 6 SplineF5/1R -1 3/8” x 6 SplineZV

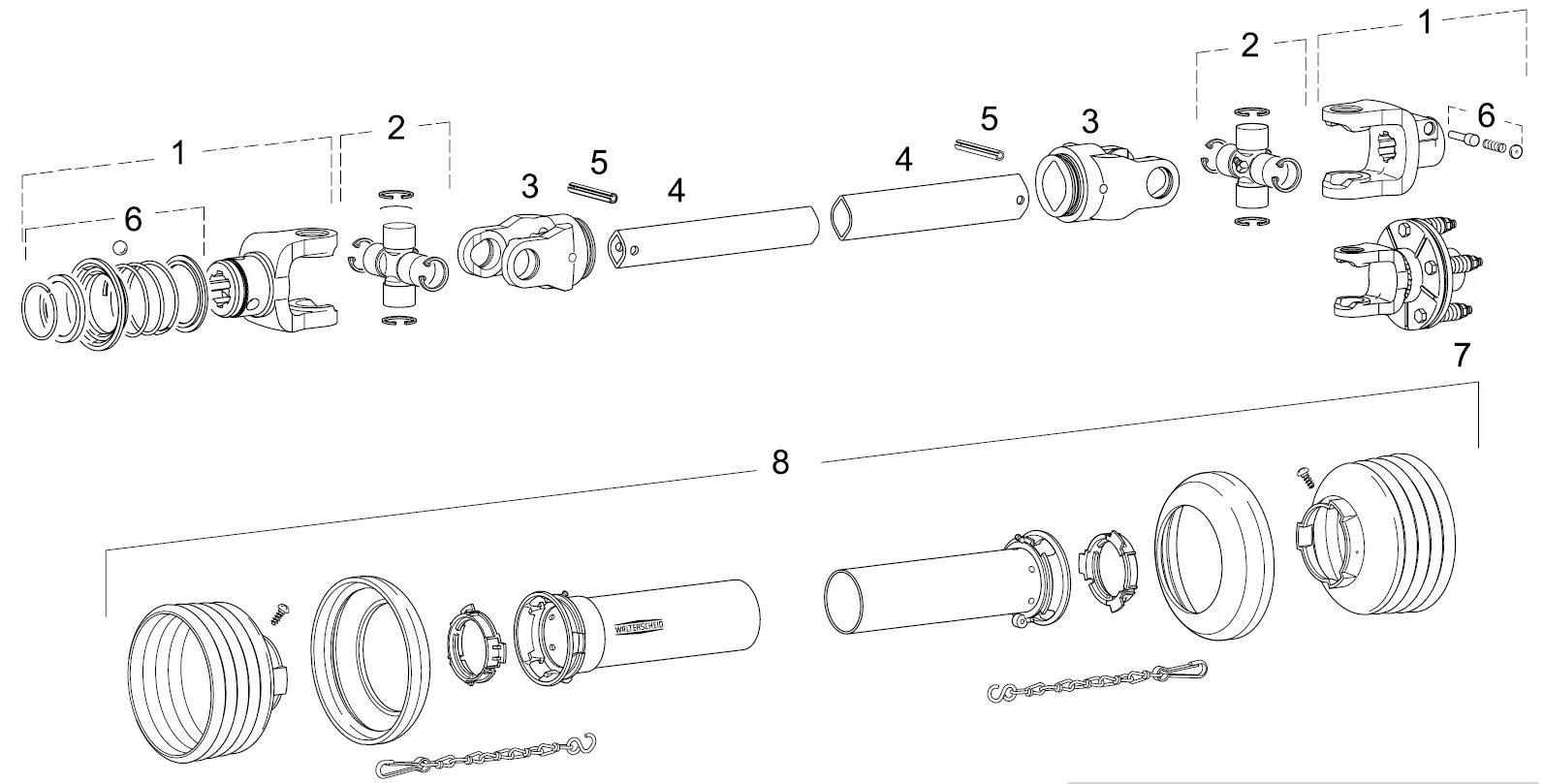

W400E Series PTO Shaft Parts Diagram

W400E Series PTO Shaft Parts Diagram

NumberParts Name
1Tractor Yoke
2Cross & Bearing Kit
3Inner Profile Yoke
4Inner Tube
5 Lock Pin
6Bearing
7Torque Limiter
8Guard

W200E Series PTO Shaft Dimensions

Size
Dimension
U jointYokeProfile matingsGuard tubes (SC/SD)

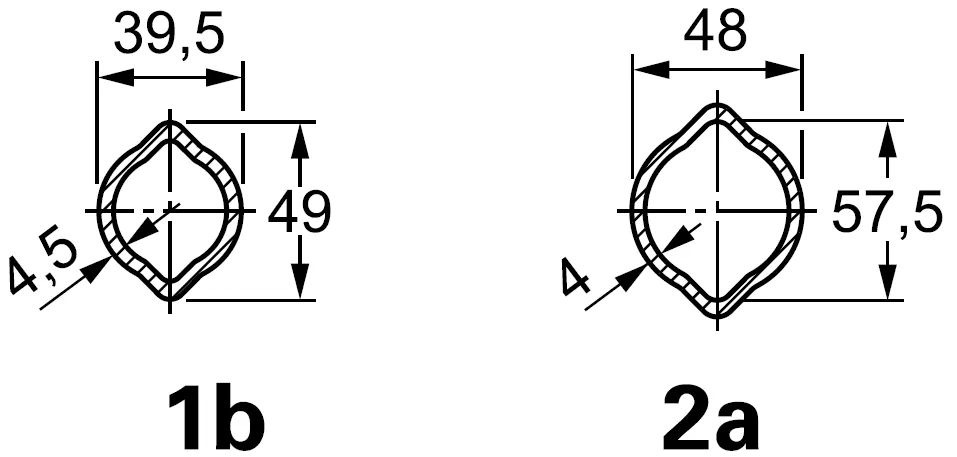

W400EW400E Series PTO Shaft U JointW400E Series PTO Shaft YokeW400E Series PTO Shaft Profile MatingsW400E Series PTO Shaft Guard Tubes

W400E Series PTO Shaft Guard Cones

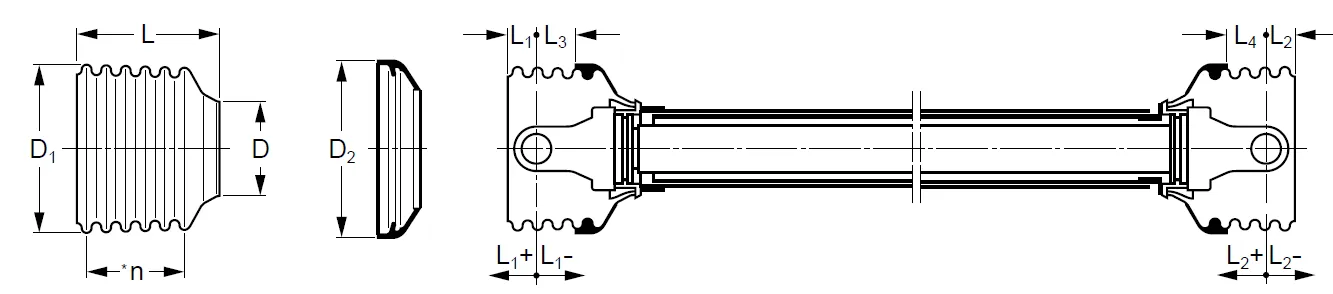

W400E Series PTO Shaft Guard Cones

SD 25/ SC 25Guard cones Reinforcing collar
DD1D2LL1L2L3L4*n Drawing No.Part No.Drawing No.Part No.
8515812938283646685.25.06365366
156200109991085.25.10365370
16582.85.00359471

W400E Series PTO Drive Shaft Yokes

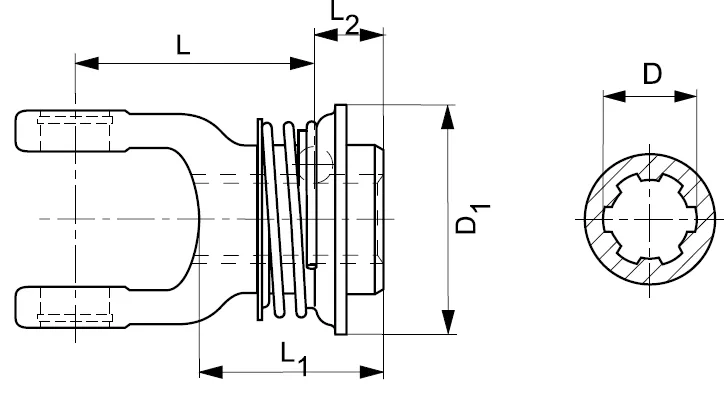

DD1D2LL1L2L3NN1G Drawing No.Part No.W400E Series PTO Drive Shaft Yoke (AZG)AZG
13/8" (6)5613112622421,535.10.00056699
13/8" (21)5613112623621,535.10.02019516
8 x 32 x 38 (8)5613112622423,235.10.108341087

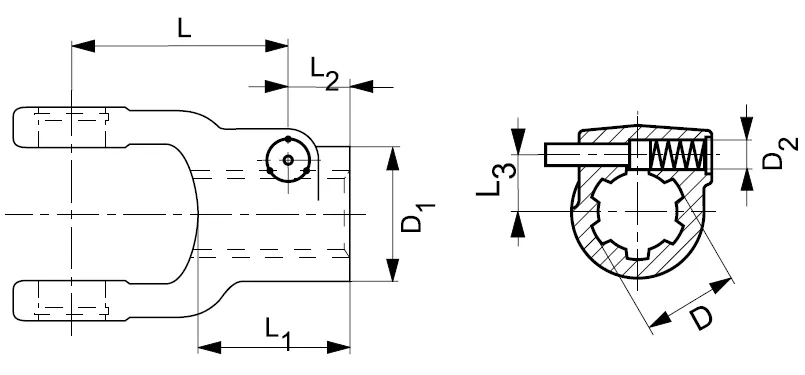

1 3/8" (6)84112622435.83.40134750W400E Series PTO Drive Shaft Yoke (AG)AG
1 3/8" (21)84112622435.83.41134751
8 x 32 x 38 (8)84112622435.83.42147616

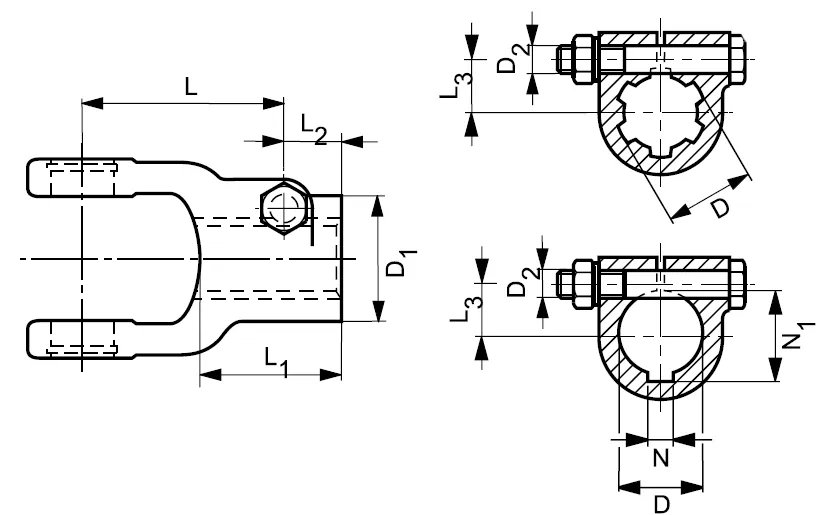

13/8" (6)56M12112622421,535.10.04319208W400E Series PTO Drive Shaft Yoke (AGKF)AGKF
13/8" (21)56M12112622421,535.10.06320684
35 H856M12112622421,510 JS938,335.18.06320687

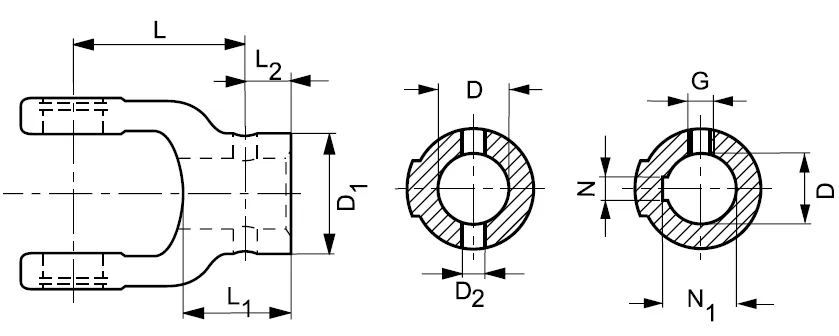

35 H866112622010 JS938,3M1235.24.12320695W400E Series PTO Drive Shaft Yoke (NG)NG
40 H866112622012 JS943,3M1235.24.10321910
13/8" (6)668 H12105552035.22.106320693
35 H86613 H12105552035.22.00320688
40 H86613 H12112622035.24.13320689
1b10 H1292422935.13.00019518W400E Series PTO Drive Shaft Yoke (RG)RG
2a10 H12102523935.14.00019519

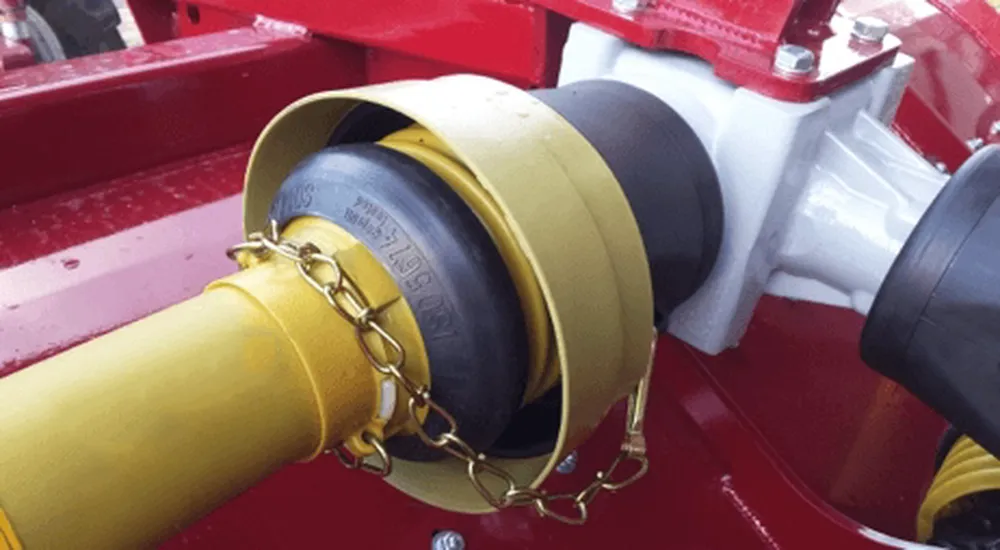

W400E Series PTO Shaft Installation Guide:

The installation of a W400E series PTO shaft should only be performed by a qualified technician or an experienced operator who has been trained in the proper procedures for PTO shaft installation. The following steps provide a general guide for installing a W400E Series PTO shaft:

1. Ensure that the tractor and implement are properly matched and that the implement is designed to operate with the tractor's PTO.

2. Inspect the tractor's PTO and implement the input shaft for any damage or wear. Replace any damaged components before installing the PTO shaft.

3. Position the tractor and implement so that they are lined up and level. Lower the implement's PTO input shaft to the ground.

4. Attach the PTO shaft to the tractor's PTO output shaft. Ensure that the PTO shaft is securely fastened and that any locking devices are engaged.

5. Measure the distance between the tractor's PTO output shaft and the implement's PTO input shaft. Adjust the length of the PTO shaft as needed to ensure a proper fit. The W400E series PTO shaft is telescoping, so it can be adjusted to fit a range of implement lengths.

6. Attach the PTO shaft to the implement's PTO input shaft. Ensure that the PTO shaft is securely fastened and that any locking devices are engaged.

7. Test the PTO shaft to ensure that it is properly installed and functioning correctly. Operate the tractor's PTO at a low RPM and observe the PTO shaft for any signs of vibration or wobbling. If any issues are detected, stop the tractor and implement immediately and inspect the PTO shaft for damage or misalignment.

W400E Series PTO Shaft Installation Guide

W400E Series PTO Shaft and Agricultural Gearbox

An agricultural gearbox is an important component in many farming operations, as it enables the efficient transfer of power from the tractor's PTO to the implement. The W400E series PTO shaft can be used in conjunction with various types of agricultural gearboxes to provide reliable and efficient power transfer.

When selecting an agricultural gearbox to use with the W400E series PTO shaft, it is important to consider the following factors:

Gear ratio: The gear ratio of the agricultural gearbox will determine the speed and torque of the power transmitted from the PTO shaft to the implement. It is important to select a gearbox with the appropriate gear ratio for the specific application.

Input and output shaft size: The size of the agricultural gearbox's input and output shafts should match the size of the tractor's PTO output shaft and the implement's input shaft, respectively. This ensures a proper fit and efficient power transfer.

Direction of power transfer: Depending on the orientation of the implement, a right-angle gearbox or a bevel gearbox may be needed to change the direction of the power transfer. It is important to select an agricultural gearbox that is compatible with the specific application.

Power rating: The agricultural gearbox should be rated to handle the horsepower and torque of the tractor and implement it. It is important to select a gearbox with a sufficient power rating to prevent damage and ensure safe operation.

Once the appropriate agricultural gearbox has been selected, the W400E series PTO shaft can be installed in accordance with the manufacturer's instructions. It is important to ensure that the PTO shaft is properly aligned and securely fastened to both the tractor's PTO output shaft and the implement's input shaft. Any locking devices should also be engaged to prevent the PTO shaft from becoming disengaged during operation.

Overall, the combination of an agricultural gearbox and the W400E series PTO shaft can provide reliable and efficient power transfer for a variety of farming applications.

Agricultural Gearboxes for PTO ShaftAgricultural Gearboxes for PTO Shaft

W400E Series PTO Shaft FAQ

Q1: What is the weight capacity of the W400E series PTO shaft?
A: The weight capacity of the W400E series PTO shaft will depend on various factors, such as the length of the shaft and the type of implement being used. It is important to consult the manufacturer's specifications and guidelines to ensure that the PTO shaft is being used within its recommended weight capacity.

Q2: What is the maximum operating speed of the W400E series PTO shaft?
A: The maximum operating speed of the W400E series PTO shaft will depend on various factors, such as the length of the shaft and the type of implement being used. It is important to consult the manufacturer's specifications and guidelines to ensure that the PTO shaft is being operated at a safe and appropriate speed.

Q3: Can the W400E series PTO shaft be used with any type of tractor?
A: The W400E series PTO shaft is designed to be compatible with most types of tractors that have a standard 6-spline PTO output shaft. However, it is important to consult the manufacturer's specifications and guidelines to ensure that the PTO shaft is being used with a compatible tractor.

Q4: How do I maintain the W400E series PTO shaft?
A: Regular maintenance of the W400E series PTO shaft is important to ensure safe and reliable operation. This may include inspecting the shaft for wear and damage, lubricating the components as needed, and tightening any loose bolts or fasteners. It is important to consult the manufacturer's instructions and guidelines for the specific maintenance requirements of the PTO shaft.

Q5: Can the W400E series PTO shaft be repaired if it becomes damaged?
A: In some cases, the W400E series PTO shaft may be repairable if it becomes damaged. However, it is important to consult a qualified technician or experienced operator who has been trained on the proper procedures for PTO shaft repair. It may also be more cost-effective to replace the PTO shaft rather than attempting to repair it.
