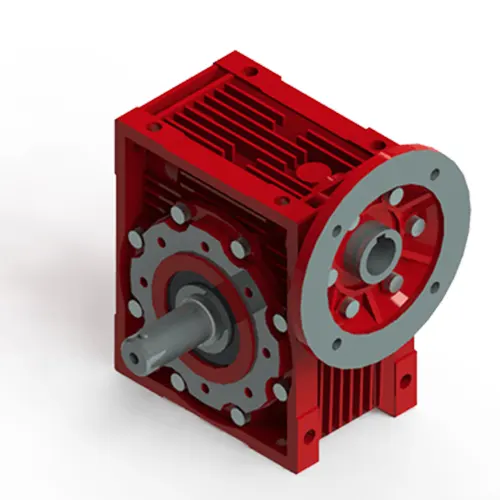

Worm Gearbox-Replacement of Chenta HSM Aluminum Worm Gear Reducer(Input Flange)

Welcome to our company's product introduction page. Here we introduce the Worm Gearbox, also known as Worm Gearmoto, Worm Speed Reducer, or Worm Drive. Our company provides a brand replacement for the Chenta HSM Aluminum Worm Gear Reducer(Input Flange), which is of high quality and at an affordable price. It is important to note that our products are replacement parts, not original manufacturer parts. If you are looking to purchase original manufacturer parts, please contact the manufacturer directly.

Structure

The Worm Gearbox consists of the following components:

• Worm Shaft
• Worm Gear
• Bearing
• Housing
• Oil Seal
• Input Flange
• Output Flange
• Output Shaft

The Worm Shaft and Worm Gear are the key components of the Worm Gearbox. The Worm Shaft is responsible for transmitting power and the Worm Gear is responsible for reducing speed. The Bearing supports the Worm Shaft. The Housing contains all of the components and the Oil Seal prevents oil leakage. The Input Flange is used to connect the Worm Gearbox to the motor, while the Output Flange is used to connect it to the application machine. The Output Shaft is used to transmit power to the application machine.

Features

The Worm Gearbox has the following features:

• High precision
• Increased surface area for better heat dissipation and durability
• Light weight and compact design
• Low maintenance cost
• Optional oil change
• Can be reverse driven
• Hollow output shaft for increased strength
• Input shaft made of carburized chromium molybdenum alloy steel for higher strength
• Many accessories available for wider compatibility
• Minimal vibration and noise during power transmission
• 30-90 models are made of aluminum alloy castings, while 110-150 models are made of cast iron castings
• Universal size design for stronger compatibility
• Widely applicable for different installation positions
• Powder-coated castings that will not rust

Chenta Aluminum Housing Worm Gear Reducer Replacement

Our company provides a brand replacement for the Chenta Aluminum Housing Worm Gear Reducer. We offer a high-quality product at a competitive price. It is important to note that our products are replacement parts, not original manufacturer parts. If you are looking to purchase original manufacturer parts, please contact the manufacturer directly. Our replacement parts have the following advantages:

• High precision
• Increased surface area for better heat dissipation and durability
• Light weight and compact design
• Low maintenance cost
• Optional oil change
• Can be reverse driven
• Hollow output shaft for increased strength
• Input shaft made of carburized chromium molybdenum alloy steel for higher strength
• Many accessories available for wider compatibility
• Minimal vibration and noise during power transmission
• 30-90 models are made of aluminum alloy castings, while 110-150 models are made of cast iron castings
• Universal size design for stronger compatibility
• Widely applicable for different installation positions
• Powder-coated castings that will not rust

We welcome customers to send us their specifications for custom orders.

Abnormal Conditions and Solutions

Abnormal Conditions	Solutions
Abnormal noise during operation	Check if the gears are worn or damaged and replace if necessary
Oil leakage	Replace the oil seal and check if the housing is damaged
Overheating	Check if the oil level is appropriate and replace or add oil if necessary
Shaft locking	Check if the bearings are damaged and replace if necessary
Output shaft vibration	Check if the output shaft is installed correctly and if the bearings are damaged
Output shaft deflection	Check if the output shaft is bent and replace if necessary
Input shaft vibration	Check if the input shaft is installed correctly and if the bearings are damaged
Input shaft deflection	Check if the input shaft is bent and replace if necessary
Abnormal wear of gears	Check if the gears are damaged and replace if necessary
Abnormal sound of bearings	Check if the bearings are damaged and replace if necessary

Installation

The Worm Gearbox should be installed according to the following guidelines:

1. If the input shaft is connected directly to the motor, a flexible coupling is preferred. A gear coupling is preferred for the connection between the output shaft and the application machine.
2. The Worm Gearbox should be installed on a stable base with good ventilation. The accessibility of oil filling/draining should be considered.
3. The input shaft and motor shaft should be aligned within the tolerance range.
4. After installation, manually rotate the input shaft to check for any locking.
5. Perform a no-load test run first, and correct any abnormalities before normal operation.

Lubrication and Maintenance

The Worm Gearbox should be lubricated and maintained according to the following guidelines:

1. For prolonged use, an oil change should be performed after the first 500 hours of operation and every 2500 hours thereafter. However, we recommend checking the oil level and condition periodically before the next oil change.
2. Only use compatible oil specifications and do not mix different specifications of oil in the same unit.
3. Before adding new oil, rinse and drain the gearbox first.
4. If the temperature rises above 80 degrees Celsius or abnormal noise occurs, shut down the gearbox immediately for inspection. Only restart after the problem has been identified and resolved.

Motors for Worm Gear Reducers

The Worm Gearbox and electric motors are complementary in providing power transmission solutions. The Worm Gearbox reduces speed and increases torque, while the electric motor provides the source of power. The two work together to meet the needs of various applications, making them an important combination in the transmission equipment industry. Our company also provides various types of electric motors for sale to meet the diverse needs of our customers.

At HZPT, we pride ourselves on providing high-quality Worm Gearboxes and excellent customer service. Our products are widely used in the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and more. We have more than 20 years of experience in the design, production, manufacture and sales of gearboxes, serving customers in Europe, America, Africa, Asia, and other regions. We strive to provide our customers with the highest quality products and services at competitive prices. We welcome customers to explore our products and contact us for purchase.

Q&A

Q: What is the warranty period for your Worm Gearbox?

A: Our Worm Gearbox comes with a one-year warranty from the date of purchase.

Q: Can I use the same Worm Gearbox for different applications with different power requirements?

A: The Worm Gearbox has a universal size design for stronger compatibility and can be used for various applications. However, please ensure that the power requirements of your application are within the rated capacity of the Worm Gearbox.

Q: Can I use a different type of oil than the one specified for the Worm Gearbox?

A: No, it is important to use only compatible oil specifications and not to mix different specifications of oil in the same unit. Using a different type of oil may cause damage to the Worm Gearbox.
