WPDZ Worm Gearbox for Shrimp Fish Farm Aerator

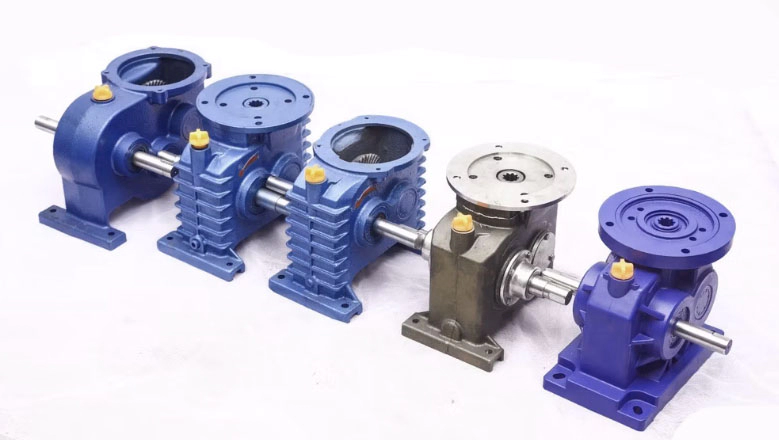

Basic Information of WPDZ Worm Gear Reducer

The WPDZ worm gear reducer is an industrial-grade speed reducer designed for high-torque, low-speed transmission applications. It utilizes an advanced worm gear transmission structure, resulting in smooth operation, low noise, strong load capacity, and high transmission efficiency. Constructed of high-strength cast iron, this series of reducers offers excellent corrosion resistance and durability, making it particularly suitable for harsh environments such as those characterized by humidity and high salinity, making it an ideal drive solution for the aquaculture industry.

WPDZ Worm Gearbox for Shrimp Fish Farm Aerator

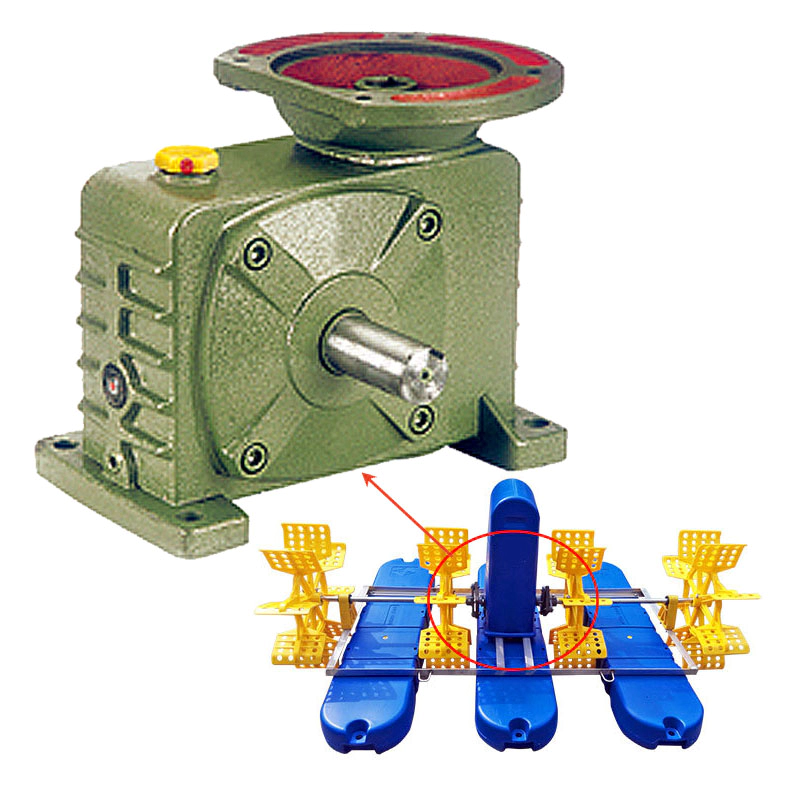

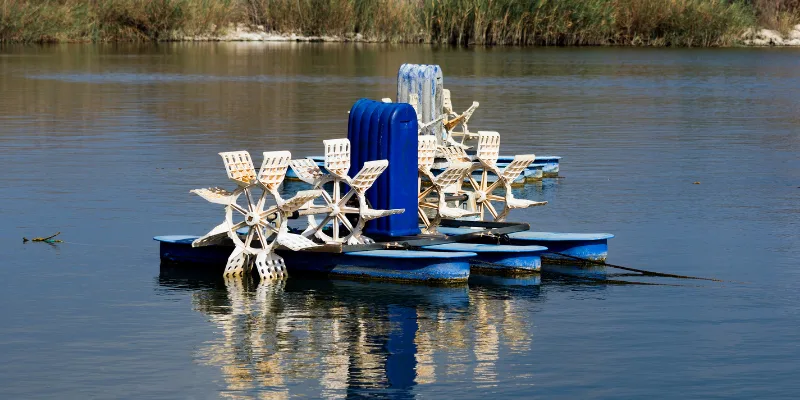

In shrimp farm aeration equipment, WPDZ worm gear reducers are widely used in the power transmission systems of impeller-type, waterwheel-type, or jet-type aerators. By converting the motor's high-speed rotation into low-speed, high-torque output, they effectively drive the aerator blades for stable operation, ensuring continuous agitation of the water and sufficient dissolution of oxygen, significantly increasing the pond's dissolved oxygen level. Their self-locking function also prevents equipment reversal caused by water backwash, protecting the motor and ensuring 24-hour continuous and reliable operation. With their compact design and excellent sealing performance, the WPDZ reducer can be easily integrated into outdoor aeration systems, adapting to long-term immersion or semi-open-air conditions. It is a core transmission component for efficient aeration and stable production in modern intelligent shrimp farms.

How the Shrimp Fish Farm Aerator Works

After the motor is started, high-speed rotational power is input to the worm shaft via a coupling or belt drive. The worm, acting as the active component, meshes its helical teeth with the tooth grooves of the worm wheel, transmitting power to the worm wheel. Because the axes of the worm and worm wheel are staggered at 90 degrees and the worm has a small number of turns (typically single or double), each rotation of the worm only slowly drives one turn of the worm wheel, achieving significant speed reduction and torque amplification

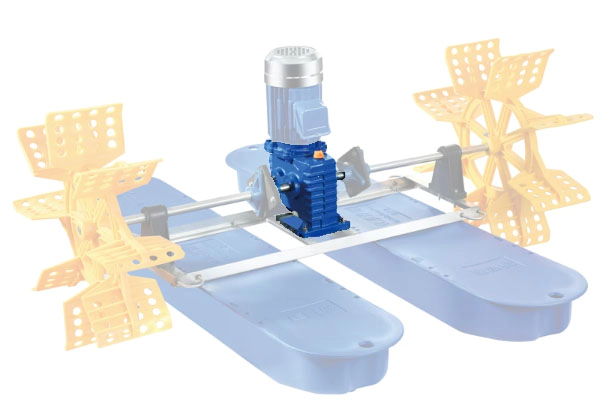

The reduced, low-speed, high-torque power is directly driven by the worm gear output shaft to drive the aerator's main shaft and impeller (such as a waterwheel or impeller-type blade), causing it to rotate smoothly in the water, agitating the water and increasing oxygen dissolution. Furthermore, the worm gear's self-locking feature prevents water backflow and equipment reversal, protecting the motor.

The entire process operates smoothly and quietly, making it ideal for shrimp farms requiring continuous, reliable, and low-interference oxygen supply.

How to choose the wpdz gearbox model suitable for my aerator?

✅ 1. Motor Power (kW or HP)

This is the fundamental parameter for selection. The reducer must be able to handle the input power output by the motor.

✅ 2. Input Speed ​​(Motor Speed, rpm)

This is typically the rated speed of the motor, such as 1400 rpm (4-pole motor) or 2800 rpm (2-pole motor). Different speeds affect the reducer's load capacity and lubrication requirements.

✅3. Required Output Speed ​​(rpm)

The optimal operating speed of the aerator's impeller or blades is typically between 20–60 rpm, depending on the aerator type (waterwheel, impeller, etc.). The required reduction ratio can be determined using the speed ratio (i = input speed ÷ output speed).

✅4. Mounting Style

The WPDZ series supports multiple mounting styles, depending on your aerator's configuration:

M1: Vertical mounting (output shaft upward)
M2: Vertical mounting (output shaft downward)
M3/M4: Horizontal mounting (horizontal output)

Whether flanges, feet, or brackets are included

✅ 5. Output shaft type and connection method

Confirm the connection method to the aerator's main shaft:
Flat key shaft extension (standard)
Spline shaft
Flange connection
Whether an output shaft extension is required

✅ 6. Operating environment

Will it be exposed to the outdoors for extended periods, high humidity, or salt spray (such as in marine shrimp farms)?

Will anti-corrosion coating or stainless steel fasteners be required?

Daily continuous operating time (it is recommended to use a motor with an IP55 or higher protection rating).

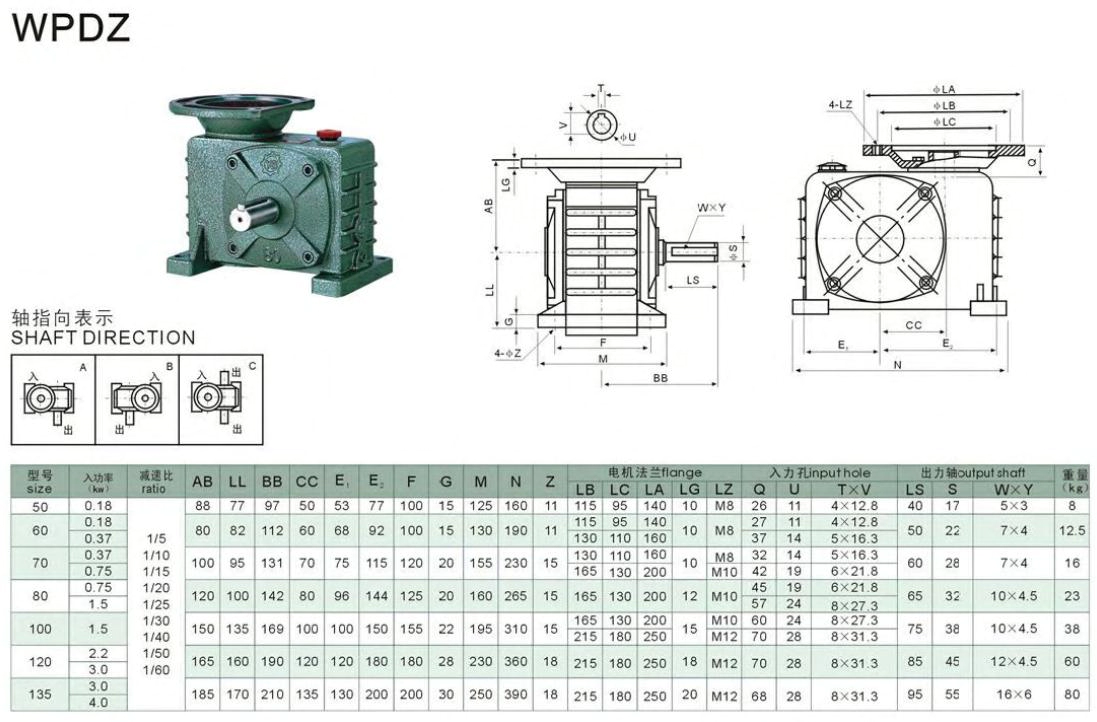

👉 Simply provide the above information and we will recommend the most suitable WPDZ model (such as WPDZ60, WPDZ70, WPDZ80, etc.) and provide complete technical drawings and installation instructions.
