Adjustable Electric Motor Mounting Rails
These adjustable motor mounting bases allow mounting position adjustments after the motor is secured to a base. Adjusting the motor’s base ensures proper belt tensioning in a belt drive system, reducing stress on the motor, belt, and bearings. Linear bases and slide rails allow for back and forth adjustments. Angular pivot bases adjust the base up and down. Automatic bases adjust the belt tensioning while the motor is running. These adjustable mounting bases accept standard NEMA motor frame sizes and are used to power HVAC equipment such as air coolers, belt-drive fans, and roof ventilators.

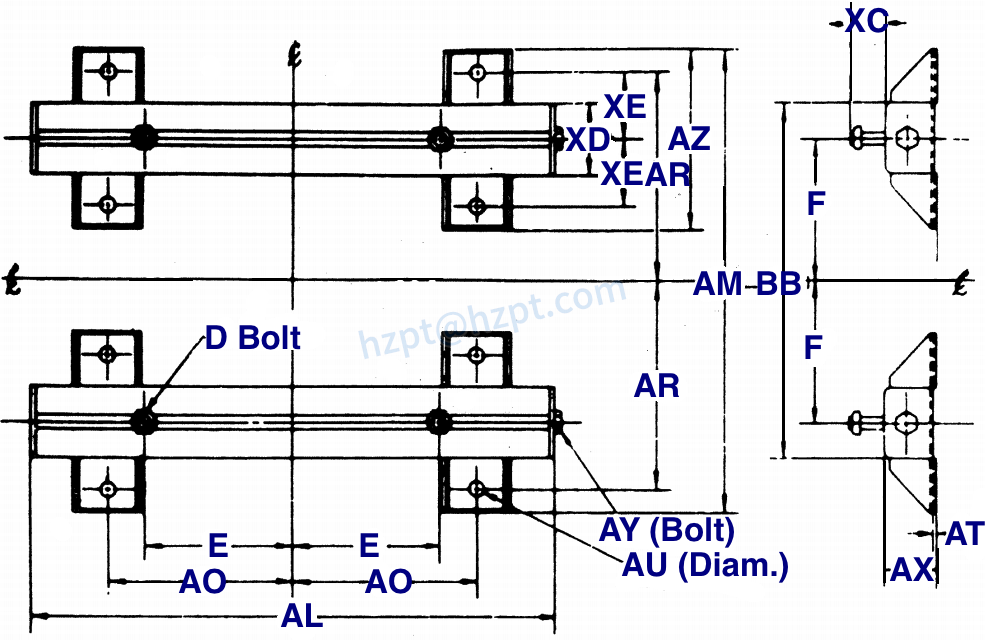

Standard Motor Rails – Style 1
This style is made of high-strength structural steel and is manufactured as a durable rail with push-pull adjustment. Individual feet provide under-rail clearance and they are better suited for surfaces that are not perfectly flat.
Specifications
| Frame | Part # | (AL) | (AX) | (E) | (F MIN.) | (AO) | (AU) | (AT) | (AZ) | (XC) | (XD) | (XE) | (D-BOLT) | (AY-BOLT) | TRAVEL | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 440 | A186 | 31.25″ | 3″ | 9″ | 442 | 11″ | 0.875″ | 0.3125″ | 10.125″ | 2.5″ | 4.75″ | 3.75″ | 3/4X3 | 3/4X14 | 7.5″ | 96 |
| 500 | A187 | 35″ | 3.5″ | 10″ | 502 | 12.5″ | 1″ | 0.3125″ | 12″ | 3″ | 4.75″ | 4.5″ | 7/8X3.5 | 7/8X16 | 8″ | 115 |
| 580 | A221 | 38.75″ | 4″ | 11.5″ | 583 | 14.5″ | 1″ | 0.375″ | 13″ | 2.9375″ | 4.75″ | 5″ | 7/8X3.5 | 7/8X16 | 8.5″ | 130 |
| 680 | A222 | 42.5″ | 4.25″ | 13.5″ | 680 | 13.5″ | 1.125″ | 0.375″ | 10.75″ | 3.4375″ | 5″ | 4″ | 1X4 | 7/8X16 | 9.” | 146 |

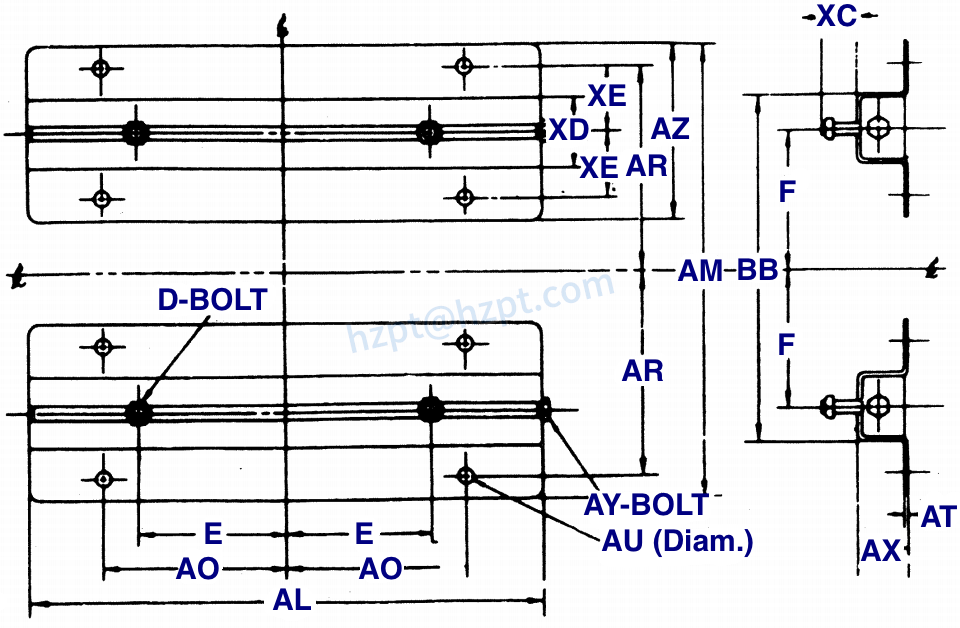

Standard Motor Rails – Style 2
The style 2 configuration features a “Z” bar construction designed by Overly Hautz, which provides inherent rigidity at a moderate cost. Style 2 also includes a push-pull adjustment feature that is ideal for most flat surfaces.
Specifications
| Frame | Part # | (AL) | (AX) | (E) | (F) | (AO) | (AU) | (AT) | (AZ) | (XC) | (XD) | (XE) | (D-BOLT) | (AY-BOLT) | TRAVEL | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 440 | A271 | 31.25″ | 3″ | 9″ | 442 | 11″ | 0.875″ | 0.3125″ | 10.125″ | 2.5″ | 4.75″ | 3.75″ | 3/4X3 | 3/4X14 | 7.5″ | 95 |
| 500 | A257 | 35″ | 3.5″ | 10″ | 502 | 12.5″ | 1.25″ | 0.3125″ | 12″ | 3″ | 5.75″ | 4.5″ | 7/8X3.5 | 7/8X16 | 8″ | 130 |
| 580 | A258 | 38.75″ | 4″ | 11.5″ | 583 | 14.5″ | 1.25″ | 0.375″ | 13″ | 2.9375″ | 6.75″ | 5″ | 7/8X3.5 | 7/8X16 | 8.5″ | 185 |
| 680 | A259 | 42.5″ | 4.25″ | 13.5″ | 680 | 13.5″ | 1.375″ | 0.375″ | 10.75″ | 3.4375″ | 5.75″ | 4″ | 1X4 | 7/8X16 | 9″ | 180 |

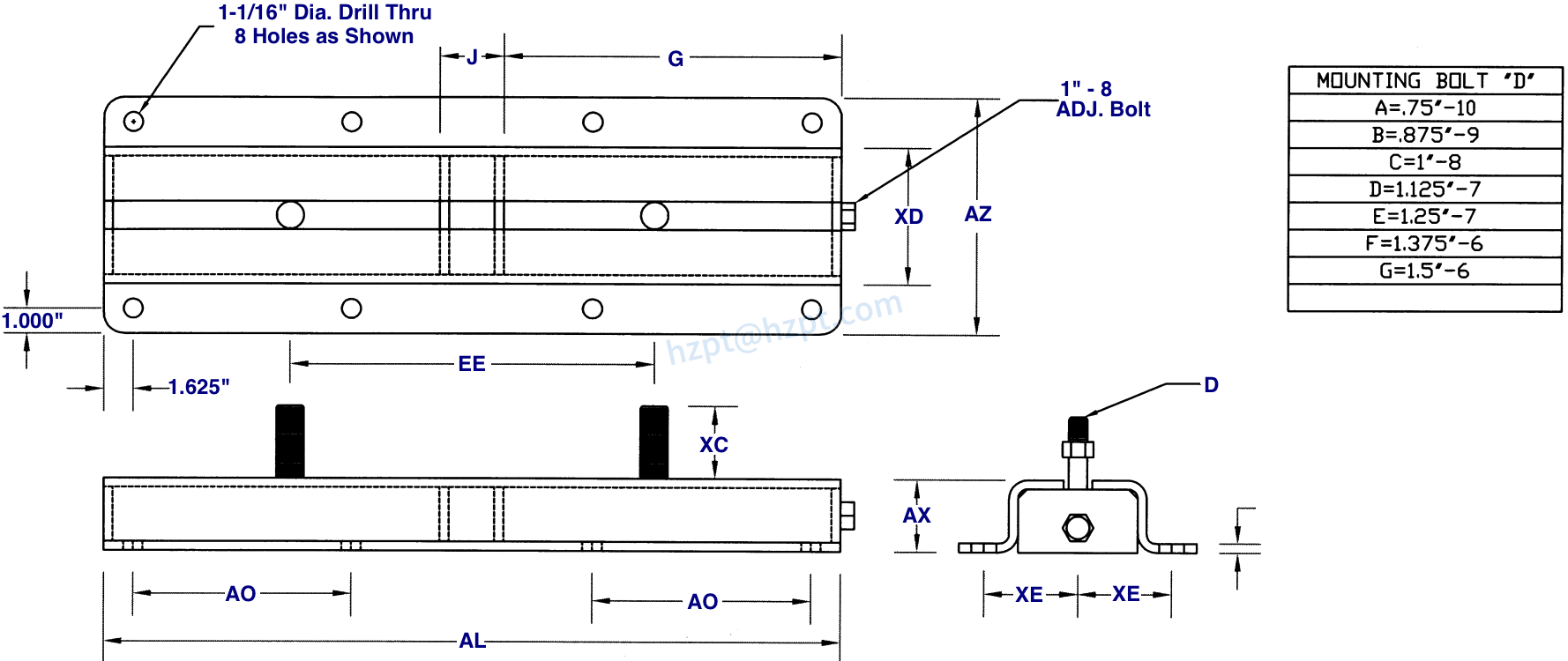

Heavy-Duty Electric Motor Mount Base
These motor mounting rails are recommended for motors in the 250 HP to 500 HP range.
Specifications
| Part # | (AL) | (AX) | (EE) | (AO) | (AZ) | (XC) | (XD) | (XE) | (D) | (G) | (J) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A100668 | 36″ | 4″ | 7″ – 30″ | 13″ | 12″ | 2.5″ | 7.062″ | 5″ | 3/4X10 | 16.5″ | 3″ |
| A100225 | 40.5″ | 4″ | 8″ – 34″ | 12″ | 12.5″ | 4″ | 7.56″ | 5.25″ | SEE MTG. | 18.5″ | 3.75″ |
| A100226 | 49.5″ | 4″ | 14″ – 43″ | 17.875″ | 12.5″ | 4″ | 7.56″ | 5.25″ | BOLT CHART | 15.8″ | 10.5 |
Uses Notes:
A100668 is for 440 Series Motors
A100225 is for 500, 5000, 580, and 5800 Series Motors
Mounting bolt Diameter selection is based on motor manufacture requirements.

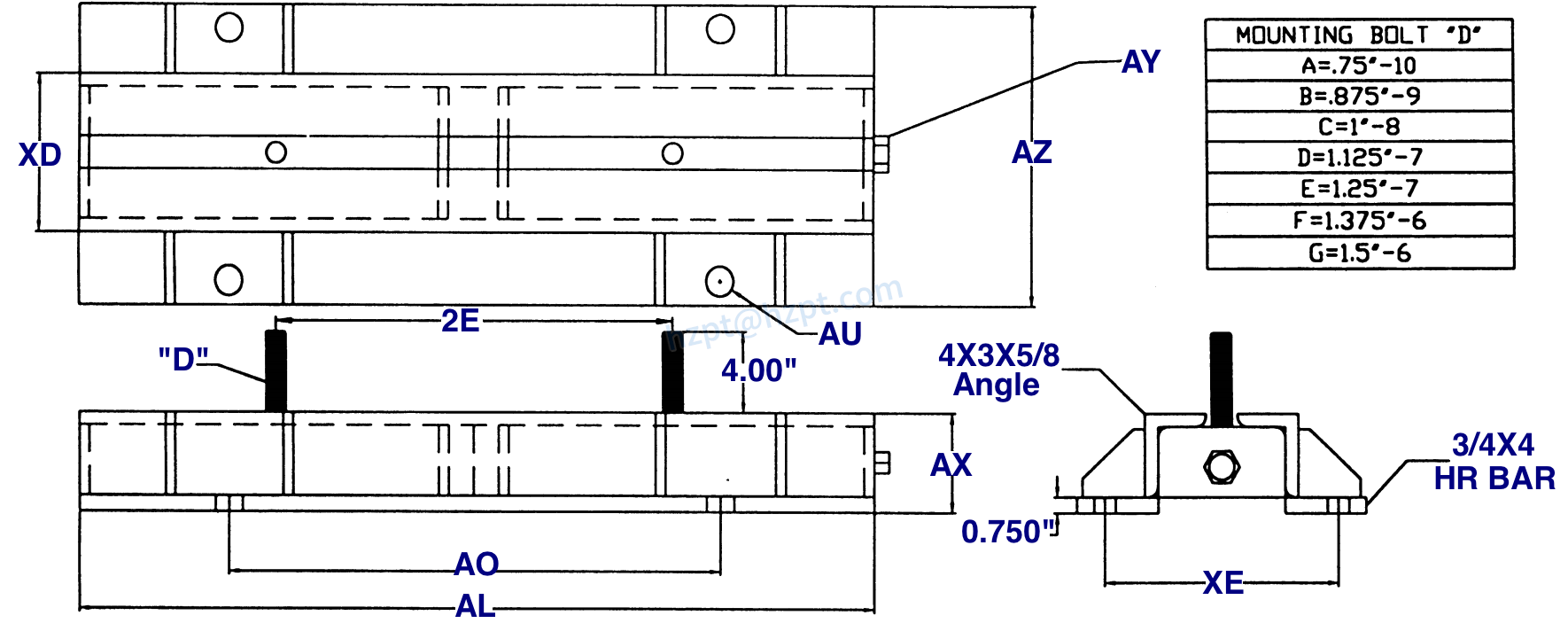

Structural Steel Rails
They are made of extremely high-strength grade steel and are recommended for motors over 500HP.
Specifications
| Part # | (AL) | (AX) | (AO) | (AZ) | (XD) | (AU-DIA.) | (XE) | (D) | (AY) | (2E) |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 40″ | 4.75″ | 24″ | 14.25″ | 7.562″ | 1.375″ | 12″ | SEE | 1″-8 | 20″-23″ |
| 50 | 50″ | 4.75″ | 34″ | 14.25″ | 7.562″ | 1.375″ | 12″ | BOLT | 1″-8 | 23″-27″ |
| 60 | 60″ | 4.75″ | 44″ | 14.25″ | 7.562″ | 1.375″ | 12″ | CHART | 1″-8 | 27″-31″ |
HZPT is one of the leading China electric motor base manufactures with more than 15 years. Contact us now to get more about our adjustable electric motor mounting bases for sale!
