12 Series PTO Shaft-Replacement of Weasler PTO Shaft

12 Series PTO Shaft-Replacement of Weasler PTO Shaft

The Replacement of Weasler 12 series PTO shaft is a type of power take-off shaft that is designed to transfer power from a tractor or other machine to a piece of farm equipment. The Replacement of Weasler 12 series PTO shaft is known for its durability and reliability and is designed to handle the tough conditions often encountered in agricultural applications. It is available in a range of sizes and configurations to fit different types of equipment and can be customized to meet specific needs.

Specifications of Replacement of Weasler 12 Series PTO Shaft

• 1-3/8″-6 Spline Spring-Lok Tractor Yoke
• Requires Cross Kit.
• Requires to Implement Yoke.
• 19 HP @ 540 RPM
• 48″ Compressed Length (Dim. A)

Replacement of Weasler 12 Series PTO Shaft Parts

Tractor Yoke	Implement Yoke	Overall Compressed Length Dim. “A”	Max Running Length	Application
1 3/8” × 6 Spl Q.D.	1 1/4” Rd 1/4” Keyway	48”	78”	Post Hole Digger
1 3/8” × 6 Spl. Spring Lok	1 1/4” Rd 1/4” Keyway	48”	77”	Augers

Replacement of Weasler 12 Series PTO Shaft Yokes

	Dim. “A” Bore	Dim. “B”
Spring-Lok	1 3/8” × 6 Spl.	4”
	1 3/8” × 21 Spl.	4”
Quick Disconnect	1 3/8” × 6 Spl.	4”
	1 3/8” × 21 Spl.	4”

	Dim. “A” Bore	Dim. “B”	Shear Bolt
Ball Shear Device With Spring-lok	1 3/8” × 6 Spl.	4 5/8”	5/16” - 18 Gr. 5
	1 3/8” × 21 Spl.	4 5/8”	5/16” - 18 Gr. 5

Replacement of Weasler 12 Series PTO Shaft Cross Kit

	Dim. “A”	Dim. “B”
	1 1/16”	2 1/2”

Replacement of Weasler 12 Series PTO Shaft Shaft Weld Yoke

	Dim. “A” Bore	Dim. “B”
With Bearing Groove	1” × 1 1/8”	3 3/8”
	15/16” Sq.	2 3/4”

Replacement of Weasler 12 Series PTO Shaft Tube Weld Yoke

	Dim. “A” Bore	Dim. “B” Fits Tube Size	Dim. “C”
With Bearing Groove	1 1/4” × 1 3/8”		3 3/8”
	3/4”	2” (.083 Wall)	3 7/8”
	15/16” Sq.		2 3/4”

Replacement of Weasler 12 Series PTO Shaft Rectangular Shaft

	Length
1” × 1 1/8” Rectangular	6'/3'

Replacement of Weasler 12 Series PTO Shaft Tube

	Length	Fits Shaft
1 1/4” × 1 3/8” Rectangular O.D.	6’	1” × 1 1/8”
	3’	1” × 1 1/8”
2” (.083 Wall)	6’
	3’

Replacement of Weasler 12 Series PTO Shaft Slip Sleeve

	Length	Dim. “A” Bore	Fits Tube Size
With Grease Groove	5”	1” × 1 1/8” Rect.	2” (.083 Wall)

Replacement of Weasler 12 Series PTO Shaft Implement Yoke

	Dim. “A” Bore	Dim. “B”	Standard Keyway
Round Bore With Keyway & Set Screw	3/4”	3 1/2”	3/16”
	7/8”	3 1/2”	3/16”
	15/16”	3 1/2”	1/4”
	1”	3 1/2”	1/4”
	1 1/8”	3 1/2”	1/4”
	1 3/16”	3 1/2”	1/4”
	1 1/4”	3 1/2”	1/4”
	1 3/8”	3 1/2”	5/16”
	1 1/2”	3 7/8”	3/8”
	Dim. “A” Bore	Double Keyway	Dim. “B”
Double Keyway & Set Screw	1”	1/4” & 3/16”	3 1/2”
	1 1/8”	1/4” & 3/16”	3 1/2”
	1 1/4”	1/4” & 3/16”	3 1/2”

	Dim. “A” Bore	Dim. “B”
Spline Bore With 1/4'' Pin Hole	1 3/8” × 6 Spl.	3 1/2”
	1 3/16” × 10 Spl.	3 1/2”
	0.90” × 13 Spl. w/Set Screw	3 1/2”
	1 1/8” × 6 Spl.	3 1/2”
	1 3/8” × 21 Spl.	3 1/2”

	Dim. “A” Bore	Dim. “B”
Shear pin With 1/4'' Pin Hole	1''	3 1/2”
	1 1/8''	3 1/2”
	1 1/4''	3 1/2”
	1 3/8''	3 1/2”

	Dim. “A” Bore	Dim. “B”
Square Bore With Set Screw	7/8”	3 1/2”
	1”	3 1/2”
	1 1/8”	3 1/2”
	1 1/4”	3 7/8”

	Dim. “A” Bore	Dim. “B”
Hexagon Bore With Set Screw	1 1/8”	3 1/2”
	1 1/4”	3 1/2”

	Dim. “A” Bore	Dim. “B”	Dim. “C”
Stock Bore With Hub O. D. Turned	1/2”	3 1/2”	2”

	Dim. “A” Bore	Dim. “B”
Slip Yoke	1“ Sq.	5 1/4”
	1” Rd. w/1/4” Keyway	5 1/4”
	1 1/8” Hex	5 1/4”

Replacement of Weasler 12 Series PTO Shaft Universal Joints

	Dim. “A” Bore	Dim. “B”	Dim. “C”
Spring Lok to Shaft Weld Yoke	1 3/8” × 6 Spl.	1” × 1 1/8” Rect.	7 1/2”

Features of Replacement of Weasler 12 Series PTO Shaft

The Replacement of Weasler 12 series PTO shaft has several features that make it a popular choice in the agricultural industry. Here are some of its key features:

Durability: The Replacement of Weasler 12 series PTO shaft is made from high-quality materials that make it strong and durable. It is designed to withstand the tough conditions and heavy loads commonly found on farms.

Versatility: It is available in a range of sizes and configurations to fit different types of equipment, making it a versatile choice for farmers.

Easy Maintenance: The Replacement of Weasler 12 series PTO shaft is easy to maintain, with replacement parts readily available if needed.

Smooth Operation: ThisReplacement of Weasler 12 series PTO shaft is designed to operate smoothly, resulting in less wear and tear on both the tractor and equipment.

Safety: The Replacement of Weasler 12 series PTO shaft has safety features such as locking collars and shields to prevent accidents and injuries.

Overall, the Replacement of Weasler 12 series PTO shaft is a reliable and durable choice for farmers who need to power their equipment with a PTO Shaft.

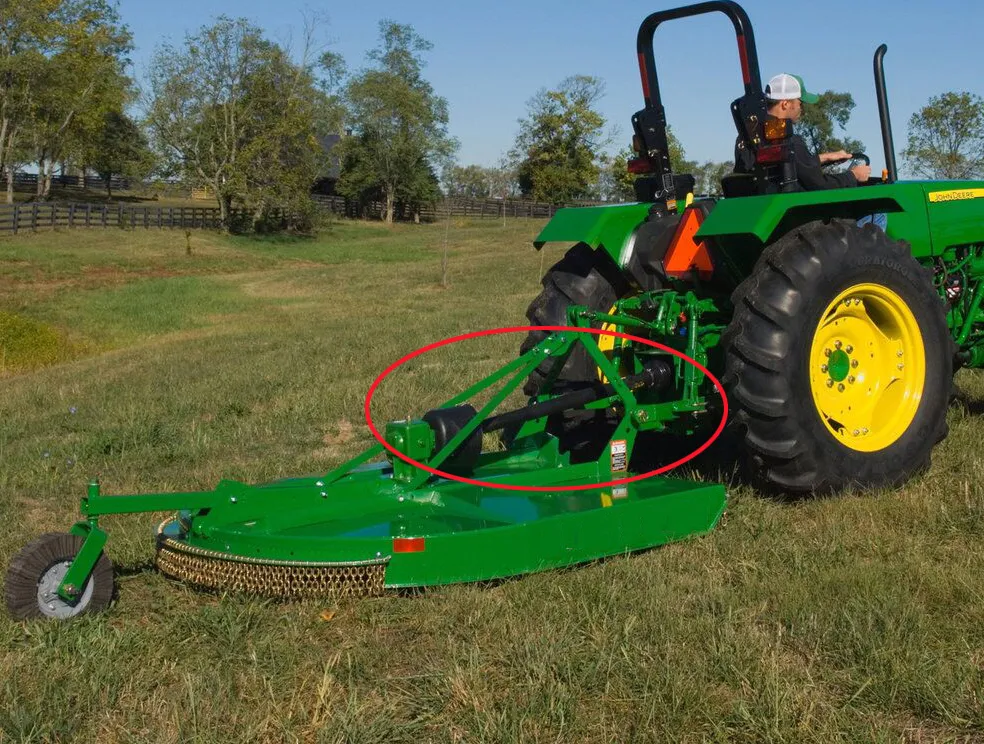

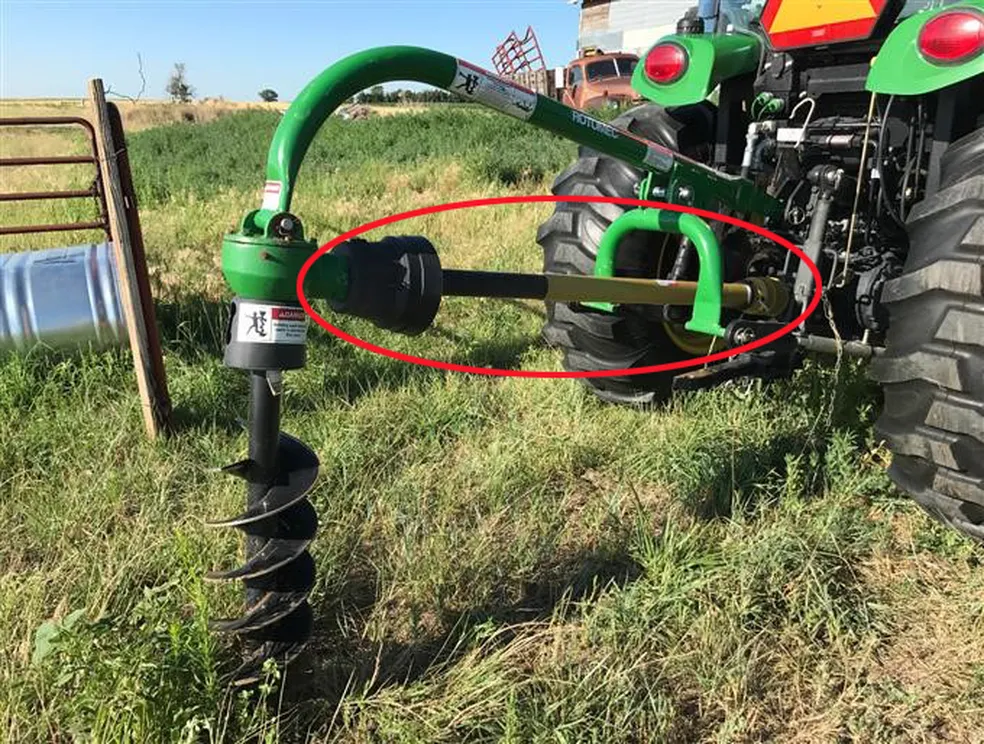

Where Is the Replacement of Weasler 12 Series PTO Shaft Used?

The Replacement of Weasler 12 series PTO shaft is used in a wide range of agricultural equipment, including mowers, balers, tillers, spreaders, and augers. Since it is available in different sizes and configurations, it can be adapted to suit various applications.

This PTO Shaft is especially popular in the agricultural industry due to its strength and durability, two essential qualities for farm machinery that must operate under challenging conditions. Farmers appreciate its versatility, as it can be used with different types of equipment, allowing them to streamline their operations and get more done in less time. Its smooth operation also helps reduce wear and tear, resulting in less downtime and maintenance costs.

In summary, the Replacement of Weasler 12 series PTO shaft is used in a diverse range of agricultural applications, making it an important part of many farming operations. Its durability, versatility, and smooth operation make it a popular choice for those who need reliable performance from their PTO Shaft.

Replacement of Weasler 12 Series PTO Shaft Use Precautions

While the Replacement of Weasler 12 series PTO shaft is a reliable and durable choice for powering agricultural equipment, it is important to follow safety precautions to prevent accidents and injuries. Here are some precautions to keep in mind when using this PTO Shaft:

1. Always turn off the tractor and equipment before servicing or adjusting the PTO shaft.

2. Do not exceed the recommended load capacity of the PTO shaft.

3. Make sure that the PTO shaft shield is properly secured and in place before operating the equipment.

4. Keep all loose clothing, jewelry, or any other loose objects away from the PTO shaft.

5. Inspect the PTO shaft regularly for any damage, wear, or signs of wear and replace any faulty or damaged parts.

6. Use the appropriate guards and shields to prevent any body parts or clothing from coming in contact with the rotating PTO shaft.

7. Follow the manufacturer's recommendations for maintenance and lubrication of the PTO shaft.

Overall, it is crucial to use caution and safe operating practices when working with the Replacement of Weasler 12 series PTO shaft, or any other PTO shaft for that matter. Prioritizing safety will ensure that you can operate your equipment smoothly and safely while also extending the lifespan of the PTO shaft.

Agricultural PTO Shaft for Agricultural Gearbox

An agricultural PTO (Power Take-Off) shaft is a mechanical device that transfers power from a tractor to a piece of agricultural equipment. It is essentially a rotating shaft that is connected at one end to the tractor’s engine and at the other end to the equipment being powered. PTO shafts are commonly used in farming to power a wide range of equipment, such as mowers, balers, and augers.

An agricultural gearbox, on the other hand, is a mechanical device that is used to change the speed and power transmission from a tractor to a piece of agricultural equipment. Agricultural gearboxes are commonly used in farming to reduce or increase the speed and torque of the equipment being powered. They provide a more efficient transfer of power between the tractor and the equipment, resulting in increased productivity and reduced wear and tear on both the tractor and the equipment.

Both agricultural PTO shafts and agricultural gearbox are essential components in the farming industry, helping to power everything from small tools to large-scale farm equipment. Proper maintenance and safety precautions are important when working with these devices, as they can be dangerous if not used properly.
