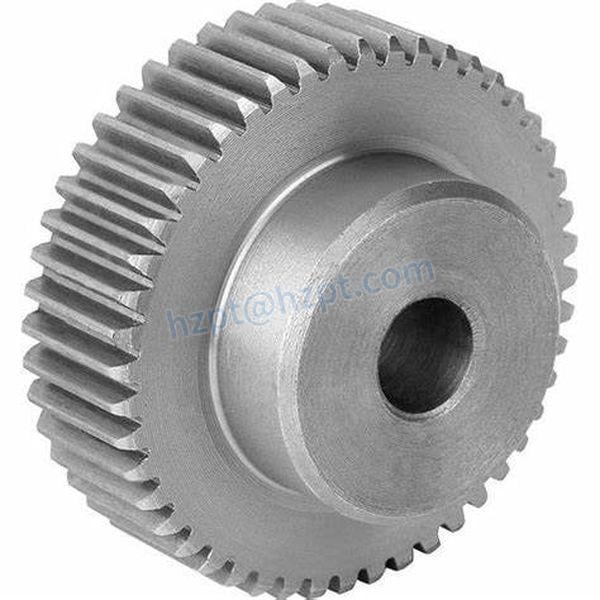

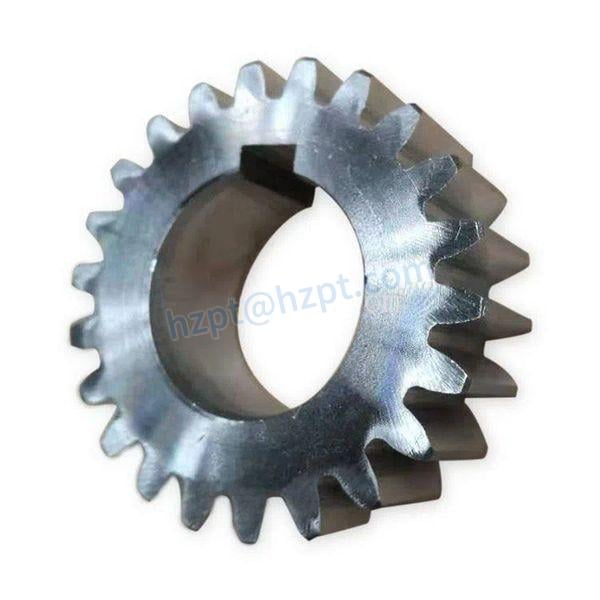

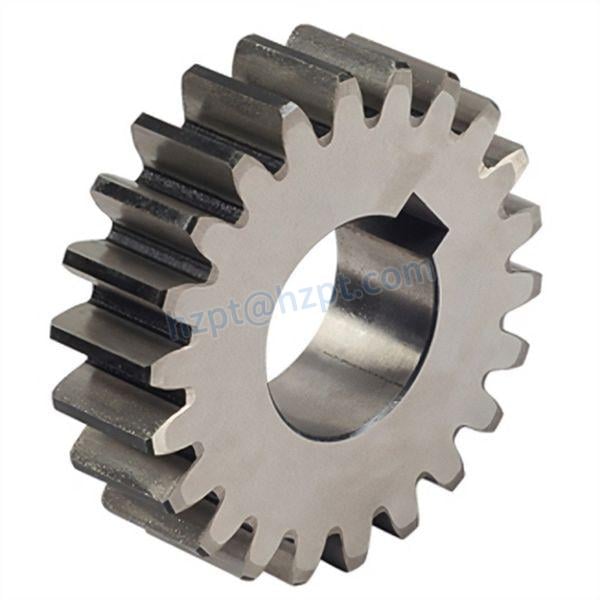

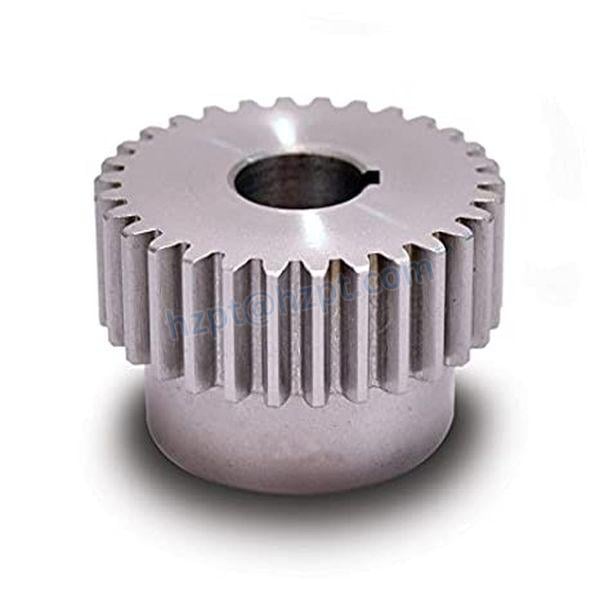

Steel Spur Gear

OEM Manufacturer Customized Small Module Steel Metal Spur Gear for Machines.

Category:
Get a Quote

Description

OEM Manufacturer Customized Small Module Steel Metal Spur Gear for Machines

Model   Number M1,M1.5,M2,M2.5,M3,M4,M5,M8,M12   and etc.
Material Brass,   C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface   treatment Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization,    Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and   Electrophoresis.
Standard ISO,   DIN, ANSI, JIS, BS and Non-standard.
Precision DIN6,DIN7,DIN8,DIN9.
Teeth   treatment Hardened, Milled, or Ground
Tolerance 0.001mm-0.01mm-0.1mm
Finish shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items   packing Plastic   bag+Cartons Or Wooden Packing
Payment   terms T/T,   L/C
Production   lead time 20    business days for sample,25 days for the bulk
Samples Sample price range from $2 to $100.   sample express request paid by clients
Application 1.   Automatic controlling machine   2. Semi-conductor industry   3. General industry machinery   4. Medical equipment   5. Solar energy equipment   6. Machine tool   7. Parking system   8. High-speed rail and aviation transportation equipment, etc.

The rack and pinion transmission is a primary mechanical transmission mode, with the advantages of large bearing capacity and high accuracy. It has been widely used in various industries. The rack can be regarded as part of gear with an infinite number of teeth. When the gear rotates, the rack moves in a straight line. Each circle of the equipment becomes a straight line, and the involute as the profile curve also becomes a straight line.

Advantages and Disadvantages of steel spur gear:

1. It can guarantee a constant transmission ratio and transmit the movement between two shafts with any included angle.

2. Features of ample transmission power and efficient gear transmission. Gear transmission is used to transmit motion and ability between any two shafts. It is the most widely used mechanical transmission in modern machinery. Its peripheral speed can reach 300m/s, the transmission power can reach 105KW, and the gear diameter can be less than 1mm to above 150m.

3. Long life, stable operation, and high reliability.

4. Since the tooth profile of the rack is straight, each point on the tooth profile has the same pressure angle and is equal to the inclination angle of the tooth profile. This angle is called the tooth profile angle, and the standard value is 20°.

5. The straight line parallel to the top line of the tooth and the tooth thickness equal to the width of the tooth slot is called the index line (center line), which is the reference line for calculating the rack size.

6. Any straight line parallel to the top line of the tooth has the same tooth pitch and module.

7. Almost any length of the stroke can be obtained by splicing.

8. For long-stroke applications, compared to the synchronous belt and ball screw, a gear rack is a very suitable choice.

Application of the large spur gear:

1. It has a wide range of applications in factory automation, such as truss robots for automatic loading and unloading, stacking manipulators, and material handling devices.

2. It is suitable for factory automatic fast transplanting machines and industrial robot arm grasping mechanisms.

3. It is suitable for CN machine tools, machining centers, cutting machines, and welding machines with a heavy load, high precision, high rigidity, high speed, and long stroke.

4. It is suitable for fast and accurate positioning mechanisms.

5. The characteristics of the gear rack, such as fast-moving speed, free splicing length, and synchronization with the thermal expansion effect of machine tool, can completely replace the application of ball screw in precision automation equipment and CNC machine tools.

Notice for the large forging steel spur gear:

For the rack and pinion transmission that starting transmission and with an impact load, the following aspects should be paid attention to:

1. Under the premise of structural allowance, module m should be slightly larger, essential for starting transmission with impact load.

2. The structure must have sufficient impact resistance and rigidity to ensure the rack and pinion operation.

3. The design speed shall not be too high.

4. It is best to design as a shifting gear and a harmful shifting gear. Negative shifting will help improve the bending strength of the tooth root and improve the gear's ability to withstand impact.

5. The quenching depth of the tooth surface shall not be too deep, generally 1/5m to 1/10m (m: modulus). It is necessary to maintain the core material with sufficient toughness to buffer external impact load.

6. The heat treatment hardness of the tooth surface shall not be too hard, HRC30 ~ HRC35 is enough, and the tooth surface is too hard to crack the gear teeth under the impact load.

Products Show

FAQ

Q: What is the payment term of your company?

A: Our payment terms are 30% down payment and 70% balance.

Q: What is the minimum order quantity?

A: Frankly, it depends on the product. Please get in touch with us directly about this.

Q: What is the price of the sample?

A: The customer shall pay the sample fee and freight. After the sample is confirmed, we will refund the sample fee to the customer.

Q: When we send the inquiry, how long will you reply?

A: We usually quote within 12 hours after receiving your inquiry. Please call me if you are very urgent, except on national holidays.

Q: Are you a trading company or a manufacturer?

A: We are a factory.

Q: Can HZPT Machinery manufacture metric gears?

A: Of course! We have the tools to manufacture any metric size.

Q: What should I do if I cannot identify the gear?

A: Please send us your damaged gear! We specialize in reverse engineering.

Q: Do you have a minimum order quantity?

A: Our minimum requirements depend on the parts ordered. Send us your drawings, pictures, sample gears, or specifications, and we will let you know the minimum requirements for the position.

Q: How to get the lowest price?

A: Increase the quantity. The more parts you order, the lower the price you get.

industries we service

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

hzpt oem odm banner

pruduct quality report

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.product materials available

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

product finishing



product packages

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
