WWE2580 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWE2580 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The WWE2580 series PTO shaft is a heavy-duty power take-off shaft that is designed for use on tractors and other agricultural equipment. It is made from high-quality steel and is available in a variety of lengths to meet the needs of different applications. The WWE2580 series PTO shaft is also equipped with a safety shield to protect the operator from injury. If you are looking for a reliable and efficient PTO shaft, the WWE2580 series PTO shaft is a great option. It is made from high-quality materials, is easy to install and maintain, and can be used with a variety of machines.

▍WWE2580 Series PTO Shaft Specifications

▍WWE2580 Series PTO Shaft Size Chart

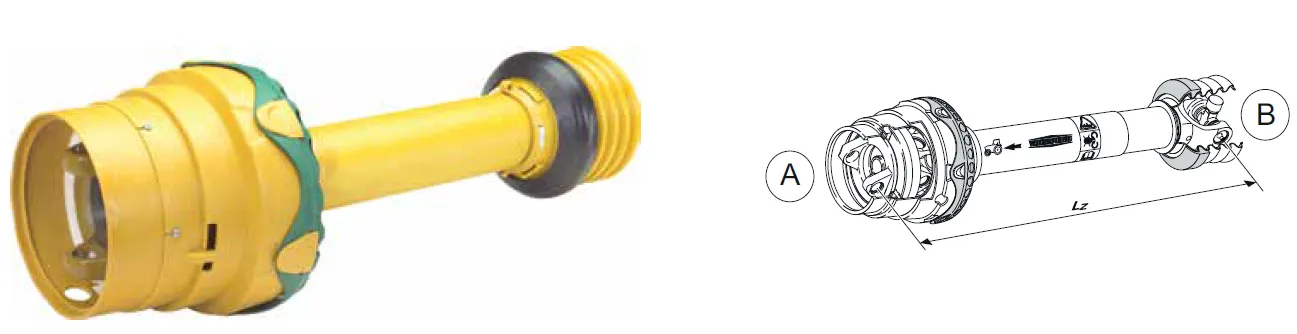

1. WWE2580 Series PTO Drive Shaft

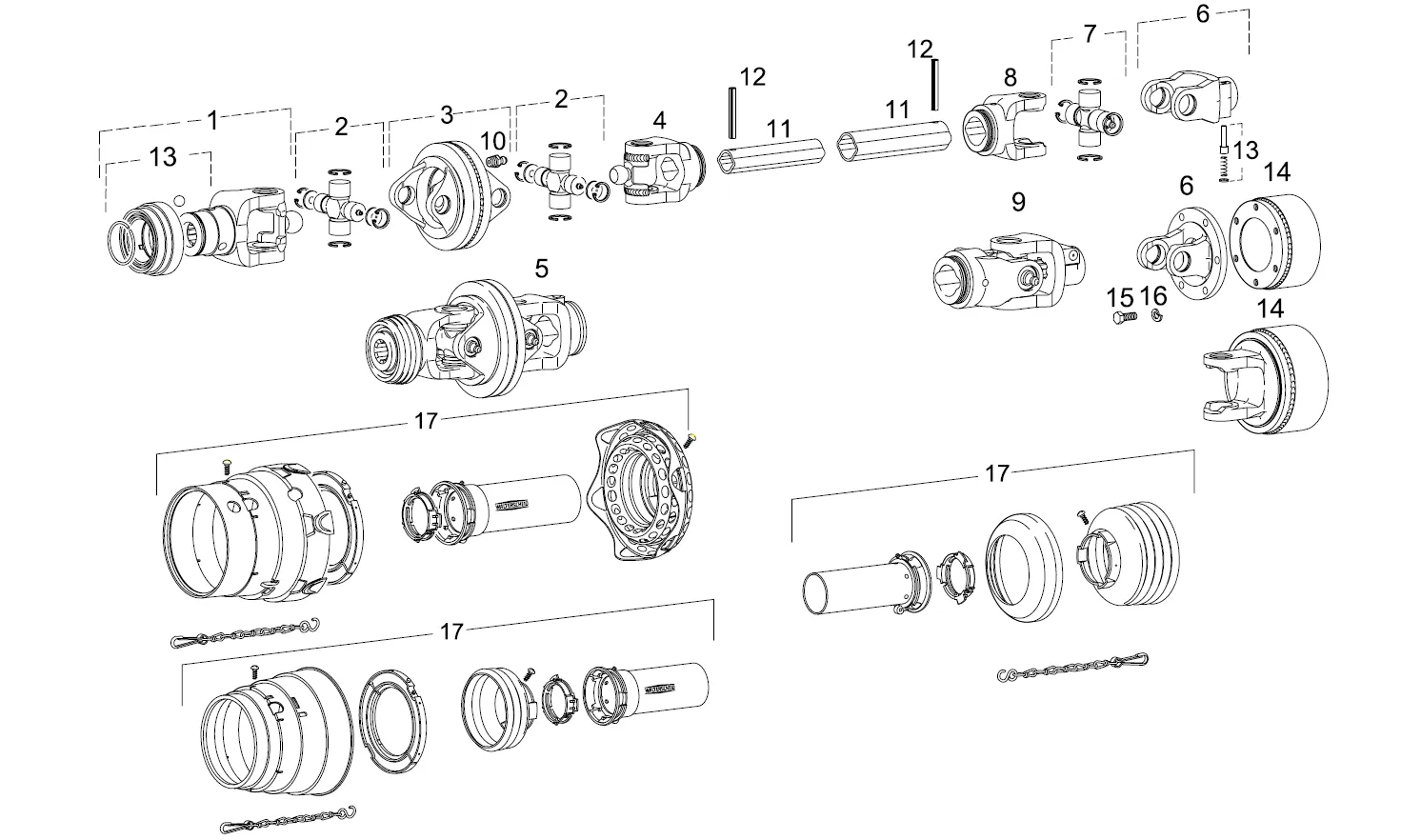

▍WWE2580 Series PTO Shaft Parts Diagram

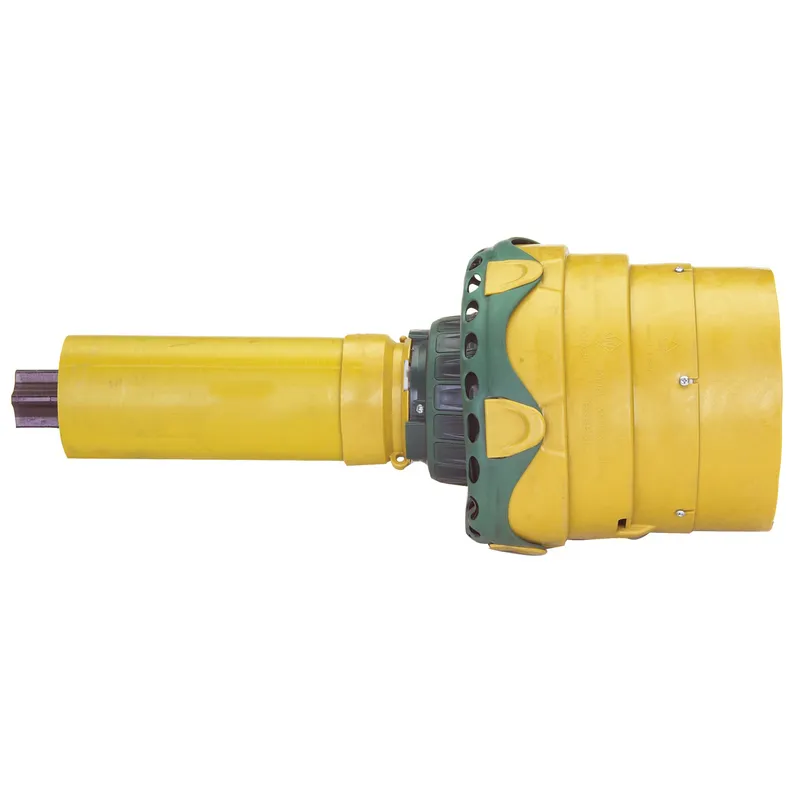

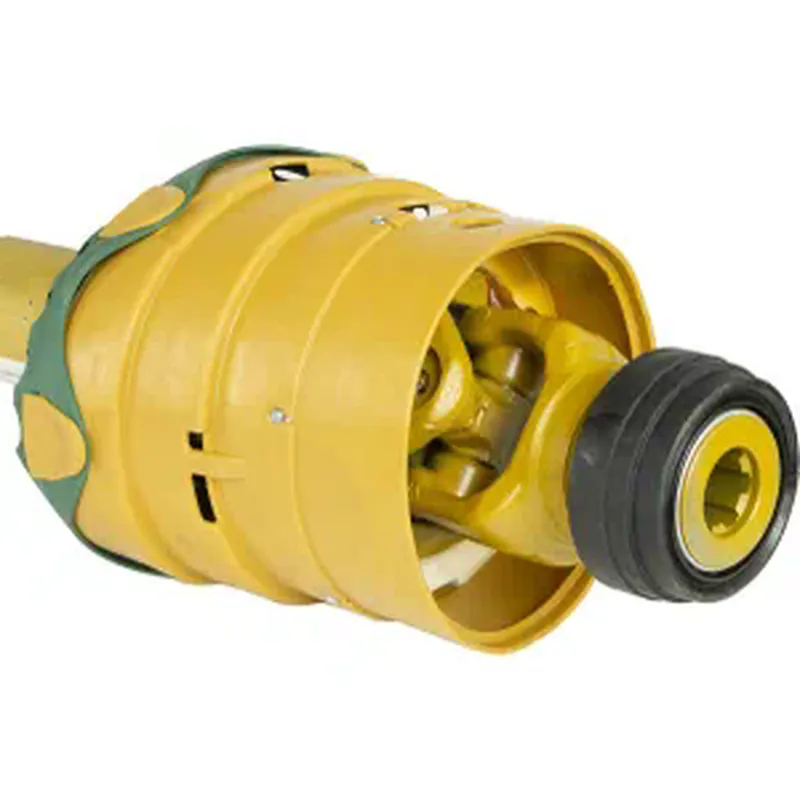

▍Characteristics of WWE2580 Series PTO Shaft

The WWE2580 series PTO shaft is a wide-angle PTO shaft that is designed for use with a variety of agricultural and industrial machines. It is made from high-quality materials and features durable construction that can withstand the demands of everyday use. The WWE2580 series PTO shaft is also easy to install and maintain, making it a great choice for businesses and individuals who need a reliable and efficient PTO shaft.

Here are some of the characteristics of the WWE2580 series PTO shaft:

1. Wide-angle design: The WWE2580 series PTO shaft can be used with a variety of machines thanks to its wide-angle design. This allows the shaft to be used in a variety of applications, such as mowing, tilling, and baling.

2. Durable construction: The WWE2580 series PTO shaft is made from high-quality materials, including steel and aluminum. This makes the shaft very durable and able to withstand the demands of everyday use.

3. Easy to install and maintain: The WWE2580 series PTO shaft is easy to install and maintain. This makes it a great choice for businesses and individuals who do not have a lot of experience with mechanical work.

4. Long service life: The WWE2580 series PTO shaft is designed to last for many years with proper care and maintenance.

5. Safety features: The WWE2580 series PTO shaft has a number of safety features, including a safety guard and a locking pin. These features help to prevent accidents and injuries.

▍WWE2580 Series PTO Shaft Installation

The installation process for a WWE2580 series PTO shaft can vary depending on the specific equipment and application it will be used for. However, here are some general steps that can guide you through the installation process:

Identify the correct shaft: Make sure you have the correct WWE2580 series PTO shaft for your equipment and application. Check the manufacturer's specifications and make sure the shaft is compatible with your equipment.

Clean and lubricate: Clean the PTO shaft and all the components, including the yokes and bearings, with a degreaser or solvent. Apply a light coating of grease to the yokes to ensure smooth rotation.

Install the first yoke: Slide the first yoke onto the shaft and align the holes on the yoke with the holes on the shaft. Insert the retaining pin through the holes to secure the yoke to the shaft.

Install the cross kit: Install the cross kit onto the shaft and make sure it is centered and aligned with the first yoke. The cross kit typically includes four needle bearings that need to be installed in the yoke ears.

Install the second yoke: Slide the second yoke onto the other end of the cross kit and align the holes on the yoke with the holes on the cross kit. Insert the retaining pin through the holes to secure the yoke to the cross kit.

Check for proper fit: Check that the PTO shaft is properly aligned and that there is no binding or interference with any other components.

Test the PTO shaft: Test the PTO shaft for smooth rotation and proper engagement with the equipment. Make sure the PTO shaft is securely attached to the equipment and that all safety shields and guards are in place.

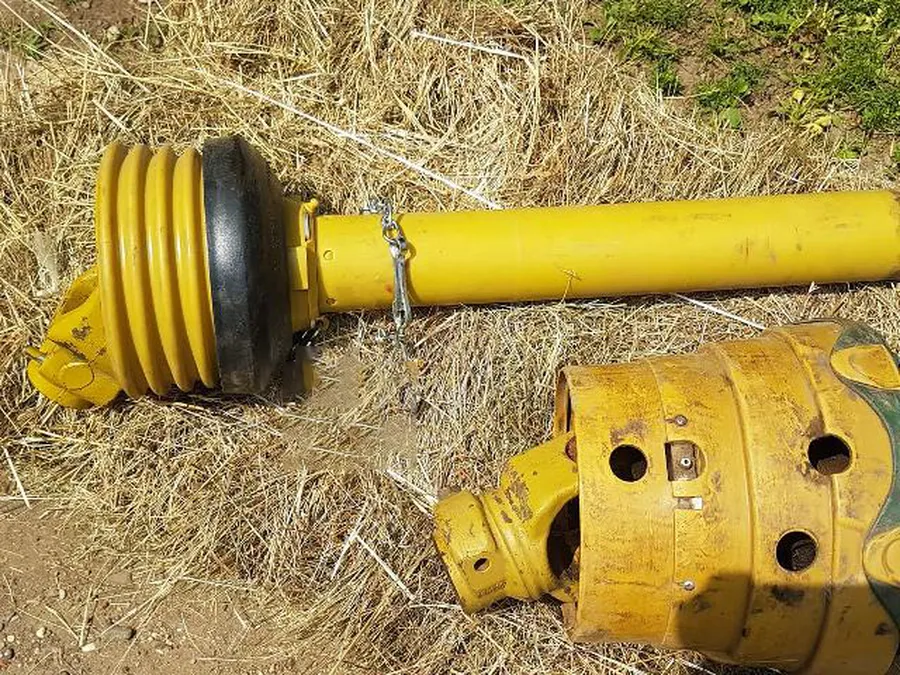

▍WWE2580 Series PTO Shaft Replacement

If you need to replace a WWE2580 series PTO shaft, here are the steps you can follow:

Identify the correct replacement shaft: Make sure you have the correct replacement WWE2580 series PTO shaft for your equipment and application. Check the manufacturer's specifications and make sure the shaft is compatible with your equipment.

Remove the old shaft: Disconnect the old PTO shaft from the tractor and implement it by removing any retaining pins or bolts. Slide the old shaft off the tractor's PTO stub shaft and the implement input shaft.

Clean and lubricate: Clean the stub shaft, input shaft, and all the components, including the yokes and bearings, with a degreaser or solvent. Apply a light coating of grease to the yokes to ensure smooth rotation.

Install the new shaft: Slide the new PTO shaft onto the tractor's PTO stub shaft and the implement input shaft. Make sure the yokes are properly aligned with the shafts and insert the retaining pins or bolts to secure the yokes to the shafts.

Check for proper fit: Check that the new PTO shaft is properly aligned and that there is no binding or interference with any other components.

Test the PTO shaft: Test the new PTO shaft for smooth rotation and proper engagement with the equipment. Make sure the PTO shaft is securely attached to the equipment and that all safety shields and guards are in place.

Always refer to the manufacturer's instructions and safety guidelines when replacing a WWE2580 series PTO shaft or any other equipment. If you are unsure about any aspect of the replacement process, seek professional assistance.

▍Agricultural Gearbox and WWE2580 Series PTO Shaft

An agricultural gearbox and a WWE2580 series PTO shaft are two separate components that are often used together in agricultural machinery. Here's a brief overview of each component and how they work together:

An agricultural gearbox is a mechanical device that is used to transfer power from the tractor to various agricultural implements, such as mowers, tillers, and seeders. The agricultural gearbox is typically mounted on the tractor's PTO (power take-off) and is driven by the engine. The agricultural gearbox then transfers power through a series of gears and shafts to the implement.

A WWE2580 series PTO shaft is a flexible shaft that is used to transfer power from the tractor's PTO to the agricultural gearbox. The PTO shaft typically consists of two yokes and a telescoping driveline that can adjust to the length needed to connect the tractor and the implement. The PTO shaft is designed to be flexible to accommodate the movement of the implement while still being able to transmit power efficiently.

When these two components are used together, the PTO shaft connects the tractor's PTO to the agricultural gearbox input shaft. As the tractor's PTO rotates, the PTO shaft rotates as well, transferring power to the gearbox input shaft. The agricultural gearbox then uses its series of gears and shafts to transfer power to the implement, allowing it to perform its intended function.

It's important to note that agricultural machinery can be dangerous if not used properly. Always read the manufacturer's instructions and follow all safety guidelines when using agricultural gearboxes and PTO shafts. Regular maintenance and inspections are also important to ensure these components are working properly and safely.
