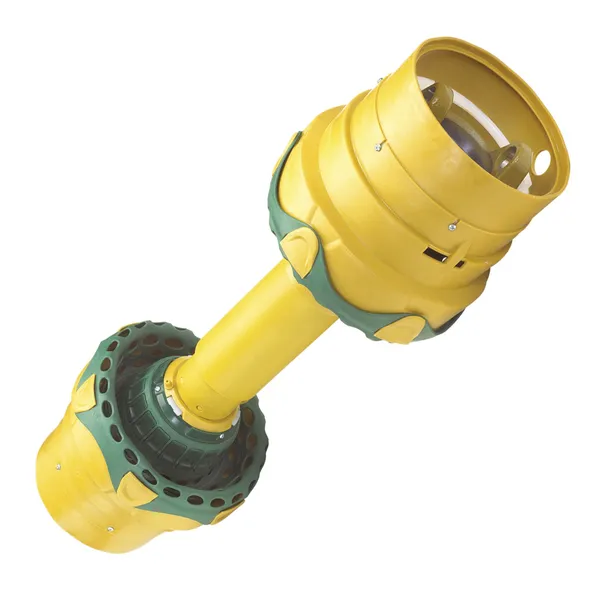

WWZ2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
WWZ2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft
The WWZ2380 series PTO shaft is also equipped with a safety guard, which helps to protect the operator from injury in the event of a failure. The PTO shaft is made from high-quality materials and is built to last. It is a reliable and durable choice for any application that requires a high-performance PTO shaft. If you are looking for a high-quality, heavy-duty PTO shaft that can handle demanding applications, the WWZ2380 series PTO shaft is a great option. It is a reliable and durable choice that will provide you with years of service.
▍WWZ2480 Series PTO Shaft Specifications
| Product Name |
WWZ2480 Series PTO Shaft
|
|---|---|
| Long description |
Wide-angle PTO shafts 80° series WWZ 2480 suitable for feed mixers, fertilizer machines, harvesters, loader wagons, etc.
|
| Product details |
|
| Application range |
|
| Properties |
|
| Technical info |
|
| Connection outside diameter by tractor side |
1-3/8 Inch
|
| Connection number of splines/grooves by tractor side |
6
|
| Consists of |
|
| Locking type by tractor side |
Collar lock
|
| Attachment tractor side |
Quick disconnect yoke
|
| Connection outside diameter by machine side |
1-3/8 Inch
|
| Connection number of splines/grooves by machine side |
6
|
| Locking type by machine side |
Collar lock
|
| Attachment machine side |
Quick disconnect yoke
|
| Size code |
WWZ 2480
|
| Length |
1210 mm
|
| Power 540 rpm |
39 kW
|
| Power 1000 rpm |
61 kW
|
| Cross joint bush diameter by tractor side - longer part |
27 mm
|
| Cross joint bush diameter by tractor side |
32 mm
|
| Cross joint length by tractor side - longer part |
94 mm
|
| Cross joint length by tractor side |
76 mm
|
| Cross joint bush diameter by machine side - longer part |
27 mm
|
| Cross joint bush diameter by machine side |
32 mm
|
| Cross joint length by machine side - longer part |
94 mm
|
| Cross joint length by machine side |
76 mm
|
| Clutch type |
n/a
|
| Outer tube profile |
2aG
|
| Outer tube wall thickness |
3.5 mm
|
| Outer tube large outside diameter |
57.5 mm
|
| Inner tube profile |
1bGA
|
| Inner tube wall thickness |
4.5 mm
|
| Inner tube large outside diameter |
49 mm
|
| Profile tube shape |
Lemon
|
| Max static torque |
4000 N·m
|
| Protection type |
ST25
|
| Original number equivalent |
1800122
|
| Additional info |
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver.
|
▍WWZ2480 Series PTO Shaft Size Chart

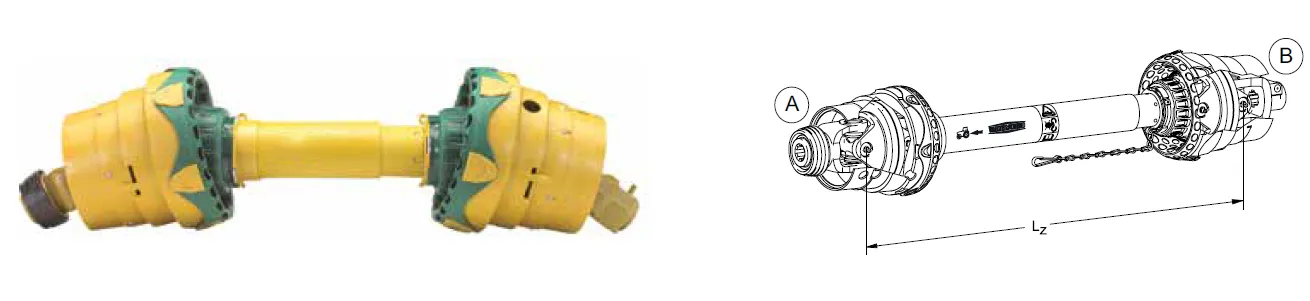

1. WWZ2480 Series PTO Drive Shaft
| Order Number | Type | Lz |
Guard | Tube | A | B | ||
| (mm) | Yoke | Bore dim | Yoke | Bore dim | ||||
| 1113169 | WWZ2480 | 860 | SDF25 | 1bGA/2aG | QSG |
1 3/8” x 6 Spline |
AG |
1 3/8” x 6 Spline |
| 1113170 | WWZ2480 | 1210 | SDF25Z | 1bGA/2aG | ||||
| 1113171 | WWZ2480 | 860 | SDF25 | S4LGA/S5 | ||||
| 1113172 | WWZ2480 | 1210 | SDF25Z | S4LGA/S5 |

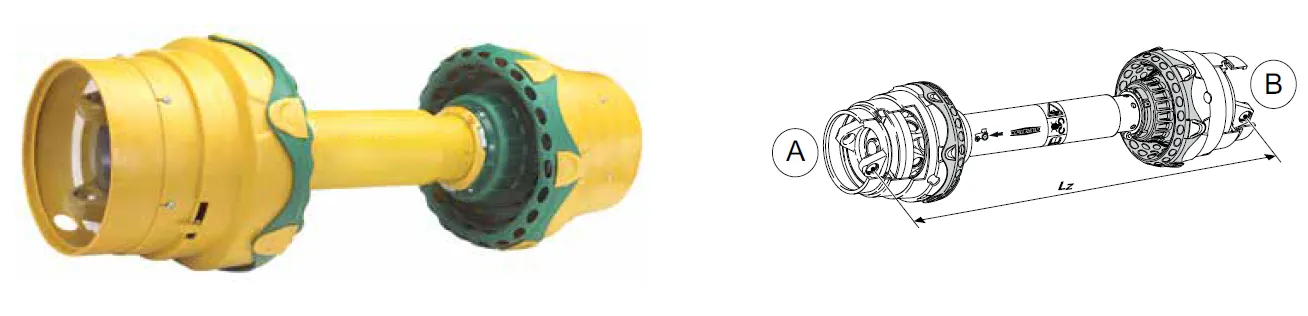

2. WWZ2480 Series PTO Drive Shaft with Wide Angle Joints on Both Sides
| Order Number | Type | Lz (mm) |
Guard | Tube | A | B |
| 1113175 | WWZ2280 | 1210 | SDF15Z | 0vGA/1G | D0PG |
|
| 1113176 | WWZ2380 | 1210 | SDF15Z | 0vGA/1G | ||
| 1113177 | WWZ2380 | 1210 | SDF25Z | 1bGA/2aG | ||
| 1113178 | WWZ2480 | 1210 | SDF25Z | 1bGA/2aG | ||
| 1113179 | WWZ2480 | 1210 | SDF25Z | S4LGA/S5 | ||
| 1113180 | WWZ2580 | 1210 | SDF25Z | S4GA/S5 | ||
▍WWZ2480 Series PTO Shaft Yoke (QSG)
 |
 |
| Size | A | d | D5 | B | L |
| [mm] | [mm] | [mm] | [mm] | ||
| 2380 | 1 3/4” x 20 Spline | 27 | 24 | 84 | 125 |
| 2480 | 1 3/8” x 6 Spline | 32 | 27 | 86 | 126 |
| 2480 | 1 3/8” x 21 Spline | 32 | 27 | 86 | 126 |
| 2480 | 1 3/4” x 6 Spline | 32 | 27 | 86 | 132 |
| 2480 | 1 3/4” x 20 Spline | 32 | 27 | 86 | 132 |
| 2580 | 1 3/8” x 6 Spline | 36 | 30 | 100 | 139 |
| 2580 | 1 3/8” x 21 Spline | 36 | 30 | 100 | 139 |
| 2580 | 1 3/4” x 6 Spline | 36 | 30 | 100 | 139 |
| 2580 | 1 3/4” x 20 Spline | 36 | 30 | 100 | 139 |
▍WWZ2480 Series PTO Shaft Yoke (AG)
| Size | A | d | D5 | B | L |
| [mm] | [mm] | [mm] | [mm] | ||
| 2280 | 1 3/8” x 6 Spline | 24 | 22 | 70 | 98 |
| 2280 | 1 3/8” x 21 Spline | 24 | 22 | 70 | 98 |
| 2280 | 1 3/4” x 20 Spline | 24 | 22 | 70 | 102 |
| 2380 | 1 3/8” x 6 Spline | 27 | 24 | 84 | 107 |
| 2380 | 1 3/8” x 21 Spline | 27 | 24 | 84 | 107 |
| 2380 | 1 3/4” x 6 Spline | 27 | 24 | 84 | 111 |
| 2380 | 1 3/4” x 20 Spline | 27 | 24 | 84 | 111 |
| 2380 | 8x32x38 | 27 | 24 | 84 | 107 |
| 2480 | 1 3/8” x 6 Spline | 32 | 27 | 86 | 112 |
| 2480 | 1 3/8” x 21 Spline | 32 | 27 | 86 | 112 |
| 2480 | 1 3/4” x 6 Spline | 32 | 27 | 86 | 118 |
| 2480 | 1 3/4” x 20 Spline | 32 | 27 | 86 | 112 |
| 2480 | 8x32x38 | 32 | 27 | 86 | 118 |
| 2580 | 1 3/8” x 6 Spline | 36 | 30 | 100 | 125 |
| 2580 | 1 3/8” x 21 Spline | 36 | 30 | 100 | 125 |
| 2580 | 1 3/4” x 6 Spline | 36 | 30 | 100 | 125 |
| 2580 | 1 3/4” x 20 Spline | 36 | 30 | 100 | 125 |
| 2580 | 8x32x38 | 36 | 30 | 100 | 125 |
▍WWZ2480 Series PTO Shaft Yoke (D0PG)
 |
 |
| Size | d(mm) | D5(mm) | L(mm) |
| 2280 | 22 | 22 | 86 |
| 2380 | 24 | 24 | 95 |
| 2480 | 27 | 27 | 104 |
| 2580 | 32 | 30 | 118 |

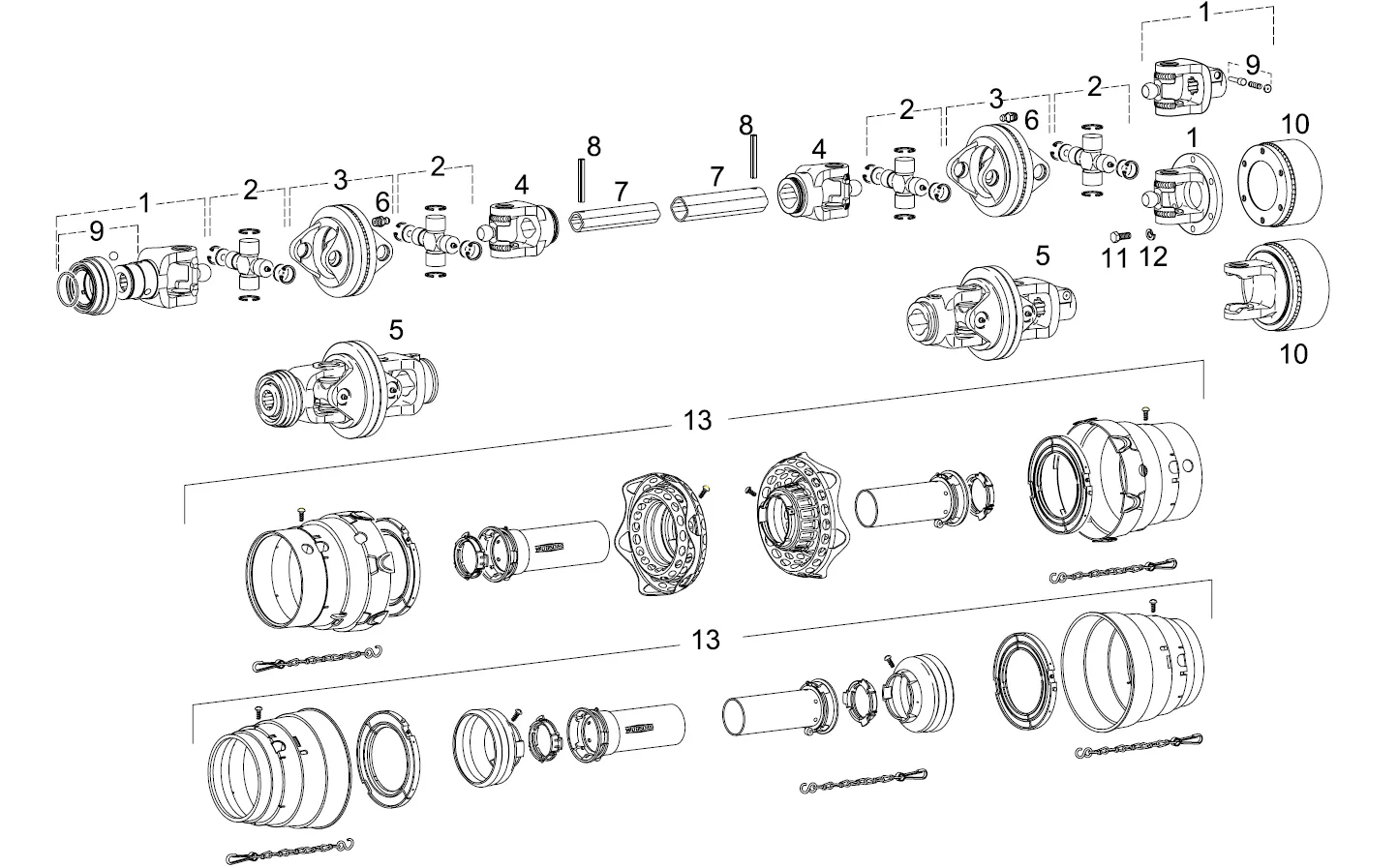

▍WWZ2480 Series PTO Shaft Parts Diagram
The WWZ2380 series PTO shaft is a complex assembly consisting of several parts that work together to transfer power from the tractor to the attached equipment. Here are the main parts of the WWZ2380 series PTO shaft:
| Number | Parts Name | Number | Parts Name |
| 1 | Tractor Yoke | 8 | Roll pin |
| 2 | Cross & Bearing Kit | 9 | Closures for yoke & couplings |
| 3 | Double Yoke | 10 | Slip clutch |
| 4 | Inner Profile Yoke | 11 | Hexagon head screw |
| 5 | Yoke | 12 | Spring washers |
| 6 | Outer Profile Yoke | 13 | PTO shaft guard |
| 7 | Inner Tube |
