XSU Series Crossed Roller Bearings

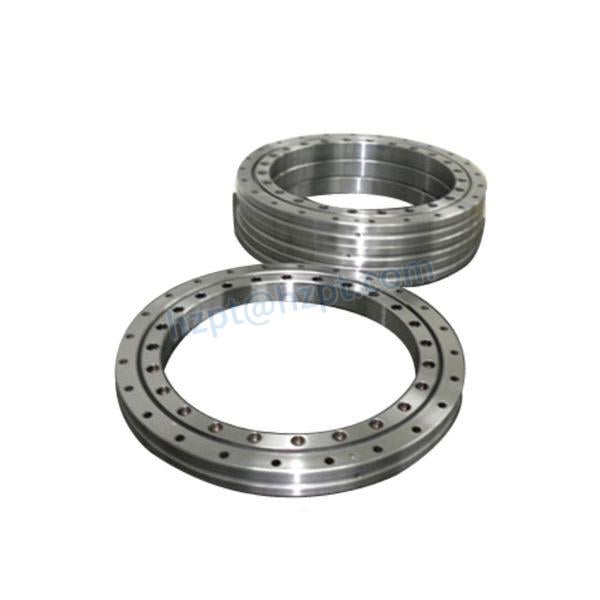

XSU series crossed roller bearings, also known as turntable bearing without a tooth. The inner and outer rings are equipped with mounting holes. The mounting holes can be countersunk or bolted. The outer diameter of the outer ring can be fitted with lubricating nozzles. Rubber seals can be installed on both sides of the bearing.

Get a Quote

XSU Series Crossed Roller Bearings

XSU series crossed roller bearings, also known as turntable bearing without a tooth. The inner and outer rings are equipped with mounting holes. The mounting holes can be countersunk or bolted. The outer diameter of the outer ring can be fitted with lubricating nozzles. Rubber seals can be installed on both sides of the bearing, this type of bearing has two kinds of dimension series, the XSU08 series inner diameter range is Φ130~Φ360mm, and the XSU14 series internal diameter range is Φ344~Φ1024mm.

This model can be used for both inner-ring rotation and outer-ring rotation. Since the mounting holes are provided, this model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure.

Different from XS series crossed roller bearing:

Technical data

(1) XSU08 series Crossed Roller Bearing Catalogue:

shaft diameter Model number  Main dimensions (mm)  Basic load rating(axial) Basic load rating (radial) Limiting speed weight
inner ring d outer ring D width B nB chamfer r(min) ①La (DLi Ca kN Coa KN Cr KN Cor KN r/min Kg
130 XSU080168 130 205 25.4 12 1.1 190 145 66 240 42 96 227 3.3
150 XSU080188 150 225 25.4 16 1.1 210 165 71 275 46 110 203 3.7
180 XSU080218 180 255 25.4 20 1.1 240 195 77 315 49 127 175 4.3
220 XSU080258 220 295 25.4 24 1.5 280 235 84 375 54 151 148 5.1
280 XSU080318 280 355 25.4 28 1.5 340 295 93 465 59 185 120 6.3
360 XSU080398 360 435 25.4 36 2 420 375 106 590 68 236 96 7.8

(2) XSU14 series Crossed Roller Bearing Catalogue:

Type code Da di La na/ni Li Di da A B C D Weight/kg
XSU140414 484 344 460 24 368 415 413 0.04 0.04 0.04 0.06 28
XSU140544 614 474 590 32 498 545 543 0.04 0.04 0.04 0.07 38
XSU140644 714 574 690 36 598 645 643 0.05 0.05 0.05 0.08 44
XSU140744 814 674 790 40 698 745 743 0.05 0.05 0.05 0.09 52
XSU140844 914 774 890 40 798 845 843 0.06 0.06 0.06 0.09 60
XSU140944 1014 874 990 44 898 945 943 0.11 0.11 0.11 0.11 67

Installation Procedure:

1. Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2. Since the Cross-Roller Ring is a thin-wall bearing type and therefore tends to misalign when installed, for ease of this situation, gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3. Place the presser flange onto the Cross-Roller Ring. Rock the flange several times to match the bolt holes.

4. Insert the presser bolts into the holes. Manually turn the bolts and ensure they do not display skewing caused by the misalignment of the holes.

5. Tighten the presser bolts in three to four steps from light to complete tightening by repeatedly securing the bolts in a diagonal order. When drawing (the separable inner or outer ring, slightly turning the integral outer or inner circle will correct the dislocation between the ring and the body.
