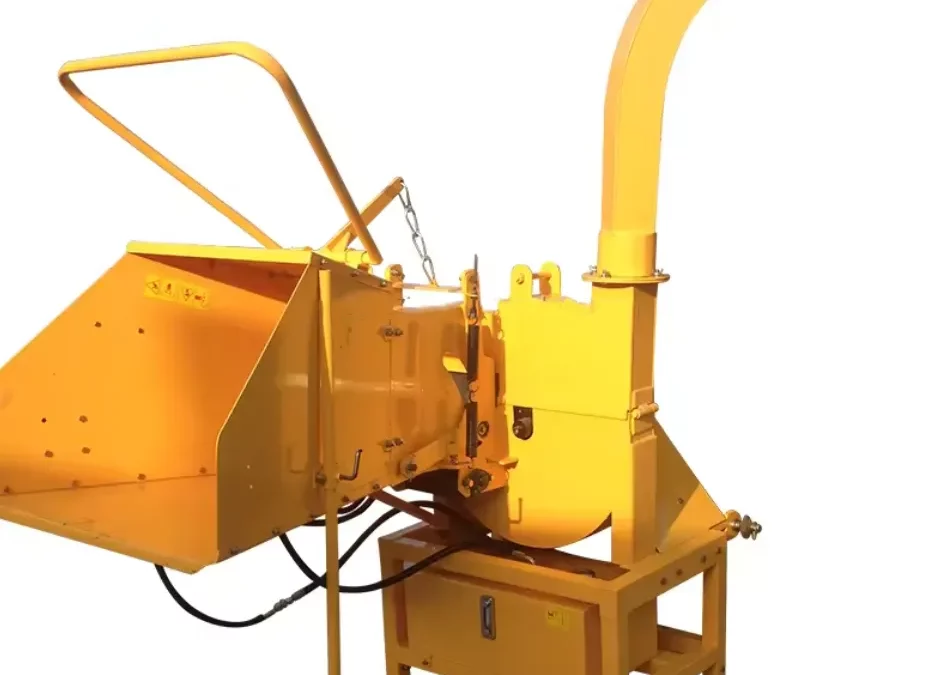

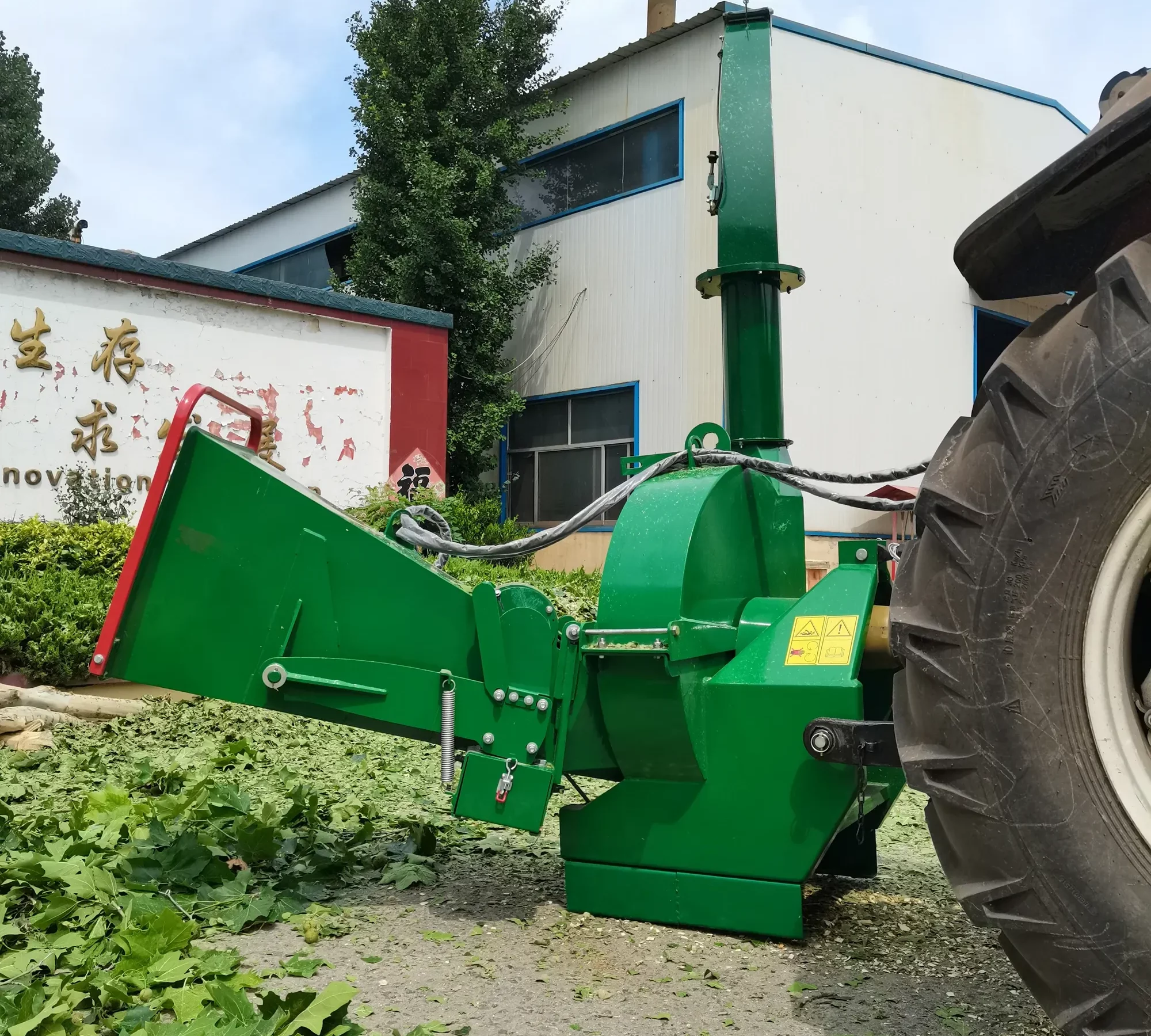

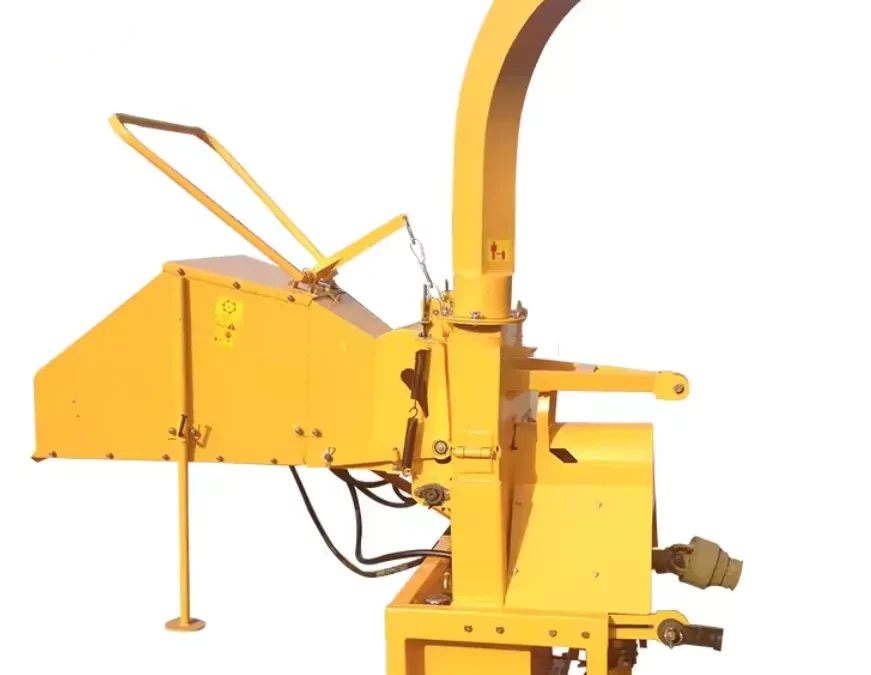

PTO Wood Chipper

Professional Manufacturing PTO Wood Chipper

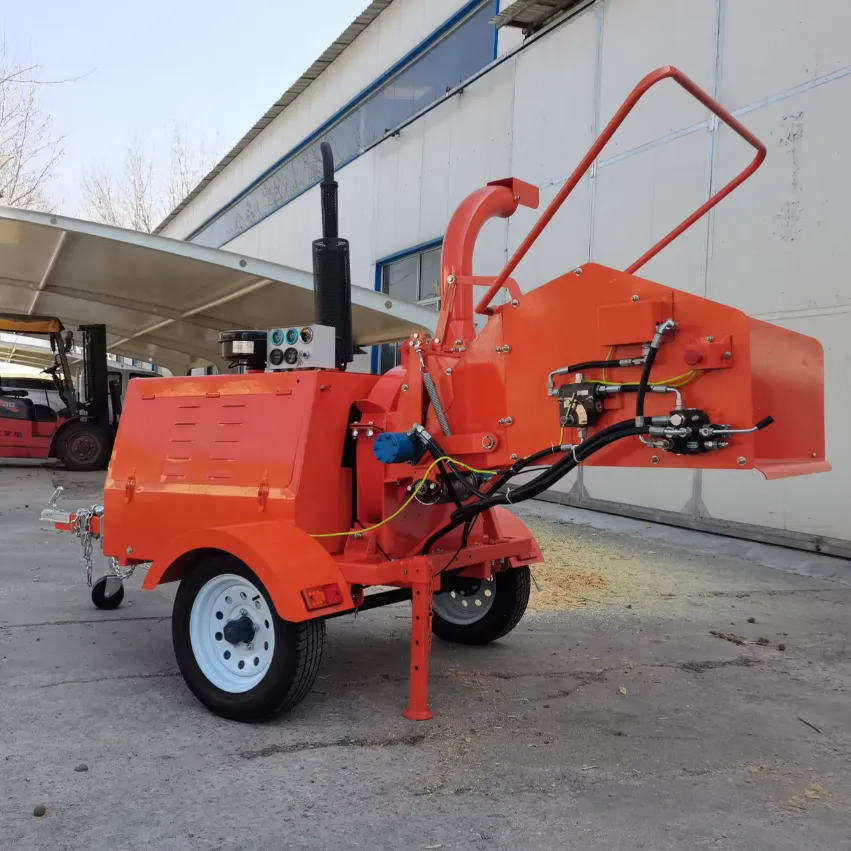

HZPT Machinery Co., Ltd. was built in 1989 to produce agricultural machinery. It develops step by step. 2005 developing PTO wood chipper and diesel wood chipper. soon, the diesel wood chippers are well sold to the world. At the same time, other tractor attachments were developed, such as finish mowers, slashers, road sweepers, and snow blowers. 2009 through it was a hard time all over the world, but two important things made us boom up —OEM road construction machines. and, most importantly, developing the . After one year of testing, in 2010, it was brought to market and quickly became a success. the first year, over 200 units are exported. 2012 over 500 units are exported. rotary rake,finger wheel rake and bale wrapper were made into the haying machines family. 2013 because of the demand of development, two workshops came into service. disc mower is sent to market, and the first order is over 100 units. We got a CE certificate for the Wood chipper WC-8, Diesel wood chipper DWC-22, DWC-40, disc mower, hay rake, round baler, and bale wrapper. 2014 sales volume over $5 million. amount of products: over 2300 units of mini round balers; over 500 units of disc mowers. Over 600 units of rotary hay rakes and finger wheel rakes. Over 400 units of diesel wood chippers. at the end of 2014, we developed a larger round baler and tested it successfully. it was promoted in 2015. this makes us the No.1 manufacturer of haying machines and diesel wood chippers in China.

3 products lines: haying machines—disc mower, rotary hay rake, finger wheel rake, large round baler, mini round baler, bale wrapper; woodworking machines–PTO wood chipper, diesel wood chipper, log splitter; 3PT attachments for tractor—front end loader, backhoe, , road sweeper and etc.

High Quality PTO Wood Chipper for Sale

A tractor PTO wood chipper is a powerful and versatile machine used for chipping or shredding wood into smaller pieces. It is designed to be attached to the rear of a tractor using the tractor's to provide power for the chipper. The PTO wood chipper is commonly used in agricultural, forestry, and landscaping applications to process wood waste, branches, and other organic materials.

The chipper is powered by the tractor's PTO shaft, which transfers power from the tractor's engine to the chipper's cutting mechanism. The tractor's engine should have sufficient horsepower to operate the chipper effectively. The cutting mechanism of a PTO wood chipper typically consists of a heavy-duty rotor with sharp blades or knives. The rotor spins at high speed, drawing in wood material and cutting it into smaller pieces. Some chippers may have an adjustable cutting system to produce different sizes of wood chips or mulch.

The feed hopper is where you place the wood material to be chipped. It is usually equipped with safety features such as a chute or a cover to prevent accidental contact with the cutting mechanism. The size of the feed hopper determines the maximum diameter of the wood that can be chipped. Once the wood is chipped, it is discharged through a chute or spout. The discharge direction can often be adjusted to direct the chips into a container or onto the ground.

PTO wood chippers have various safety features to protect the operator. These may include safety shields, emergency stop buttons, and safety sensors that automatically shut off the chipper if any abnormal operation is detected. PTO wood chippers come in various sizes and capacities, depending on the intended use and the power of the tractor. Smaller models are suitable for homeowners or small-scale applications, while larger models are used in commercial or industrial settings.

Key Components of the PTO Wood Chipper

A PTO (Power Take-Off) wood chipper is an agricultural and landscaping equipment designed to shred tree limbs, branches, and other woody materials into smaller chips. It's powered by a tractor's PTO system, which transfers mechanical power from the tractor to the chipper. Here are the key components that make up a PTO wood chipper:

1. Power Take-Off (PTO): The PTO is the main component that connects the chipper to the tractor. It consists of a splined output shaft on the tractor and a corresponding input shaft on the chipper. The PTO transfers power from the tractor's engine to the chipper, enabling it to operate.

2. Chipper Frame: The chipper frame serves as the main structure that supports all the components of the chipper. It is typically made of heavy-duty steel to withstand the forces and vibrations during operation.

3. Rotor: The rotor is a rotating drum or disc that contains the cutting blades. It is driven by the PTO and spins at high speeds to chip the wood. The rotor can have multiple blades or knives mounted on it, which are strategically positioned to achieve efficient wood chipping.

4. Cutting Blades/Knives: These are sharp, hardened steel blades that are attached to the rotor. They perform the actual cutting and chipping of the wood material. The number and arrangement of the blades can vary depending on the chipper model, but they are designed to effectively shred the wood into chips.

5. Anvil: The anvil is a stationary surface against which the blades strike during rotation. It provides support and resistance, enabling the blades to cut through the wood effectively. The gap or clearance between the blades and the anvil can often be adjusted to control the size of the wood chips.

6. Hopper: The hopper is the opening where the wood material is fed into the chipper. It is usually located at the top of the chipper and designed to accommodate logs or branches of various sizes. The hopper may have safety features like a feed control system or safety shields to prevent accidents during operation.

7. Feed Rollers: Some PTO wood chippers are equipped with feed rollers or hydraulic systems to assist in feeding the wood material into the chipper. These rollers grip and pull the wood into the cutting mechanism, making the feeding process more efficient and safer for the operator.

8. Discharge Chute: Once the wood is chipped, it is directed out of the chipper through a discharge chute. The chute can be adjustable, allowing you to direct the wood chips into a specific location or container.

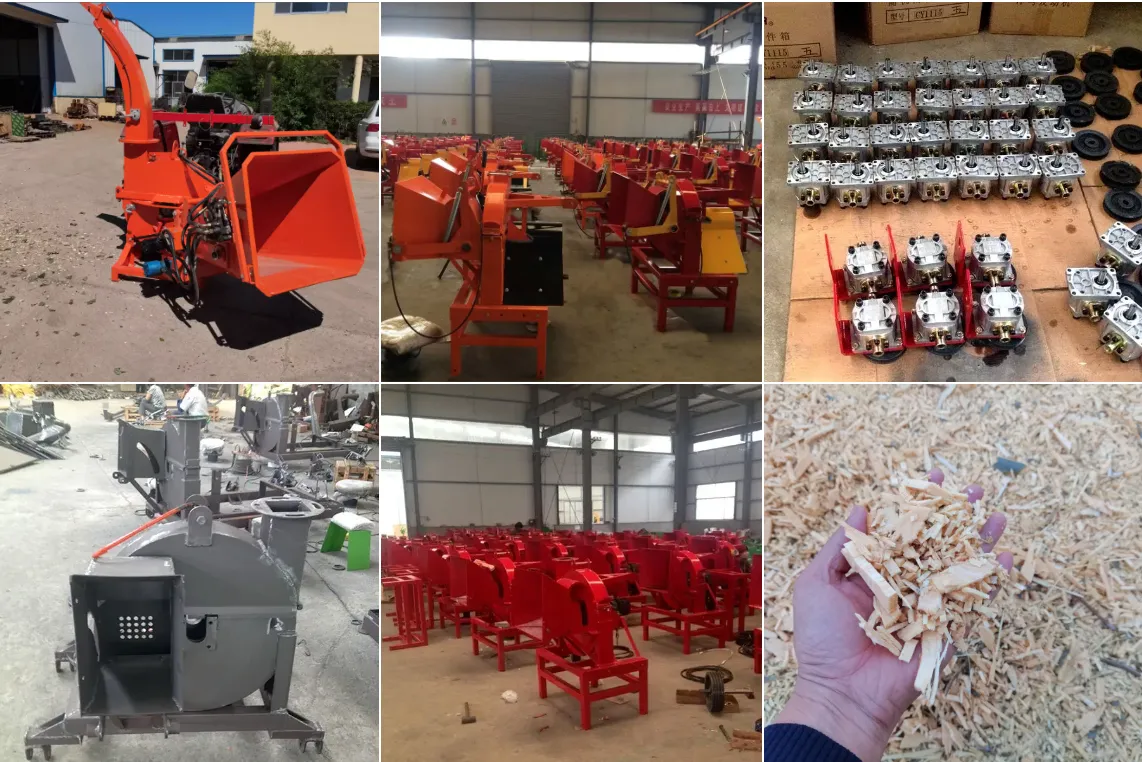

PTO Wood Chipper Manufacturers

Benefits of Using the PTO Wood Chipper

Using a PTO (Power Take-Off) wood chipper offers several significant benefits, especially for those involved in farming, landscaping, or forestry operations. Here's a rundown of the advantages:

1. Efficiency: PTO wood chippers are highly efficient machines for processing wood waste. They can rapidly chip large quantities of wood logs or branches into smaller, manageable wood chips. This saves significant time and effort compared to manual methods of wood disposal or chipping.

2. Versatility: PTO wood chippers can handle a wide range of wood materials, including logs, branches, brush, and other woody debris. They are capable of chipping wood with varying diameters, allowing you to process different sizes of material. This versatility makes them suitable for a variety of applications, such as landscaping, gardening, biomass production, and composting.

3. Mulch Production: One of the primary uses of wood chips produced by a PTO wood chipper is mulch production. Wood chips can be spread around trees, flower beds, or gardens to help retain moisture, suppress weed growth, and improve soil quality. Mulch also provides insulation for plant roots and protects against temperature fluctuations.

4. Waste Reduction: By chipping wood waste with a PTO chipper, you can effectively reduce the volume of wood material for disposal. This is particularly beneficial in forestry, arboriculture, and land clearing operations where large amounts of wood waste are generated. Reducing waste volume can lead to lower disposal costs and more efficient waste management.

5. Cost Savings: Investing in a PTO wood chipper can lead to long-term cost savings. By processing wood waste on-site, you eliminate the need to transport it to off-site disposal facilities, saving transportation costs. Additionally, using wood chips as mulch can reduce the need for additional landscaping materials, further lowering expenses.

6. Portability and Convenience: PTO wood chippers are typically mounted on tractors, making them portable and easy to move around different locations. This allows you to bring the chipper to the site where the wood waste is generated, minimizing the effort and time required for transportation.

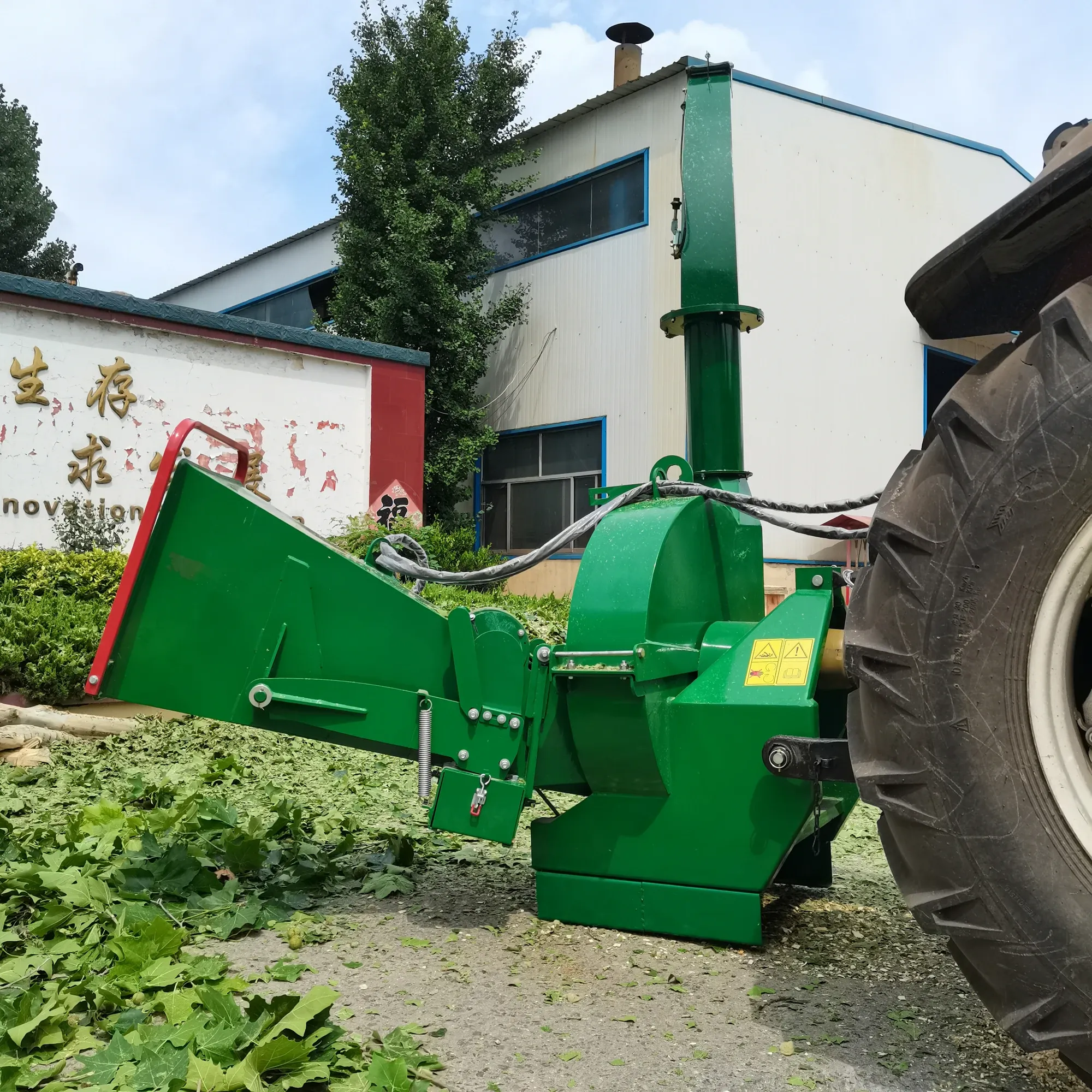

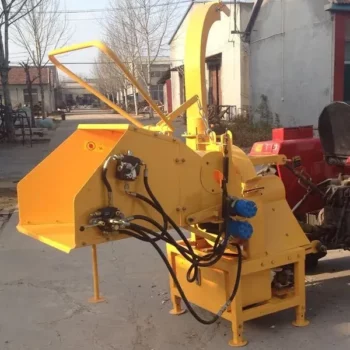

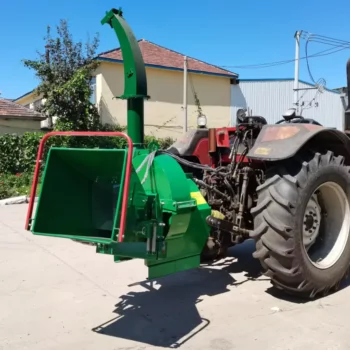

PTO Wood Chipper
PTO Wood Chipper

Working Principle of PTO Wood Chipper

The PTO (Power Take-Off) wood chipper operates on a mechanical principle that efficiently converts wood debris into smaller chips, utilizing the power generated by a tractor. Here's a detailed look at its working principle:

(1) Power Source: The PTO wood chipper is connected to a tractor's power take-off (PTO) system. The PTO system transfers power from the tractor's engine to the chipper. When the tractor's engine is running, it provides the necessary rotational power to operate the chipper.

(2) Feeding the Wood Material: The wood logs or branches are fed into the chipper through the hopper, which is the opening located at the top of the machine. The hopper is designed to accommodate various sizes of wood material.

(3) Chipping Mechanism: Inside the chipper, there is a rotor with sharp blades or knives mounted on it. The rotor is driven by the PTO, and it rotates at high speeds. The wood material is forced against the rotating blades, which cut and chip it into smaller pieces.

(4) Anvil and Blade Clearance: The blades on the rotor strike against a stationary surface called the anvil. The anvil provides support and resistance, allowing the blades to effectively chop the wood material. The clearance or gap between the blades and the anvil can often be adjusted to control the size of the wood chips produced.

(5) Feed Rollers (Optional): Some PTO wood chippers are equipped with feed rollers or hydraulic systems to assist in feeding the wood material into the chipper. These rollers grip and pull the wood material into the cutting mechanism, ensuring a consistent and continuous feeding process.

(6) Discharge of Wood Chips: Once the wood material is chipped, the chips are expelled through a discharge chute. The direction and angle of the chute can often be adjusted, allowing you to direct the wood chips into a specific location or container.

3 Point Hitch Tractor PTO Wood Chipper Working Principle

PTO Wood Chipper Application Scenarios

PTO wood chippers are versatile machines widely used in various scenarios ranging from agricultural settings to residential property maintenance and forestry management. Their ability to quickly and efficiently process tree limbs, branches, and other woody debris into chips makes them invaluable for:

1. Landscaping and Gardening: PTO wood chippers are widely used in landscaping and gardening applications. They can chip tree branches, shrub trimmings, and other yard waste, turning them into wood chips that can be used as mulch for garden beds, pathways, or around trees. Wood chips help retain moisture, suppress weed growth, and enhance the aesthetic appeal of landscaped areas.

2. Forestry and Logging: In forestry and logging operations, PTO wood chippers are used to process tree limbs, branches, and other woody debris generated during timber harvesting. Chipping the waste material on-site reduces the need for costly transportation and disposal of large volumes of wood waste. The resulting wood chips can be utilized for erosion control, biomass fuel, or other applications.

3. Farm and Agricultural Operations: PTO wood chippers find applications in agricultural settings. They can chip agricultural waste, such as crop residues, corn stalks, or straw, for use as animal bedding, composting material, or as a nutrient-rich mulch in crop production. Chipping agricultural waste streamlines waste management and provides additional value to the farm operation.

4. Tree Care and Arboriculture: Arborists and tree care professionals utilize PTO wood chippers to process tree limbs and branches that are pruned or removed. The chipped material can be utilized as mulch or transported for recycling purposes. Using a PTO wood chipper on-site allows for efficient cleanup and removal of tree debris, reducing the labor and costs associated with waste disposal.

5. Municipal Waste Management: PTO wood chippers are employed by municipalities for wood waste management. They can chip fallen trees, storm debris, and tree trimmings, transforming them into wood chips that can be used for various purposes, including mulch for public parks, trail surfaces, or composting operations. Efficient wood waste management helps reduce landfill usage and promotes sustainability.

6. Construction and Demolition Sites: PTO wood chippers can be utilized on construction or demolition sites to process wood waste generated during building projects. They can chip lumber scraps, tree stumps, and other wood materials, making it easier to handle and dispose of the waste. This promotes a cleaner and more organized work environment.

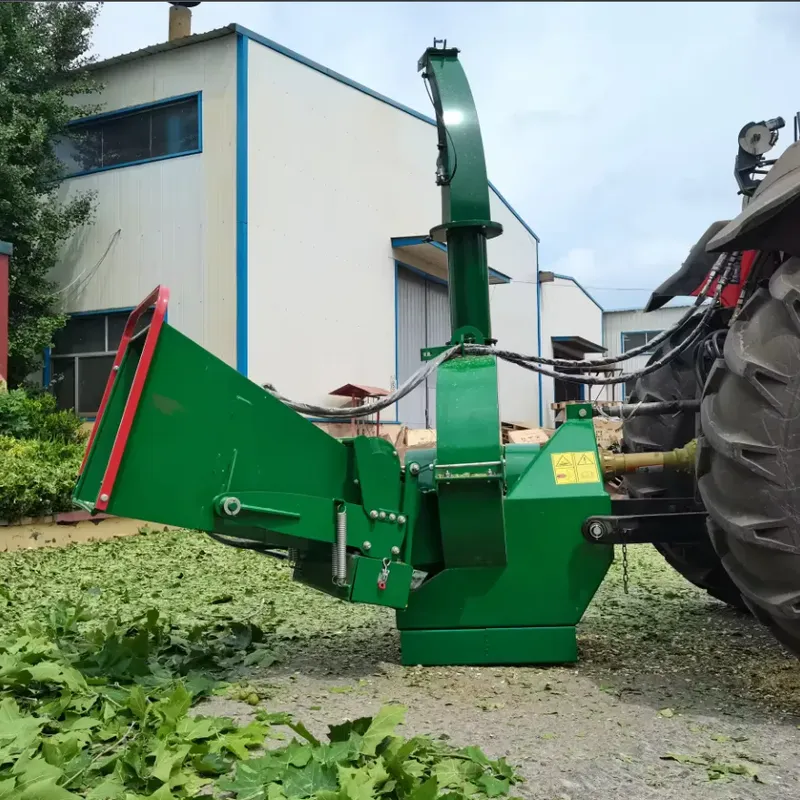

Tractor PTO Wood Chipper Applications

PTO Wood Chipper Operation Precautions

Operating a PTO (Power Take-Off) wood chipper safely and efficiently requires adherence to certain precautions. These machines, while incredibly useful for managing wood and brush debris, can be dangerous if not used properly. Here are essential operation precautions to ensure safety and optimize performance:

Before Operation

  • Read the Manual: Familiarize yourself with the chipper's operating instructions, safety warnings, and maintenance requirements detailed in the manufacturer's manual.
  • Inspect the Chipper: Check for any damage or wear on the chipper's blades, PTO shaft, safety shields, and other components. Ensure everything is in good working condition.
  • Wear Proper Safety Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear.
  • Check the Work Area: Ensure the area around the chipper is clear of obstacles, people, and pets. Set up the chipper on stable, level ground.
  • Securely Attach the Chipper: Connect the chipper to the tractor's PTO shaft following the manufacturer's instructions, ensuring all connections are secure and safety pins are in place.

During Operation

  • Feed Material Carefully: Only feed material into the chipper that it is designed to handle, avoiding metals, stones, or overly thick branches that could damage the blades or cause a jam.
  • Maintain a Safe Distance: Stand to the side of the hopper when feeding material into the chipper to avoid being caught by sudden movements of the material.
  • Never Reach Into the Hopper: If a blockage occurs, turn off the chipper and the tractor, remove the key, and wait for all moving parts to stop before attempting to clear the blockage using appropriate tools.
  • Use a Push Stick: When pushing smaller pieces of material into the chipper, use a push stick to keep hands and arms away from the feed chute.
  • Monitor Chipper Performance: Be alert to changes in the sound or performance of the chipper, which can indicate a jam or mechanical issue.

After Operation

  • Disengage and Power Down: After completing chipping operations, disengage the PTO and turn off the tractor before disconnecting the chipper.
  • Perform Post-Use Inspection and Maintenance: Check for and clear any remaining debris in the chipper. Inspect for wear or damage, and perform any recommended maintenance tasks, such as lubrication.

General Safety Tips

  • Stay Alert: Always be aware of your surroundings and the operation of the chipper. Fatigue or distractions can lead to accidents.
  • Educate Operators: Ensure anyone operating the chipper is properly trained and understands the manufacturer's safety and operating instructions.
  • Keep Bystanders Away: Make sure that all bystanders, especially children and pets, are a safe distance away from the work area during chipper operation.

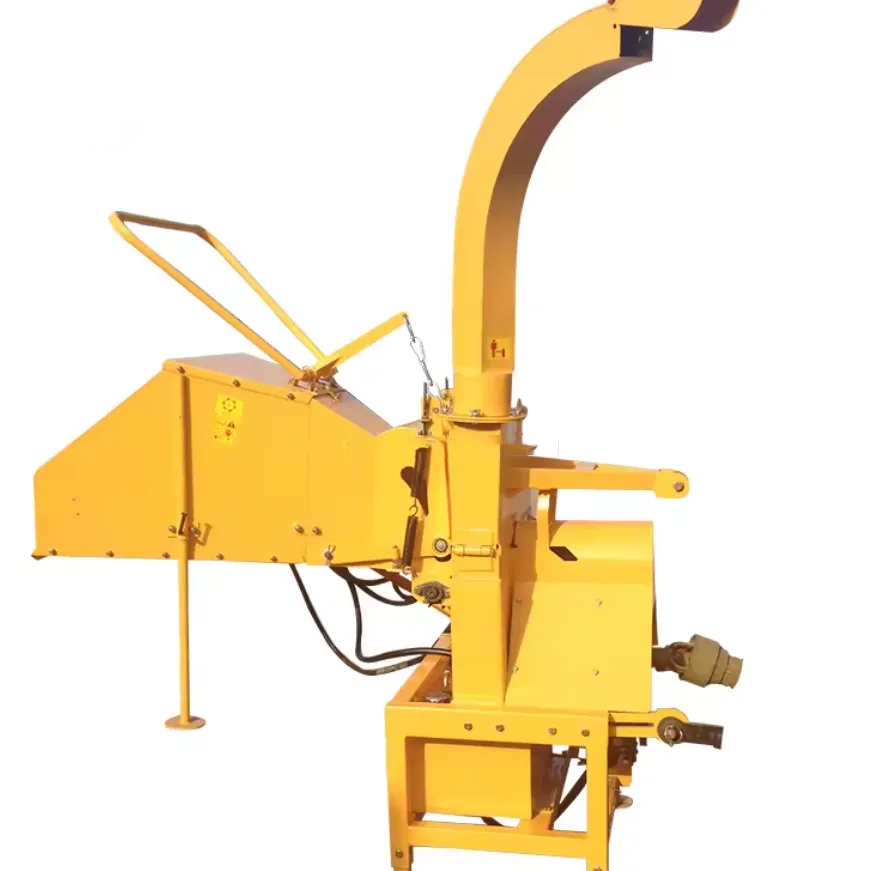

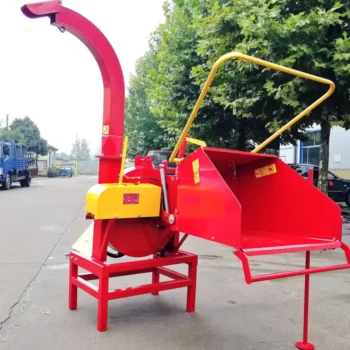

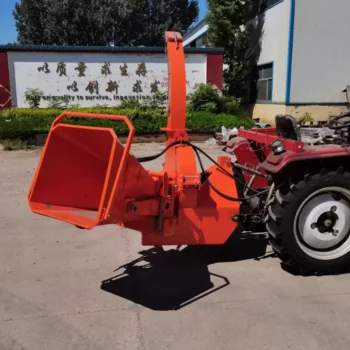

PTO Wood Chipper
PTO Wood Chipper

Why Choose HZPT?

When it comes to choosing a PTO wood chipper, HZPT Agricultural Machinery Co., Ltd. stands out as a leading choice. Here are some key reasons why HZPT's PTO Wood Chipper is your best option:

1. Experience and Expertise: With over 100 employees, including 20 technical staff and five senior R&D personnel, HZPT has more than ten years of experience in producing high-quality farming machinery.

2. Advanced Technology and Facilities: HZPT uses CAD computer-aided design systems and boasts advanced production lines for casting, forging, machining, heat treatment, and lacquering. This ensures the production of top-quality products.

3. Wide Range of Products: HZPT produces a wide variety of farming machinery and accessories, catering to the needs of different types of agricultural tasks. From PTO shafts and agricultural gearboxes to corn seeders, drum mowers, rotary hay rakes, flail mowers, and more, HZPT has got you covered.

4. Quality Assurance: All products produced by HZPT are of superior quality and performance. This ensures that your farming tasks are handled efficiently and effectively.

5. Excellent After-Sales Service: HZPT offers comprehensive after-sales service, including training on how to install and use the machine, and quick delivery of spare parts. This ensures that you can use your HZPT PTO Wood Chipper with confidence and ease.

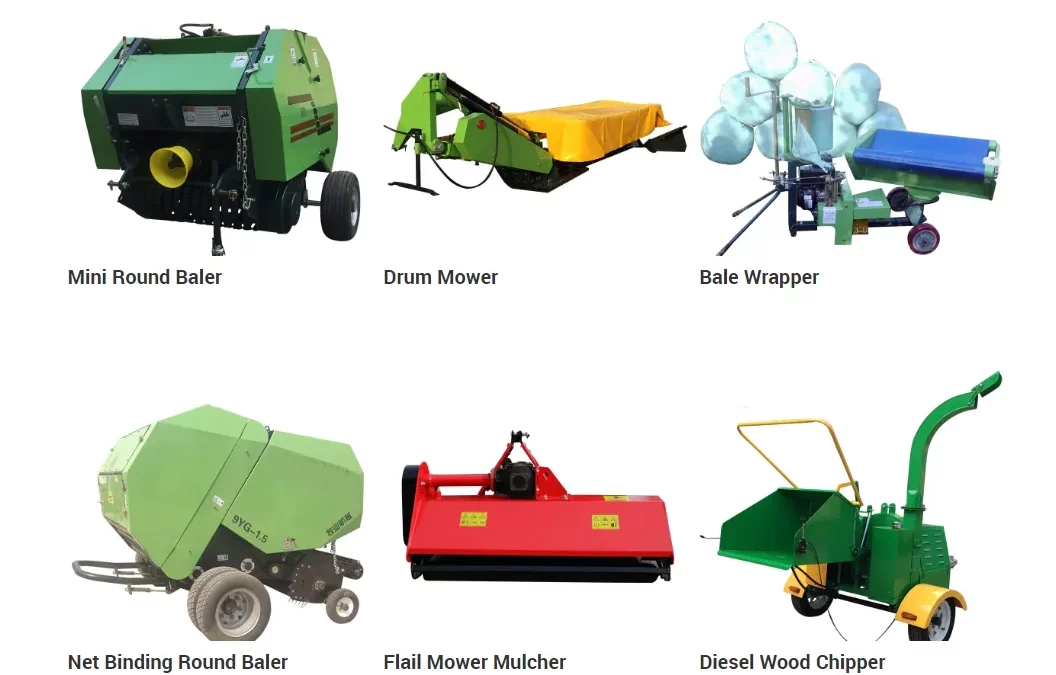

Other Agricultural Equipment
